NSN 4730-01-046-7513 10108500 , 7M148, 7M148DA6
Product Details | TUBE ELBOW
4730-01-046-7513 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 10108500 , 7M148, 7M148DA6, 4730-01-046-7513, 01-046-7513, 4730010467513, 010467513
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 AUG 1977 | 01-046-7513 | 03771 ( ELBOW, TUBE ) |

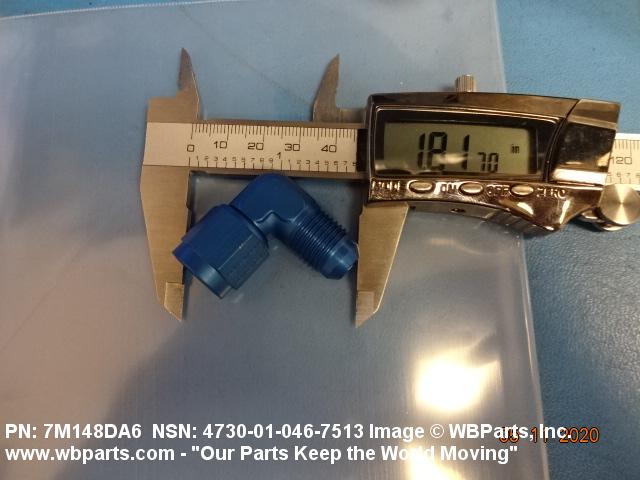

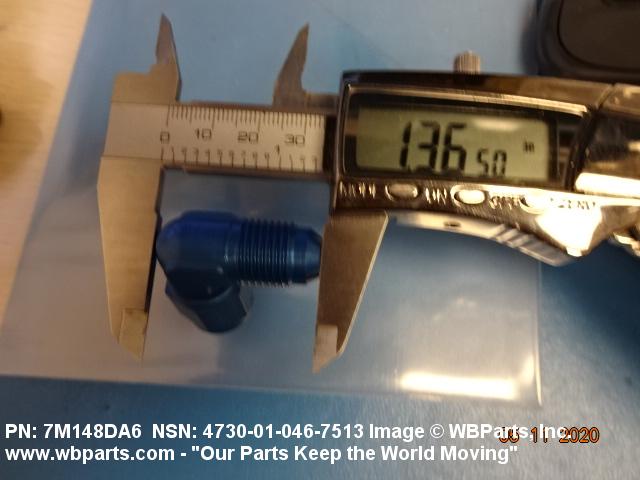

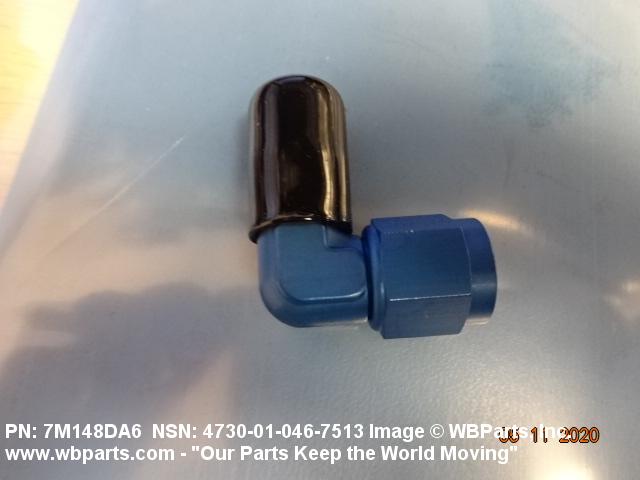

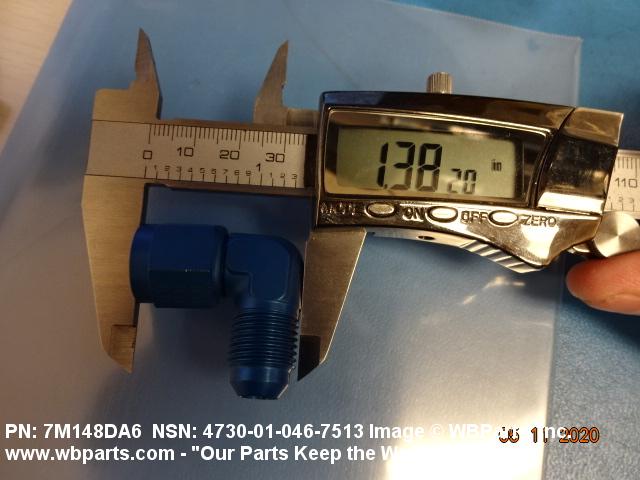

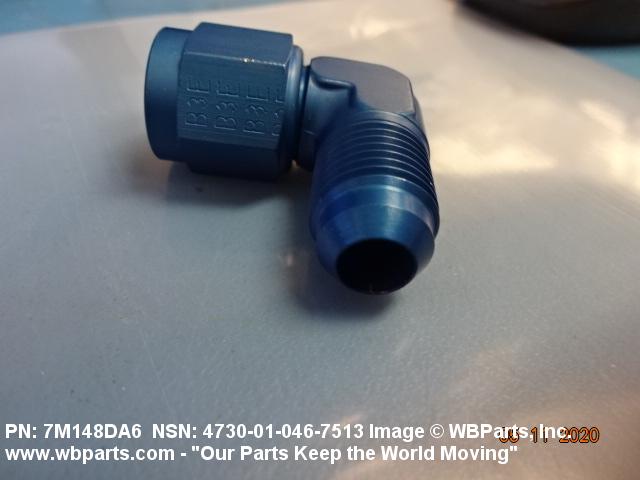

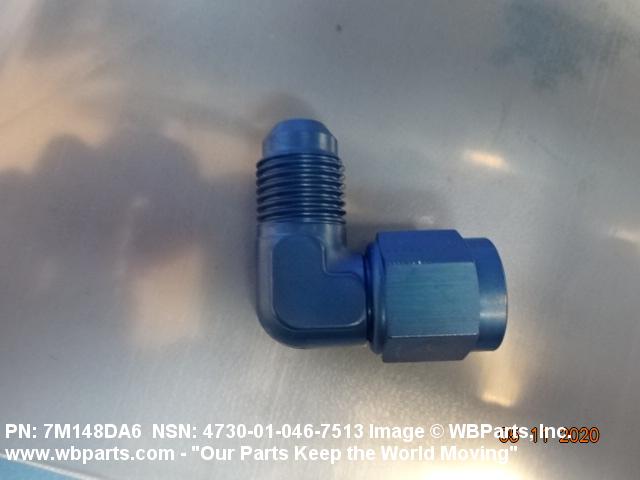

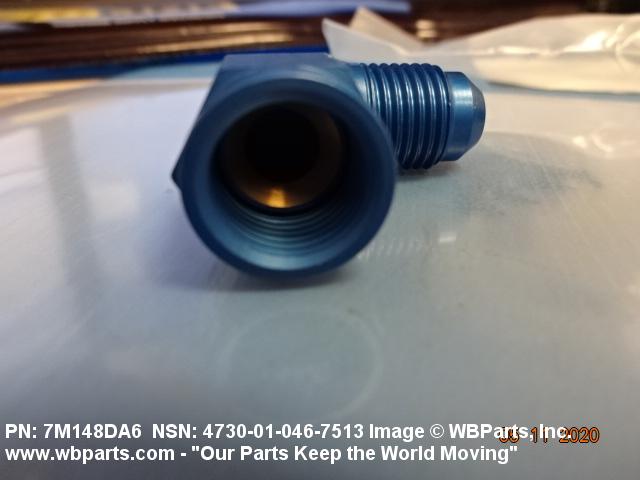

Drawings & Photos | NSN 4730-01-046-7513
Demand History | NSN 4730-01-046-7513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-046-7513 | 2021-07-193 | 9 | us |
| 4730-01-046-7513 | 2020-05-133 | 594 | United States |
| 4730-01-046-7513 | 2020-05-125 | 250 | United States |
| 4730-01-046-7513 | 2020-04-119 | 250 | United States |
| 4730-01-046-7513 | 2020-04-119 | 350 | United States |
| 4730-01-046-7513 | 2020-04-111 | 198 | US |
| 4730-01-046-7513 | 2020-04-99 | 250 | United States |
| 7M148DA6 | 2020-04-94 | 594 | United States |
| 4730-01-046-7513 | 2019-11-316 | 85 | United States |
| 4730-01-046-7513 | 2019-11-316 | 80 | United States |
| 4730-01-046-7513 | 2018-05-126 | 840 | DIBBS |
| 4730-01-046-7513 | 2018-03-74 | 583 | DIBBS |
| 4730-01-046-7513 | 2017-09-271 | 930 | DIBBS |
| 4730-01-046-7513 | 2017-03-61 | 564 | DIBBS |
| 4730-01-046-7513 | 2016-08-236 | 132 | DIBBS |
| 4730-01-046-7513 | 2015-07-197 | 270 | DIBBS |
| 4730-01-046-7513 | 2015-05-133 | 21 | United States |
| 4730-01-046-7513 | 2013-06-181 | 198 | DIBBS |
| 4730-01-046-7513 | 2010-09-251 | 299 | DIBBS |
Cross Reference | NSN 4730-01-046-7513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7M148 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 7M148DA6 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| 7M148DA6 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| 7M148DA6 | 14397 | FABER ENTERPRISES, INC. |
| 7M148DA6 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| 7M148DA6 | 52930 | NELSON AERO SPACE, INC. |
| 7M148DA6 | 59680 | B. & E. MANUFACTURING CO., INC. |
| 7M148DA6 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-046-7513
Related Products | NSN 4730-01-046-7513
Technical Data | NSN 4730-01-046-7513
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC 1ST MATERIAL RESPONSE ELBOW QQ-A-225/6,T6 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-225/6,T851 FED SPEC 3RD MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | B64 FLARED 1ST END |
| NOMINAL WIDTH ACROSS FLATS | 0.582 INCHES CENTER BULKHEAD |
| THREAD SERIES DESIGNATOR | UNC 1ST END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 18 1ST END |
| LEG LENGTH | 1.062 INCHES MINIMUM AND 1.109 INCHES MAXIMUM 1ST END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 01673 |
| DESIGN CONTROL REFERENCE | 7M148DA6 |
Restrictions/Controls & Freight Information | NSN 4730-01-046-7513
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-046-7513
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
