NSN 4730-01-046-6807 S619310, S6-19310, S619310450
Product Details | SEDIMENT STRAINER ELEMENT
4730-01-046-6807 A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.
Part Alternates: S619310, S6-19310, S619310450, S6-19310-450, S619310450MIC, S6-19310-450MIC, S619310450MICRON, S6-19310-450MICRON, 9197063, 97063, 4730-01-046-6807, 01-046-6807, 4730010466807, 010466807
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 AUG 1977 | 01-046-6807 | 18347 ( STRAINER ELEMENT, SEDIMENT ) |

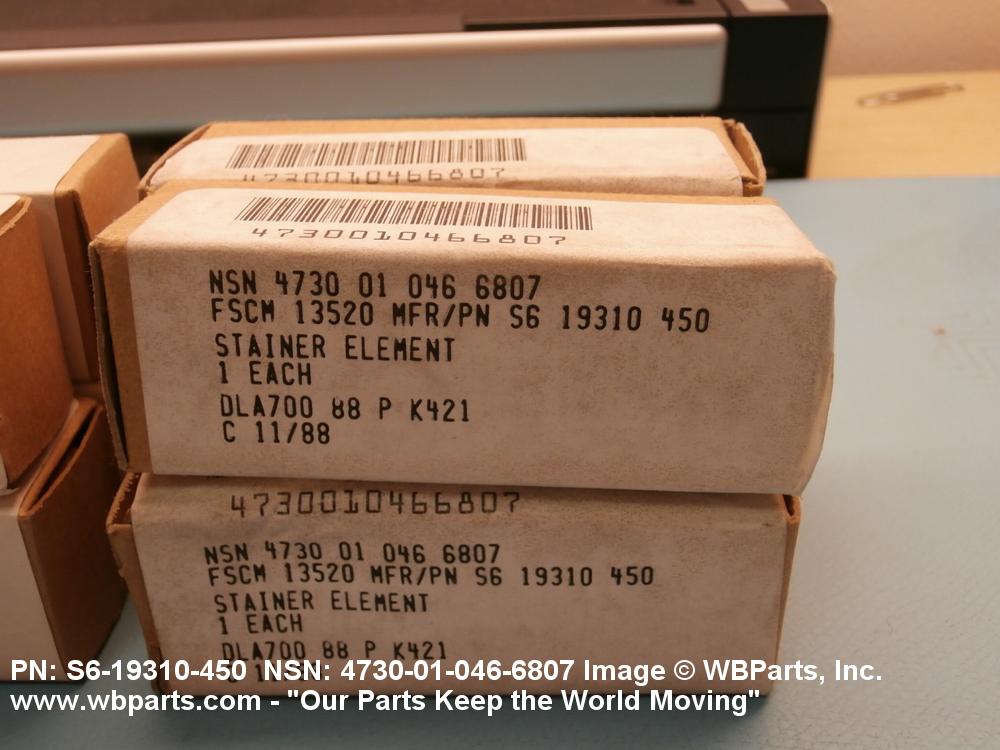

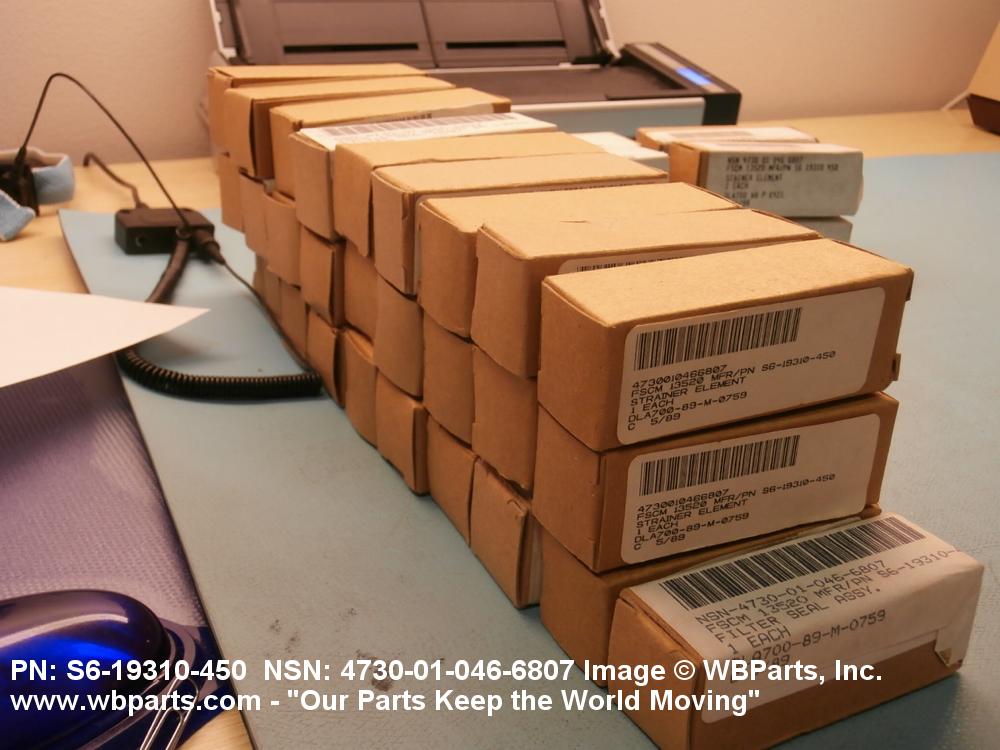

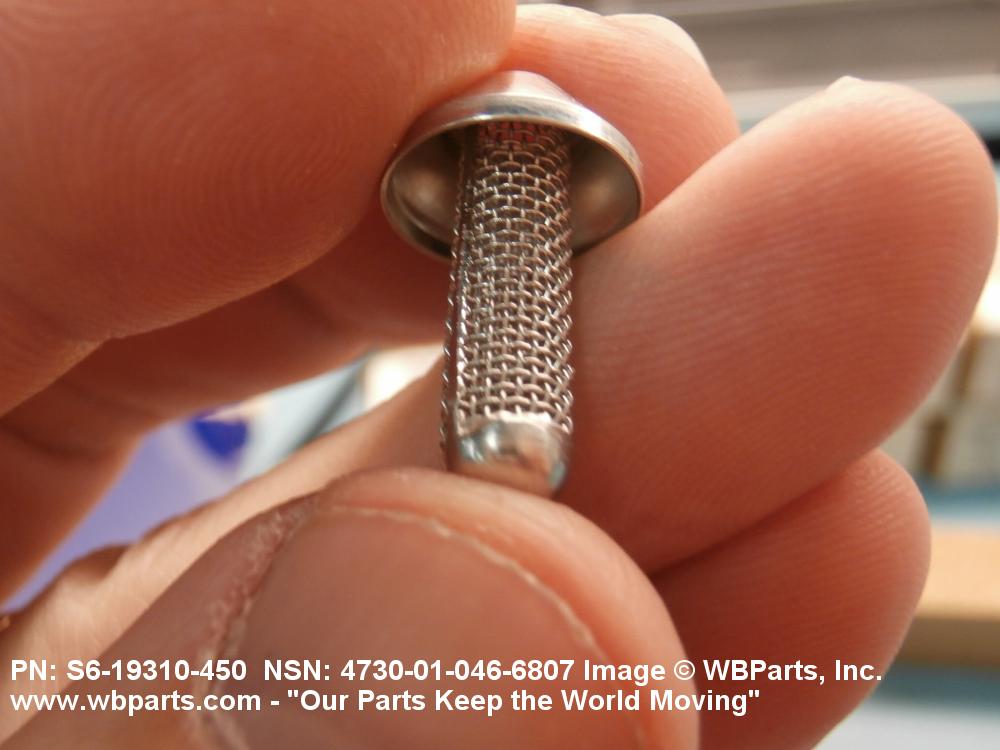

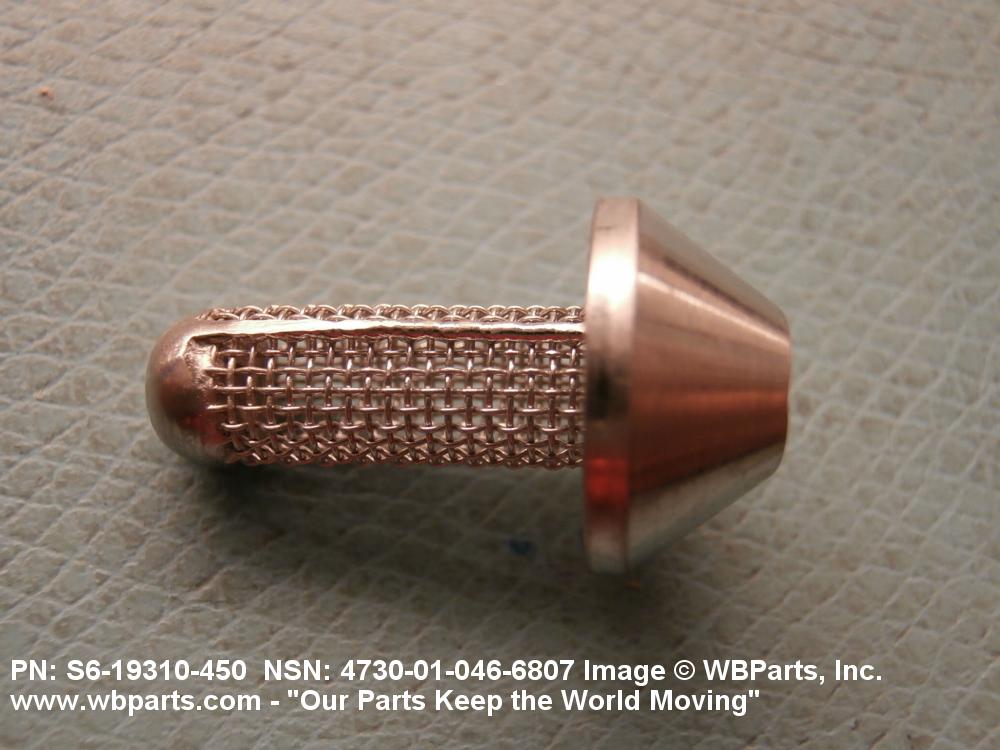

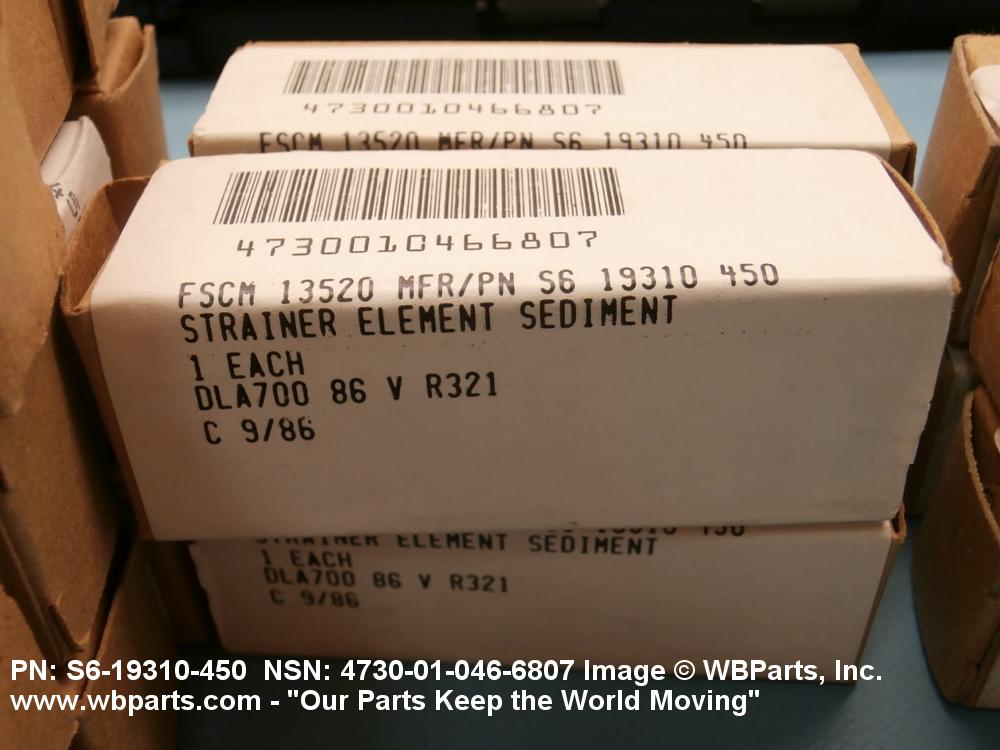

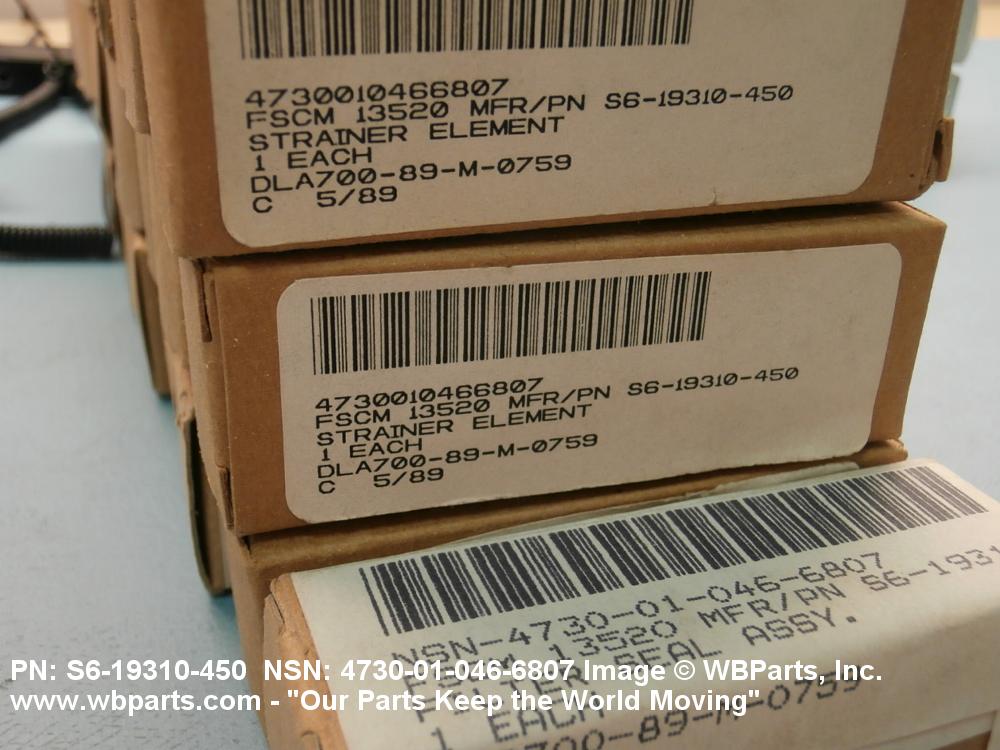

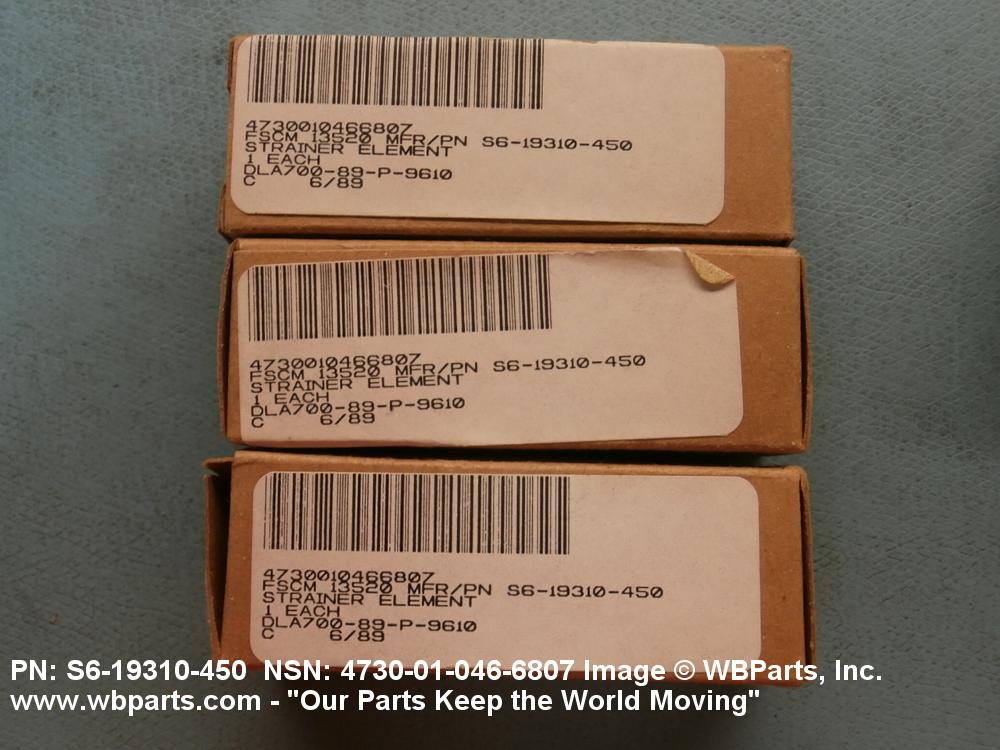

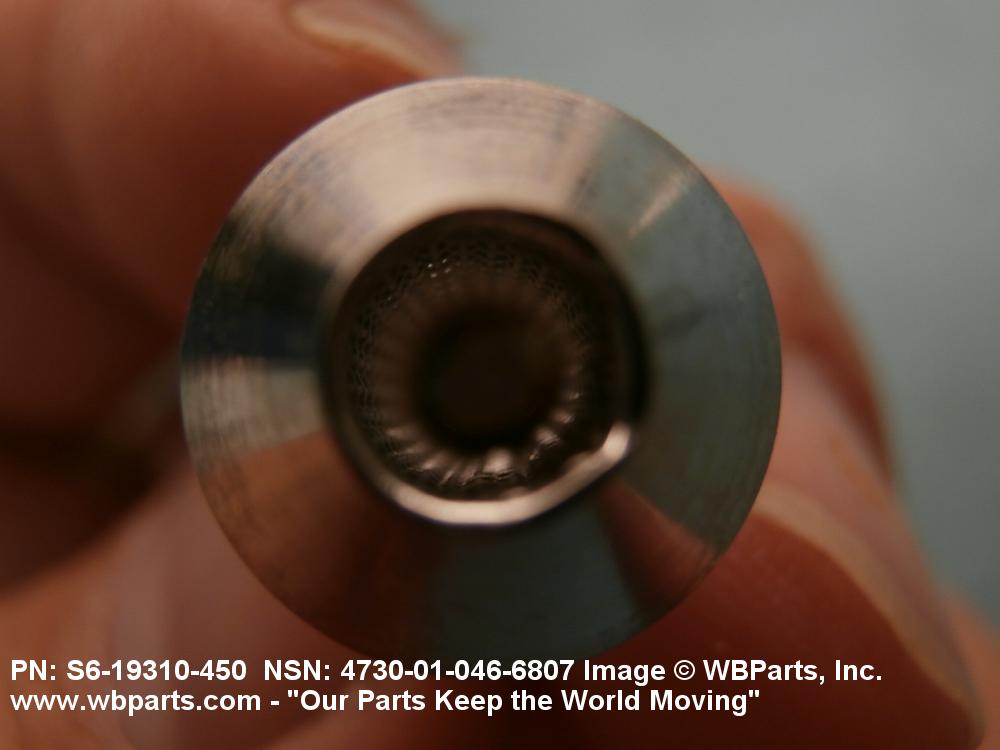

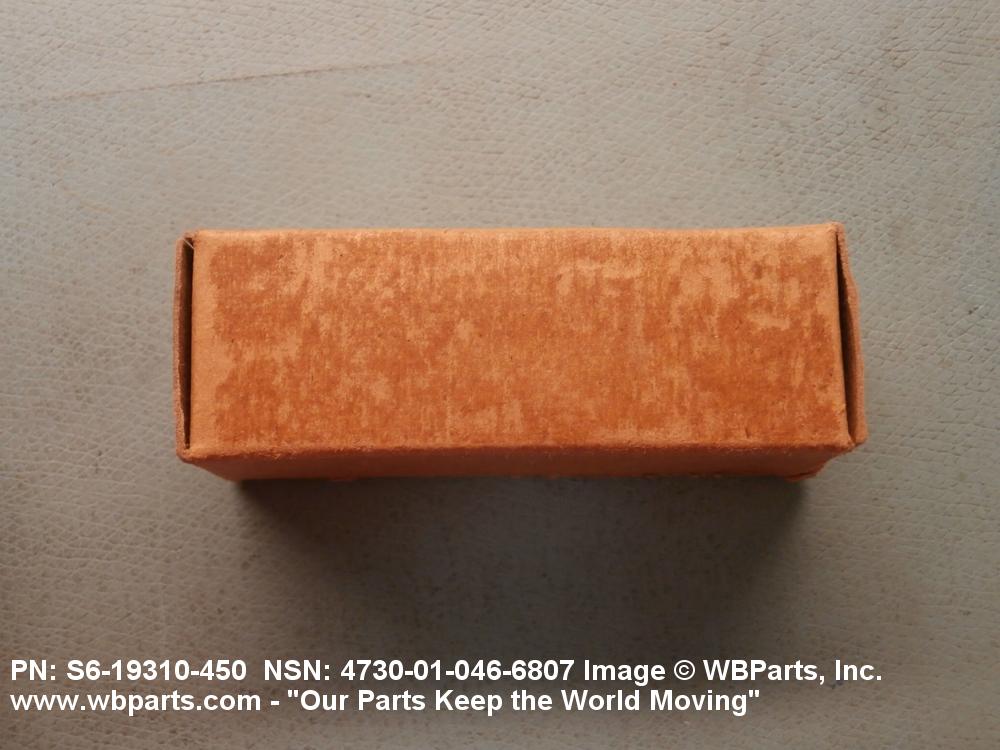

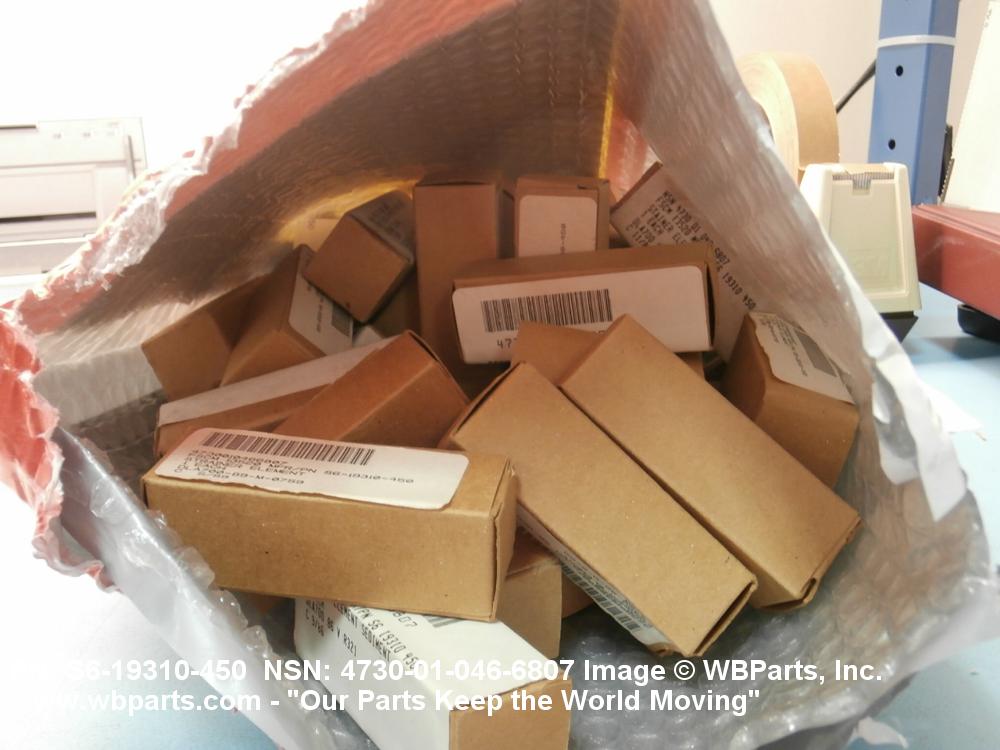

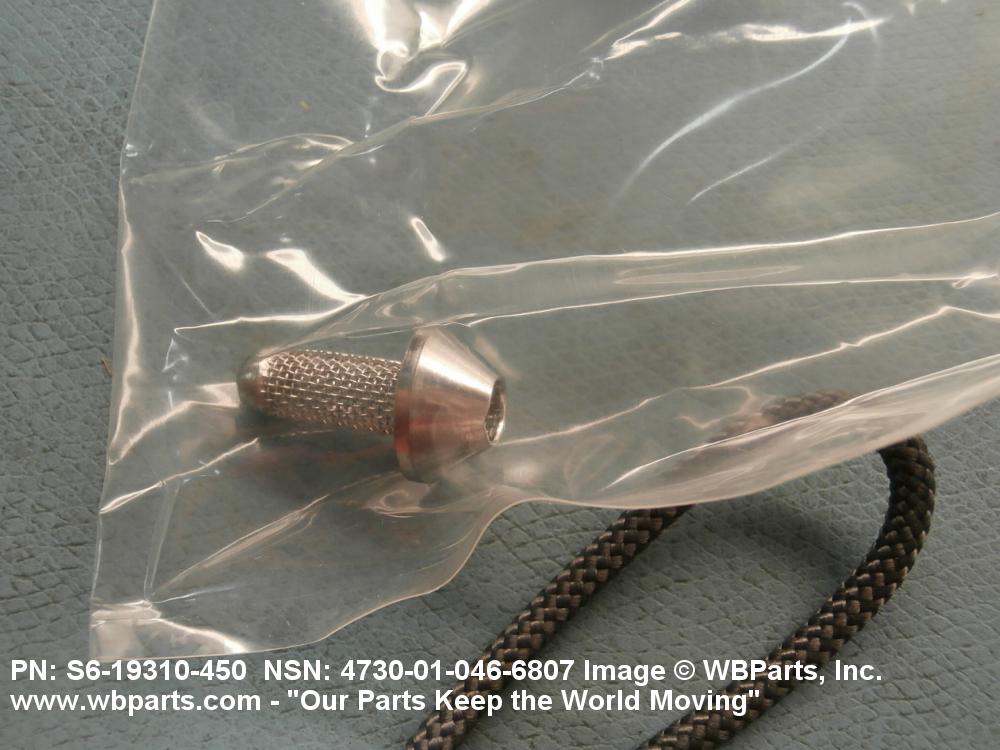

Drawings & Photos | NSN 4730-01-046-6807
Demand History | NSN 4730-01-046-6807
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-046-6807 | 2014-11-322 | 103 | DIBBS |
| 4730-01-046-6807 | 2014-01-27 | 54 | DIBBS |
| 4730-01-046-6807 | 2014-01-12 | 54 | DIBBS |
| 4730-01-046-6807 | 2013-08-240 | 58 | DIBBS |
| 4730-01-046-6807 | 2013-08-225 | 58 | DIBBS |
| 4730-01-046-6807 | 2013-05-135 | 69 | US |
| 4730-01-046-6807 | 2013-05-125 | 69 | DIBBS |
| 4730-01-046-6807 | 2012-10-277 | 65 | DIBBS |
| 4730-01-046-6807 | 2012-07-185 | 38 | United States |
| 4730-01-046-6807 | 2012-07-185 | 2 | United States |
| 4730-01-046-6807 | 2012-04-101 | 40 | DIBBS |
| 4730-01-046-6807 | 2012-01-23 | 20 | DIBBS |
Cross Reference | NSN 4730-01-046-6807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9197063 | 09051 | GAYLORD INDUSTRIES INC. |
| 97063 | 04826 | GRINNELL FIRE PROTECTION |
| 97063 | 05646 | KIDDE FIRE FIGHTING INC DBA KIDDE FIRE FIGHTING DIV |
| 97063 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| S6-19310 | 13520 | WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC. |
| S6-19310-450 | 13520 | WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC. |
| S6-19310-450 | 65586 | CHROMALOX, INC. DBA OGDEN |
| S6-19310-450MIC | 13520 | WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC. |
| S6-19310-450MICRON | 13520 | WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-046-6807
Technical Data | NSN 4730-01-046-6807
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| FILTERING MEDIA DESIGN | MESH |
| MESH SIZE | 375.0 |
| WIRE DIAMETER | 0.020 INCHES NOMINAL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| FIRST END FLANGE THICKNESS | 0.210 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| LENGTH | 0.875 INCHES NOMINAL |
| ELEMENT OUTSIDE DIAMETER | 0.219 INCHES NOMINAL |
| END CONNECTION TYPE | FLANGED 1ST END CONVEX 2ND END |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL. FEATURES - 450 MICRONS. |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | TICONDEROGA CLASS CG (47), NIMITZ CLASS CVN, STURGEON CLASS SSN (637), KIDD CLASS DDG, ARLEIGH BURKE CLASS DDG, LOS ANGELES CLASS SSN (688), VIRGINIA CLASS CGN (41), SPRUANCE CLASS DD (963), FORRESTAL CLASS CV. |
Restrictions/Controls & Freight Information | NSN 4730-01-046-6807
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052440 | STRAINERS PIPE LINE I/S BODY |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-046-6807
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
