NSN 4730-01-044-3183 68A3507351011, 68A350735-1011, 01-044-3183
Product Details | FLUID PASSAGE BOLT
4730-01-044-3183 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 68A3507351011, 68A350735-1011, 4730-01-044-3183, 01-044-3183, 4730010443183, 010443183
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 JUL 1977 | 01-044-3183 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-01-044-3183
Demand History | NSN 4730-01-044-3183
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-044-3183 | 2015-05-133 | 3 | United States |
| 4730-01-044-3183 | 2013-10-280 | 52 | DIBBS |
| 4730-01-044-3183 | 2013-04-94 | 125 | DIBBS |
| 4730-01-044-3183 | 2012-11-312 | 73 | DIBBS |
| 4730-01-044-3183 | 2012-10-278 | 47 | DIBBS |
| 4730-01-044-3183 | 2012-07-206 | 11 | DIBBS |
| 4730-01-044-3183 | 2012-04-114 | 37 | DIBBS |
| 4730-01-044-3183 | 2012-03-82 | 6 | DIBBS |
| 4730-01-044-3183 | 2012-02-46 | 17 | DIBBS |
| 4730-01-044-3183 | 2012-02-33 | 6 | DIBBS |
Cross Reference | NSN 4730-01-044-3183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68A350735-1011 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-044-3183
Related Products | NSN 4730-01-044-3183
Technical Data | NSN 4730-01-044-3183
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5629 ASSN STD SINGLE MATERIAL RESPONSE |

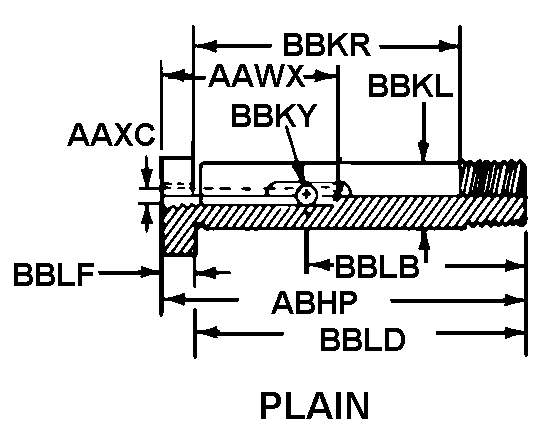

| BODY STYLE | 15 PLAIN |
| CONCENTRIC HOLE DEPTH | 0.610 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| OVERALL LENGTH | 2.807 INCHES MINIMUM AND 2.827 INCHES MAXIMUM |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.4365 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 1.962 INCHES MINIMUM AND 1.972 INCHES MAXIMUM |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.042 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.520 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 2.657 INCHES MINIMUM AND 2.677 INCHES MAXIMUM |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 20 |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.695 INCHES MINIMUM AND 0.715 INCHES MAXIMUM |

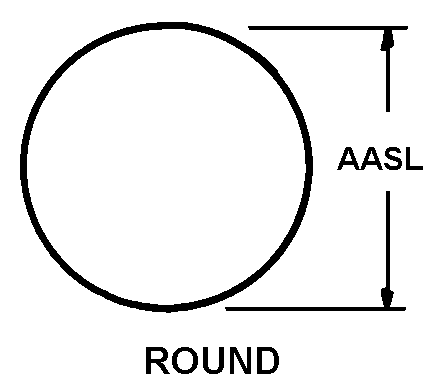

| WRENCHING FEATURE STYLE | 3 ROUND |
