NSN 4730-01-043-4536 AP1010310101004, AP10103-10101004, C7863

Product Details | TUBE CROSS

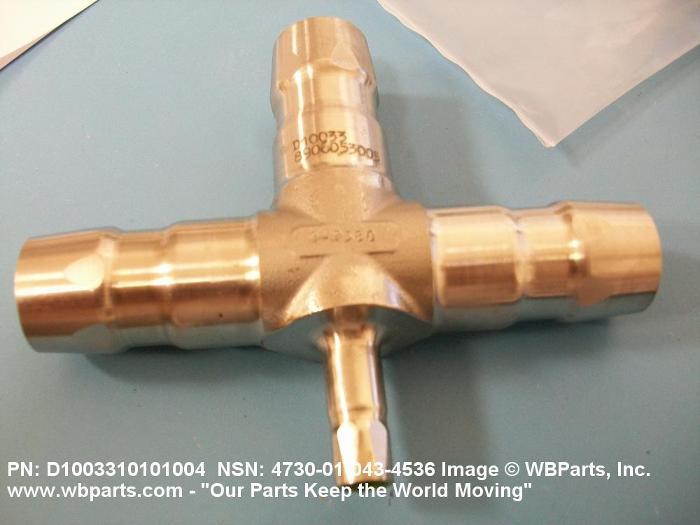

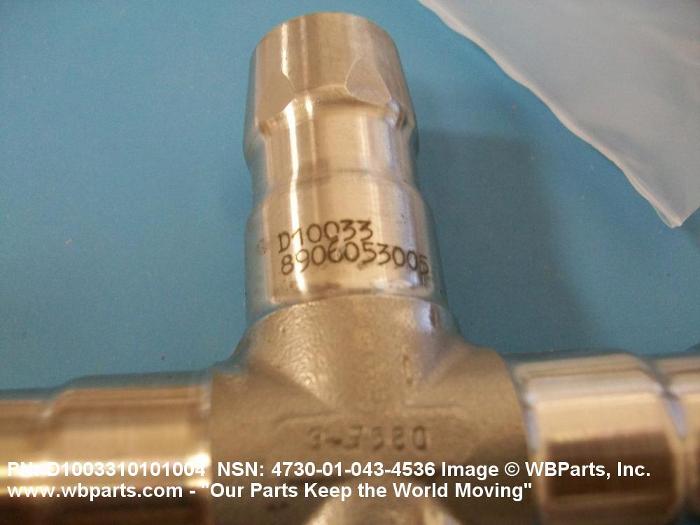

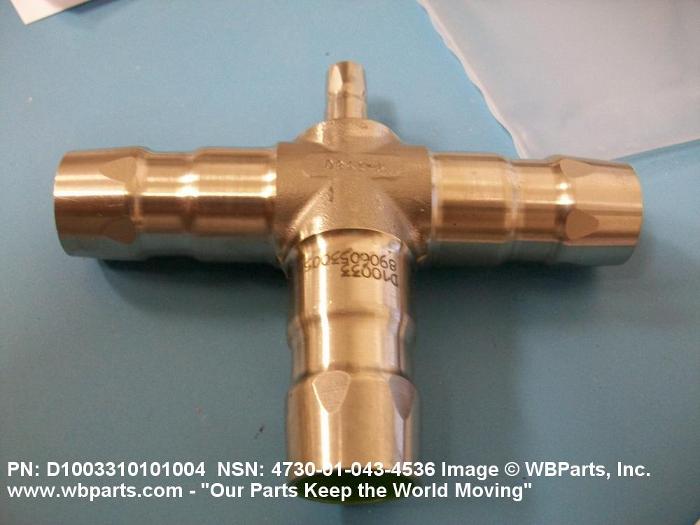

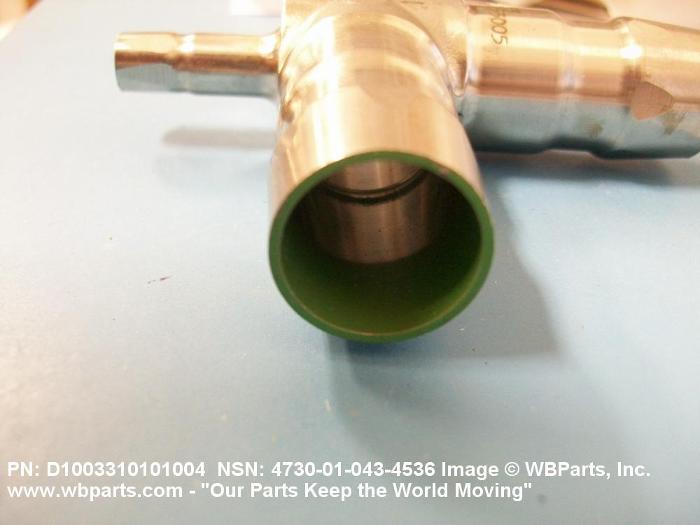

4730-01-043-4536 A fitting having four branches in the same plane whose axes form right angles. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or are unthreaded and designed to accommodate a tube. It is designed to be used as a junction at the intersection of tubing and/or tube fittings. It may have side inlet(s).

Part Alternates: AP1010310101004, AP10103-10101004, C7863, C78631S, C7863-1S, D1003310101004, D10033-10101004, 4730-01-043-4536, 01-043-4536, 4730010434536, 010434536

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	24 JUN 1977	01-043-4536	08532 ( CROSS, TUBE )

Drawings & Photos | NSN 4730-01-043-4536

Part Number	Request Date	QTY	Origin
AP10103-10101004	2024-10-289	34	DIBBS
D10033-10101004	2024-10-289	34	DIBBS
AP10103-10101004	2024-10-277	34	DIBBS
D10033-10101004	2024-10-277	34	DIBBS
4730-01-043-4536	2024-04-114	1	Taiwan
AP10103-10101004	2023-04-107	67	DIBBS
D10033-10101004	2023-04-107	67	DIBBS
AP10103-10101004	2023-04-96	67	DIBBS
D10033-10101004	2023-04-96	67	DIBBS
AP10103-10101004	2022-07-209	39	DIBBS
D10033-10101004	2022-07-209	39	DIBBS
AP10103-10101004	2022-04-97	37	DIBBS
D10033-10101004	2022-04-97	37	DIBBS
4730-01-043-4536	2013-11-323	24	DIBBS
4730-01-043-4536	2013-11-308	24	DIBBS
C7863	2013-09-253	8	us
C7863	2013-06-156	8	PL
AP1010310101004	2011-12-342	1	Poland
D1003310101004	2011-09-251	1	Poland
D1003310101004	2011-08-243	1	Poland
4730-01-043-4536	2011-08-237	10	PL

Cross Reference | NSN 4730-01-043-4536

Part Number	Cage Code	Manufacturer
AP10103-10101004	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
C7863	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
C7863-1S	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
D10033-10101004	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
