NSN 4730-01-042-9674 10143593 , 26231323, 2623132-3
Product Details | PIPE PLUG
4730-01-042-9674 A pipe fitting primarily designed for permanent installation during piping systems operations to fit into another pipe or pipe fitting for sealing. It usually is threaded.
Part Alternates: 10143593 , 26231323, 2623132-3, 4730-01-042-9674, 01-042-9674, 4730010429674, 010429674
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 JUN 1977 | 01-042-9674 | 06077 ( PLUG, PIPE ) |

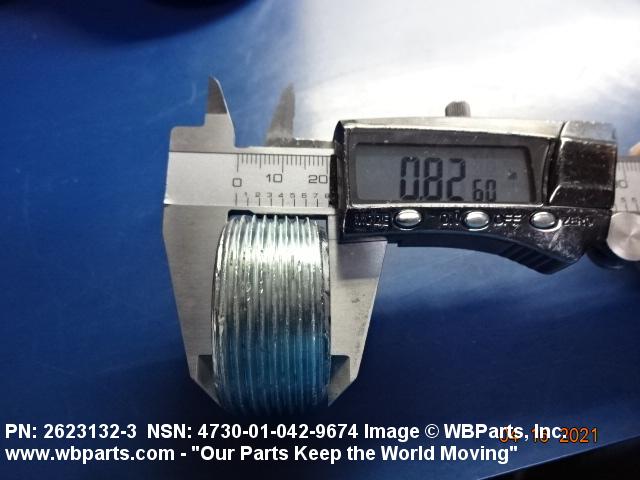

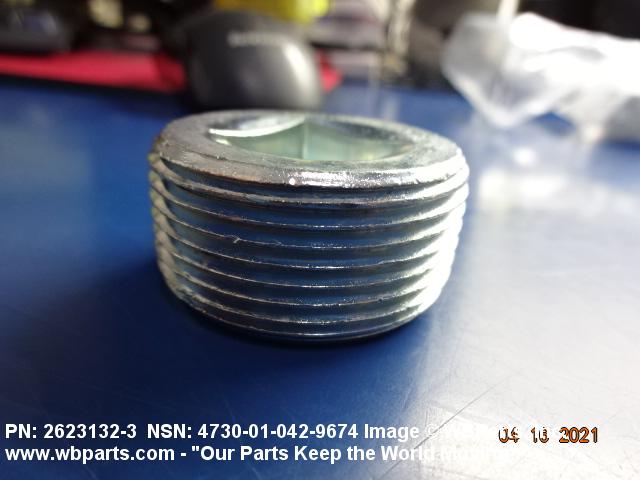

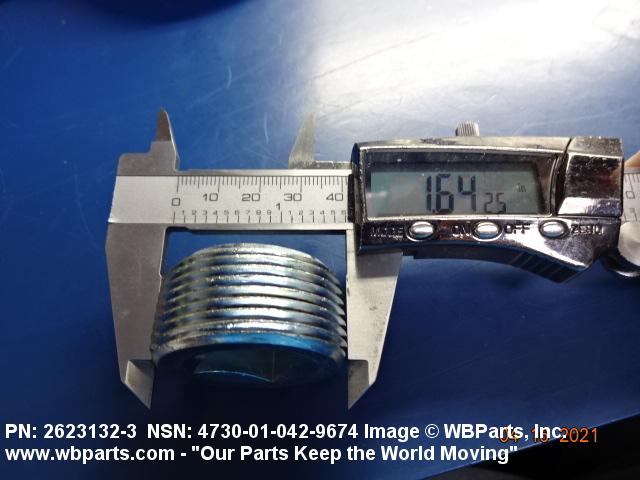

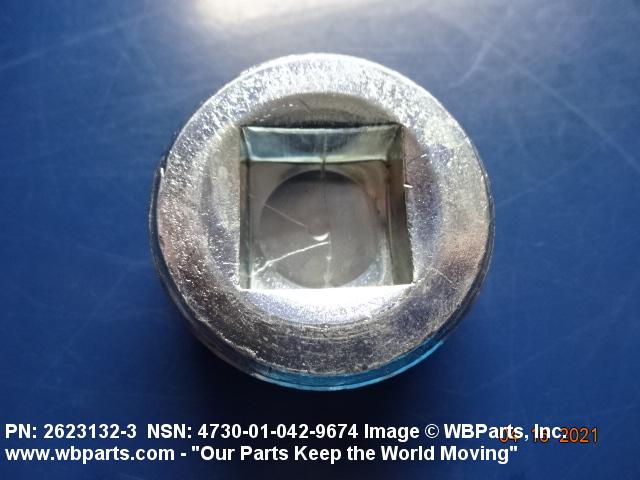

Drawings & Photos | NSN 4730-01-042-9674
Demand History | NSN 4730-01-042-9674
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-042-9674 | 2021-03-90 | 4 | United States |
| 4730-01-042-9674 | 2020-10-294 | 2 | United States |
| 4730-01-042-9674 | 2020-10-294 | 2 | United States |
Cross Reference | NSN 4730-01-042-9674
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2623132-3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-042-9674
Technical Data | NSN 4730-01-042-9674
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 3,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |

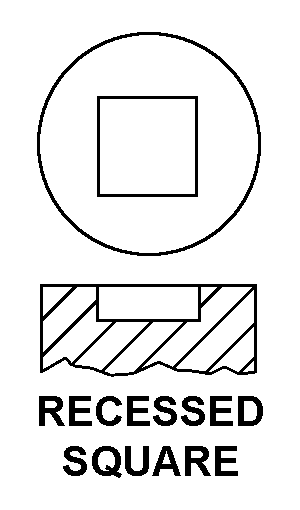

| DRIVE END STYLE | 3 RECESSED SQUARE |
| CONNECTION STYLE | J1 PLAIN |
| NOMINAL THREAD SIZE | 1.250 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 1.250 INCHES |
| HEAD TYPE | SOLID |
| BODY TYPE | SOLID |
Restrictions/Controls & Freight Information | NSN 4730-01-042-9674
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040500 | CAP/PLUG (PROTECTOR) |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
