NSN 4730-01-042-9044 MS51521B6, 01-042-9044, 010429044
Product Details | TUBE ELBOW
4730-01-042-9044 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS51521B6, 4730-01-042-9044, 01-042-9044, 4730010429044, 010429044
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 JUN 1977 | 01-042-9044 | 03771 ( ELBOW, TUBE ) |

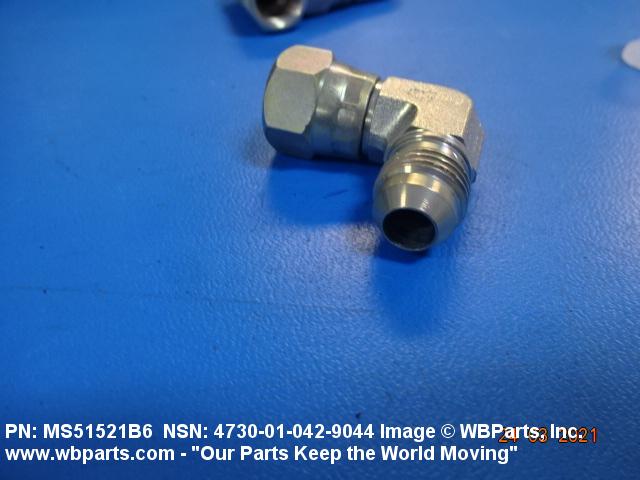

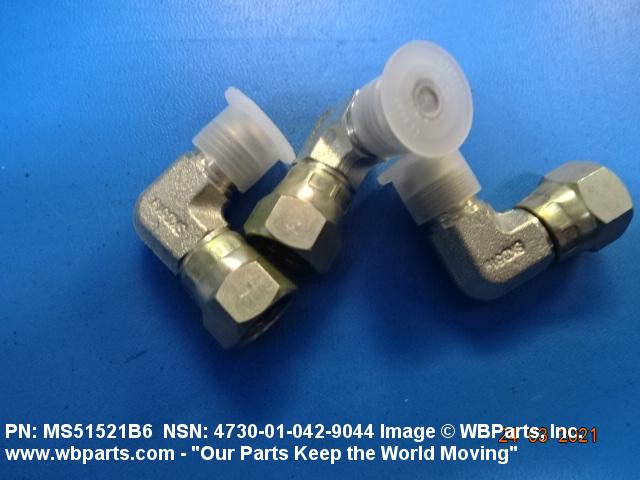

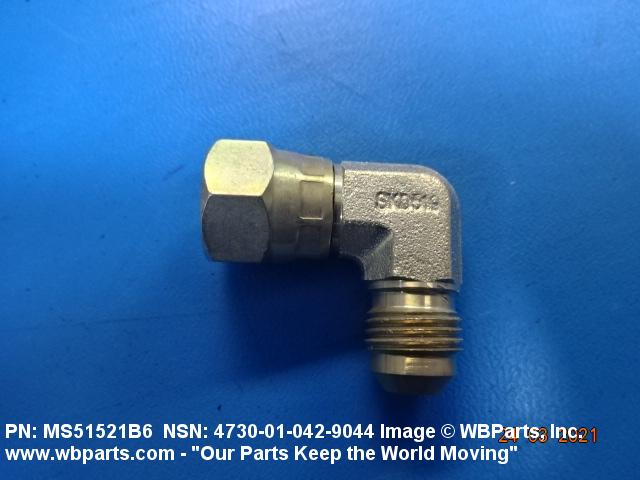

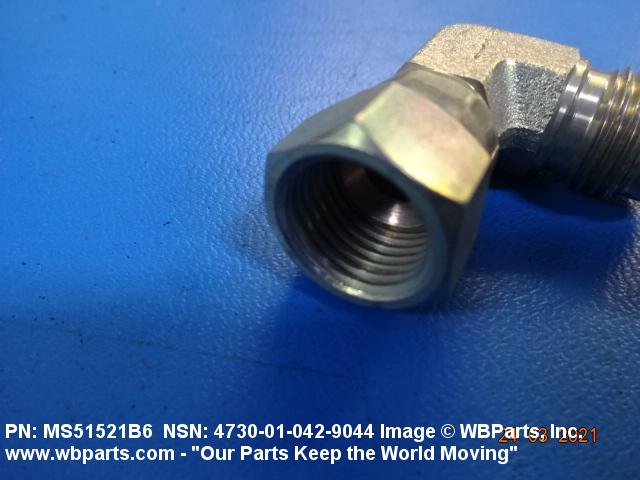

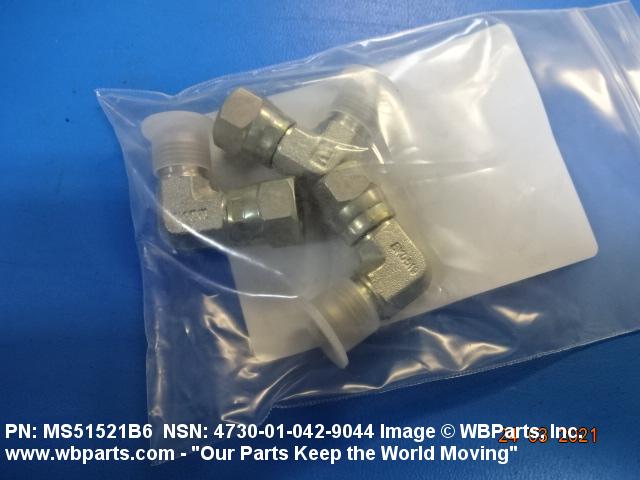

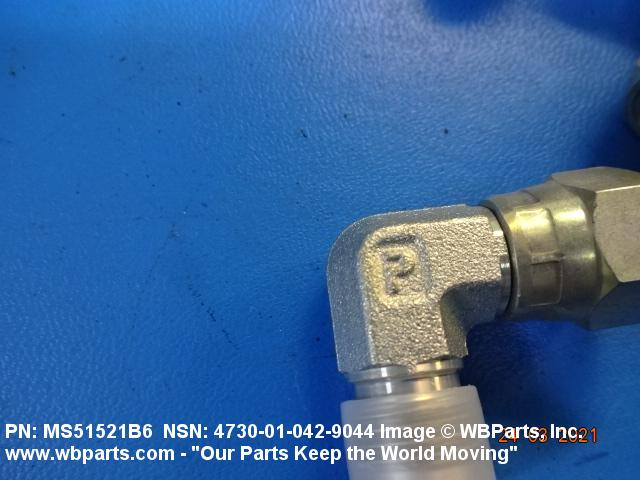

Drawings & Photos | NSN 4730-01-042-9044
Demand History | NSN 4730-01-042-9044
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-042-9044 | 2022-06-158 | 13 | Taiwan |
| 4730-01-042-9044 | 2021-03-62 | 3 | Malaysia |
| MS51521B6 | 2014-03-78 | 138 | United States |
| MS51521B6 | 2014-03-71 | 69 | United States |
Cross Reference | NSN 4730-01-042-9044
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51521B6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-042-9044
Related Products | NSN 4730-01-042-9044
Technical Data | NSN 4730-01-042-9044
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 12L14 OR STEEL COMP 1010 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED STD SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.562 INCHES 2ND END |
| THREAD CLASS | 2B 1ST END 2A 2ND END |
| LEG LENGTH | 1.250 INCHES NOMINAL 1ST END 1.060 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 TUBE COUPLING NUT |
| SPECIFICATION/STANDARD DATA | 96906-MS51521 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51521B6 |
Restrictions/Controls & Freight Information | NSN 4730-01-042-9044
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | 25 | UNICOR-Federal Prison Industries Washington, DC 20534 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-042-9044
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
