Product Details | FLUID PASSAGE BOLT
4730-01-032-9873 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: G6056, G605-6, G605, 10135A, 1013-5A, 4730-01-032-9873, 01-032-9873, 4730010329873, 010329873
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 DEC 1976 | 01-032-9873 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-01-032-9873
Demand History | NSN 4730-01-032-9873
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-032-9873 | 2012-10-298 | 6 | DIBBS |
| 4730-01-032-9873 | 2012-09-251 | 8 | DIBBS |
| 4730-01-032-9873 | 2012-09-245 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-032-9873
Technical Data | NSN 4730-01-032-9873
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |

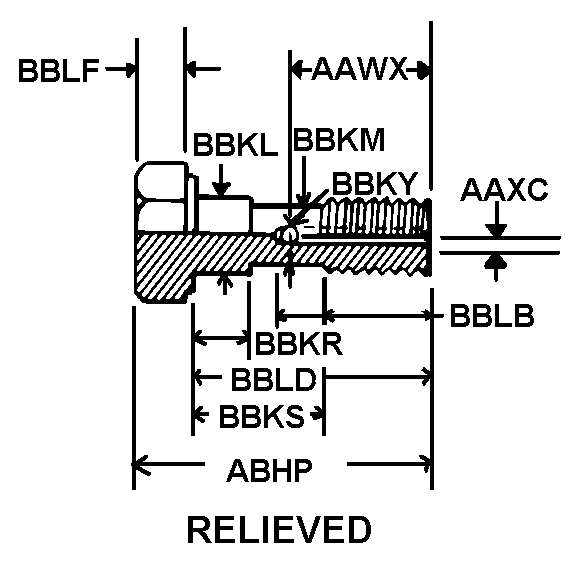

| BODY STYLE | 5 RELIEVED |
| CONCENTRIC HOLE DEPTH | 1.500 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.969 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.500 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.438 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.188 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.781 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.141 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.406 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.750 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.188 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C2 INVERTED FLARE |
| FIRST END SEAT ANGLE | 30.0 DEGREES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.500 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 20 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.875 INCHES NOMINAL |

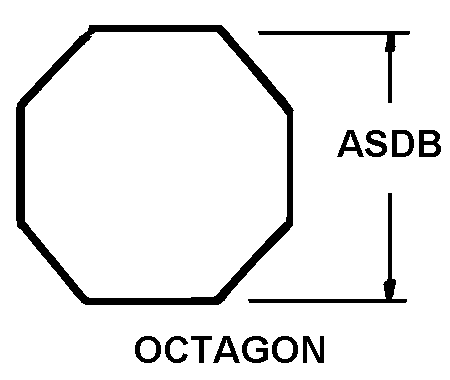

| WRENCHING FEATURE STYLE | 4 OCTAGON |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
