NSN 4730-01-031-6460 204-80252-2, 01-031-6460, 204802522
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-01-031-6460 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 204-80252-2, 4730-01-031-6460, 01-031-6460, 4730010316460, 204802522, 010316460
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 NOV 1976 | 01-031-6460 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-01-031-6460
Cross Reference | NSN 4730-01-031-6460
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-80252-2 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-031-6460
Technical Data | NSN 4730-01-031-6460
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.950 INCHES NOMINAL |
| THICKNESS | 1.225 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.225 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 1 1 |

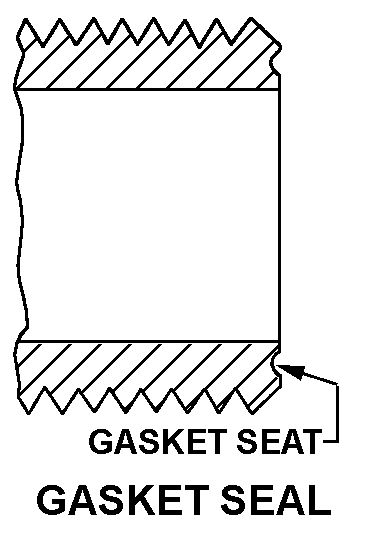

| CONNECTION STYLE | G31 GASKET SEAL G19 FLARED E5 PLAIN |
