NSN 4730-01-027-6588 A600A16, A-600-A1-6, A600R16

Product Details | TUBE COUPLING

4730-01-027-6588 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.

Part Alternates: A600A16, A-600-A1-6, A600R16, A-600-R1-6, 66T2H2BZA, 6-6T2H2BZ-A, 66T2H2BZD, 6-6T2H2BZ-D, 4730-01-027-6588, 01-027-6588, 4730010276588, 010276588

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	19 SEP 1976	01-027-6588	06078 ( COUPLING, TUBE )

Drawings & Photos | NSN 4730-01-027-6588

Part Number	Request Date	QTY	Origin
4730-01-027-6588	2018-11-305	134	DIBBS
4730-01-027-6588	2018-09-261	30	DIBBS
4730-01-027-6588	2018-04-106	165	DIBBS
4730-01-027-6588	2017-09-263	116	DIBBS
4730-01-027-6588	2010-03-71	28	US

Cross Reference | NSN 4730-01-027-6588

Part Number	Cage Code	Manufacturer
6-6T2H2BZ-A	54938	PARKER-HANNIFIN CORPORATION DBA INSTRUMENTATION PRODUCTS DIV
6-6T2H2BZ-D	54938	PARKER-HANNIFIN CORPORATION DBA INSTRUMENTATION PRODUCTS DIV
A-600-A1-6	02570	SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR
A-600-R1-6	02570	SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-027-6588

Compare

Related Products | NSN 4730-01-027-6588

4730-01-027-6589, 4730-01-027-6590, 4730-01-027-6591, 4730-01-027-6963, 4730-01-027-6982

Technical Data | NSN 4730-01-027-6588

Characteristic	Specifications
MATERIAL	ALUMINUM OVERALL
SURFACE TREATMENT	ANODIZE OVERALL

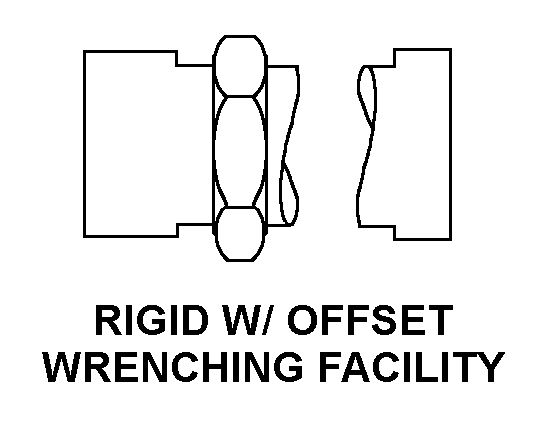

STYLE DESIGNATOR	A31 RIGID W/OFFSET WRENCHING FACILITY
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END UNTHREADED EXTERNAL TUBE 2ND END
CONNECTION STYLE	B66 FLARELESS 1ST END B101A GROOVED 2ND END
SEAT ANGLE	20.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES 1ST END 0.375 INCHES 2ND END
THREAD SERIES DESIGNATOR	UN 1ST END
NOMINAL THREAD SIZE	0.562 INCHES 1ST END
THREAD QUANTITY PER INCH	20 1ST END
THREAD CLASS	2B 1ST END
NOMINAL OVERALL LENGTH	2.094 INCHES
FURNISHED ITEMS AND QUANTITY	1 TUBE COUPLING NUT W/SLEEVE
SPECIAL FEATURES	SUPPORT GRUMMAN A-10 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 4730-01-027-6588

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-027-6588

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
