NSN 4730-01-027-2290 298P 1/4X1/8, 298P 1-4-1-8, 298P1418
Product Details | QUICK DISCONNECT COUPLING ASSEMBLY
4730-01-027-2290 A multipiece fluid line fitting consisting of two COUPLING HALF, QUICK DISCONNECT fittings.
Part Alternates: 298P 1/4X1/8, 298P 1-4-1-8, 298P1418, 298P14X18, 398P42, 398P-4-2, 98P42, 98P4-2, 4730-01-027-2290, 01-027-2290, 4730010272290, 010272290
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 SEP 1976 | 01-027-2290 | 20671 ( COUPLING ASSEMBLY, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-027-2290
Cross Reference | NSN 4730-01-027-2290
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-027-2290
Related Products | NSN 4730-01-027-2290
Technical Data | NSN 4730-01-027-2290
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | A2 COUPLING ASSEMBLY |
| LEG LENGTH | 0.500 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| OVERALL LENGTH | 1.906 INCHES MINIMUM AND 2.312 INCHES MAXIMUM |
| CONNECTION TYPE | THREADED EXTERNAL HOSE GRIPPING FIRST FLUID END CONNECTION |

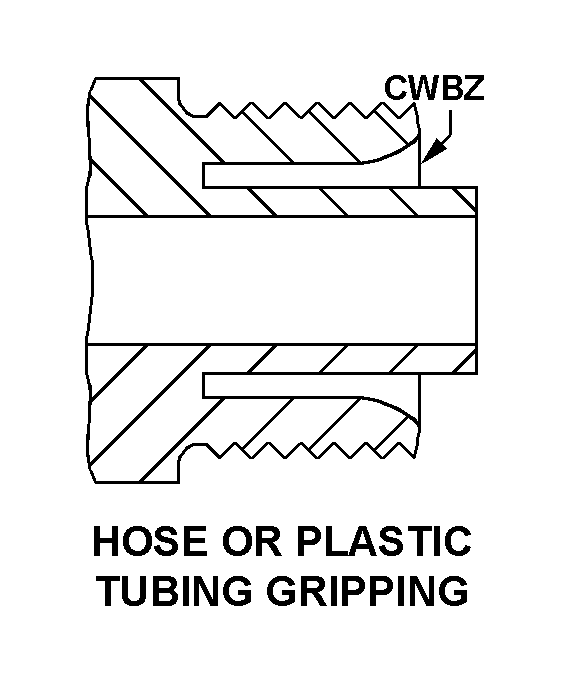

| CONNECTION STYLE | D5 HOSE OR PLASTIC TUBING GRIPPING FIRST FLUID END CONNECTION |
| QUICK DISCONNECT METHOD | SPRING PUSH-LOCK SECOND FLUID END CONNECTION |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.161 INCHES FIRST FLUID END CONNECTION |
| (NON-CORE DATA) SECOND LEG LENGTH | 0.375 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| (NON-CORE DATA) FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.259 INCHES NOMINAL |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | -17.8 DEG CELSIUS FUEL/OIL, HYDROCARBON 79.4 DEG CELSIUS FUEL/OIL, HYDROCARBON |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 160.0 POUNDS PER SQUARE INCH FUEL/OIL, HYDROCARBON |
| (NON-CORE DATA) SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| (NON-CORE DATA) SECOND FLUID END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| (NON-CORE DATA) SECOND END THREAD SERIES DESIGNATOR | NPT |
| (NON-CORE DATA) SECOND END NOMINAL THREAD SIZE | 0.125 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-027-2290
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
