NSN 4730-01-026-9134 AE18882J, 01-026-9134, 010269134
Product Details | TUBE TO HOSE ELBOW
4730-01-026-9134 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube, The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; CONNECTOR, MULTIPLE, FLUID PRESSURE LINE; and ELBOW, SWIVEL FLANGE TO HOSE.
Part Alternates: AE18882J, 4730-01-026-9134, 01-026-9134, 4730010269134, 010269134
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 SEP 1976 | 01-026-9134 | 03772 ( ELBOW, TUBE TO HOSE ) |

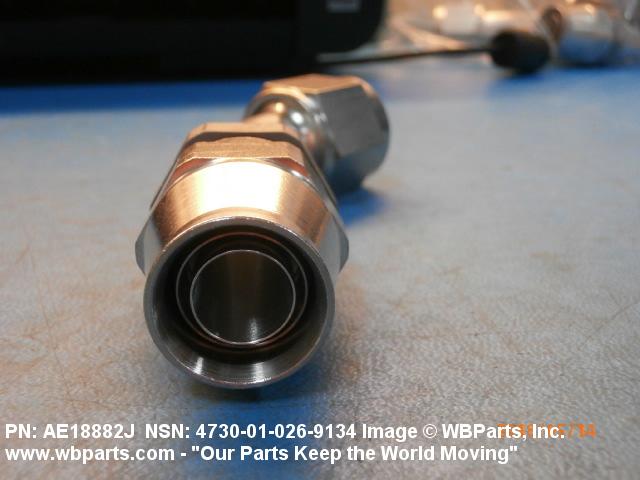

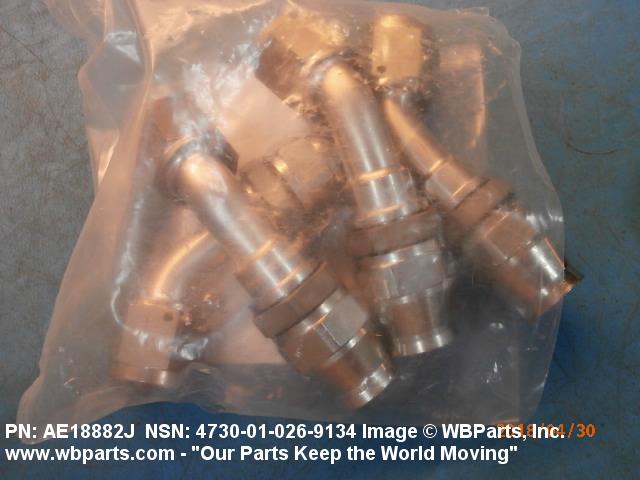

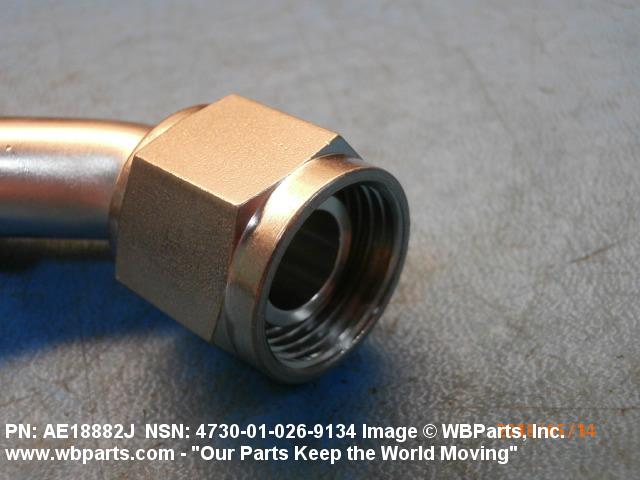

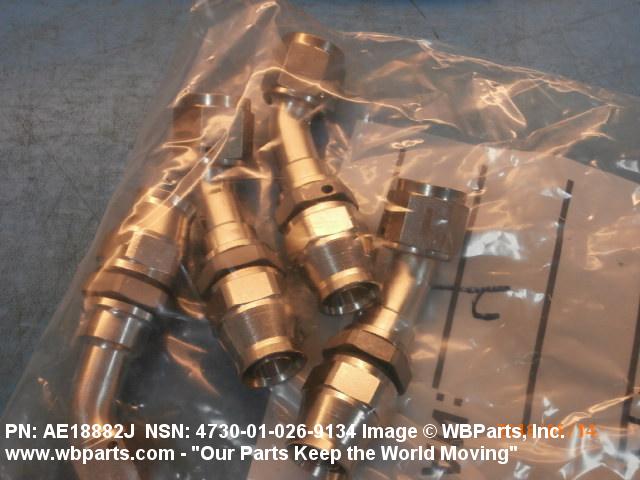

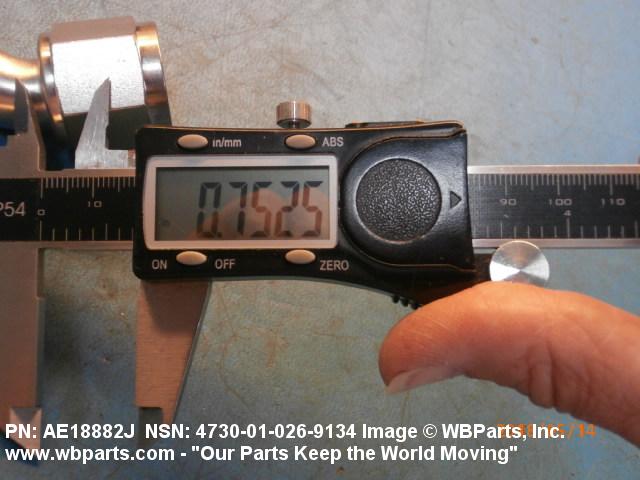

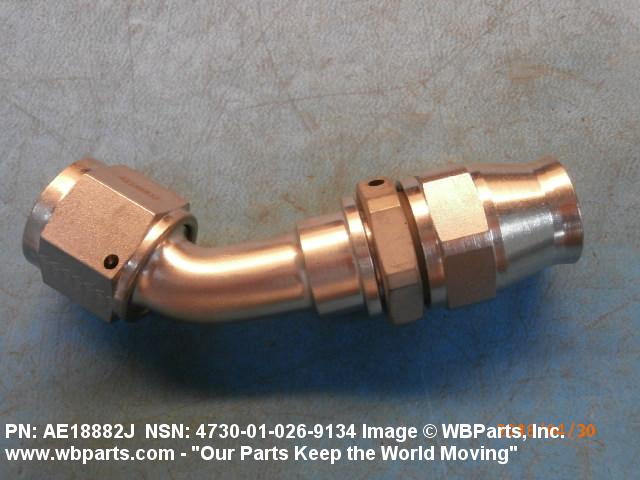

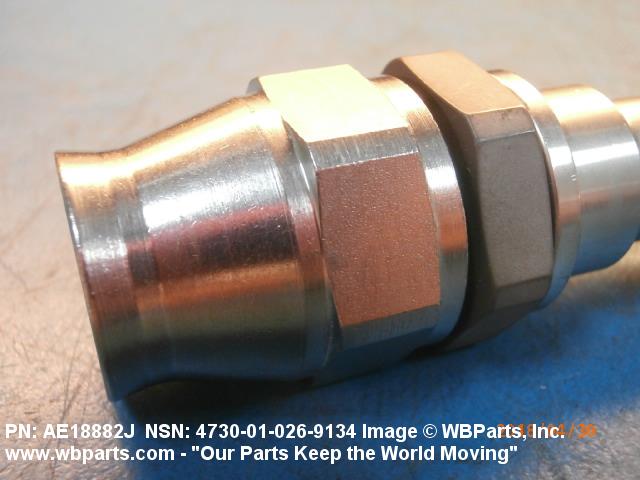

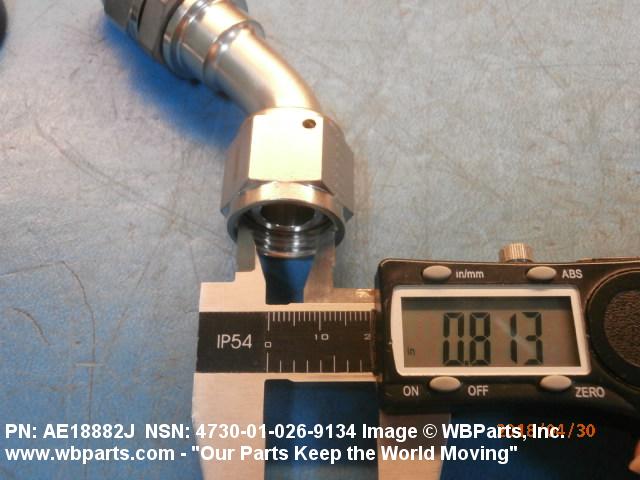

Drawings & Photos | NSN 4730-01-026-9134
Demand History | NSN 4730-01-026-9134
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE18882J | 2024-10-302 | 65 | DIBBS |
| AE18882J | 2024-10-291 | 65 | DIBBS |
| AE18882J | 2024-04-113 | 13 | DIBBS |
| AE18882J | 2024-04-102 | 13 | DIBBS |
| 4730-01-026-9134 | 2018-08-242 | 30 | DIBBS |
| 4730-01-026-9134 | 2018-08-221 | 28 | DIBBS |
| 4730-01-026-9134 | 2018-07-210 | 28 | DIBBS |
| 4730-01-026-9134 | 2018-07-190 | 29 | DIBBS |
| 4730-01-026-9134 | 2018-06-179 | 29 | DIBBS |
| 4730-01-026-9134 | 2018-05-138 | 1 | DIBBS-RFPs |
| 4730-01-026-9134 | 2018-03-63 | 64 | DIBBS |
| 4730-01-026-9134 | 2018-02-45 | 12 | France |
| 4730-01-026-9134 | 2013-05-126 | 20 | United States |
| 4730-01-026-9134 | 2012-06-178 | 0 | DIBBS |
| 4730-01-026-9134 | 2012-06-163 | 38 | DIBBS |
Cross Reference | NSN 4730-01-026-9134
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AE18882J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-026-9134
Related Products | NSN 4730-01-026-9134
Technical Data | NSN 4730-01-026-9134
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END UNTHREADED EXTERNAL HOSE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B100C PLAIN 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.455 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| NOMINAL THREAD SIZE | 0.875 INCHES 1ST END |
| THREAD CLASS | 3B 1ST END |
| LEG LENGTH | 0.775 INCHES NOMINAL 1ST END 2.940 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 SWIVEL |
Restrictions/Controls & Freight Information | NSN 4730-01-026-9134
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
