NSN 4730-01-025-0376 W1042020, W104-20-20, 11672172
Product Details | PIPE FLANGE
4730-01-025-0376 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: W1042020, W104-20-20, 11672172, 4730-01-025-0376, 01-025-0376, 4730010250376, 010250376
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 JUL 1976 | 01-025-0376 | 03798 ( FLANGE, PIPE ) |

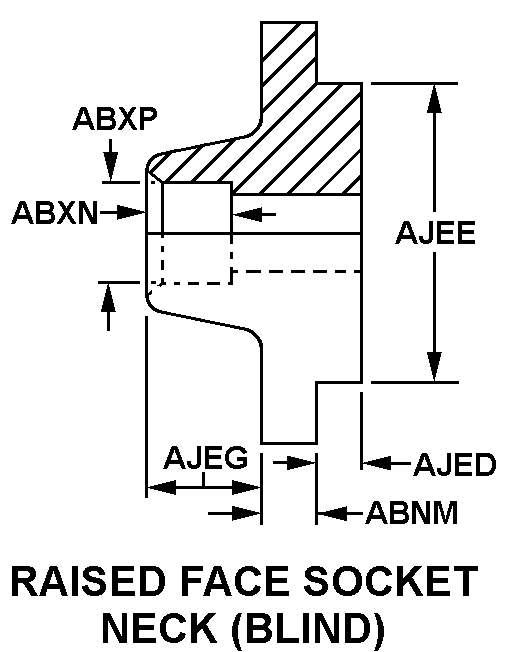

Drawings & Photos | NSN 4730-01-025-0376
Demand History | NSN 4730-01-025-0376
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-025-0376 | 2019-04-111 | 10 | DIBBS |
| 4730-01-025-0376 | 2019-04-94 | 4 | DIBBS |
| 4730-01-025-0376 | 2019-02-36 | 6 | DIBBS |
| 4730-01-025-0376 | 2018-11-308 | 2 | DIBBS |
| 4730-01-025-0376 | 2018-10-283 | 1 | DIBBS |
| 4730-01-025-0376 | 2018-09-268 | 1 | DIBBS |
| 4730-01-025-0376 | 2018-08-219 | 1 | DIBBS |
| 4730-01-025-0376 | 2018-07-204 | 3 | DIBBS |
| 4730-01-025-0376 | 2018-06-177 | 1 | DIBBS |
| 4730-01-025-0376 | 2017-07-201 | 6 | DIBBS |
| 4730-01-025-0376 | 2009-05-132 | 8 | DIBBS |
| 4730-01-025-0376 | 2008-08-233 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-025-0376
Related Products | NSN 4730-01-025-0376
Technical Data | NSN 4730-01-025-0376
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 9 RECTANGULAR, WITH BOLT HOLES |
| BOLT HOLE QUANTITY | 4 |
| FLANGE SECTION STYLE | 21 RAISED FACE, SOCKET NECK |
| THICKNESS | 0.010 INCHES NOMINAL |
| SOCKET DEPTH | 1.120 INCHES NOMINAL |
| SOCKET DIAMETER | 1.250 INCHES NOMINAL |
| RAISED FACE HEIGHT | 0.010 INCHES NOMINAL |
| RAISED FACE DIAMETER | 1.500 INCHES NOMINAL |
| NECK HEIGHT | 0.470 INCHES NOMINAL |
| REDUCER FLANGE HOLE TYPE | CONCENTRIC |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| FACE SEATING SURFACE CONDITION | MACHINED |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 11672172 |
Restrictions/Controls & Freight Information | NSN 4730-01-025-0376
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 025550 | BOILER PARTS I/S BRACES/FLANGES ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
