NSN 4730-01-024-7701 CS47300108, CS4730-0108, CS47300108A068GJ
Product Details | PIPE FLANGE
4730-01-024-7701 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: CS47300108, CS4730-0108, CS47300108A068GJ, CS4730-0108-A068GJ, MILF20042, MIL-F-20042, 5179, 5179300, 5179-300, 4730-01-024-7701, 01-024-7701, 4730010247701, 010247701
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JUL 1976 | 01-024-7701 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-024-7701
Cross Reference | NSN 4730-01-024-7701
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-024-7701
Technical Data | NSN 4730-01-024-7701
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B-61 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 10 ROUND, NO BOLT HOLES |
| FLANGE DIAMETER | 5.937 INCHES NOMINAL |

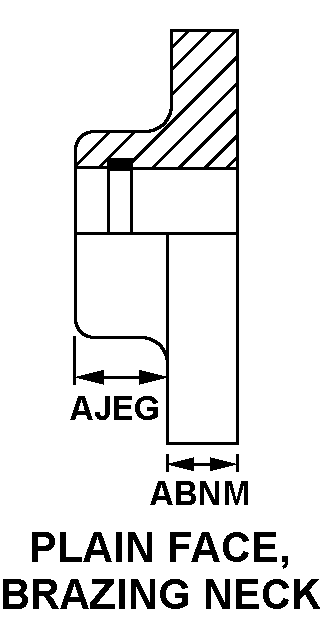

| FLANGE SECTION STYLE | 6 PLAIN FACE, BRAZING NECK W/BRAZING RING |
| THICKNESS | 0.812 INCHES NOMINAL |
| NECK HEIGHT | 0.938 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 1.500 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 400.0 POUNDS PER SQUARE INCH STEAM AND 400.0 POUNDS PER SQUARE INCH GAS AND 400.0 POUNDS PER SQUARE INCH OIL AND 400.0 POUNDS PER SQUARE INCH WATER |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 425.0 DEG FAHRENHEIT STEAM AND 425.0 DEG FAHRENHEIT GAS AND 425.0 DEG FAHRENHEIT OIL AND 425.0 DEG FAHRENHEIT WATER |
| FACE SEATING SURFACE CONDITION | SERRATED |
| GROOVE CROSS-SECTIONAL SHAPE | RECTANGULAR |
| GROOVE DEPTH | 0.125 INCHES NOMINAL |
| GROOVE WIDTH | 0.250 INCHES NOMINAL |
| GROOVE PITCH DIAMETER | 2.025 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | PR TYPE |
| DEPARTURE FROM CITED DOCUMENT | FLANGE IS UNDRILLED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-20042 |
Restrictions/Controls & Freight Information | NSN 4730-01-024-7701
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
