NSN 4730-01-008-4360 160D95031511, 160D950315-11, 162D9503152001
Product Details | BULKHEAD FITTING
4730-01-008-4360 A straight fitting having unthreaded male hose connections designed to join two sections of hose of the same size through a bulkhead or wall section.
Part Alternates: 160D95031511, 160D950315-11, 162D9503152001, 162D950315-2001 , 4730-01-008-4360, 01-008-4360, 4730010084360, 010084360
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 AUG 1975 | 01-008-4360 | 03331 ( CONNECTOR, HOSE, BULKHEAD ) |

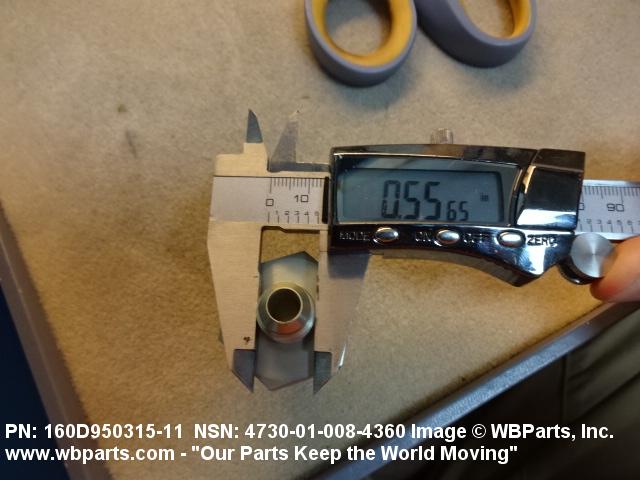

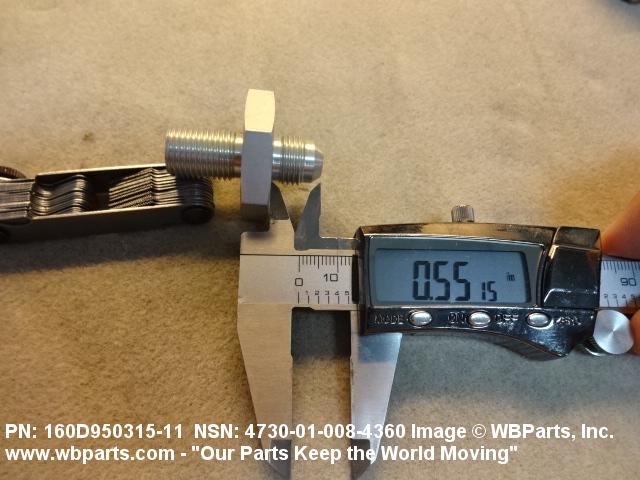

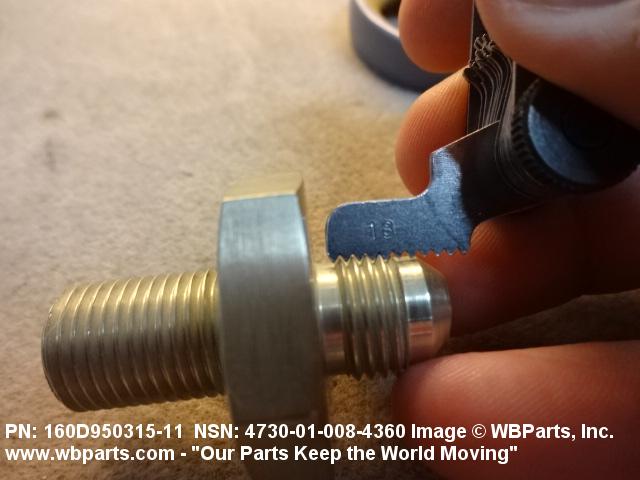

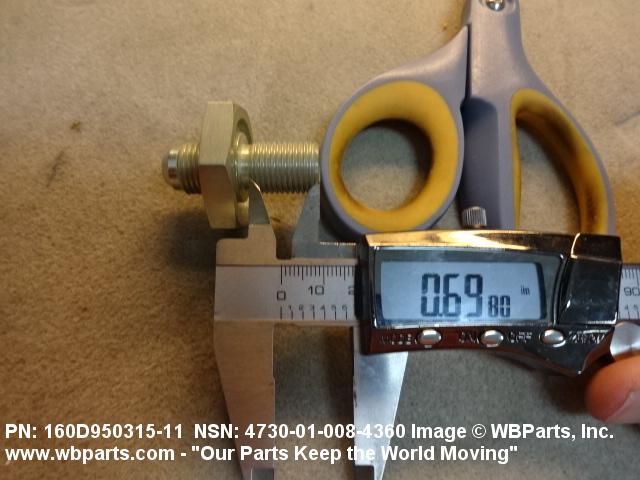

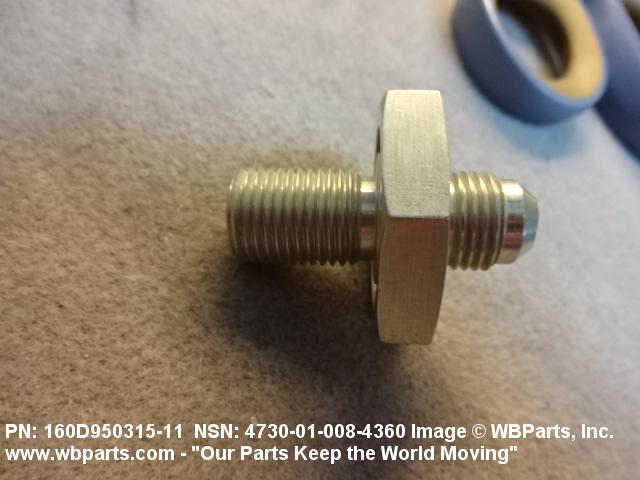

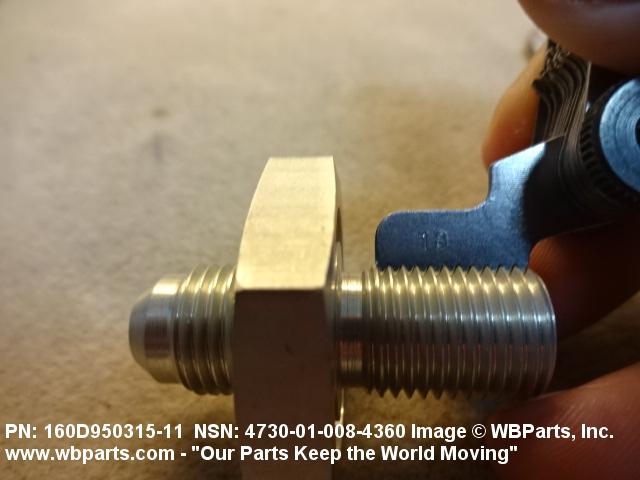

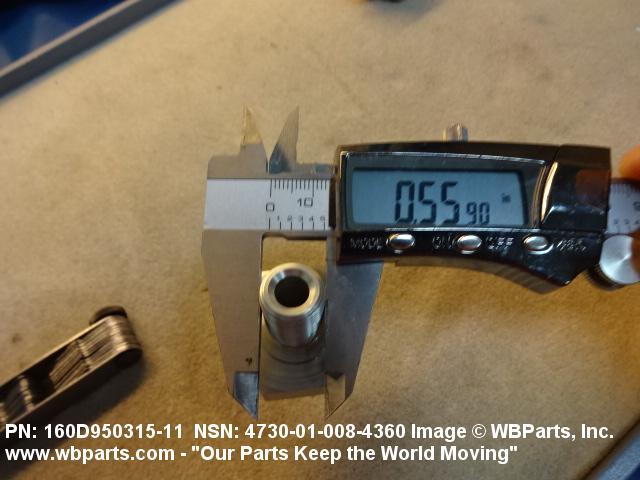

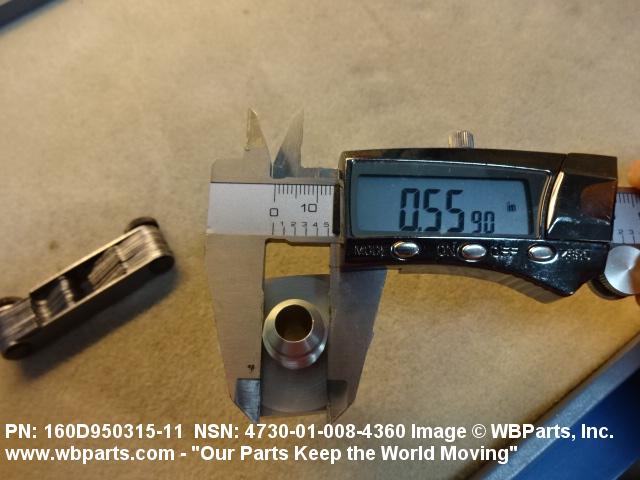

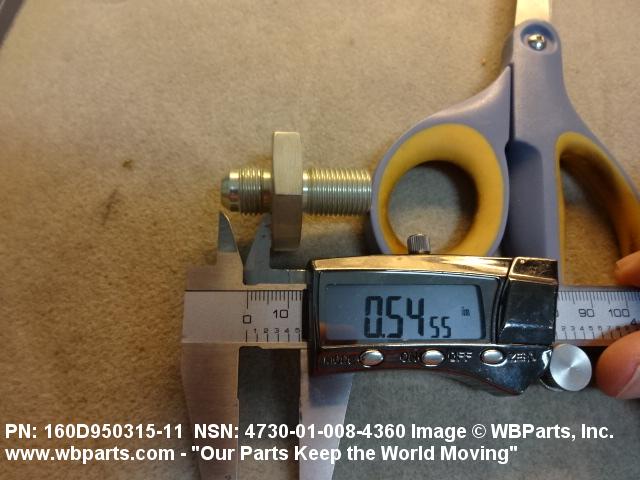

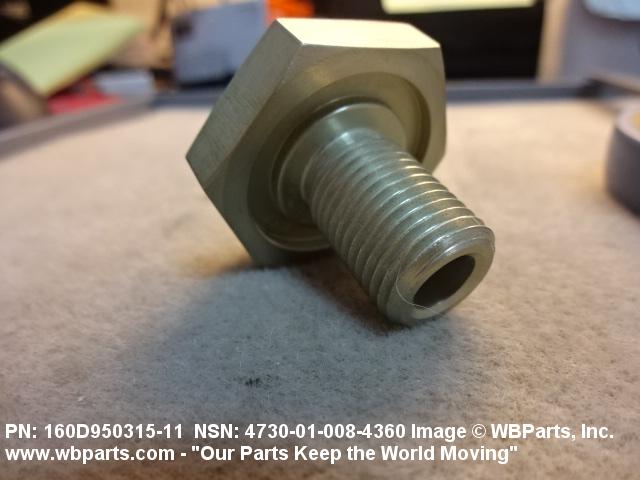

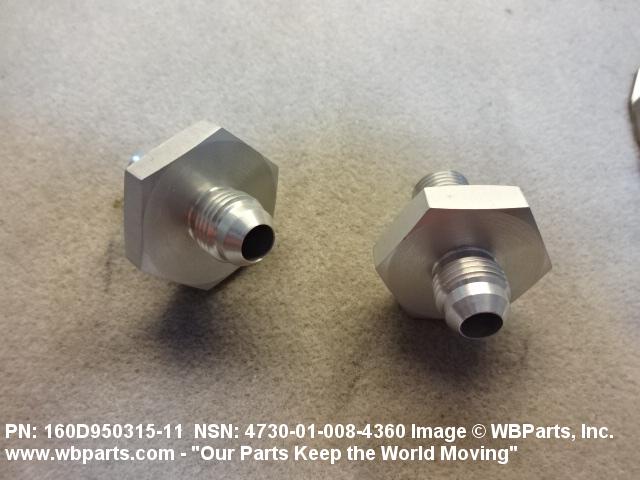

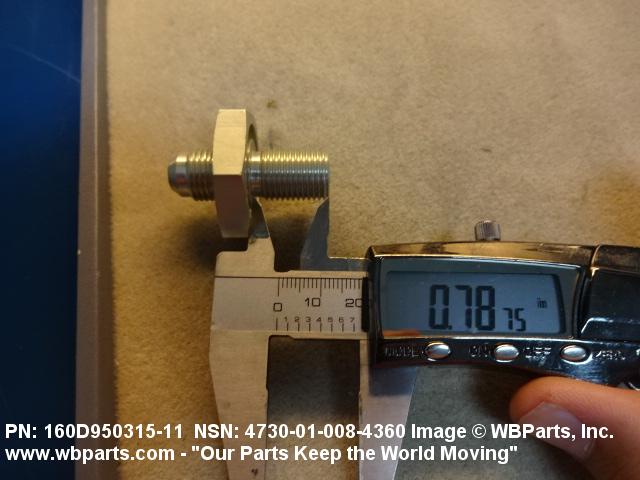

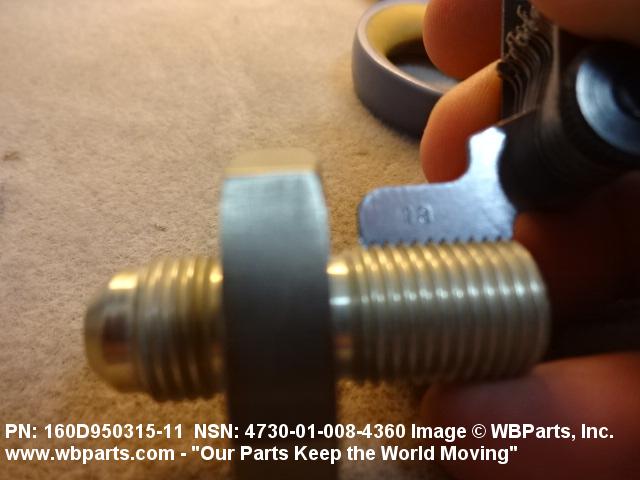

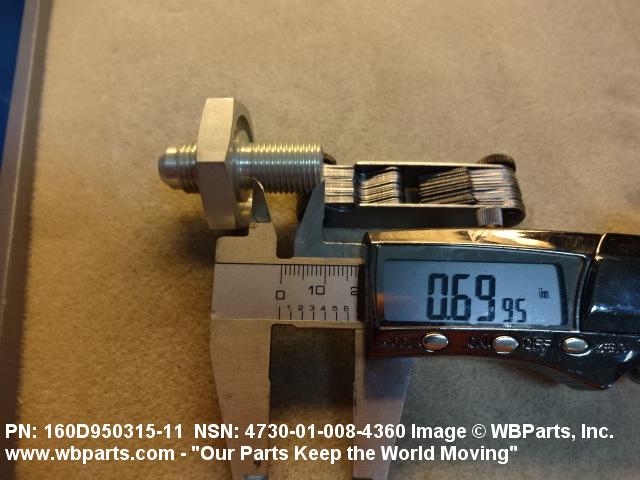

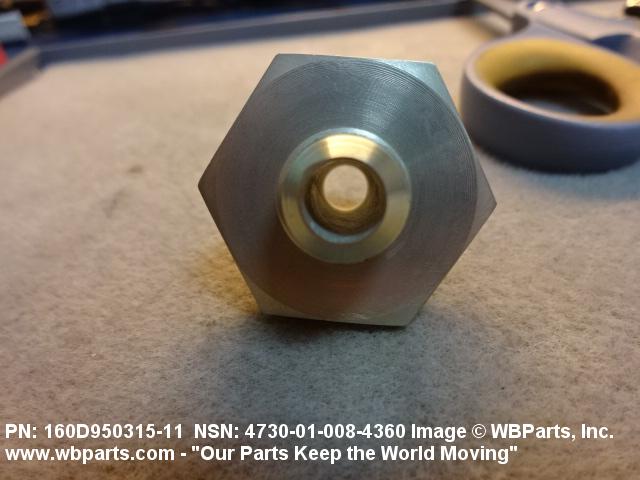

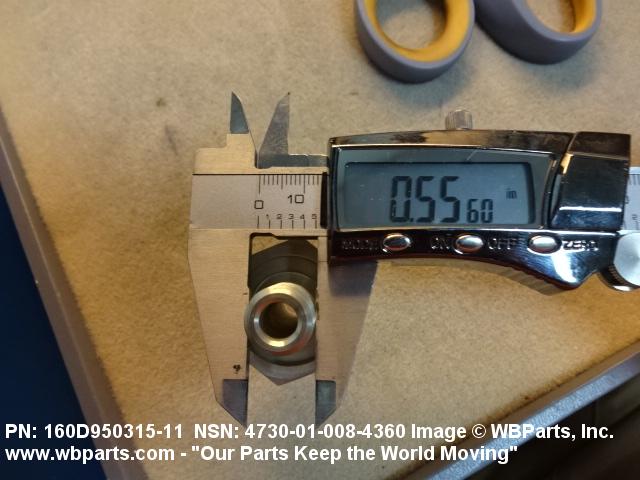

Drawings & Photos | NSN 4730-01-008-4360
Demand History | NSN 4730-01-008-4360
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 160D950315-11 | 2020-10-281 | 19 | DIBBS |
| 162D950315-2001 | 2020-10-281 | 19 | DIBBS |
| 160D950315-11 | 2020-03-77 | 17 | DIBBS |
| 162D950315-2001 | 2020-03-77 | 17 | DIBBS |
| 160D950315-11 | 2019-10-283 | 14 | DIBBS |
| 162D950315-2001 | 2019-10-283 | 14 | DIBBS |
| 4730-01-008-4360 | 2019-10-274 | 3 | United States |
| 160D950315-11 | 2019-07-191 | 18 | DIBBS |
| 162D950315-2001 | 2019-07-191 | 18 | DIBBS |
| 160D950315-11 | 2019-06-169 | 6 | DIBBS |
| 162D950315-2001 | 2019-06-169 | 6 | DIBBS |
| 4730-01-008-4360 | 2019-04-107 | 5 | United States |
| 4730-01-008-4360 | 2018-08-219 | 7 | DIBBS |
| 4730-01-008-4360 | 2018-04-113 | 3 | DIBBS |
| 4730-01-008-4360 | 2017-04-95 | 4 | DIBBS |
| 4730-01-008-4360 | 2016-12-341 | 3 | DIBBS |
| 4730-01-008-4360 | 2016-08-216 | 1 | DIBBS |
| 4730-01-008-4360 | 2016-06-180 | 1 | DIBBS |
| 4730-01-008-4360 | 2015-12-362 | 1 | DIBBS |
| 4730-01-008-4360 | 2015-12-349 | 1 | DIBBS |
| 4730-01-008-4360 | 2010-12-337 | 5 | DIBBS |
| 4730-01-008-4360 | 2010-05-134 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-008-4360
Related Products | NSN 4730-01-008-4360
Technical Data | NSN 4730-01-008-4360
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE OVERALL |
| END ITEM IDENTIFICATION | AIRCRAFT MODEL A10A |

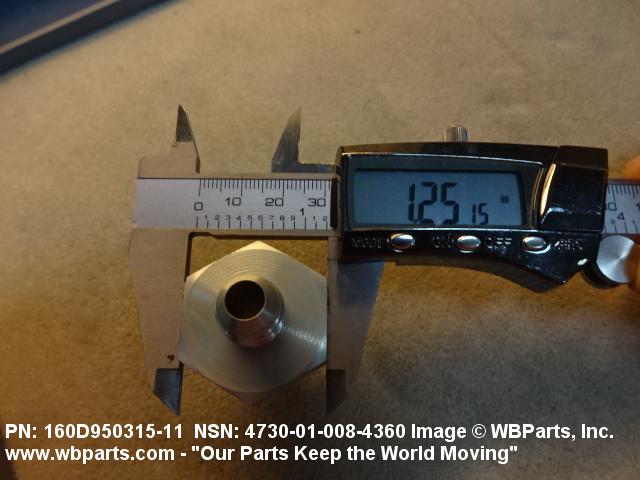

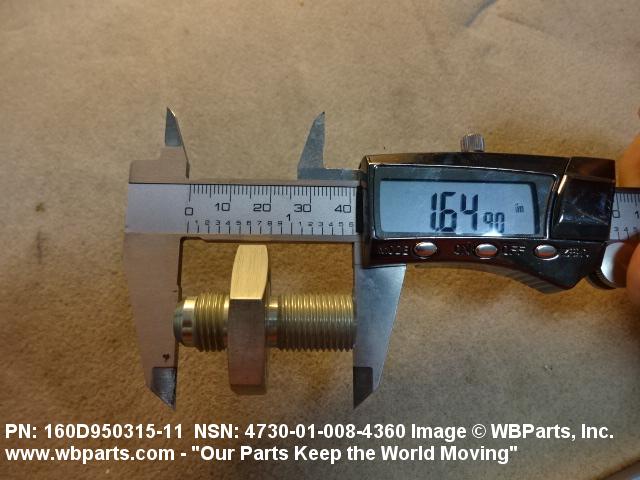

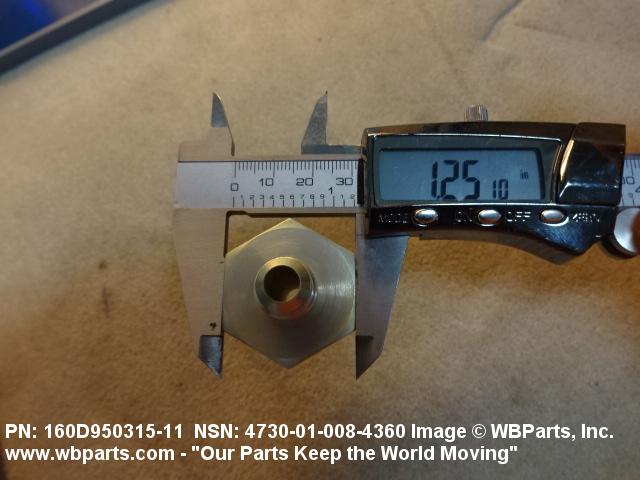

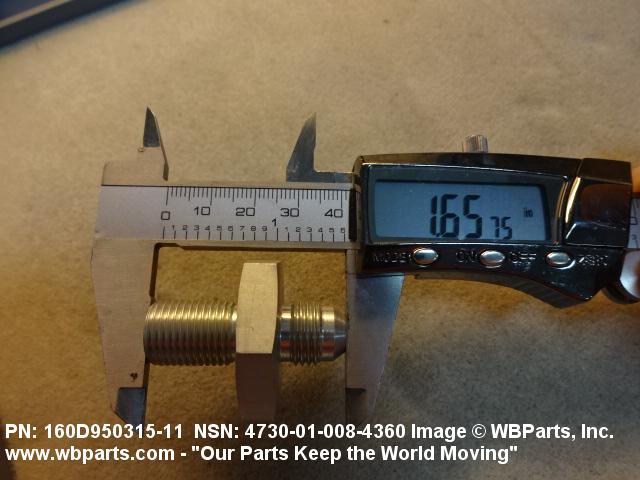

| SPECIAL FEATURES | O/L LENGTH 1.660 IN BY 1.250 ACROSS FLATS |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING-BULKHEAD,3/8 TUBE |
| MATERIAL | ALUMINUM ALLOY OVERALL |
Restrictions/Controls & Freight Information | NSN 4730-01-008-4360
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-008-4360
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
