NSN 4730-00-990-8428 AN9296K, AN929-6K, 00-990-8428
Product Details | TUBE CAP
4730-00-990-8428 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AN9296K, AN929-6K, 4730-00-990-8428, 00-990-8428, 4730009908428, 009908428
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 MAR 1967 | 00-990-8428 | 06074 ( CAP, TUBE ) |

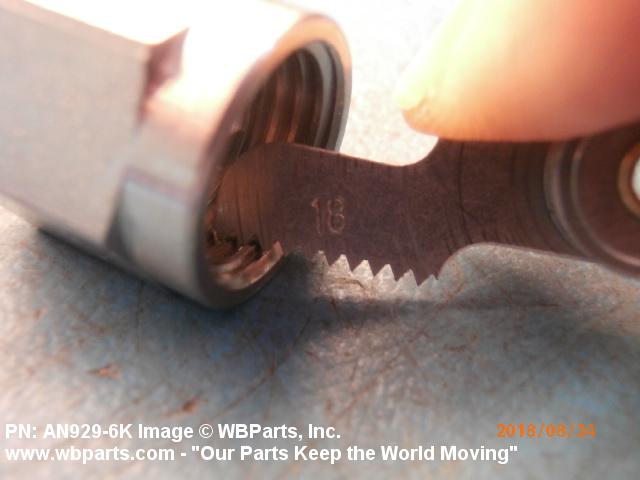

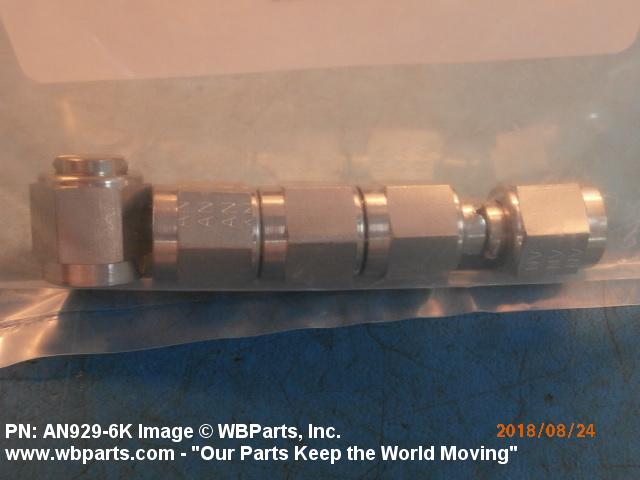

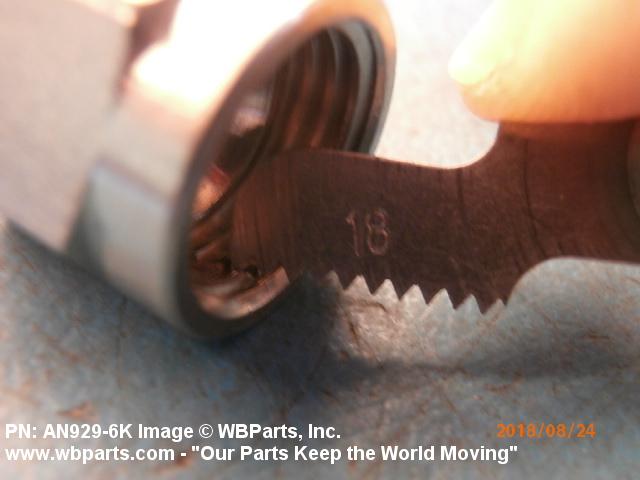

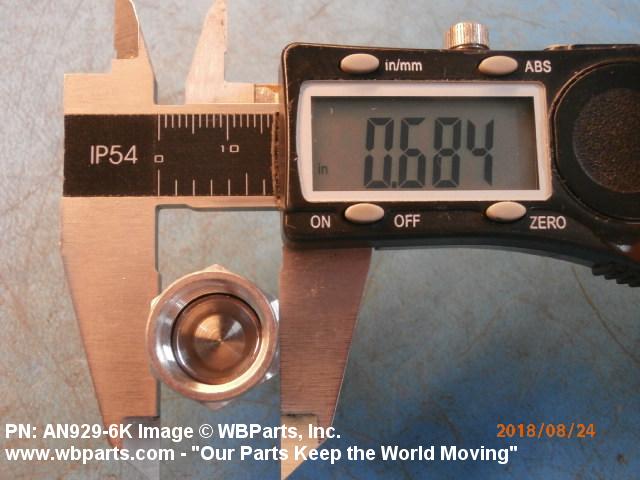

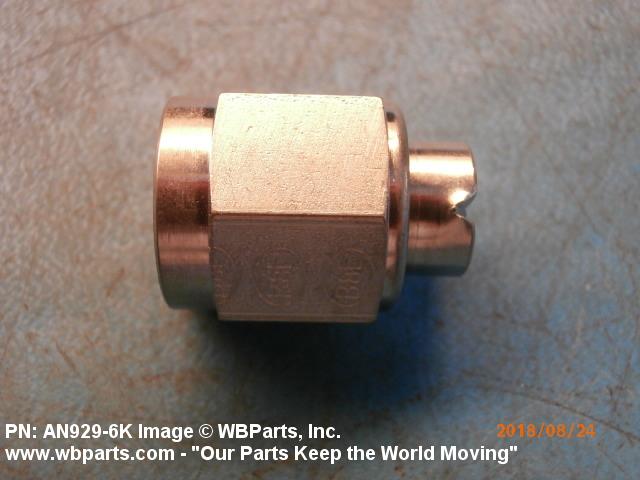

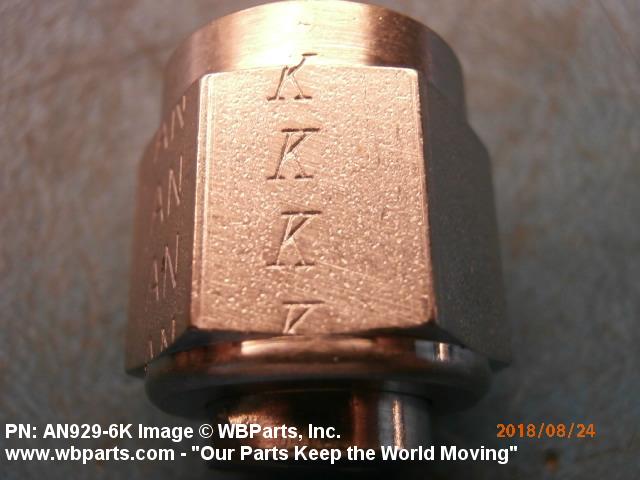

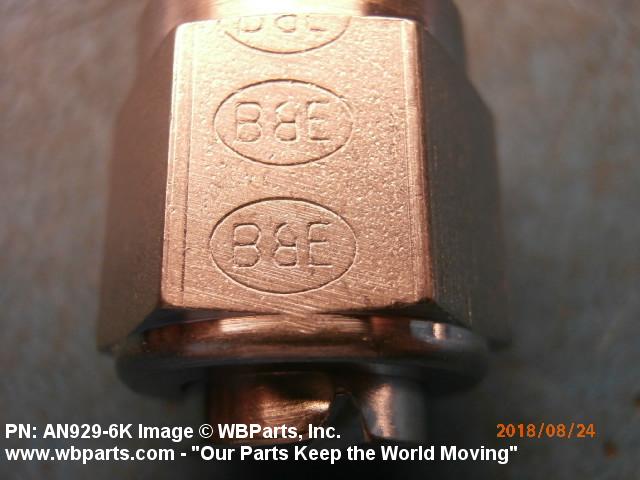

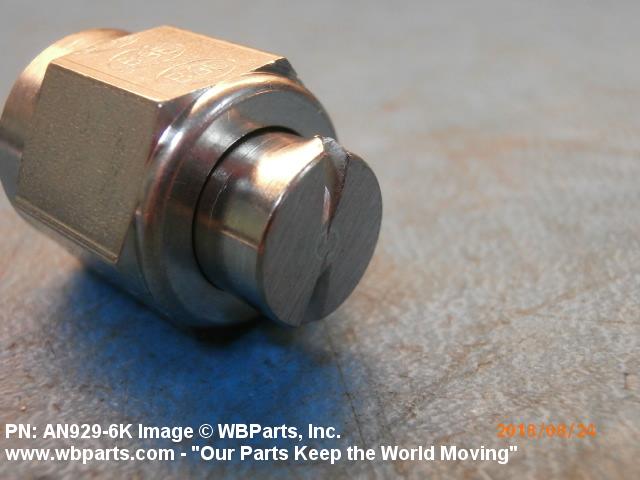

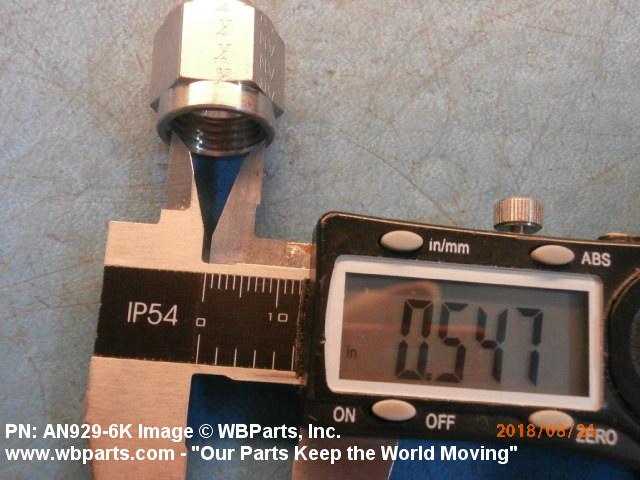

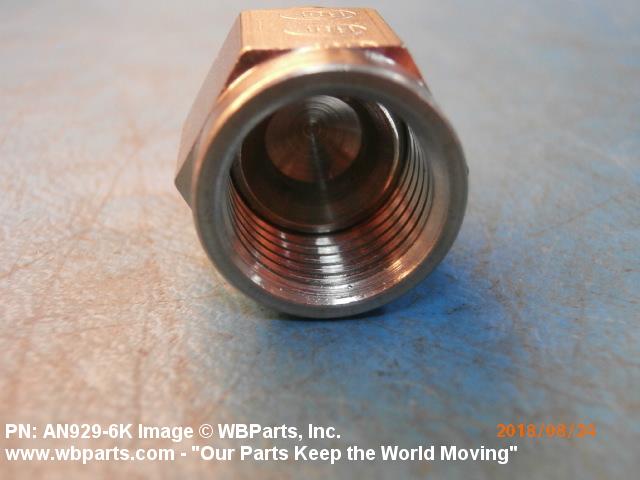

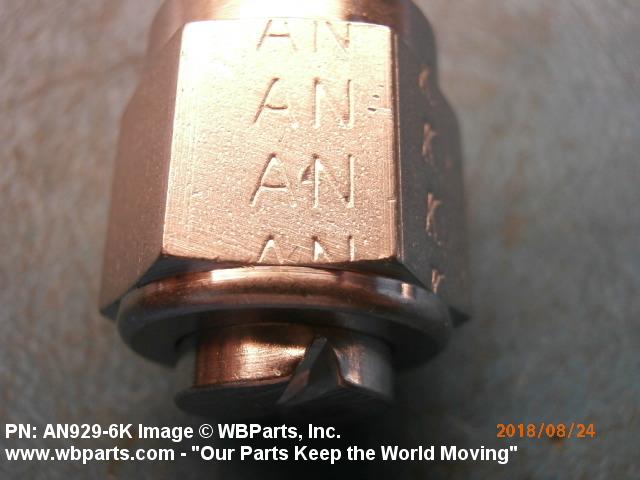

Drawings & Photos | NSN 4730-00-990-8428
Demand History | NSN 4730-00-990-8428
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9296K | 2022-03-69 | 25 | United States |
| AN9296K | 2021-04-120 | 1 | United States |
| AN9296K | 2019-04-106 | 2 | United States |
| AN9296K | 2019-04-101 | 1 | United States |
| AN9296K | 2018-08-213 | 1 | United States |
| AN9296K | 2010-11-313 | 2 | United States |
Cross Reference | NSN 4730-00-990-8428
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN929-6K | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-990-8428
Related Products | NSN 4730-00-990-8428
Technical Data | NSN 4730-00-990-8428
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A12 CAP, TUBE, FLARED |
| CONNECTION STYLE | G5 PRESSURE SEAL FLARED |
| THREAD SERIES DESIGNATOR | UNJF INTERNAL |
| NOMINAL THREAD SIZE | 0.562 INCHES INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 88044-AN929 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN929-6K |
Restrictions/Controls & Freight Information | NSN 4730-00-990-8428
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 86 | NASA Kennedy Space Center Kennedy Space Center, FL 32899 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-990-8428
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
