Product Details | TUBE SWING JOINT

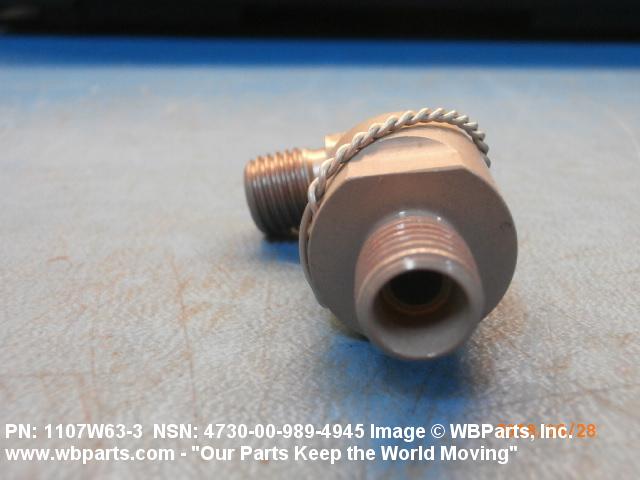

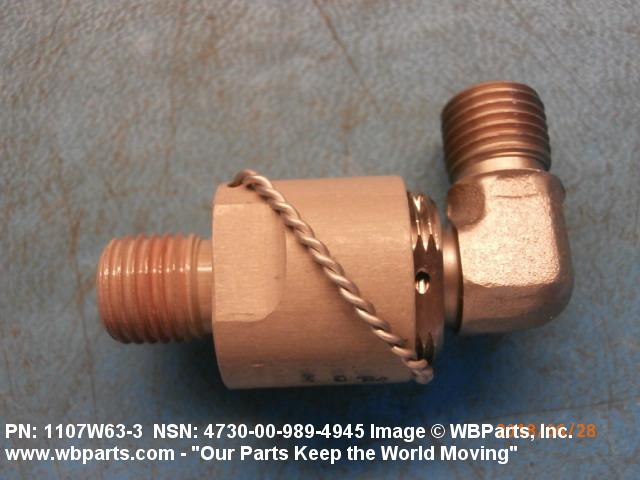

4730-00-989-4945 A metallic connector designed to join two lengths of tube and/or tube fittings in a fluid line to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane. It may incorporate bearing(s) to facilitate swinging action after installation.

Part Alternates: LRB14144G, L-RB14-14-4G, LRB1414D4G, LRB14-14D4G, 65651-11036-104, 1107W633, 1107W63-3, 2103860, 210-3860, 4730-00-989-4945, 00-989-4945, 6565111036104, 4730009894945, 009894945

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 18 NOV 1966 00-989-4945

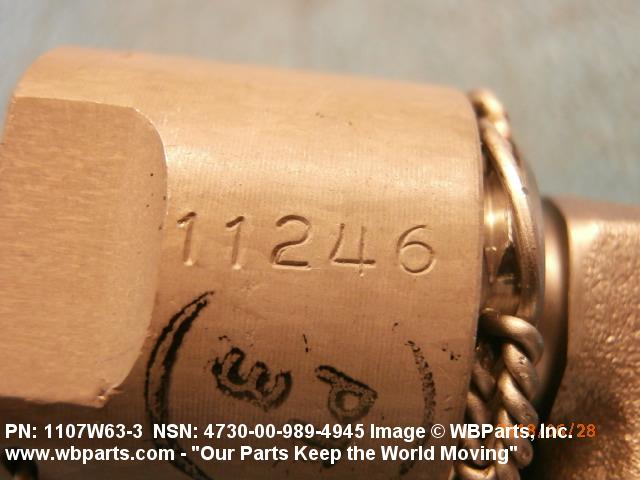

Drawings & Photos | NSN 4730-00-989-4945


Demand History | NSN 4730-00-989-4945

Part Number Request Date QTY Origin
4730-00-989-4945 2024-11-317 127 DIBBS
4730-00-989-4945 2024-10-305 127 DIBBS
4730-00-989-4945 2024-09-257 20 US
4730-00-989-4945 2024-08-228 105 DIBBS
4730-00-989-4945 2024-08-217 105 DIBBS
4730-00-989-4945 2024-04-120 27 DIBBS
4730-00-989-4945 2024-04-109 27 DIBBS
4730-00-989-4945 2024-03-64 66 DIBBS
4730-00-989-4945 2024-02-52 66 DIBBS
4730-00-989-4945 2024-01-08 30 DIBBS
4730-00-989-4945 2023-12-352 30 DIBBS
4730-00-989-4945 2023-12-341 30 DIBBS
1107W63-3 2023-04-96 47 DIBBS
210-3860 2023-04-96 47 DIBBS
1107W63-3 2022-10-304 25 DIBBS
210-3860 2022-10-304 25 DIBBS
1107W63-3 2022-10-293 25 DIBBS
210-3860 2022-10-293 25 DIBBS
1107W63-3 2022-03-76 36 DIBBS
210-3860 2022-03-76 36 DIBBS
1107W63-3 2022-02-48 20 DIBBS
210-3860 2022-02-48 20 DIBBS
1107W63-3 2022-01-25 8 DIBBS
210-3860 2022-01-25 8 DIBBS
1107W63-3 2022-01-13 8 DIBBS
210-3860 2022-01-13 8 DIBBS
1107W63-3 2021-06-172 4 DIBBS
210-3860 2021-06-172 4 DIBBS
1107W63-3 2021-06-154 4 DIBBS
210-3860 2021-06-154 4 DIBBS
1107W63-3 2019-07-203 83 DIBBS
210-3860 2019-07-203 83 DIBBS
1107W63-3 2019-06-178 24 DIBBS
210-3860 2019-06-178 24 DIBBS
1107W63-3 2019-06-175 36 DIBBS
210-3860 2019-06-175 36 DIBBS
1107W63-3 2019-05-129 39 DIBBS
210-3860 2019-05-129 39 DIBBS
1107W63-3 2019-04-115 3 DIBBS
210-3860 2019-04-115 3 DIBBS
1107W63-3 2019-04-101 22 DIBBS
210-3860 2019-04-101 22 DIBBS
1107W63-3 2019-03-84 33 DIBBS
210-3860 2019-03-84 33 DIBBS
1107W63-3 2019-03-73 33 DIBBS
210-3860 2019-03-73 33 DIBBS
4730-00-989-4945 2018-10-284 38 DIBBS
4730-00-989-4945 2018-08-221 72 DIBBS
1107W633 2018-06-172 1 United States
4730-00-989-4945 2018-01-29 72 DIBBS
4730-00-989-4945 2018-01-18 72 DIBBS
4730-00-989-4945 2018-01-07 72 DIBBS
4730-00-989-4945 2017-10-278 28 DIBBS
4730-00-989-4945 2017-08-243 22 DIBBS
6565-11-103-6104 2017-06-167 29 United States
4730-00-989-4945 2017-04-100 23 DIBBS
4730-00-989-4945 2017-03-89 23 DIBBS
4730-00-989-4945 2016-09-263 34 DIBBS
4730-00-989-4945 2016-09-251 34 DIBBS
4730-00-989-4945 2013-07-183 1 DIBBS-RFPs
4730-00-989-4945 2012-09-264 25 DIBBS
4730-00-989-4945 2011-09-270 57 DIBBS

Cross Reference | NSN 4730-00-989-4945

Part Number Cage Code Manufacturer
1107W63-3 09790 EATON AEROSPACE LLC DBA STERER ENGINEERING DIV VALVE &
210-3860 98769 SENIOR OPERATIONS LLC DBA SENIOR AEROSPACE SSP
65651-11036-104 78286 SIKORSKY AIRCRAFT CORPORATION
L-RB14-14-4G 17446 HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
L-RB14-14-4G 97928 HUCK INTL INC
LRB14-14D4G 14798 DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-989-4945

Technical Data | NSN 4730-00-989-4945

Characteristic Specifications
MATERIAL ALUMINUM ALLOY OVERALL
MAXIMUM OPERATING PRESSURE 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

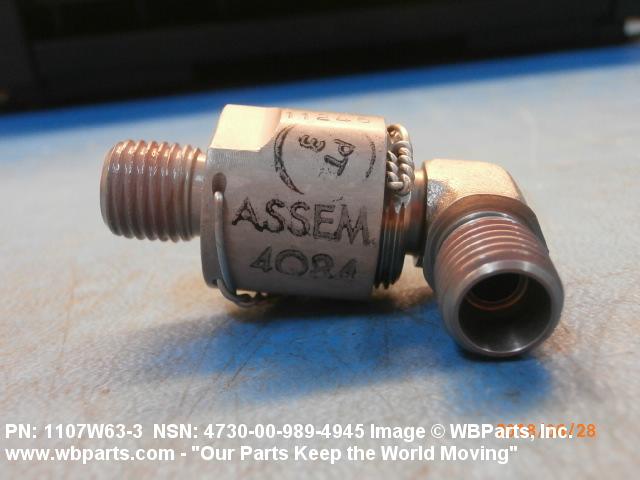

STYLE DESIGNATOR A121 DOUBLE JOINT, ELBOW DESIGN
CONNECTION TYPE THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE B66 FLARELESS ALL ENDS
SEAT ANGLE 12.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR UNF ALL ENDS

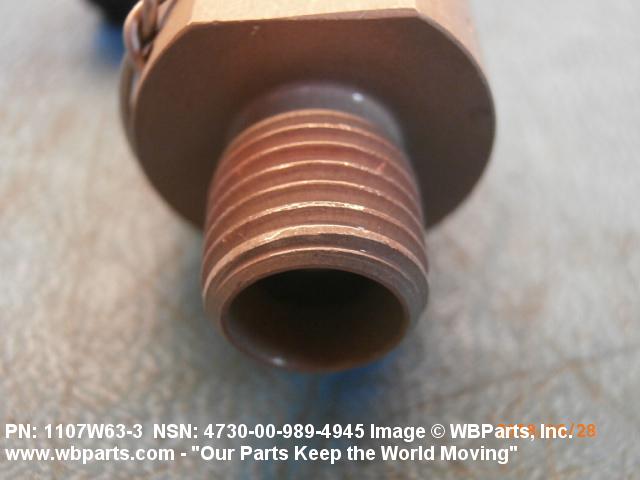

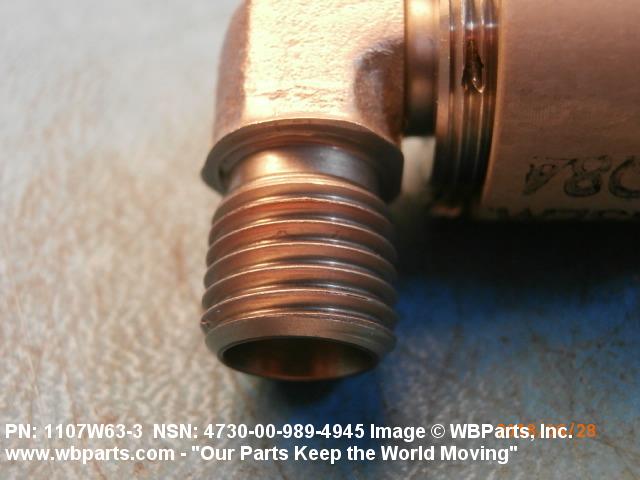

NOMINAL THREAD SIZE 0.438 INCHES ALL ENDS
THREAD CLASS 3A 1ST END 3A 2ND END

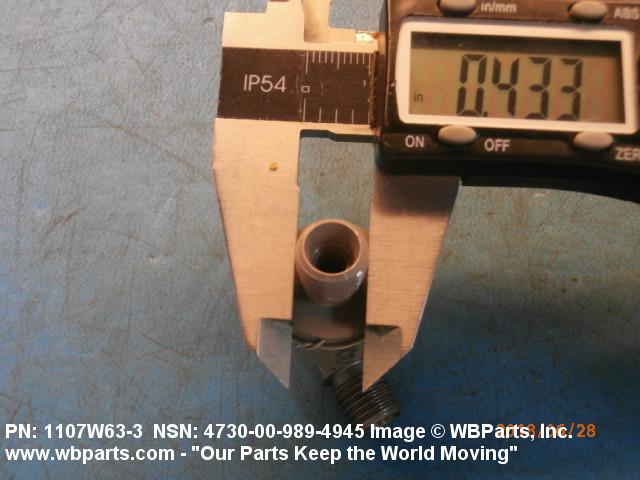

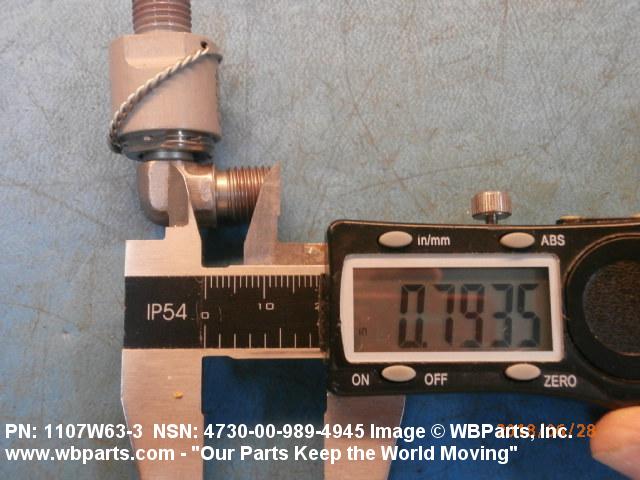

LEG LENGTH 0.793 INCHES NOMINAL 1ST END 1.690 INCHES NOMINAL 2ND END

Restrictions/Controls & Freight Information | NSN 4730-00-989-4945

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 051400 PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 576 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4730-00-989-4945

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
