Product Details | FLUID FLOW RESTRICTOR UNIT
4730-00-957-5247 An assembly consisting of an orifice in a fixed plate, disk, or tube with screens or filters on one or both sides, depending on the direction of filtered flow. See RESTRICTOR, FLUID FLOW.
Part Alternates: R40013, R4001-3, 4730-00-957-5247, 00-957-5247, 4730009575247, 009575247
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-957-5247 | 20933 ( RESTRICTOR UNIT, FLUID FLOW ) |

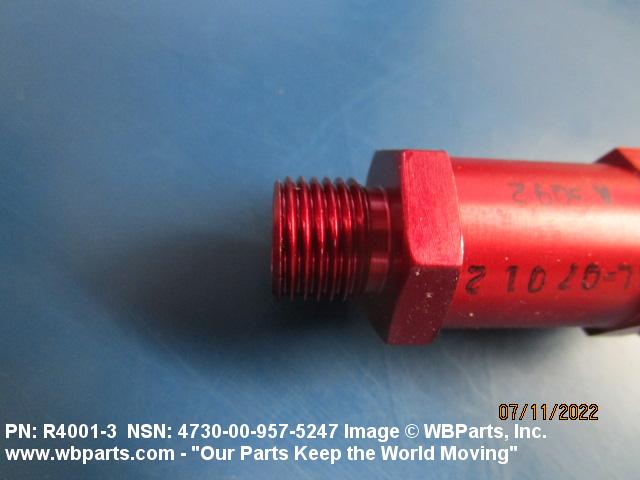

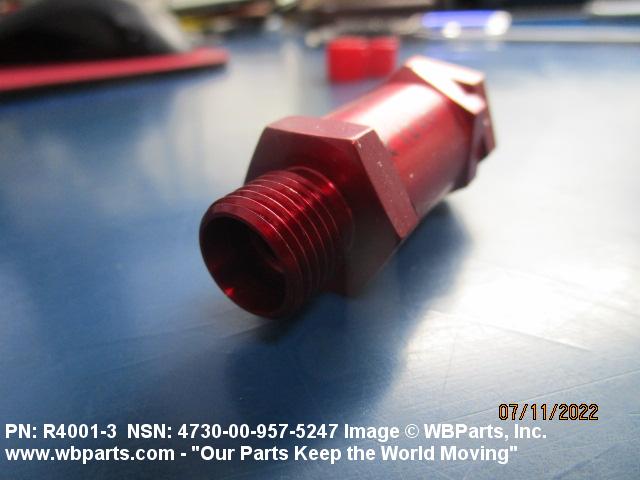

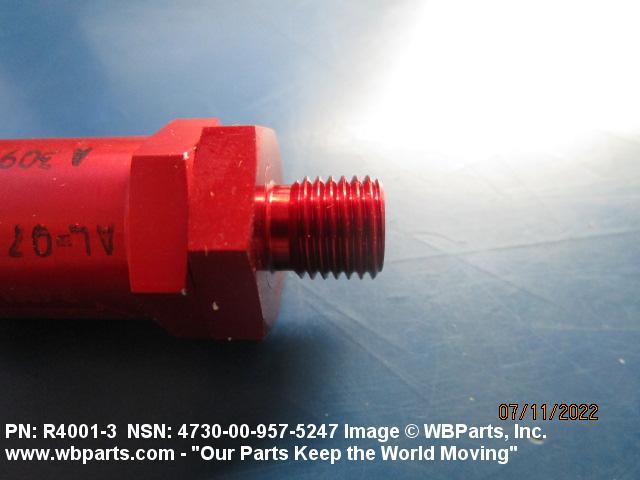

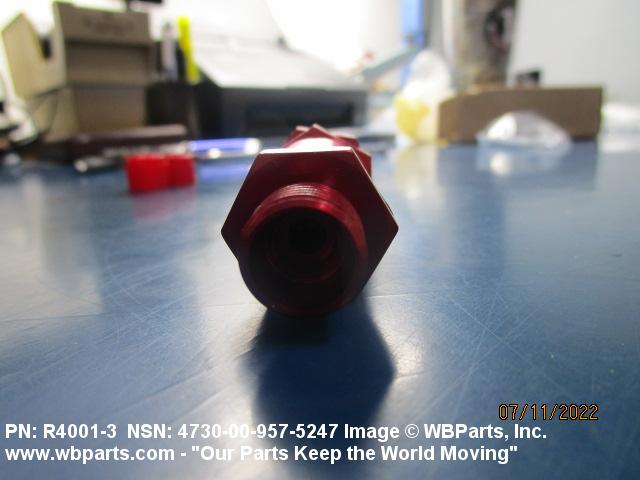

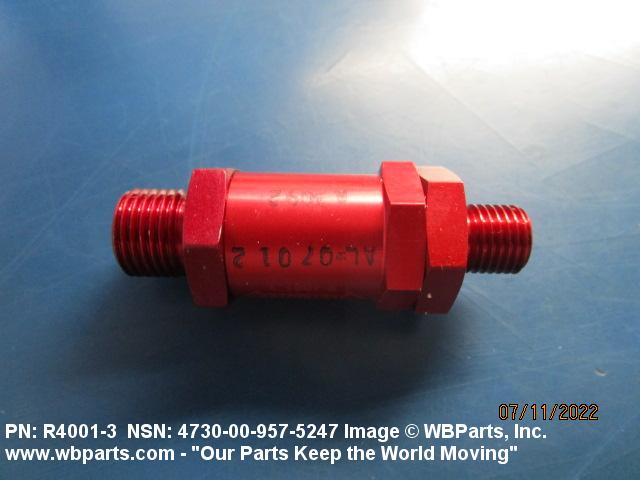

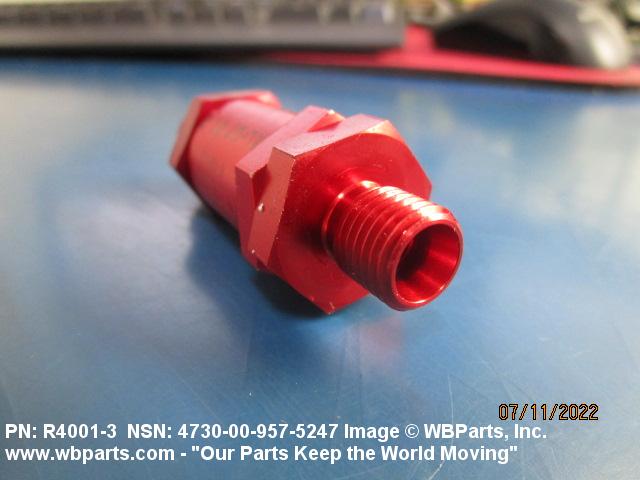

Drawings & Photos | NSN 4730-00-957-5247
Demand History | NSN 4730-00-957-5247
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R4001-3 | 2023-05-131 | 3 | DIBBS |
| R4001-3 | 2023-04-114 | 2 | DIBBS |
| R4001-3 | 2023-04-103 | 2 | DIBBS |
| 4730-00-957-5247 | 2022-07-186 | 1 | United States |
| R4001-3 | 2022-03-73 | 1 | DIBBS |
| R4001-3 | 2022-03-60 | 1 | DIBBS |
| 4730-00-957-5247 | 2018-09-263 | 6 | DIBBS |
| 4730-00-957-5247 | 2018-04-116 | 3 | DIBBS |
| 4730-00-957-5247 | 2017-07-194 | 3 | DIBBS |
| 4730-00-957-5247 | 2017-05-143 | 1 | DIBBS-RFPs |
| 4730-00-957-5247 | 2016-01-03 | 5 | DIBBS |
| 4730-00-957-5247 | 2015-07-193 | 2 | DIBBS |
| 4730-00-957-5247 | 2009-10-302 | 8 | DIBBS |
| 4730-00-957-5247 | 2009-04-106 | 24 | DIBBS |
| 4730-00-957-5247 | 2009-03-75 | 6 | DIBBS |
| 4730-00-957-5247 | 2009-03-68 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-957-5247
Related Products | NSN 4730-00-957-5247
Technical Data | NSN 4730-00-957-5247
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | STRAIGHT |
| OVERALL LENGTH | 2.452 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.910 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM ALLOY |
| PACKING MATERIAL | FELT |
| STRAINER TYPE AND QUANTITY | 2 FILTER |
| FILTER MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | ANODIZED |

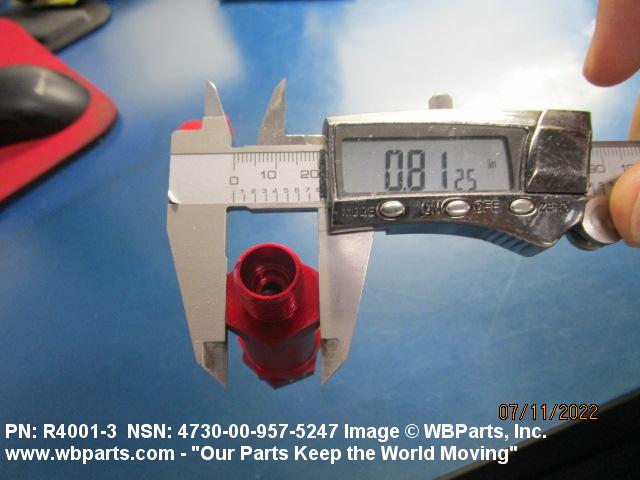

| VALVE SIZE | 0.813 INCHES |
| FLOW RATE AND FLUID TYPE | 2.1 GALLONS PER MINUTE OIL |
| ORIFICE DIAMETER | 0.050 INCHES NOMINAL |
| PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH NOMINAL |
| OPERATING TEMP RANGE | -65.0 TO 275.0 DEG FAHRENHEIT |
| END CONNECTION SIMILARITY | IDENTICAL |
| END CONNECTION TYPE | THREADED MALE, COMPRESSION THREADED MALE, COMPRESSION |
| COMPRESSION TYPE | DOUBLE COMPRESSION DOUBLE COMPRESSION |
| THREAD SIZE DESIGNATOR | 7/16 -20 9/16 -18 |
| THREAD SERIES | UNF OG NF UNF OR NF |
| THREAD CLASS | 3A OR 3 3A OR 3 |
| THREAD DIRECTION | RIGHT-HAND RIGHT-HAND |
| END CONNECTION COMPONENT TYPE AND SIZE FOR WHICH DESIGNED | 1/4 IN. OD TUBE AND 3/8 IN. OD TUBE |
| MANUFACTURERS CODE | 11825 |
| DESIGN CONTROL REFERENCE | R4001-3 |
