NSN 4730-00-933-7613 MB444866, AAE89703193, AAE89703-193
Product Details | MAGNETIC PIPE PLUG
4730-00-933-7613 A pipe fitting primarily designed for installation in a lubrication or hydraulic system. It has an integral magnet in the body and external pipe threads.
Part Alternates: MB444866, AAE89703193, AAE89703-193, 934038, 4730-00-933-7613, 00-933-7613, 4730009337613, 009337613
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 SEP 1966 | 00-933-7613 | 22340 ( PLUG, PIPE, MAGNETIC ) |

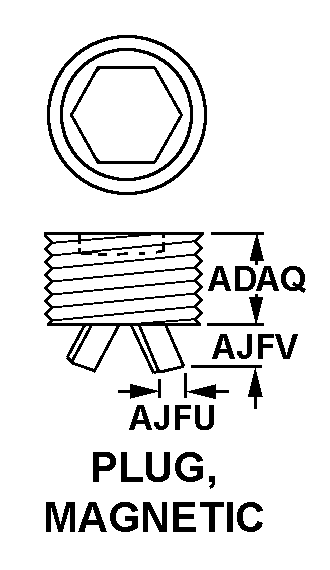

Drawings & Photos | NSN 4730-00-933-7613
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-933-7613
Technical Data | NSN 4730-00-933-7613
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | E5 PLUG, MAGNETIC |
| BODY LENGTH | 0.410 INCHES NOMINAL |
| MAGNET WIDTH | 0.093 INCHES NOMINAL |
| MAGNET PROJECTION LENGTH | 0.190 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | NPTF EXTERNAL |
| NOMINAL THREAD SIZE | 0.375 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
Restrictions/Controls & Freight Information | NSN 4730-00-933-7613
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
