NSN 4730-00-933-0710 MS273896C, MS27389-6C, G651136

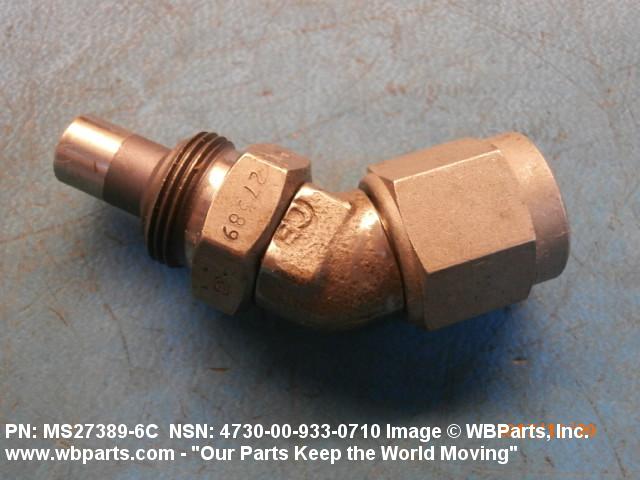

Product Details | TUBE TO HOSE ELBOW
4730-00-933-0710 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube, The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; CONNECTOR, MULTIPLE, FLUID PRESSURE LINE; and ELBOW, SWIVEL FLANGE TO HOSE.
Part Alternates: MS273896C, MS27389-6C, G651136, G65113-6, MILF27272, MIL-F-27272, 4730-00-933-0710, 00-933-0710, 4730009330710, 009330710
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 MAR 1967 | 00-933-0710 | 03772 ( ELBOW, TUBE TO HOSE ) |
Drawings & Photos | NSN 4730-00-933-0710
Demand History | NSN 4730-00-933-0710
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-933-0710 | 2017-12-348 | 4 | United States |
| 4730-00-933-0710 | 2016-03-84 | 61 | DIBBS |
| 4730-00-933-0710 | 2016-03-73 | 61 | DIBBS |
Cross Reference | NSN 4730-00-933-0710
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G65113-6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| G65113-6 | R1120 | SATAIR A/S |
| MIL-F-27272 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27389-6C | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS27389-6C | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| MS27389-6C | 12157 | RESISTOFLEX CORP SOUTHWESTERN DIV |
| MS27389-6C | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| MS27389-6C | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
| MS27389-6C | 79470 | DANA CORP WEATHERHEAD DIV |
| MS27389-6C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-933-0710
Related Products | NSN 4730-00-933-0710
Technical Data | NSN 4730-00-933-0710
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END |
| CONNECTION STYLE | B12 SWIVEL NUT, FLARELESS 1ST END B77 SWIVEL NUT 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| SEAT NOMINAL RADIUS | 0.212 INCHES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.330 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.491 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END |
| THREAD CLASS | 3B 1ST END 3A 2ND END |
| LEG LENGTH | 1.388 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS27389 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-27272 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27389-6C |
