Product Details | PIPE ELBOW

4730-00-929-0609 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. Both connecting ends have standard pipe threads or are unthreaded and designed to accommodate a pipe. It may have side or heel inlet(s). See also ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. Excludes BEND, SOIL PIPE.

Part Alternates: AN9141K, AN914-1K, AN939K12 , AS4875, AS5190 , AS5190K12, MILF5509, MIL-F-5509 , 1576 18 218 , 1AN939K12, 4730-00-929-0609, 00-929-0609, 4730009290609, 009290609, 137618599 , 157618218

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 31 AUG 1966 00-929-0609

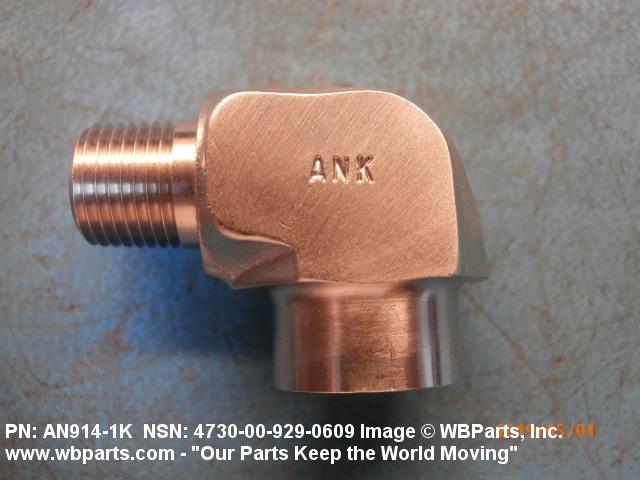

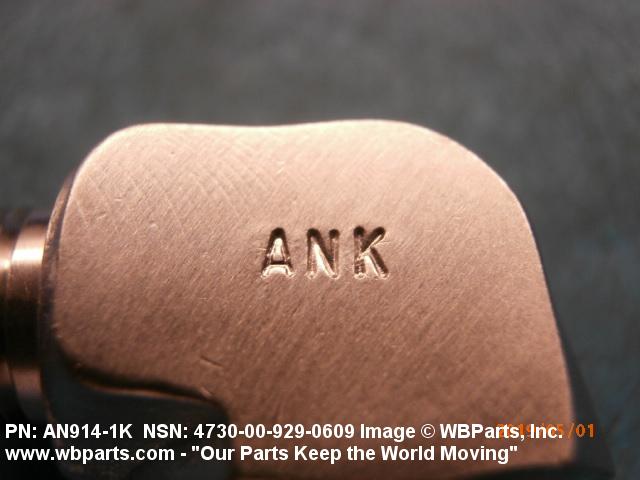

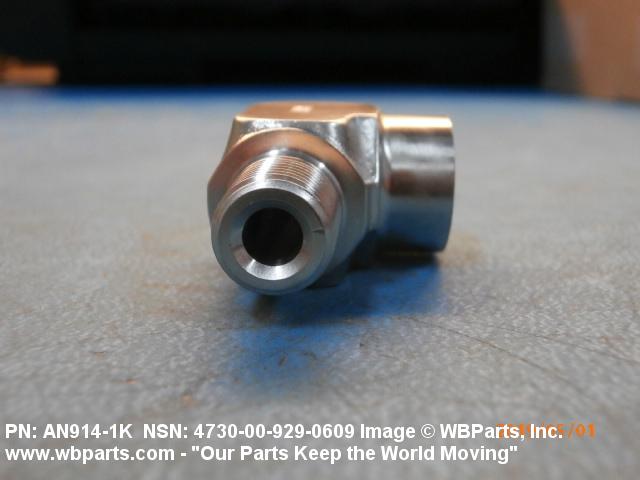

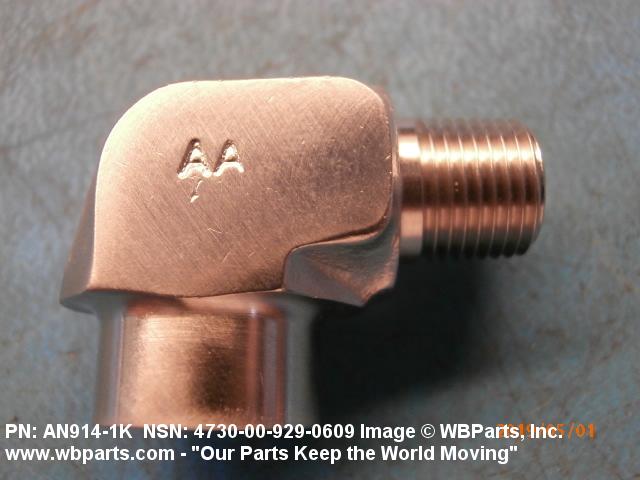

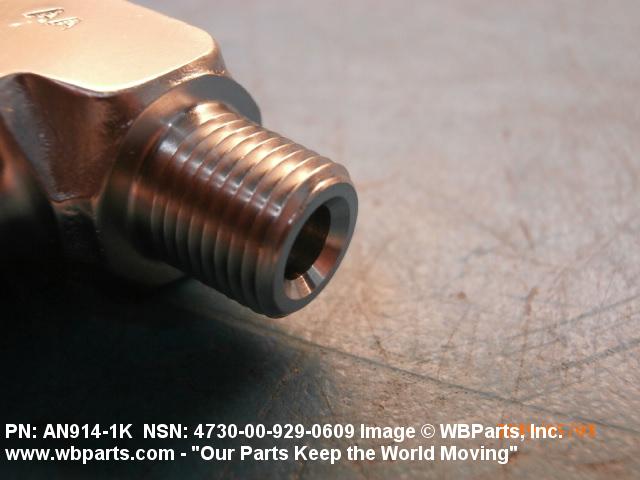

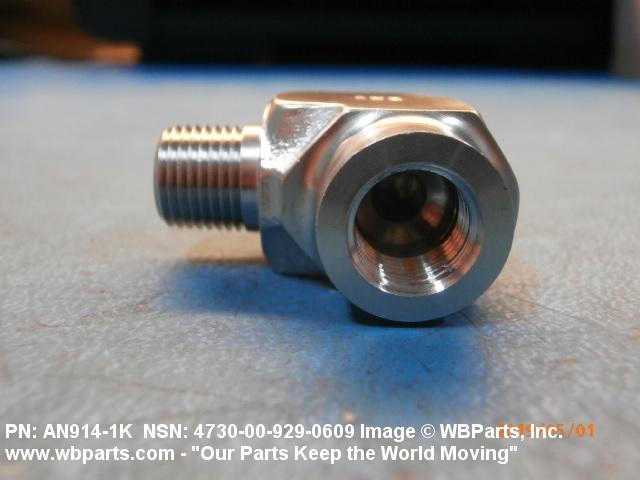

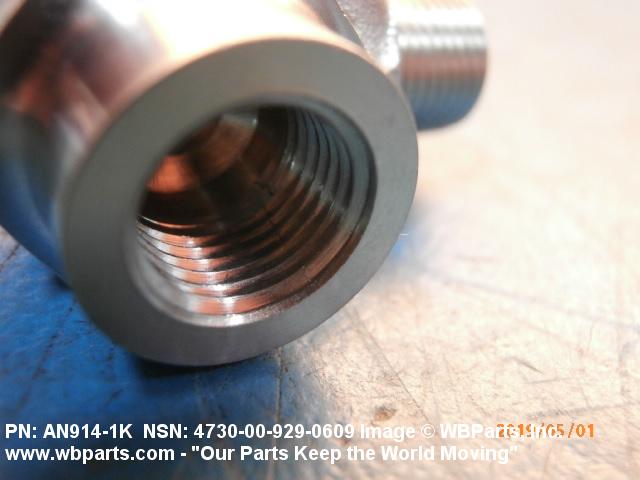

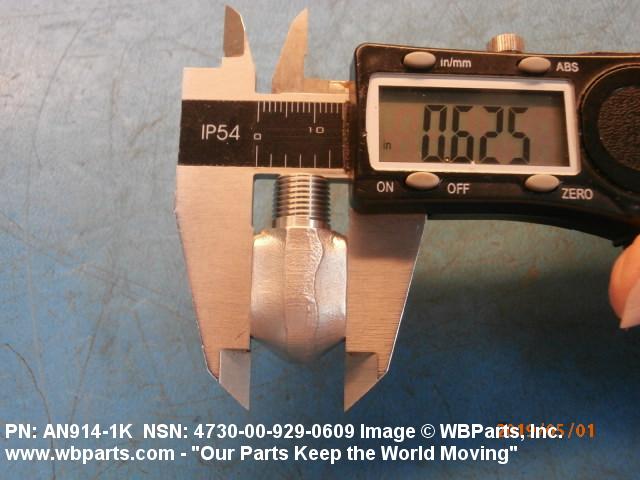

Drawings & Photos | NSN 4730-00-929-0609


Demand History | NSN 4730-00-929-0609

Part Number Request Date QTY Origin
AN939K12 2024-03-86 7 IN
AN939K12 2023-10-277 5 US
AN939K12 2023-08-215 4 India
4730-00-929-0609 2021-10-275 1 United States
AN939K12 2020-02-44 12 IT
AN9141K 2019-04-106 1 United States
AN9141K 2019-04-101 1 United States
MILF5509 2018-07-201 6 United States
4730-00-929-0609 2016-02-42 1 DIBBS
4730-00-929-0609 2016-02-39 60 DIBBS
4730-00-929-0609 2016-01-27 60 DIBBS
AN939K12 2013-09-273 5 United States
MILF5509 2009-10-301 1 PK
MILF5509 2009-02-55 100 US

Cross Reference | NSN 4730-00-929-0609

Part Number Cage Code Manufacturer
AN914-1K 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-929-0609

Technical Data | NSN 4730-00-929-0609

Characteristic Specifications
MATERIAL STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
MAXIMUM OPERATING TEMP 434.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE THREADED INTERNAL PIPE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE B14A PLAIN 1ST END B67B PLAIN 2ND END
THREAD SERIES DESIGNATOR ANPT ALL ENDS
NOMINAL THREAD SIZE 0.125 INCHES ALL ENDS

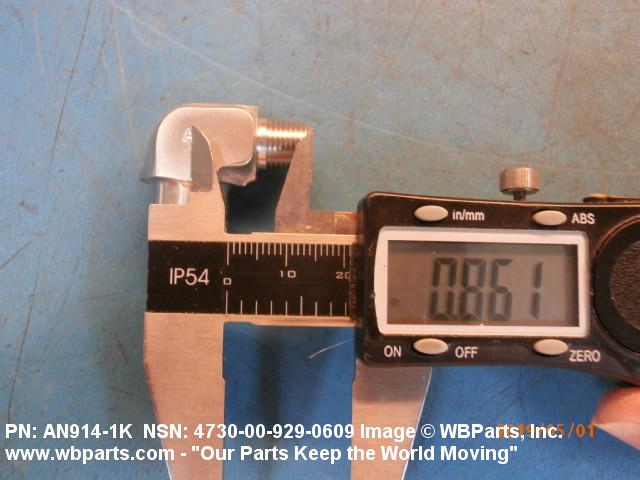

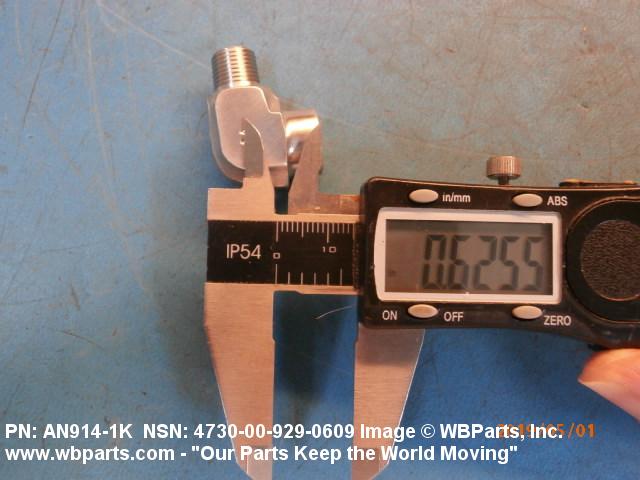

LEG LENGTH 0.609 INCHES MINIMUM AND 0.656 INCHES MAXIMUM 1ST END 0.859 INCHES MINIMUM AND 0.906 INCHES MAXIMUM 2ND END
FLOW ANGLE 90.0 DEGREES
SPECIFICATION/STANDARD DATA 88044-AN914 GOVERNMENT STANDARD
MANUFACTURERS CODE 88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN914-1K

Restrictions/Controls & Freight Information | NSN 4730-00-929-0609

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 052190 PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code 86 NASA Kennedy Space Center
Kennedy Space Center, FL 32899
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4730-00-929-0609

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
