NSN 4730-00-916-6308 MS219023C, MS21902-3C, MS219023J
Product Details | BOSS NIPPLE
4730-00-916-6308 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.
Part Alternates: MS219023C, MS21902-3C, MS219023J, MS21902-3J, MS21902J3, MS21902-J3, AS18280, AS21902, 4730-00-916-6308, 00-916-6308, 4730009166308, 009166308
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 JUL 1966 | 00-916-6308 | 26952 ( NIPPLE, BOSS ) |

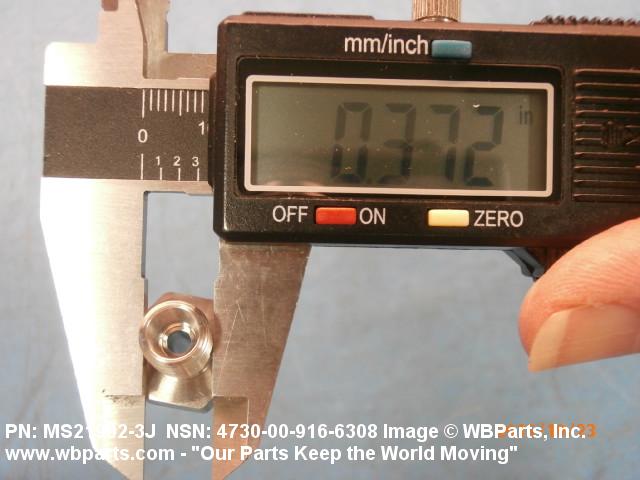

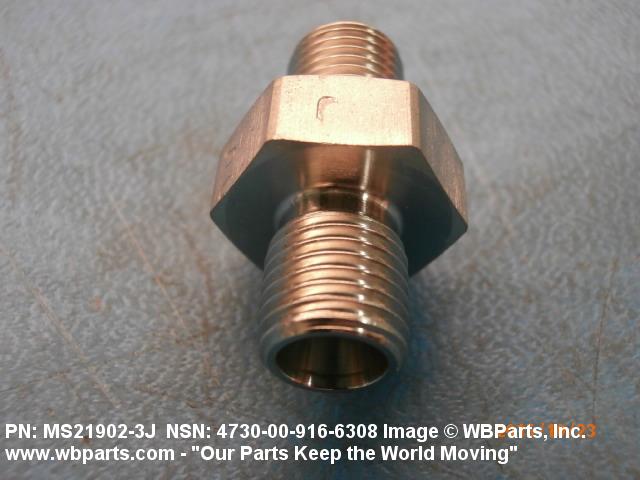

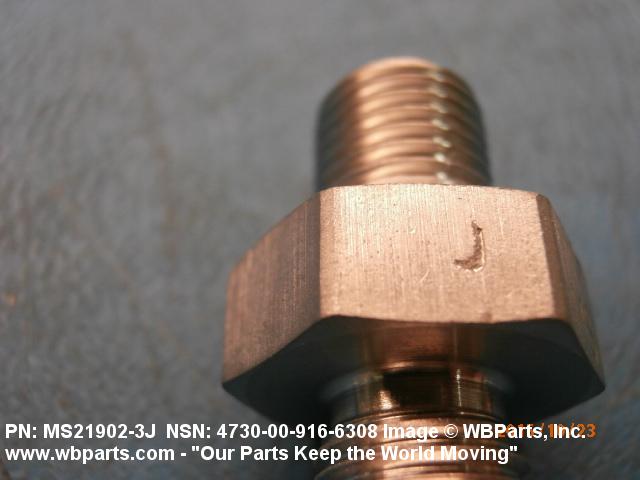

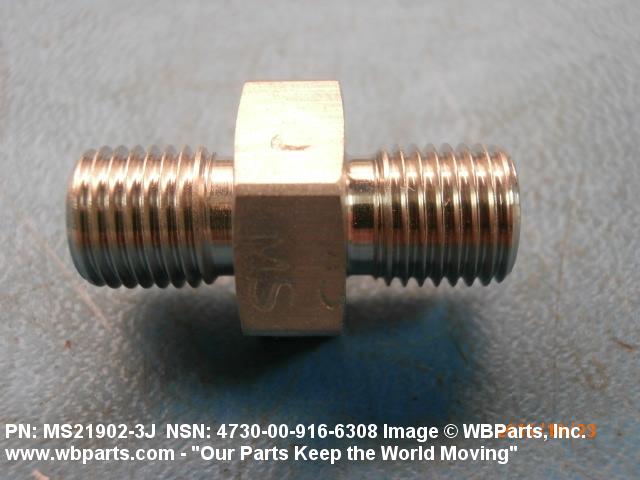

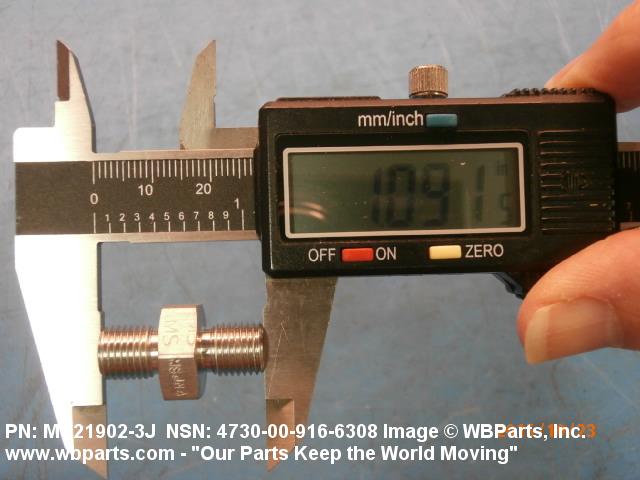

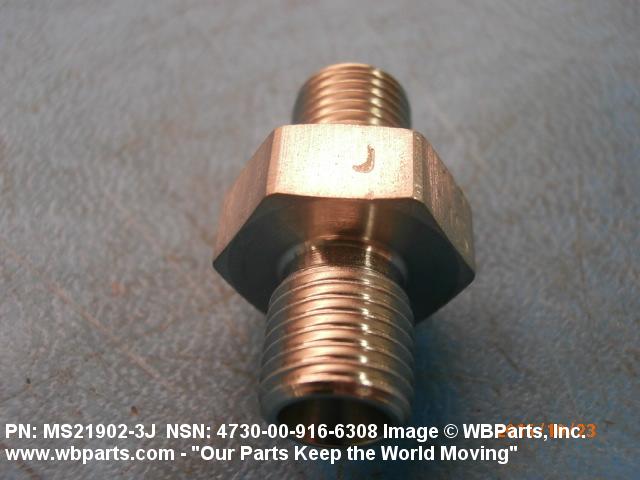

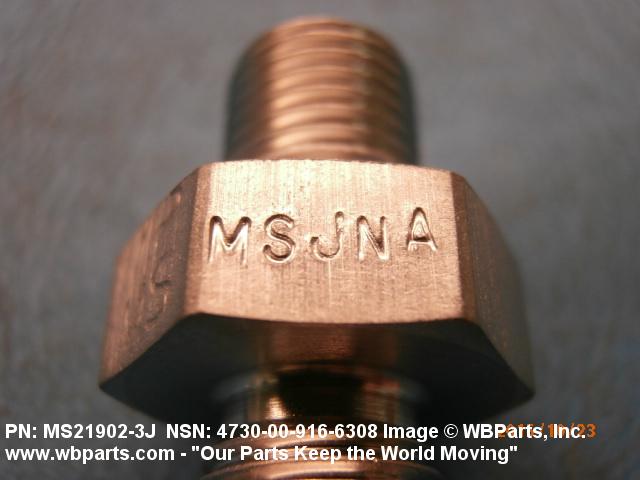

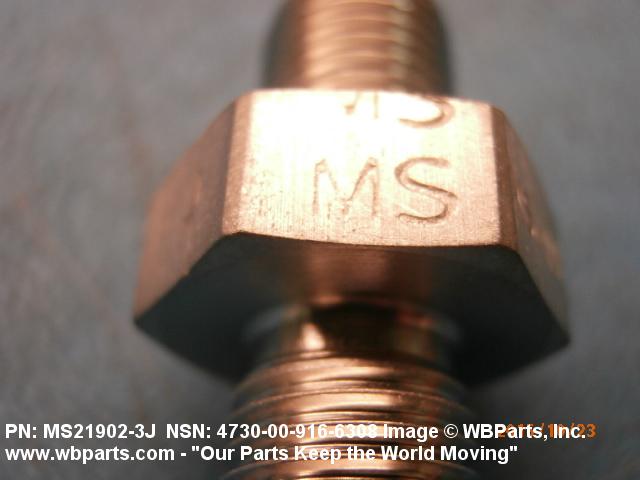

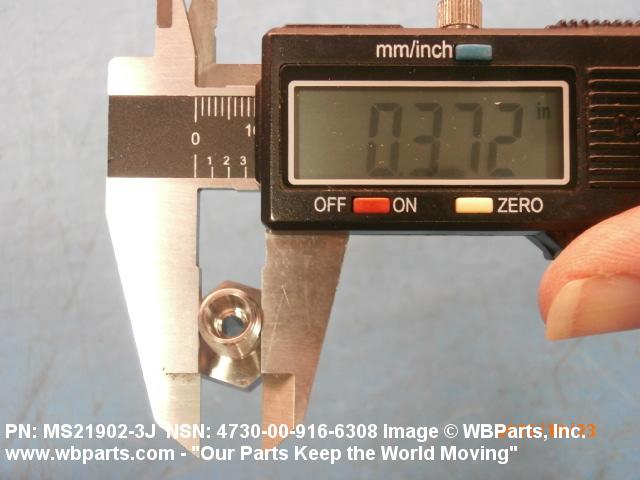

Drawings & Photos | NSN 4730-00-916-6308
Demand History | NSN 4730-00-916-6308
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21902J3 | 2024-07-192 | 250 | US |
| 4730-00-916-6308 | 2024-05-144 | 200 | UK |
| 4730-00-916-6308 | 2024-02-37 | 1 | United States |
| 4730-00-916-6308 | 2018-06-172 | 810 | DIBBS |
| 4730-00-916-6308 | 2018-03-67 | 1 | United States |
| 4730-00-916-6308 | 2017-04-92 | 308 | DIBBS |
| 4730-00-916-6308 | 2015-10-292 | 1 | United States |
| AS18280 | 2014-10-280 | 1 | US |
| AS21902 | 2012-10-285 | 1 | US |
| 4730-00-916-6308 | 2011-11-307 | 647 | DIBBS |
| 4730-00-916-6308 | 2010-02-55 | 265 | DIBBS |
| 4730-00-916-6308 | 2009-11-316 | 290 | DIBBS |
| 4730-00-916-6308 | 2009-09-245 | 277 | DIBBS |
| 4730-00-916-6308 | 2009-06-176 | 111 | DIBBS |
| 4730-00-916-6308 | 2009-06-155 | 530 | DIBBS |
| 4730-00-916-6308 | 2009-04-106 | 342 | DIBBS |
| 4730-00-916-6308 | 2009-04-99 | 229 | DIBBS |
| 4730-00-916-6308 | 2009-03-78 | 134 | DIBBS |
| 4730-00-916-6308 | 2009-02-50 | 166 | DIBBS |
Cross Reference | NSN 4730-00-916-6308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21902 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21902-3C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21902-3J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS21902-J3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21902-J3 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| MS21902J3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-916-6308
Related Products | NSN 4730-00-916-6308
Technical Data | NSN 4730-00-916-6308
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | AERONAUTICAL FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.000 DEG FAHRENHEIT SINGLE RESPONSE |
| STYLE DESIGNATOR | A66 FLARELESS W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B71A EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.375 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.093 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS21902 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21902-J3 |
Restrictions/Controls & Freight Information | NSN 4730-00-916-6308
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-916-6308
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
