NSN 4730-00-916-1983 MS919312, MS9193-12, 00-916-1983

Product Details | TUBE TO BOSS STRAIGHT ADAPTER

4730-00-916-1983 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.

Part Alternates: MS919312, MS9193-12, 4730-00-916-1983, 00-916-1983, 4730009161983, 009161983

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	16 NOV 1965	00-916-1983	22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS )

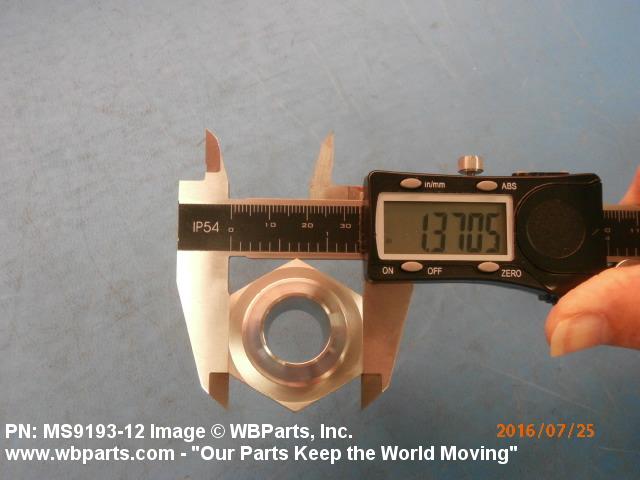

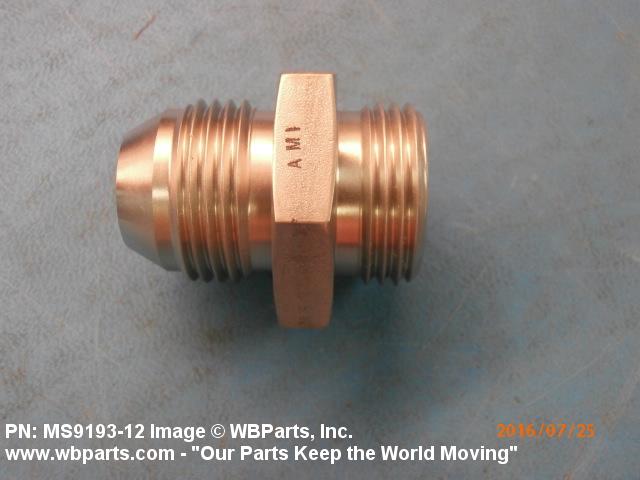

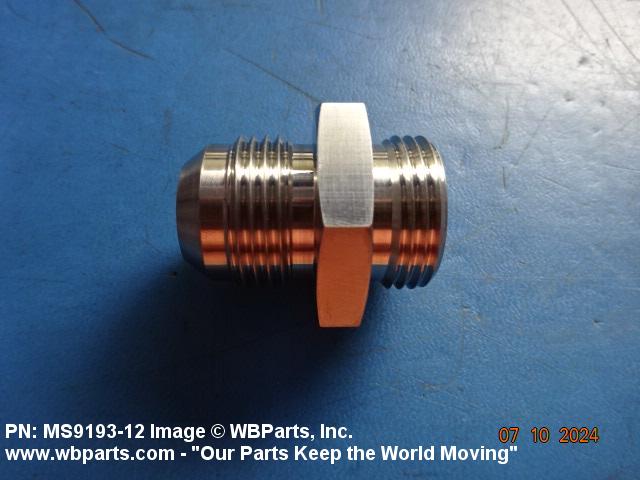

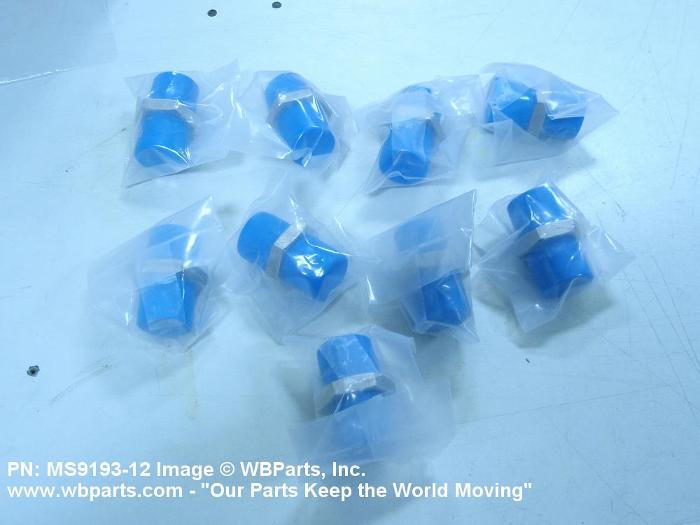

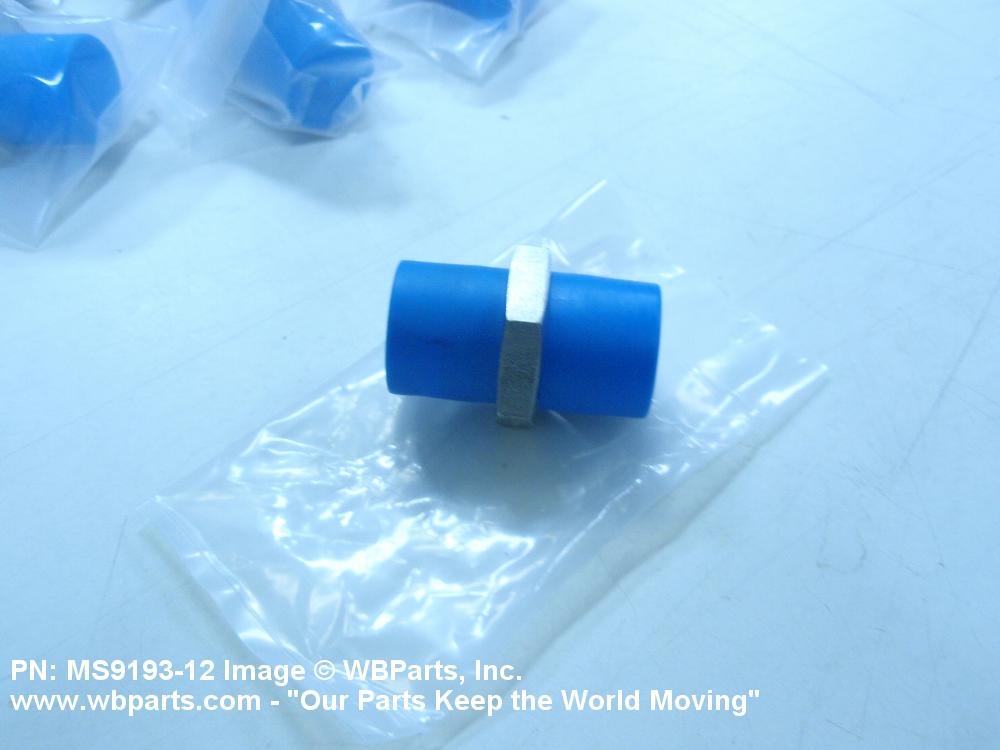

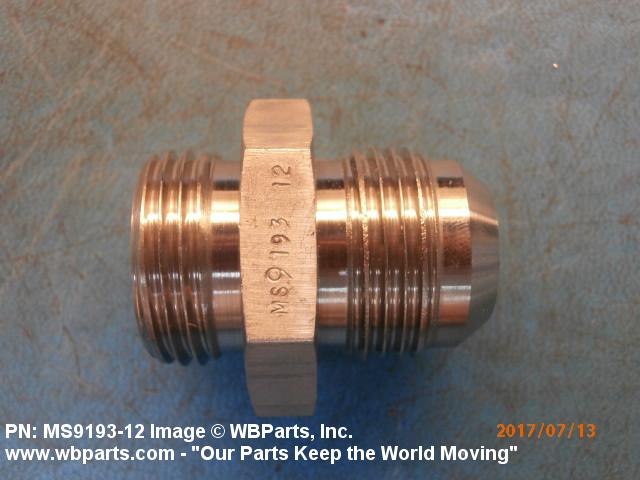

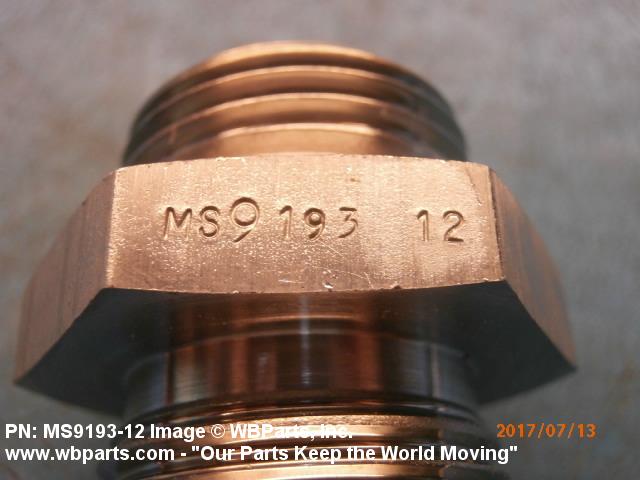

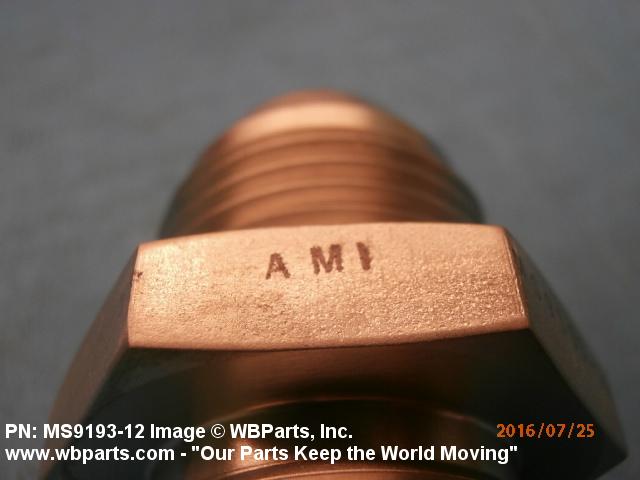

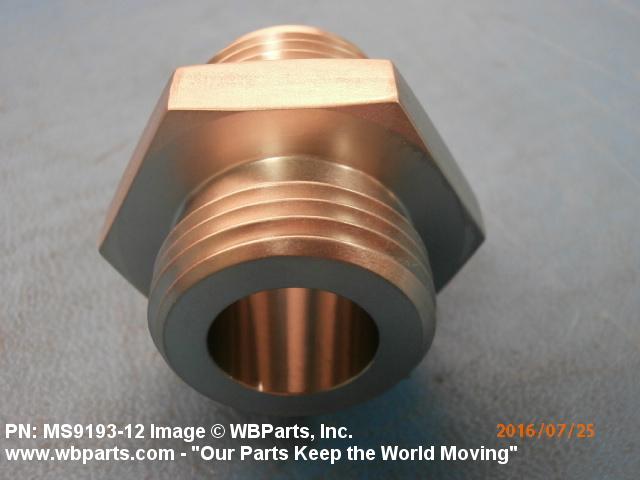

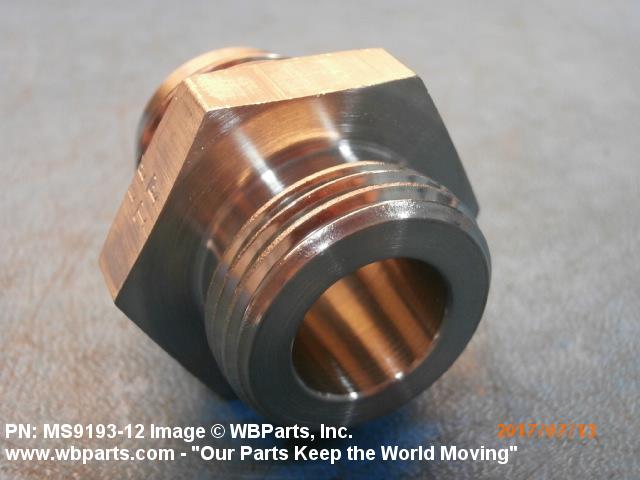

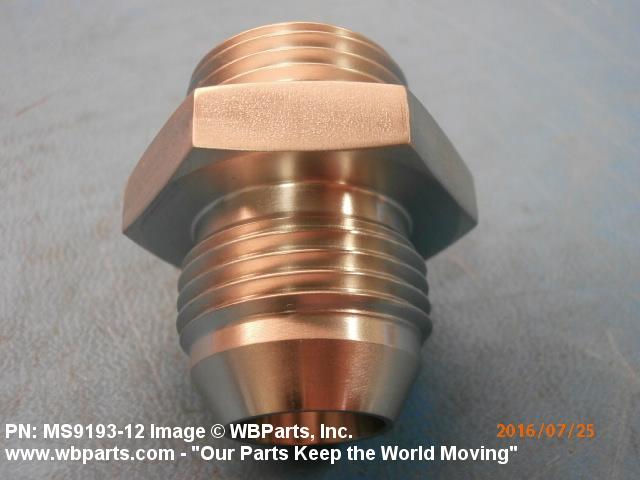

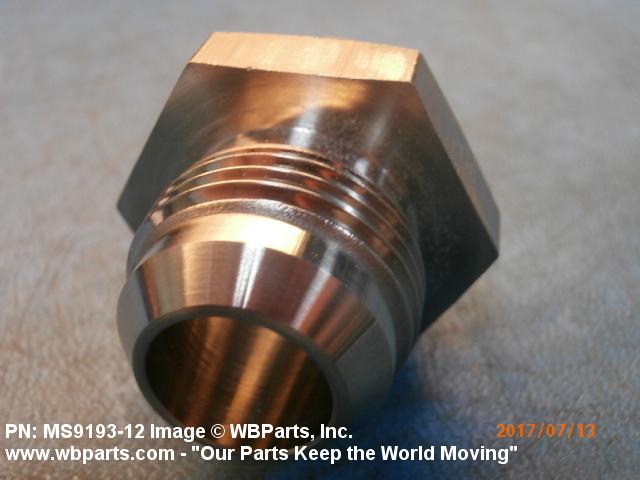

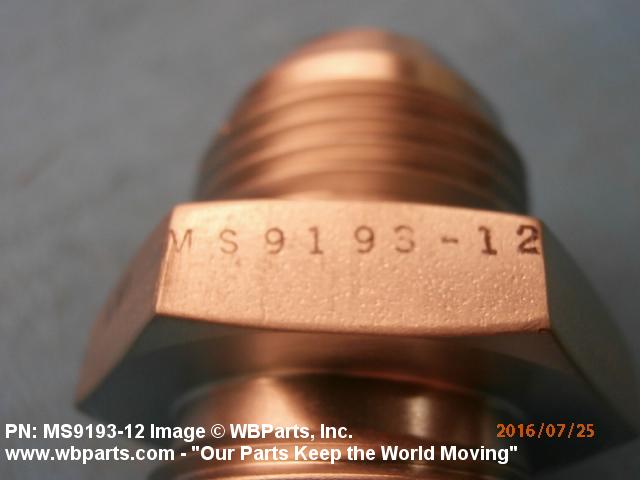

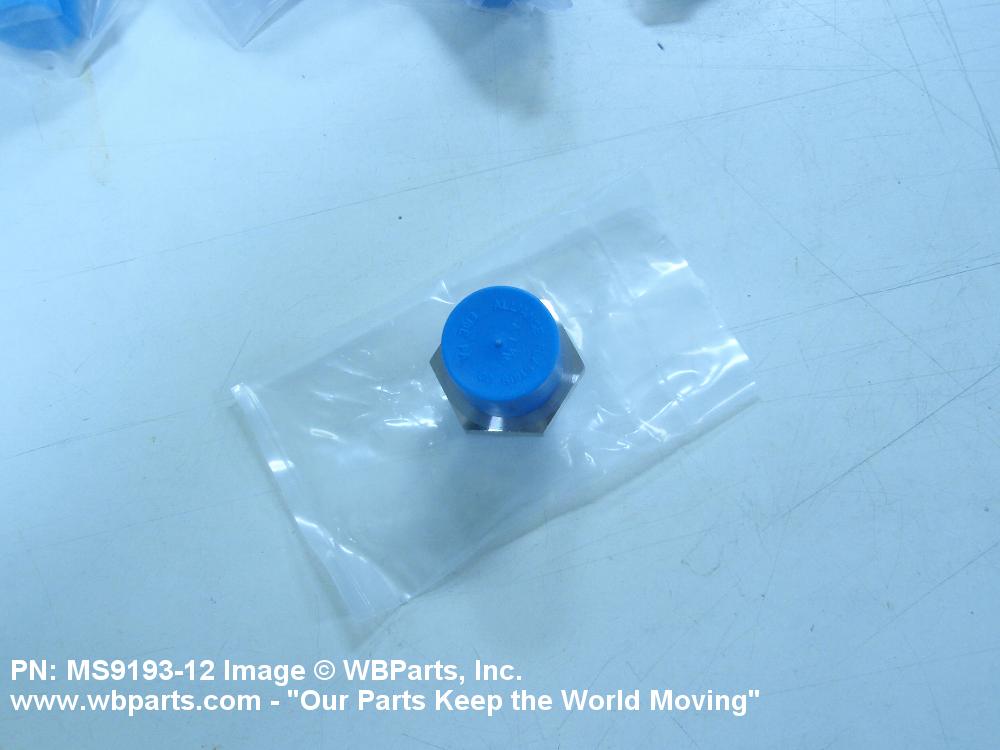

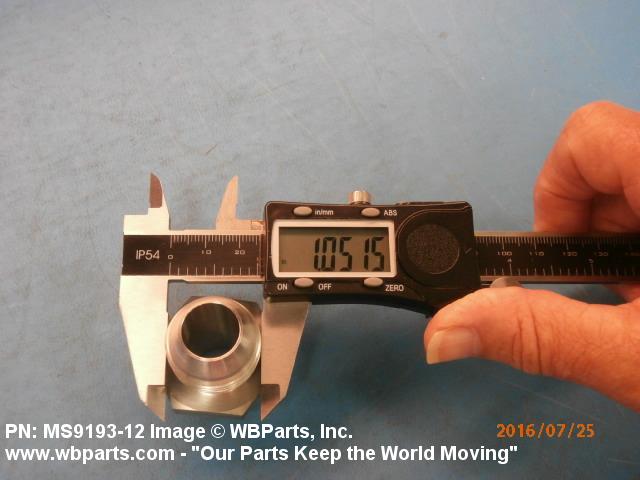

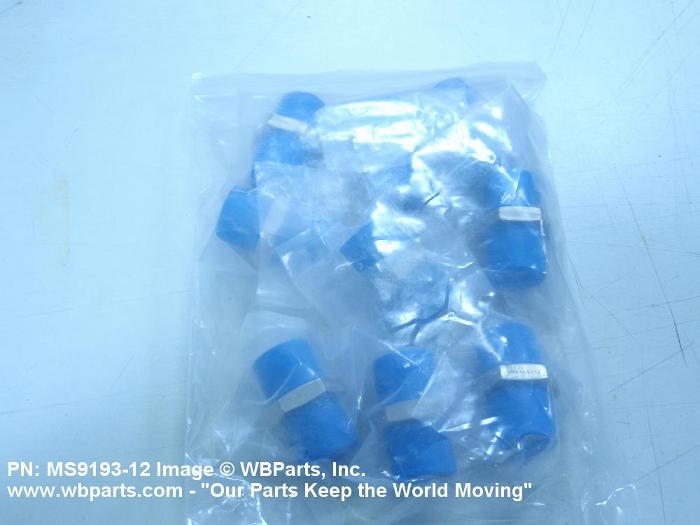

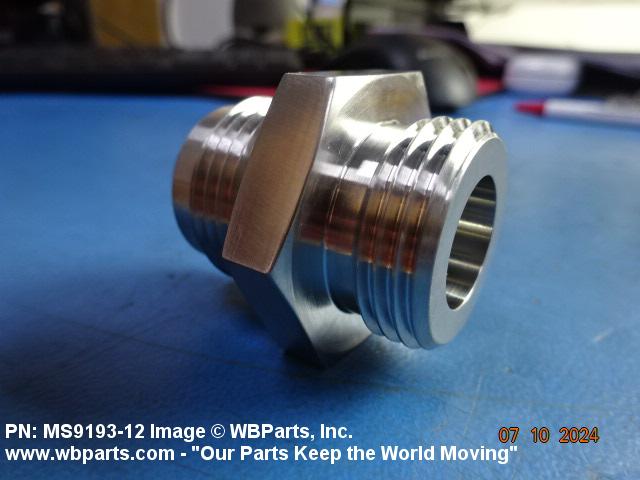

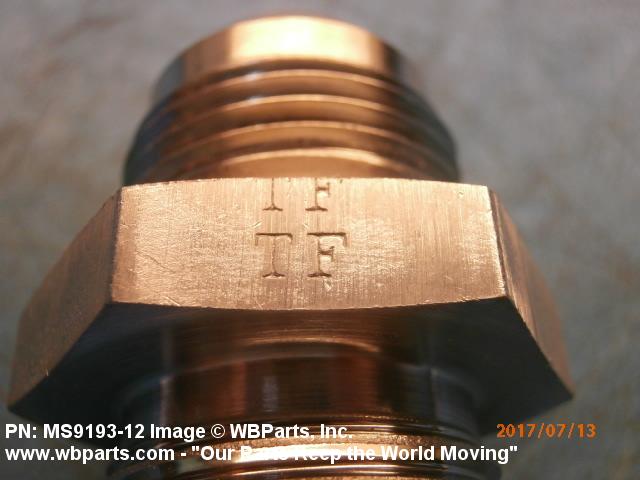

Drawings & Photos | NSN 4730-00-916-1983

Part Number	Request Date	QTY	Origin
MS919312	2024-05-150	10	Nigeria
MS919312	2024-03-80	10	Nigeria
4730-00-916-1983	2023-11-334	2	United States
4730-00-916-1983	2020-12-351	100	KR
4730-00-916-1983	2020-09-274	5	United States
MS919312	2020-01-22	2	TH
4730-00-916-1983	2019-11-329	92	DIBBS
4730-00-916-1983	2019-11-318	92	DIBBS
MS919312	2018-01-24	1	United States
MS919312	2017-09-271	2	United States
MS919312	2017-08-243	20	United States
MS919312	2017-07-188	1	United States
MS919312	2016-03-61	2	United States
MS919312	2016-02-40	2	United States
4730-00-916-1983	2016-01-27	5	United States
MS919312	2012-10-292	12	US
MS919312	2012-10-292	24	US
MS919312	2012-01-13	1	US
4730-00-916-1983	2010-06-168	1	United States
MS919312	2010-02-47	20	us
MS919312	2008-10-283	9	Australia
MS919312	2008-09-246	8	Australia
MS919312	2008-06-179	9	Australia
4730-00-916-1983	2008-04-99	3	IT

Cross Reference | NSN 4730-00-916-1983

Part Number	Cage Code	Manufacturer
MS9193-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-916-1983

Compare

Related Products | NSN 4730-00-916-1983

4730-00-916-1984, 4730-00-916-2000, 4730-00-916-2002, 4730-00-916-2003, 4730-00-916-2005

Technical Data | NSN 4730-00-916-1983

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5693 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35,TY 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	225.0 DEG FAHRENHEIT 1ST RESPONSE -65.0 DEG FAHRENHEIT 2ND RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.750 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNS 1ST END UN 2ND END

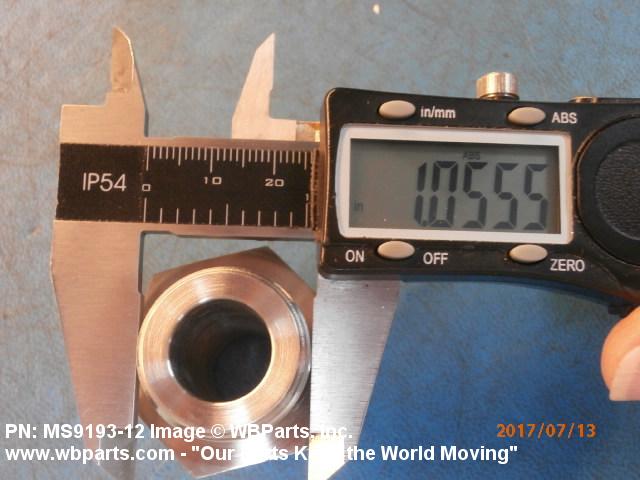

NOMINAL THREAD SIZE	1.062 INCHES ALL ENDS
THREAD QUANTITY PER INCH	12 ALL ENDS
THREAD CLASS	2A 1ST END 3A 2ND END

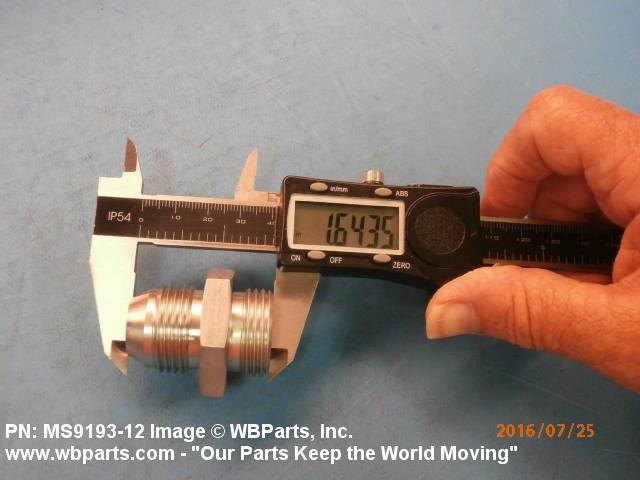

NOMINAL OVERALL LENGTH	1.670 INCHES
SPECIFICATION/STANDARD DATA	96906-MS9193 GOVERNMENT STANDARD
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS9193-12

Restrictions/Controls & Freight Information | NSN 4730-00-916-1983

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-916-1983

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
