NSN 4730-00-911-9226 13214E2151, 1908609, 2S5925
Product Details | LUBRICATION FITTING
4730-00-911-9226 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Part Alternates: 13214E2151, 1908609, 2S5925, 4730-00-911-9226, 00-911-9226, 4730009119226, 009119226
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1960 | 00-911-9226 | 03177 ( FITTING, LUBRICATION ) |

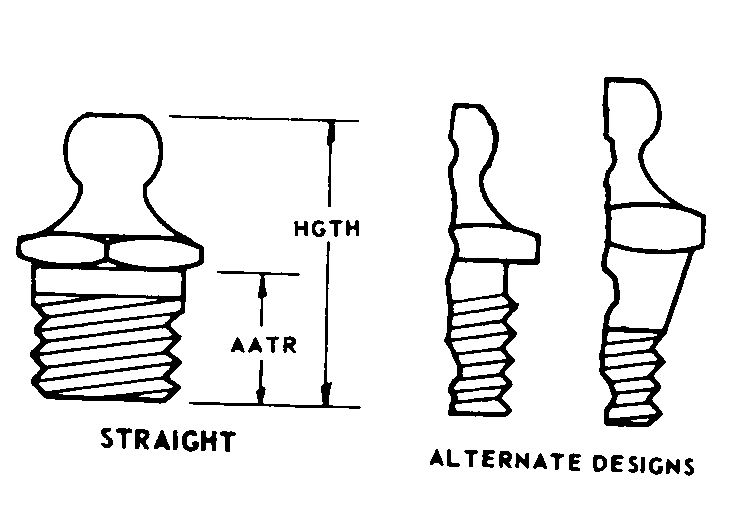

Drawings & Photos | NSN 4730-00-911-9226
Demand History | NSN 4730-00-911-9226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1908609 | 2021-05-127 | 64 | DIBBS |
| 1908609 | 2021-04-112 | 64 | DIBBS |
| 4730-00-911-9226 | 2018-05-151 | 384 | DIBBS |
| 4730-00-911-9226 | 2018-03-81 | 1 | US |
| 4730-00-911-9226 | 2018-02-46 | 124 | DIBBS |
| 4730-00-911-9226 | 2018-02-35 | 124 | DIBBS |
| 4730-00-911-9226 | 2017-08-235 | 124 | DIBBS |
| 4730-00-911-9226 | 2017-07-208 | 32 | DIBBS |
| 1908609 | 2014-08-227 | 4 | Nigeria |
| 4730-00-911-9226 | 2014-03-84 | 44 | DIBBS |
| 4730-00-911-9226 | 2011-09-259 | 2 | DIBBS |
| 4730-00-911-9226 | 2011-02-59 | 1 | DIBBS |
| 4730-00-911-9226 | 2011-02-41 | 1 | DIBBS |
| 4730-00-911-9226 | 2010-12-343 | 1 | DIBBS |
| 4730-00-911-9226 | 2010-12-343 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-911-9226
Technical Data | NSN 4730-00-911-9226
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | E1 STRAIGHT |
| SHANK LENGTH | 1.781 INCHES NOMINAL |
| HEIGHT | 2.531 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| BYPASS RELIEF VALVE SETTING RANGE | NOT RATED |
| SPECIAL FEATURES | W/A 2ND SET OF THDS,0.625 IN.-18,UNF |
| MANUFACTURERS CODE | 97403 |
| MFR SOURCE CONTROLLING REFERENCE | 13214E2151 |
Restrictions/Controls & Freight Information | NSN 4730-00-911-9226
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 049390 | DRY GOODS OR TEXTILES |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 757 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
