NSN 4730-00-905-9792 009059792
Product Details | SEDIMENT STRAINER
4730-00-905-9792 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: 009059792
Engine Accessories | Engine Fuel System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 00-905-9792 | 04200 ( STRAINER, SEDIMENT ) |

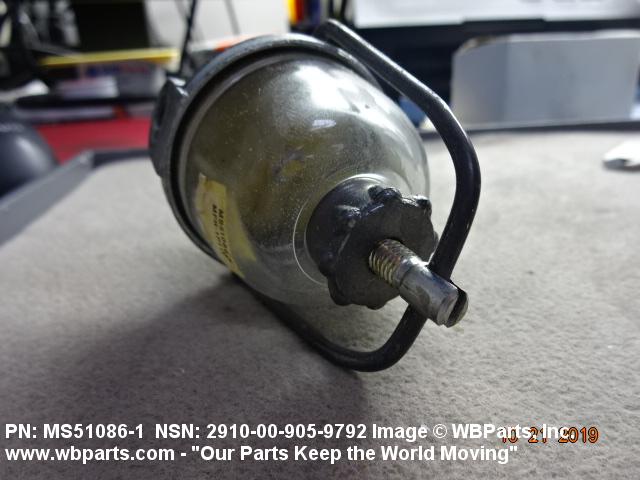

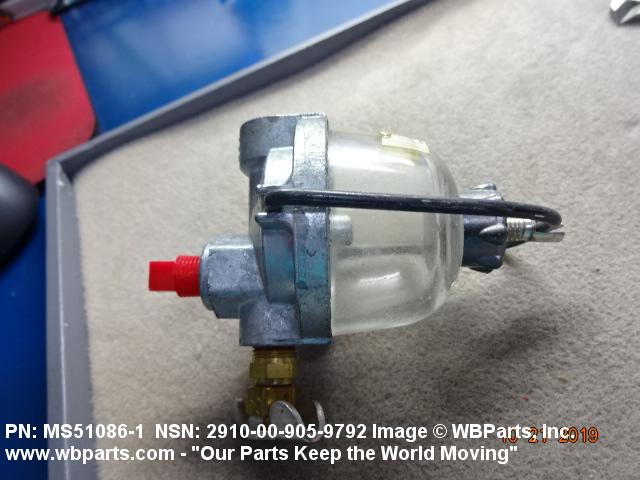

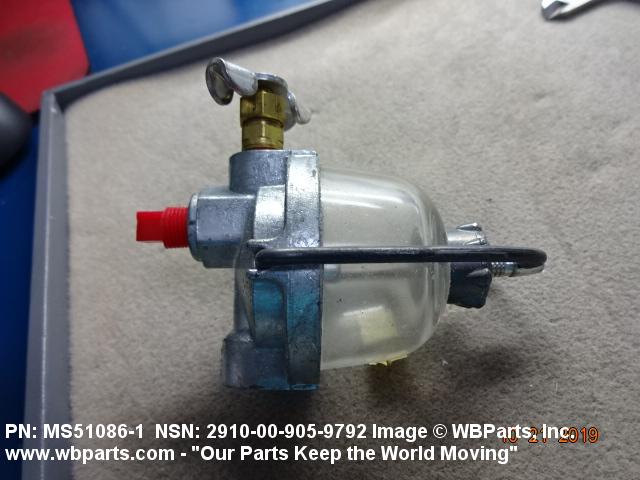

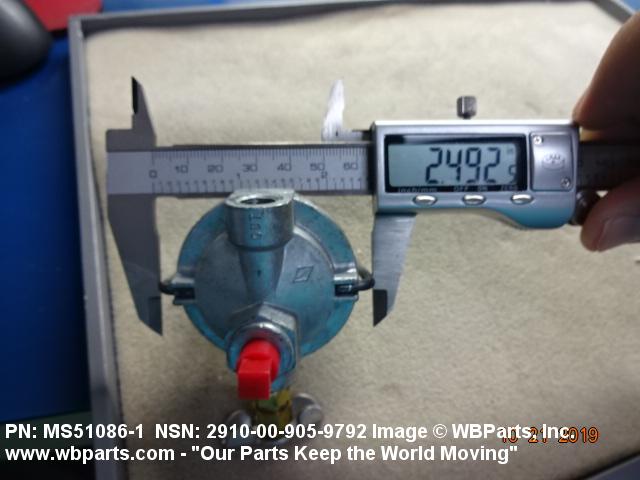

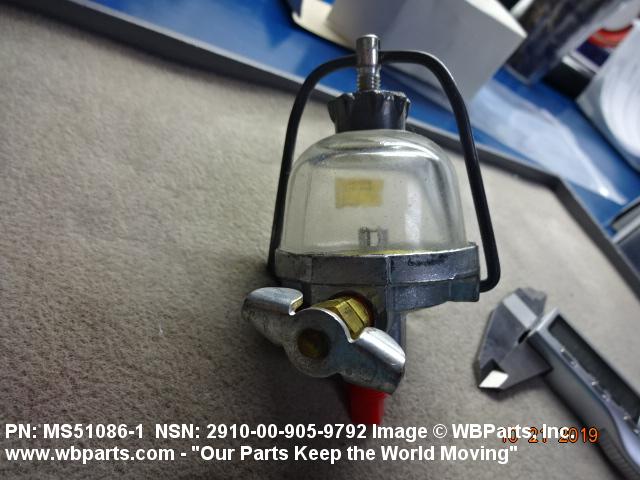

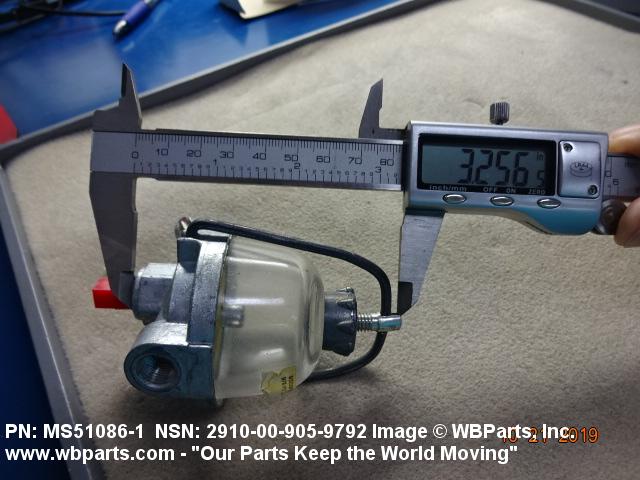

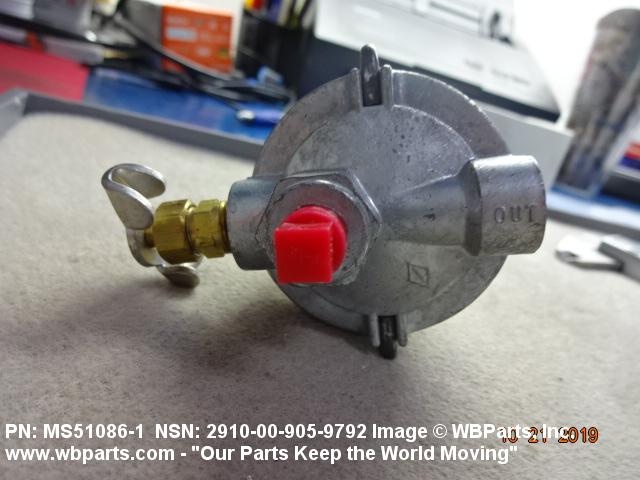

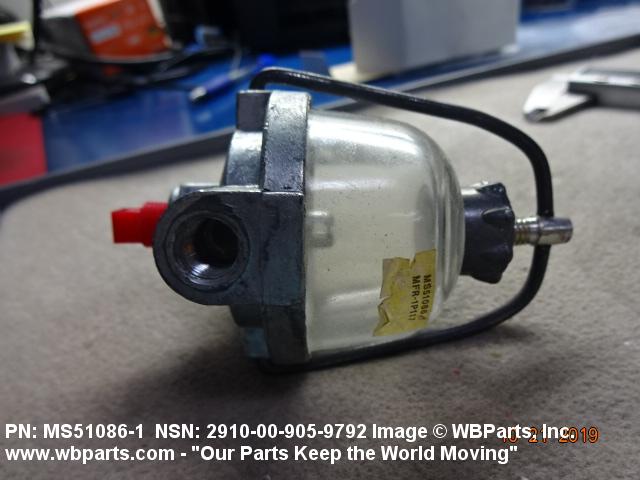

Drawings & Photos | NSN 2910-00-905-9792
Demand History | NSN 4730-00-905-9792
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2910-00-905-9792 | 2020-03-85 | 7 | US |
| 2910-00-905-9792 | 2019-10-281 | 10 | United States |
| 2910-00-905-9792 | 2019-10-281 | 25 | United States |
| MS510861 | 2019-04-93 | 10 | United States |
| 2910-00-905-9792 | 2014-08-215 | 70 | TR |
| 2910-00-905-9792 | 2014-01-16 | 2 | United States |
| 0W4187 | 2013-11-314 | 20 | TR |
| 2910-00-905-9792 | 2013-04-112 | 8 | US |
| 50820 | 2011-03-74 | 3 | DE |
| 2910-00-905-9792 | 2010-09-244 | 1 | UK |
| MS510861 | 2009-10-274 | 20 | United States |
| 2910-00-905-9792 | 2008-08-231 | 1904 | DIBBS |
| 2910-00-905-9792 | 2008-04-114 | 1394 | DIBBS |
| 2910-00-905-9792 | 2008-04-114 | 1394 | DIBBS |
| 2910-00-905-9792 | 2007-08-216 | 1080 | DIBBS |
| 2910-00-905-9792 | 2007-07-205 | 854 | DIBBS |
| 2910-00-905-9792 | 2007-06-157 | 162 | DIBBS |
| 2910-00-905-9792 | 2007-03-70 | 146 | DIBBS |
| 2910-00-905-9792 | 2007-01-26 | 184 | DIBBS |
| MS510861 | 2006-07-188 | 1050 | United States |
| 2910-00-905-9792 | 2006-06-167 | 1041 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-905-9792
Related Products | NSN 4730-00-905-9792
Technical Data | NSN 4730-00-905-9792
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C41 UNTHREADED SHELL W/SELECTIVE FLOW |
| BODY LENGTH | 3.250 INCHES NOMINAL |
| BODY WIDTH | 2.750 INCHES NOMINAL |
| BODY HEIGHT | 3.875 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY SCREENING COPPER ALLOY SEDIMENT BOWL |
| FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
| MESH SIZE | 100.0 |
| WIRE DIAMETER | 0.0045 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| TEMP RATING | NOT RATED |
| FIRST INTAKE CONNECTION TYPE | THREADED INTERNAL PIPE HEAD SIDE |
| FIRST INTAKE THREAD SERIES DESIGNATOR | NPTF |
| FIRST INTAKE NOMINAL THREAD SIZE | 0.125 INCHES |
| FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION HEAD SIDE |
| FEATURES PROVIDED | DRAIN PLUG AND MANUAL SHUT-OFF VALVE |
| SPECIAL FEATURES | GRUMMAN AEROSPACE CORP A10 AIRCRAFT |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-52461 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A52461-1 |
Restrictions/Controls & Freight Information | NSN 4730-00-905-9792
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
