NSN 4730-00-905-8905 NS0225, HP242, HP2-4-2

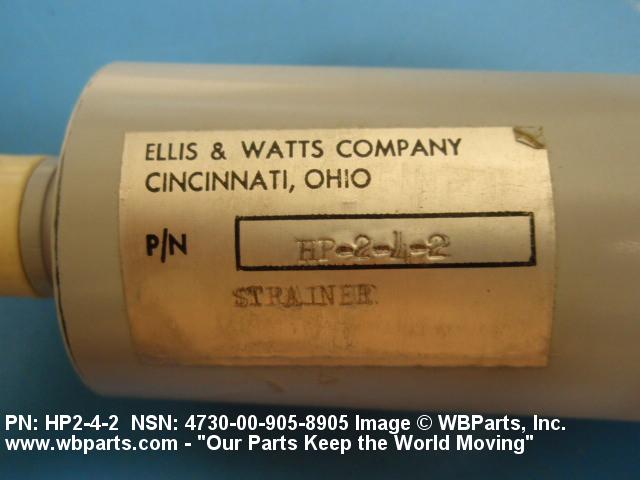

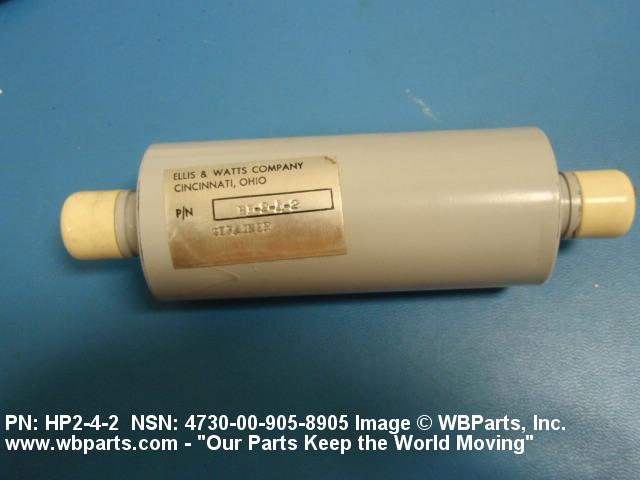

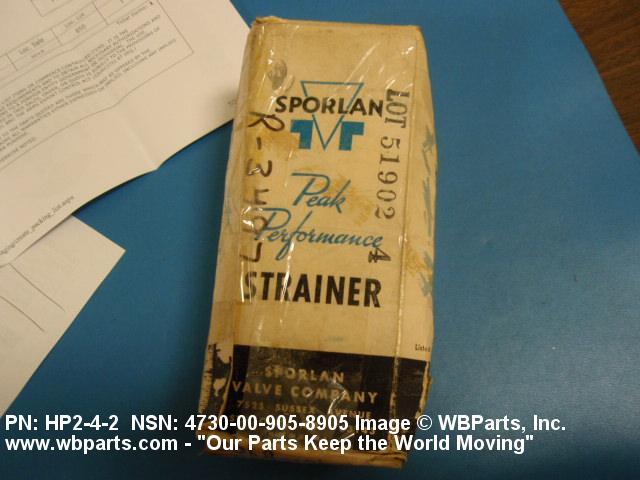

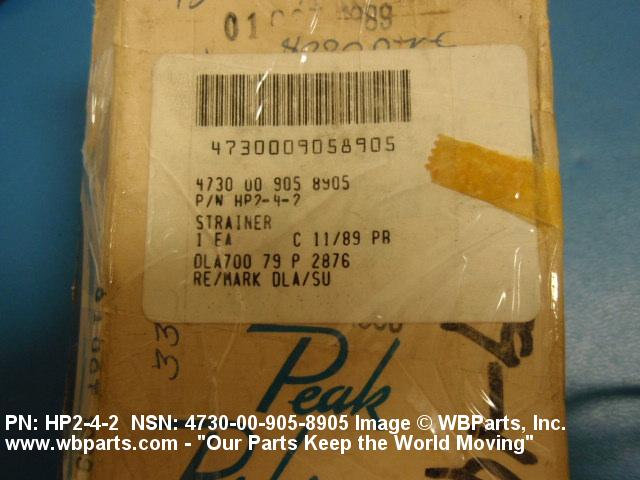

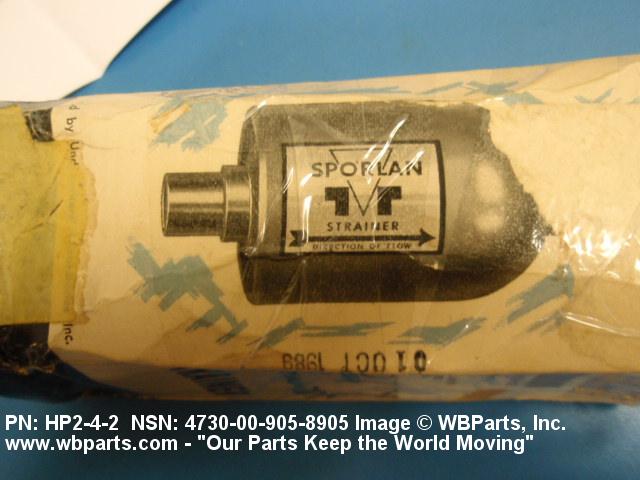

Product Details | SEDIMENT STRAINER
4730-00-905-8905 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: NS0225, HP242, HP2-4-2, 10K70, 4730-00-905-8905, 00-905-8905, 4730009058905, 009058905
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
47 | 29 JUN 1966 | 00-905-8905 | 04200 ( STRAINER, SEDIMENT ) |
Demand History | NSN 4730-00-905-8905
Part Number | Request Date | QTY | Origin |
---|---|---|---|
4730-00-905-8905 | 2011-05-31 | 1 | United States |
4730-00-905-8905 | 2009-06-08 | 1 | United States |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-905-8905
Related Products | NSN 4730-00-905-8905
Technical Data | NSN 4730-00-905-8905
Characteristic | Specifications |
---|---|
STYLE DESIGNATOR | C27 INLINE |
BODY LENGTH | 7.375 INCHES NOMINAL |
BODY OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
MATERIAL | STEEL BODY NICKEL ALLOY SCREENING |
SURFACE TREATMENT | ENAMEL BODY |
FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
MESH SIZE | 100.0 |
WIRE DIAMETER | 0.004 INCHES NOMINAL |
MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
MAXIMUM OPERATING PRESSURE | NOT RATED |
TEMP RATING | NOT RATED |
FIRST INTAKE CONNECTION TYPE | THREADED EXTERNAL TUBE LINE |
FIRST INTAKE THREAD SERIES DESIGNATOR | UNF |
FIRST INTAKE NOMINAL THREAD SIZE | 0.625 INCHES |
FIRST INTAKE THREAD CLASS | 2A |
FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION LINE |
Restrictions/Controls & Freight Information | NSN 4730-00-905-8905
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 052440 | STRAINERS PIPE LINE I/S BODY |
Less than car load rating | ||
Less than truck load rating | S | 60.0 |
Water commodity Code | 576 | unknown |
Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-905-8905
Category | Code | Description |
---|---|---|
Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
