NSN 4730-00-902-8656 S616563585101, S6165-63585-101, S61663585101
Product Details | FLUID FLOW RESTRICTOR
4730-00-902-8656 An item of solid one-piece construction, designed to restrict the flow of a fluid through it. It has an orifice of a smaller size than the diameter of flow into it. Excludes items such as VALVE (1), (as modified); and others with an adjustable orifice. Excludes pipe, tube, or hose fittings with restricted passages and items designed to test fluid flow. For items containing screens or filters, see RESTRICTOR UNIT, FLUID FLOW.
Part Alternates: S616563585101, S6165-63585-101, S61663585101, S616-63585-101, 0MP22863, 0MP2286-3, 13027, 4730-00-902-8656, 00-902-8656, 4730009028656, 009028656
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1960 | 00-902-8656 | 18263 ( RESTRICTOR, FLUID FLOW ) |

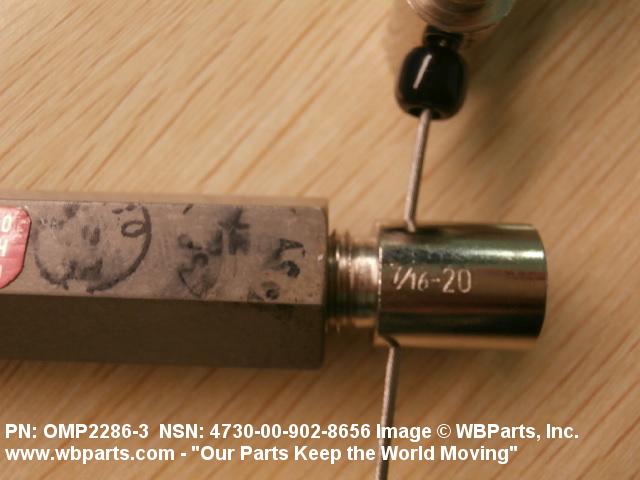

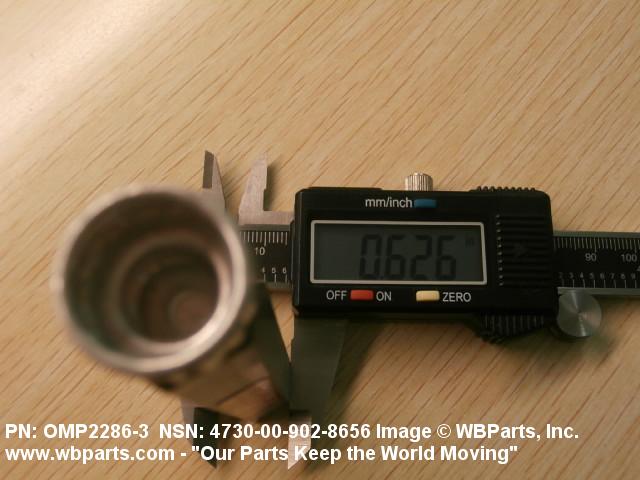

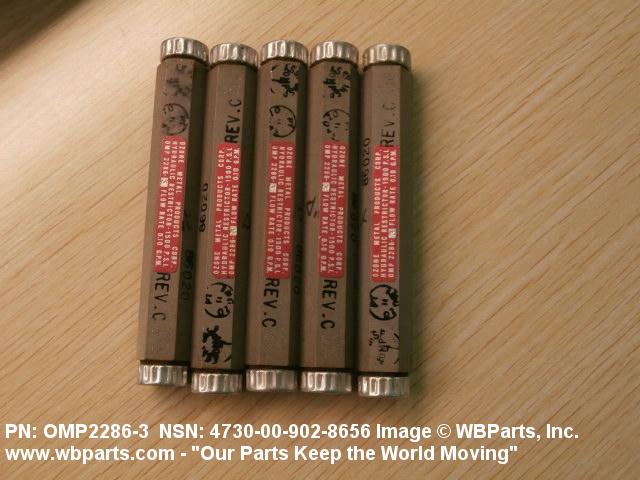

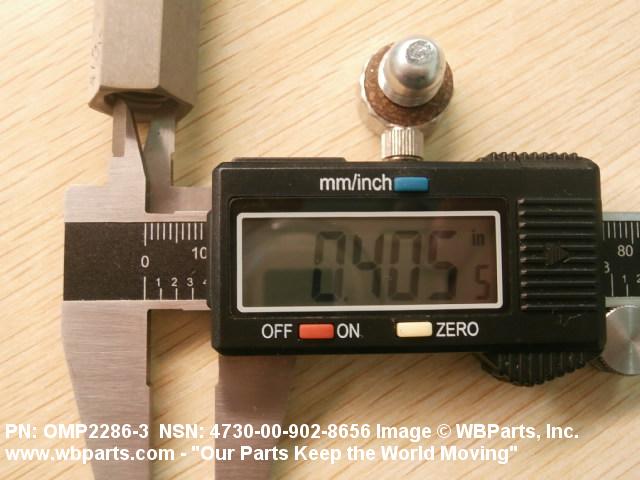

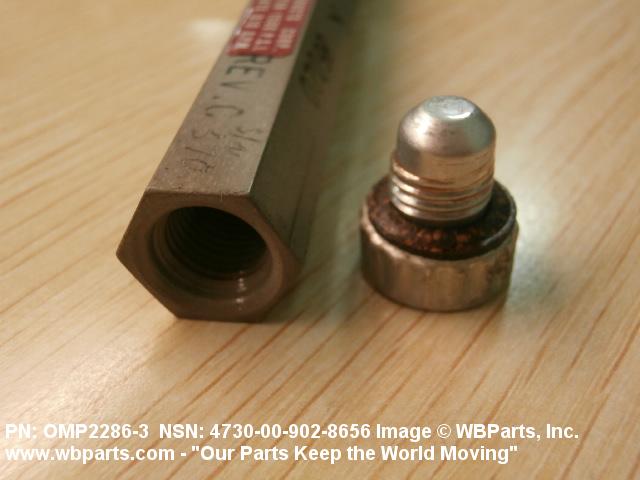

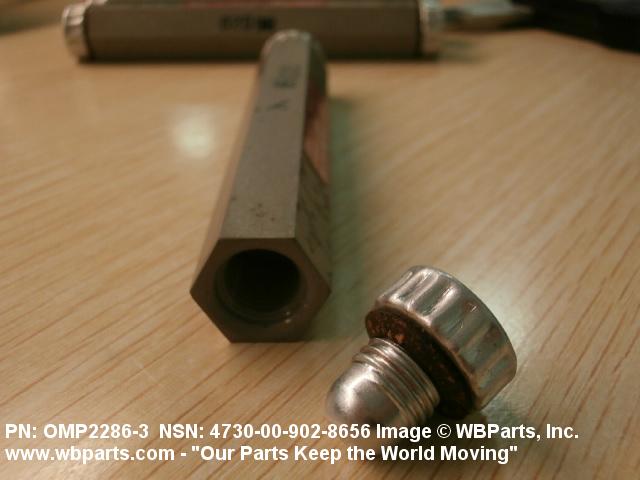

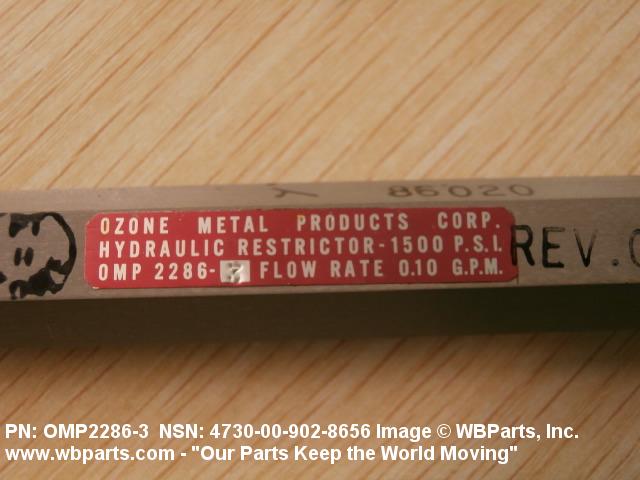

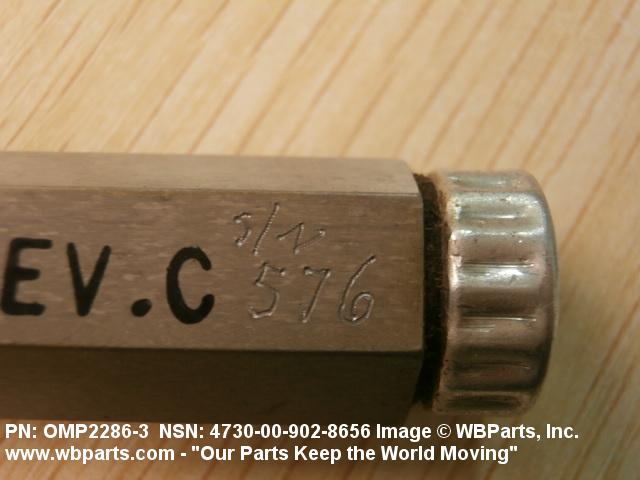

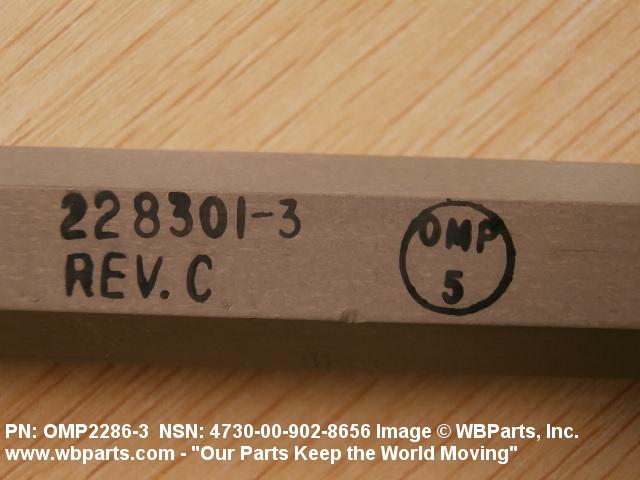

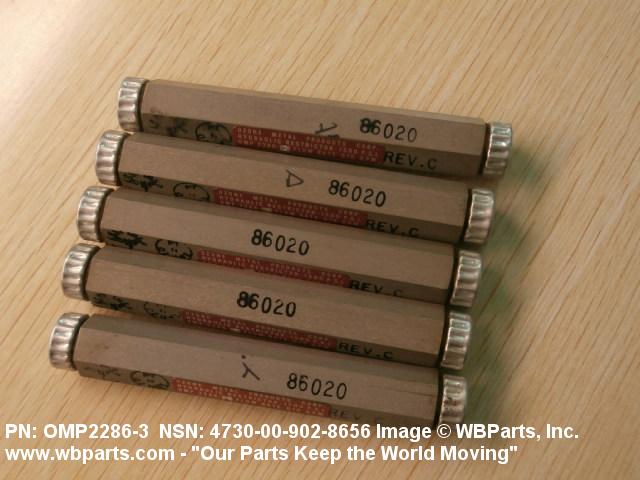

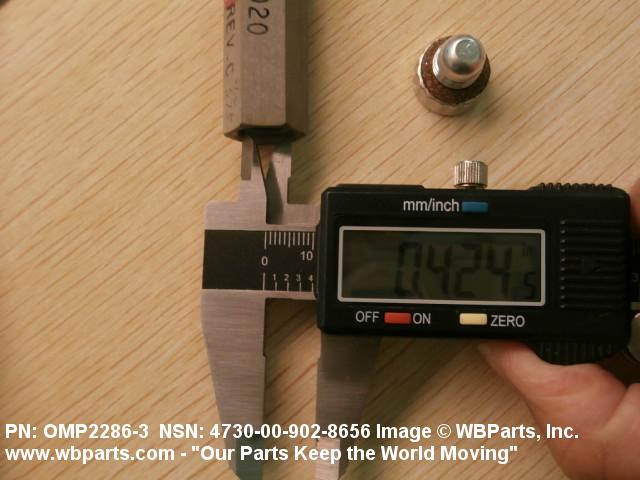

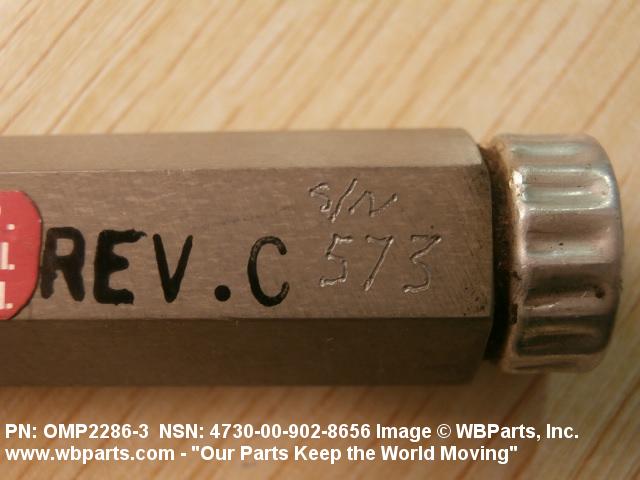

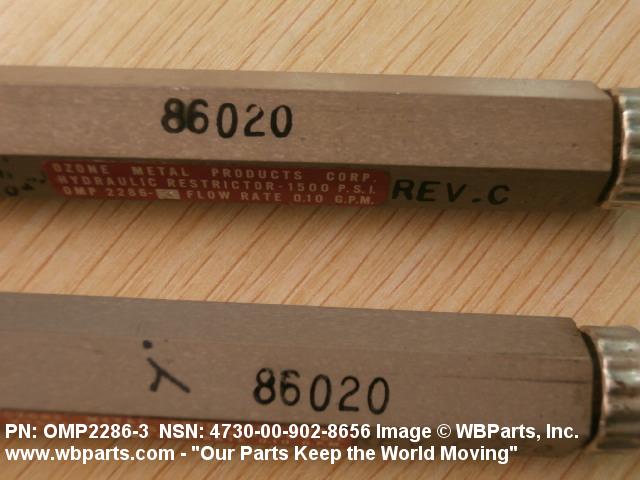

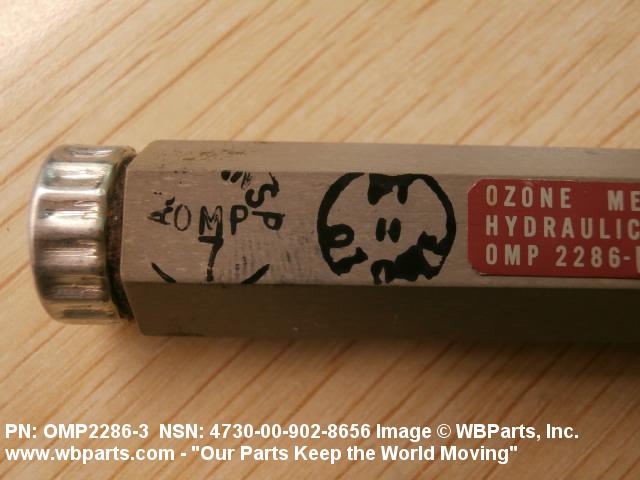

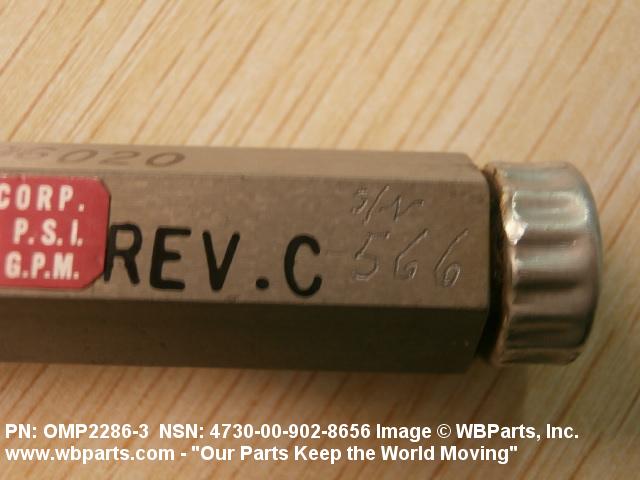

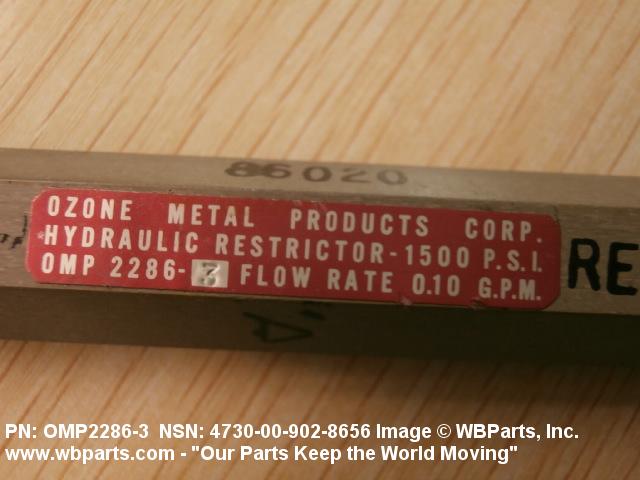

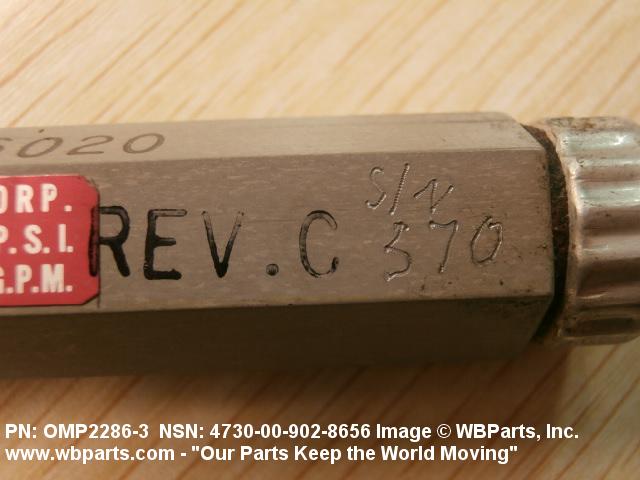

Drawings & Photos | NSN 4730-00-902-8656
Demand History | NSN 4730-00-902-8656
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-902-8656 | 2015-08-223 | 5 | Canada |
| 4730-00-902-8656 | 2015-08-218 | 5 | Canada |
| 4730-00-902-8656 | 2015-07-211 | 5 | DIBBS |
| 13027 | 2015-07-194 | 70 | United States |
| 4730-00-902-8656 | 2012-04-121 | 10 | MANUAL |
| 4730-00-902-8656 | 2012-04-115 | 10 | MANUAL |
| 4730-00-902-8656 | 2011-09-252 | 10 | MANUAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-902-8656
Related Products | NSN 4730-00-902-8656
Technical Data | NSN 4730-00-902-8656
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| DESIGN TYPE | TUBULAR |
| THREAD PROVISION | THREADED |

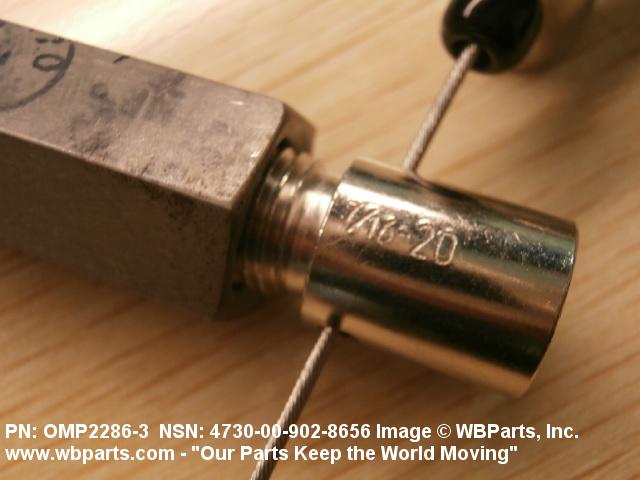

| THREAD SIZE DESIGNATOR | 7/16 IN.-20 |
| THREAD SERIES | UNF |
| THREAD CLASS | 3B |
| THREAD LENGTH | 0.594 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| OUTSIDE DIAMETER | 0.620 INCHES NOMINAL |

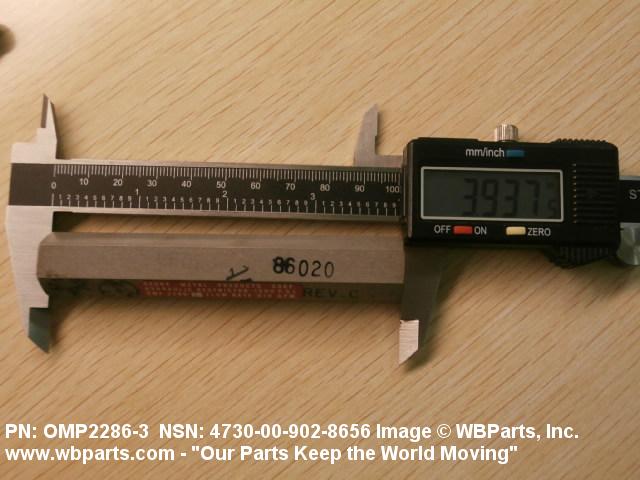

| LENGTH | 3.937 INCHES NOMINAL |
| ORIFICE DIAMETER | 0.011 INCHES NOMINAL |
| HOSE/TUBE SIZE FOR WHICH DESIGNED | 1/4 IN. OD TUBE |
| MANUFACTURERS CODE | 33068 |
| DESIGN CONTROL REFERENCE | 0MP2286-3 |
Restrictions/Controls & Freight Information | NSN 4730-00-902-8656
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-902-8656
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
