NSN 4730-00-889-2476 MS270538C, MS27053-8C, MS270618C

Product Details | TUBE TO HOSE STRAIGHT ADAPTER

4730-00-889-2476 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.

Part Alternates: MS270538C, MS27053-8C, MS270618C, MS27061-8C, R270538C, R27053-8C, F660008C, F66000-8C , G650008, G65000-8, MILDTL27272C, MIL-DTL-27272C, MILF27272, MIL-F-27272, 4730-00-889-2476, 00-889-2476, 4730008892476, 008892476

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-889-2476	03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE )

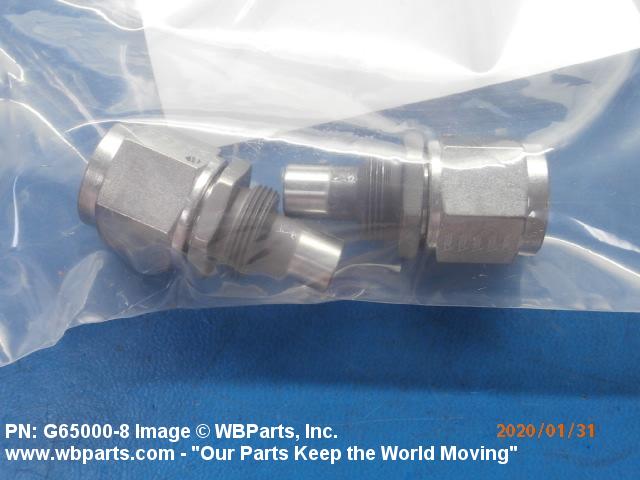

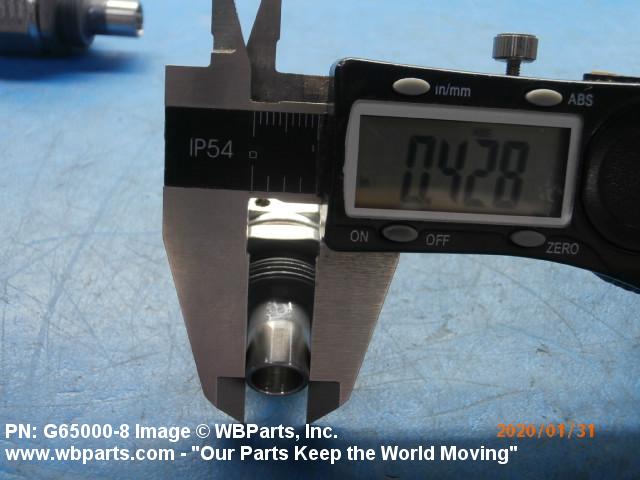

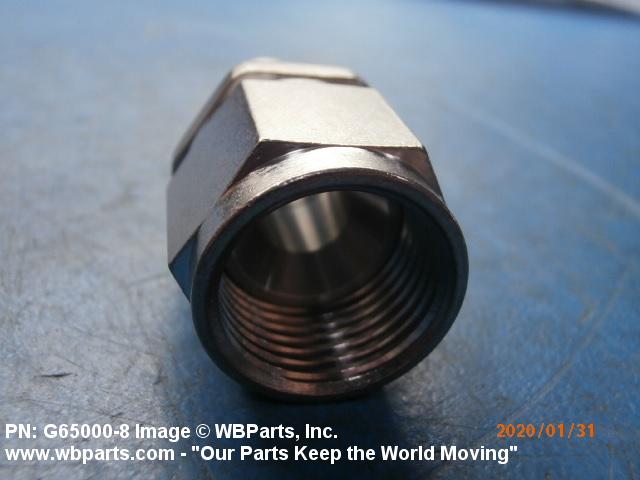

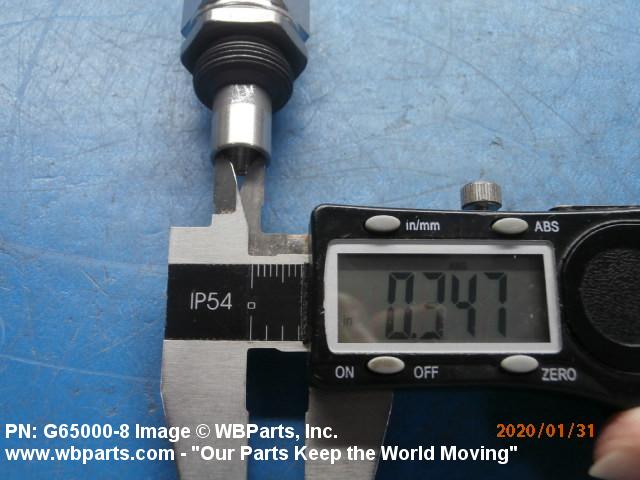

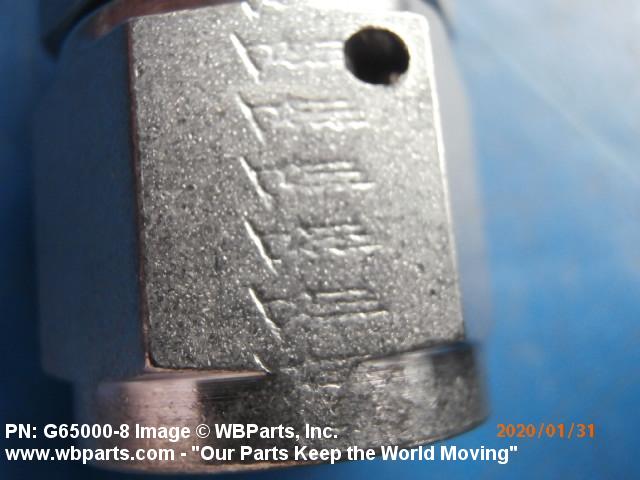

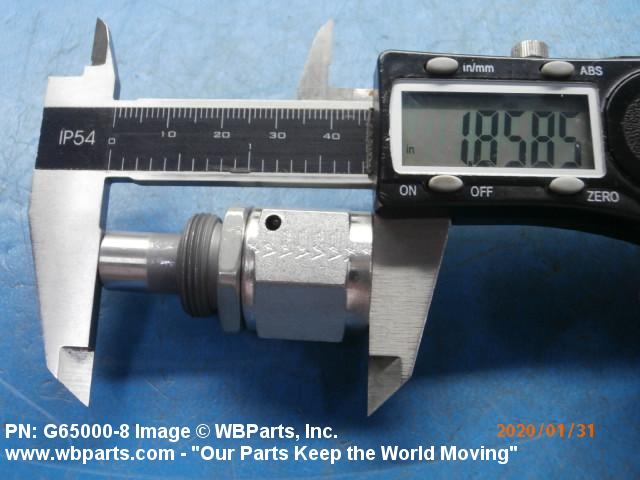

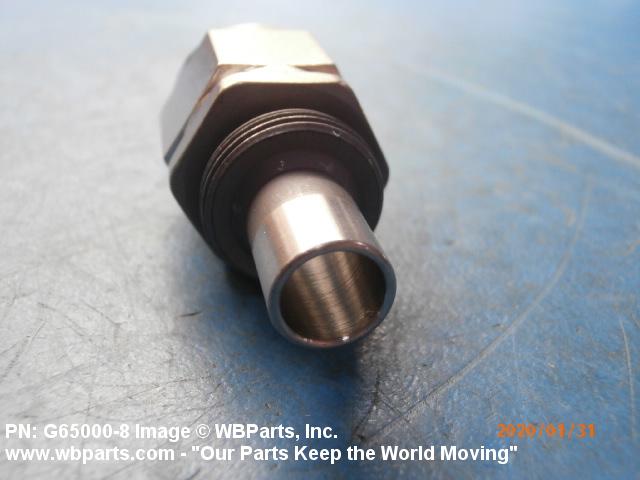

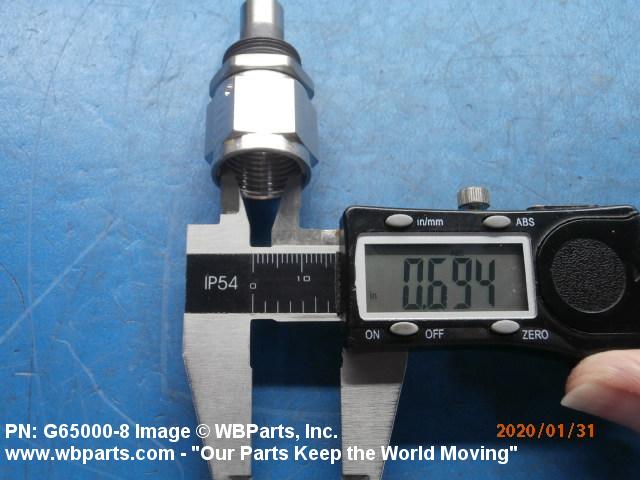

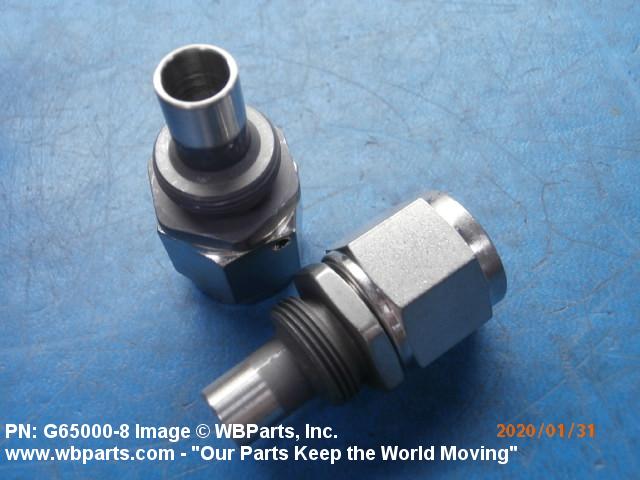

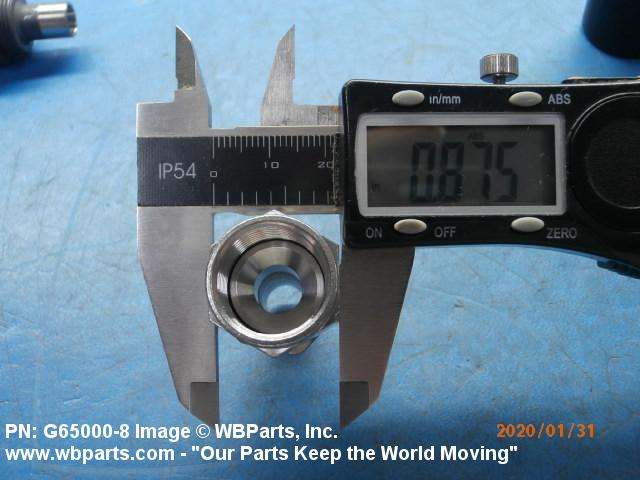

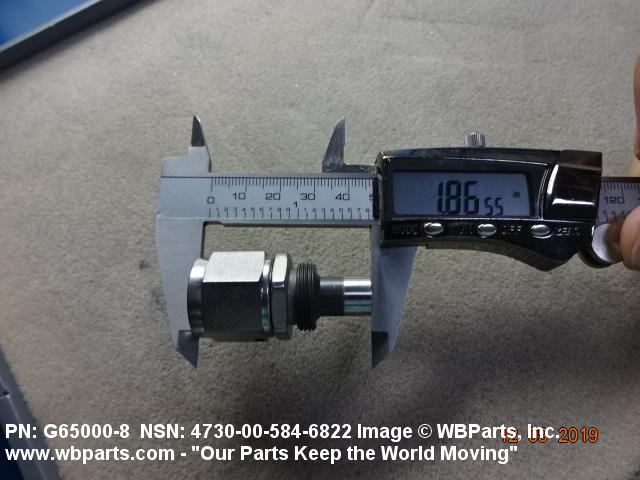

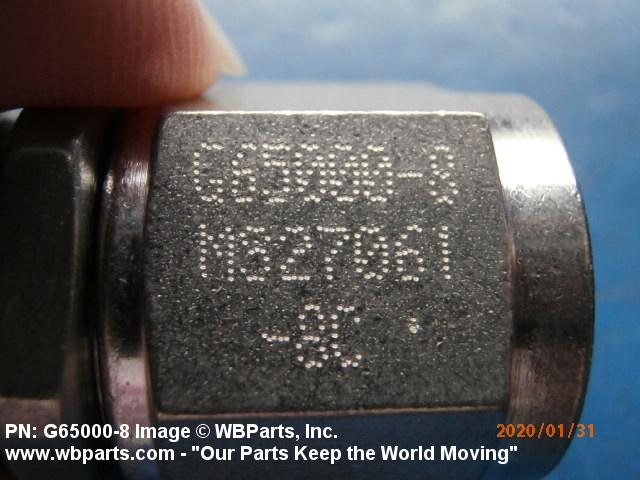

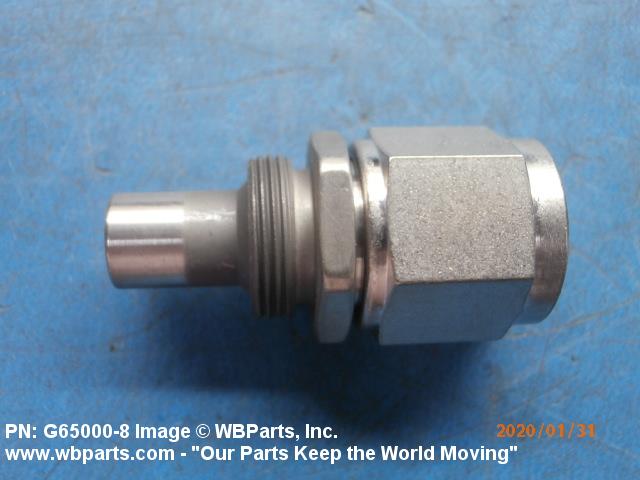

Drawings & Photos | NSN 4730-00-889-2476

Part Number	Request Date	QTY	Origin
4730-00-889-2476	2023-06-19	78	DIBBS
4730-00-889-2476	2023-03-16	85	DIBBS
4730-00-889-2476	2022-09-18	15	DIBBS
4730-00-889-2476	2022-06-20	29	DIBBS
4730-00-889-2476	2022-05-24	95	DIBBS
4730-00-889-2476	2022-05-12	95	DIBBS
4730-00-889-2476	2022-03-28	204	DIBBS
4730-00-889-2476	2022-03-14	204	US
4730-00-889-2476	2022-03-13	204	DIBBS
4730-00-889-2476	2021-02-24	287	DIBBS
G650008	2020-01-29	2	Czech Republic
MS270618C	2019-11-25	1	Czech Republic
MS270618C	2019-11-25	1	Czech Republic
4730-00-889-2476	2018-11-29	226	DIBBS
4730-00-889-2476	2018-09-06	228	DIBBS
4730-00-889-2476	2017-12-13	212	DIBBS
4730-00-889-2476	2017-09-13	25	us
4730-00-889-2476	2016-08-26	217	DIBBS
4730-00-889-2476	2016-08-15	217	DIBBS
4730-00-889-2476	2014-06-18	263	DIBBS
4730-00-889-2476	2013-03-20	810	DIBBS
4730-00-889-2476	2012-11-29	463	DIBBS
4730-00-889-2476	2012-06-18	185	DIBBS
4730-00-889-2476	2011-09-30	172	DIBBS
4730-00-889-2476	2010-11-18	191	DIBBS
4730-00-889-2476	2010-07-29	161	DIBBS
4730-00-889-2476	2010-04-30	133	DIBBS
4730-00-889-2476	2010-02-05	330	DIBBS
4730-00-889-2476	2010-01-29	172	DIBBS
4730-00-889-2476	2009-10-19	249	DIBBS
4730-00-889-2476	2009-08-12	118	DIBBS
4730-00-889-2476	2009-05-19	110	DIBBS
4730-00-889-2476	2008-11-28	129	DIBBS
4730-00-889-2476	2008-11-12	102	DIBBS
R270538C	2008-09-22	8	United States

Cross Reference | NSN 4730-00-889-2476

Part Number	Cage Code	Manufacturer
F66000-8C	00624	EATON CORPORATION DBA AEROSPACE DIV
MIL-DTL-27272C	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-27272	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27053-8C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R27053-8C	50599	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-889-2476

Compare

Related Products | NSN 4730-00-889-2476

4730-00-889-2477, 4730-00-889-2478, 4730-00-889-5009, 4730-00-889-5010, 4730-00-889-5218

Technical Data | NSN 4730-00-889-2476

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
CONNECTION TYPE	THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END
CONNECTION STYLE	B3 SWIVEL NUT, FLARE 1ST END B61 GRIPPING NIPPLE 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED	0.406 INCHES 2ND END
NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED	0.562 INCHES 2ND END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.500 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNF 1ST END
NOMINAL THREAD SIZE	0.750 INCHES 1ST END
THREAD CLASS	3A 1ST END
NOMINAL OVERALL LENGTH	2.130 INCHES
FURNISHED ITEMS AND QUANTITY	1 HOSE COUPLING NUT AND 1 COUPLING SLEEVE
SPECIAL FEATURES	GRUMMAN AEROSPACE CORP A10 AIRCRAFT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-27272C
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27053-8C

Restrictions/Controls & Freight Information | NSN 4730-00-889-2476

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-889-2476

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
