NSN 4730-00-887-8090 MS51521A10S, MS51521B10S, J62210SS

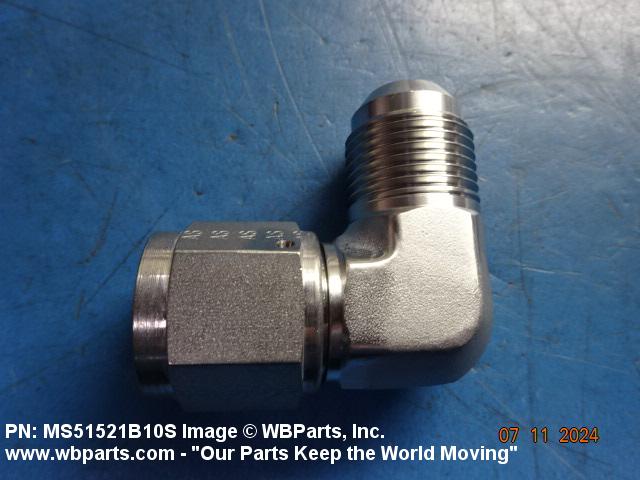

Product Details | TUBE ELBOW
4730-00-887-8090 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS51521A10S, MS51521B10S, J62210SS, J622-10SS, 0008006258, 000-8006-258, 10C6BXSS, 10C6XSS, 712598-081, 4730-00-887-8090, 00-887-8090, 4730008878090, 008878090, 712598081
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-887-8090 | 03771 ( ELBOW, TUBE ) |
Drawings & Photos | NSN 4730-00-887-8090
Demand History | NSN 4730-00-887-8090
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS51521B10S | 2024-06-180 | 50 | United States |
| MS51521B10S | 2024-06-159 | 50 | United States |
| 10C6XSS | 2022-11-321 | 7 | US |
| MS51521A10S | 2018-12-337 | 1 | South Africa |
Cross Reference | NSN 4730-00-887-8090
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000-8006-258 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 10C6BXSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 10C6BXSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 10C6BXSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 10C6XSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 712598-081 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| J622-10SS | 54214 | BOWES MFG INC |
| MS51521A10S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51521B10S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-887-8090
Related Products | NSN 4730-00-887-8090
Technical Data | NSN 4730-00-887-8090
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66,300 SERIES FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 OR 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE HYDRAULIC FLUID 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH 1ST RESPONSE 3000.0 POUNDS PER SQUARE INCH 2ND RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT 1ST RESPONSE 250.0 DEG FAHRENHEIT 2ND RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.875 INCHES ALL ENDS |
| THREAD CLASS | 2B 1ST END 2A 2ND END |
| LEG LENGTH | 1.625 INCHES NOMINAL 1ST END 1.453 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 TUBE COUPLING NUT W/SLEEVE |
| SPECIFICATION/STANDARD DATA | 96906-MS51521 GOVERNMENT STANDARD AND 81349-MIL-F-18866 GOVERNMENT SPECIFICATION AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 11C FIGURE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51521A10S |
