NSN 4730-00-873-6539 0201521, 796077R1, 00-873-6539
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-873-6539 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 0201521, 796077R1, 4730-00-873-6539, 00-873-6539, 4730008736539, 008736539
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 03 NOV 1967 | 00-873-6539 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-873-6539
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-873-6539
Technical Data | NSN 4730-00-873-6539
| Characteristic | Specifications |
|---|---|
| MATERIAL | ZINC |
| STYLE DESIGNATOR | D45 1 FLUID CONNECTION |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| OVERALL WIDTH | 0.687 INCHES NOMINAL |
| THICKNESS | 0.312 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.328 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 |

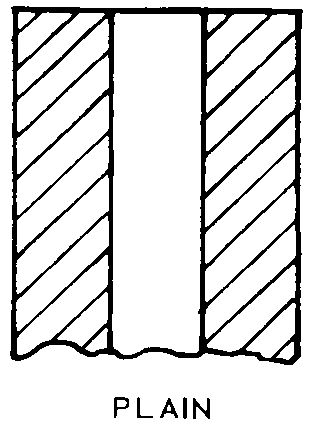

| CONNECTION STYLE | H12 PLAIN |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/16 IN. ID HOSE |
| THREAD PROVISION | UNTHREADED |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 30.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
| SPECIAL FEATURES | W/LUG,3/16 IN. OD BY 1/16 IN. LG,LOCATED ON OUTER PERIPHERY |
Restrictions/Controls & Freight Information | NSN 4730-00-873-6539
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-873-6539
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
