NSN 4730-00-851-6179 MILH24135, MILH24135L1, 205688PC205
Product Details | HOSE TO BOSS STRAIGHT ADAPTER
4730-00-851-6179 An adapter having standard hose threads on one end, an incomplete part of a threaded end connection that grips the hose directly, or an unthreaded end designed to accommodate a hose. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a hose or hose fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, HOSE and CONNECTOR, HOSE, BULKHEAD. Excludes items having flanged ends.
Part Alternates: MILH24135, MILH24135L1, 205688PC205, 205688PC205L1, 4190885116, 4-190885-1-16, 4190885116L1, 4-190885-1-16L1, 4730-00-851-6179, 00-851-6179, 4730008516179, 008516179
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 JAN 1967 | 00-851-6179 | 22673 ( ADAPTER, STRAIGHT, HOSE TO BOSS ) |

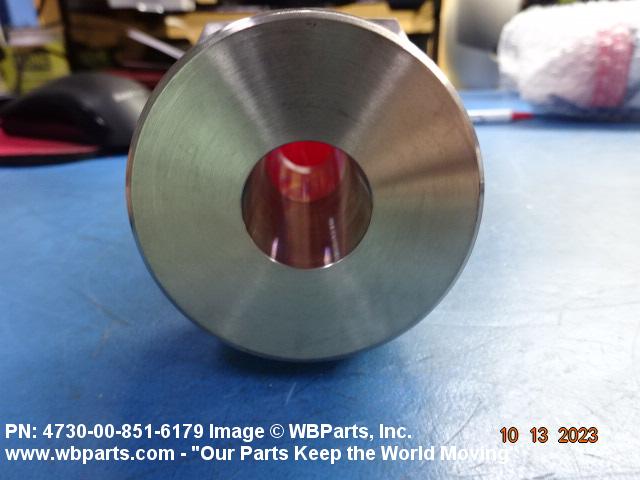

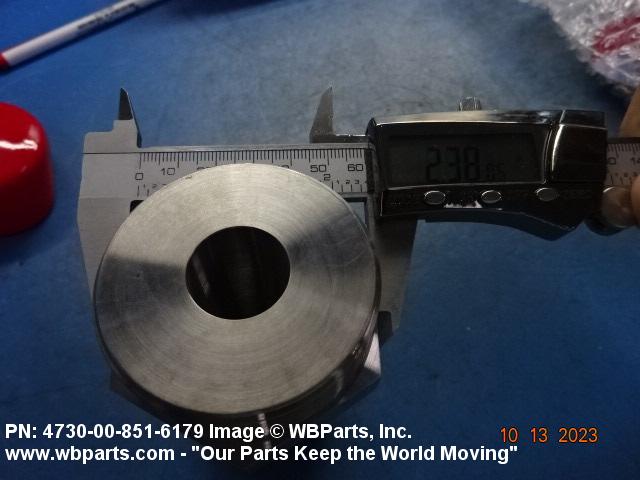

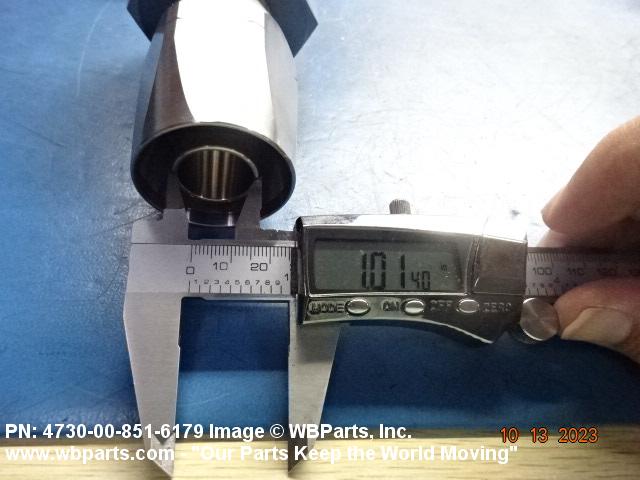

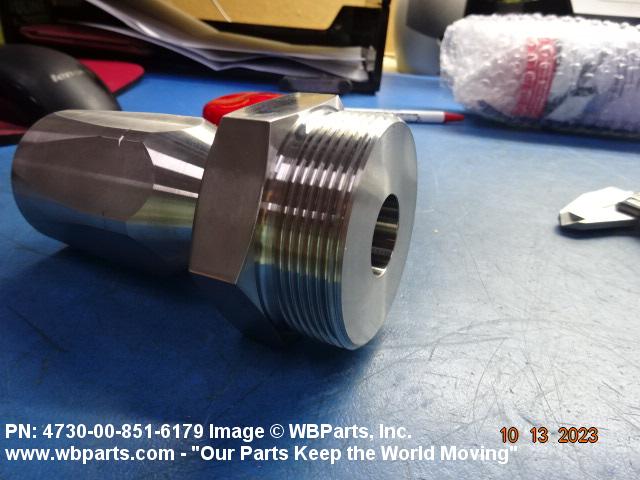

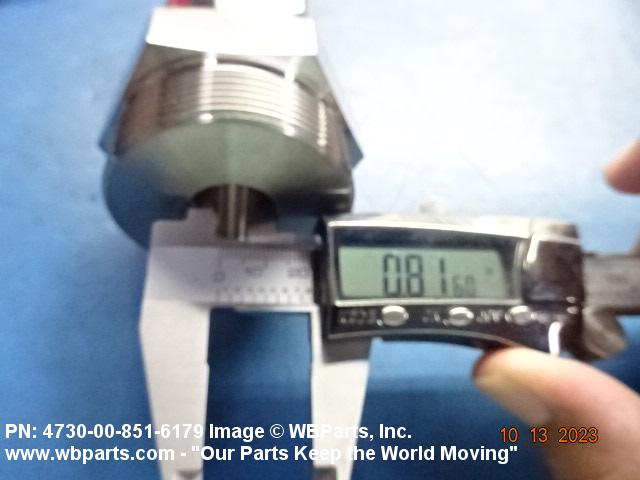

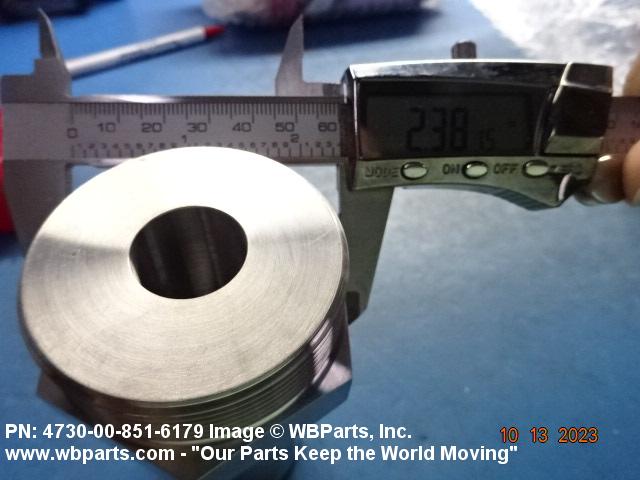

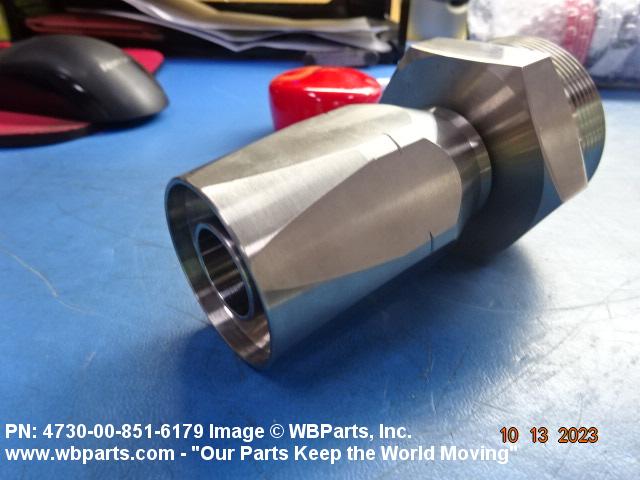

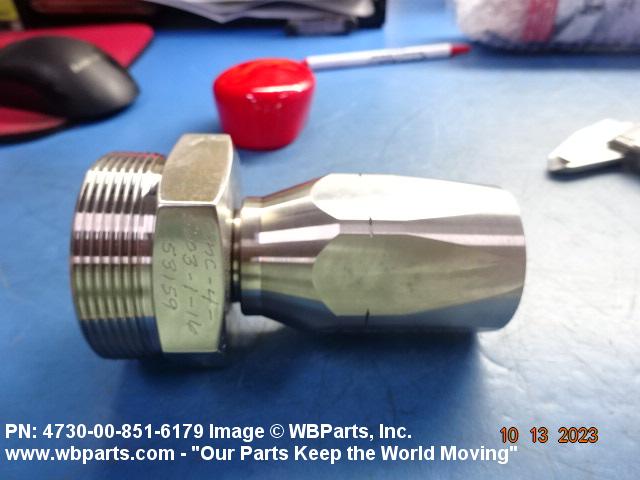

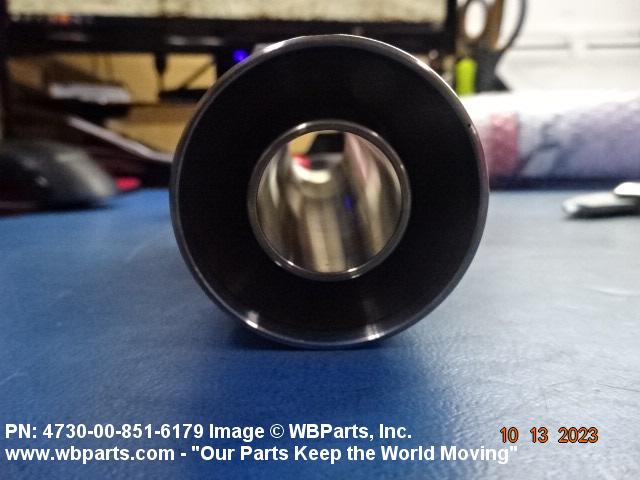

Drawings & Photos | NSN 4730-00-851-6179
Demand History | NSN 4730-00-851-6179
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-851-6179 | 2023-10-279 | 2 | United States |
| 4730-00-851-6179 | 2018-06-181 | 60 | NECO |
| 4730-00-851-6179 | 2018-01-18 | 16 | NECO |
| 4730-00-851-6179 | 2017-04-94 | 26 | NECO |
| 4730-00-851-6179 | 2017-03-84 | 26 | NECO |
| 4730-00-851-6179 | 2016-01-05 | 44 | NECO |
Cross Reference | NSN 4730-00-851-6179
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205688PC205 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 205688PC205L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 4-190885-1-16 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 4-190885-1-16L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MILH24135 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILH24135L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-851-6179
Technical Data | NSN 4730-00-851-6179
| Characteristic | Specifications |
|---|---|
| CONNECTION TYPE | THREADED EXTERNAL HOSE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B61 GRIPPING NIPPLE 1ST END B71 EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 1.000 INCHES 1ST END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 1.560 INCHES 1ST END |
| THREAD CLASS | 3A 2ND END |

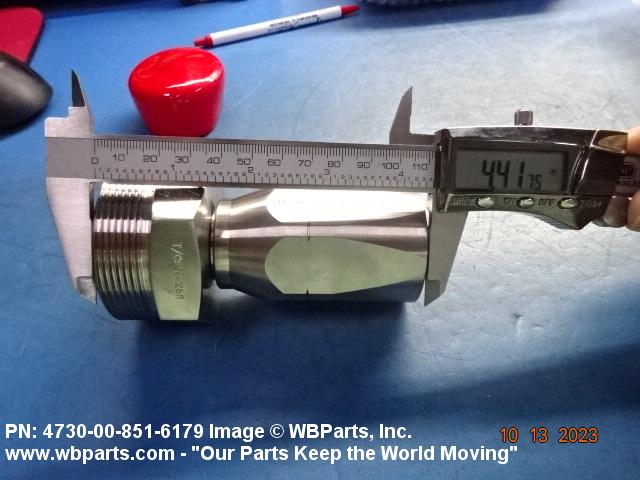

| NOMINAL OVERALL LENGTH | 4.340 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 HOSE COUPLING NUT |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | QUALITY CONTROL IAW NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTION FOR LEVEL 1 ITEMS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILH24135 |
| MANUFACTURERS CODE | 01276 |
| DESIGN CONTROL REFERENCE | 4-190885-1-16 |
Restrictions/Controls & Freight Information | NSN 4730-00-851-6179
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-00-851-6179
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | L1 | An items that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective exidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
