NSN 4730-00-834-7220 4400B1465, 00-834-7220, 008347220
Product Details | PIPE FLANGE
4730-00-834-7220 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 4400B1465, 4730-00-834-7220, 00-834-7220, 4730008347220, 008347220
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 NOV 1966 | 00-834-7220 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-834-7220
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-834-7220
Technical Data | NSN 4730-00-834-7220
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-867,CLASS 1 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | PD3330 MFR REF SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 2.673 INCHES MINIMUM AND 2.703 INCHES MAXIMUM |
| FLANGE DIAMETER | 3.792 INCHES MINIMUM AND 3.832 INCHES MAXIMUM |
| BOLT HOLE DIAMETER | 0.562 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |

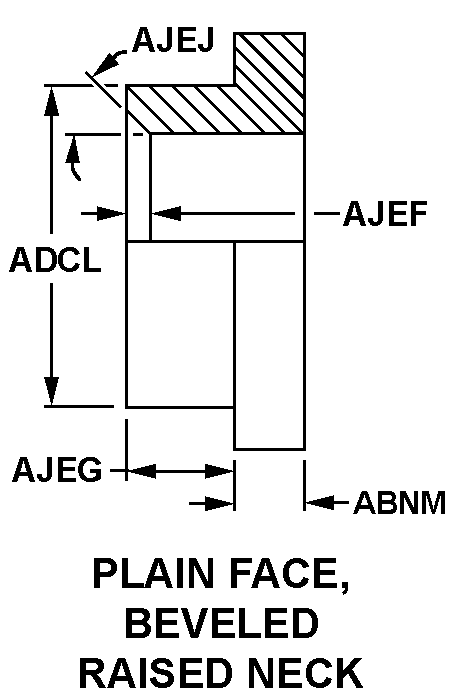

| FLANGE SECTION STYLE | 39 PLAIN FACE, BEVELED RAISED NECK |
| THICKNESS | 0.500 INCHES NOMINAL |
| NECK DIAMETER | 1.750 INCHES NOMINAL |
| BEVEL DEPTH | 0.125 INCHES NOMINAL |
| BOSS BEVEL ANGLE | 60.0 DEGREES NOMINAL |
| REDUCER FLANGE HOLE TYPE | CONCENTRIC |
| SCREW THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.063 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 2B |
| FACE SEATING SURFACE CONDITION | GROUND |
| MANUFACTURERS CODE | 94117 |
| DESIGN CONTROL REFERENCE | 4400B1465 |
Restrictions/Controls & Freight Information | NSN 4730-00-834-7220
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-834-7220
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
