NSN 4730-00-834-1857 MIL-F-24787/2 TYPE AGROUPVIIIL1, MILF247872TYPEAGROUPVIIIL1, 63357-20-20
Product Details | TUBE TO HOSE STRAIGHT ADAPTER
4730-00-834-1857 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.
Part Alternates: MIL-F-24787/2 TYPE AGROUPVIIIL1, MILF247872TYPEAGROUPVIIIL1, 63357-20-20, 633572020L1, 63357-20-20L1, 441120, 4-411-20, 441120L1, 4-411-20L1, 4730-00-834-1857, 00-834-1857, 4730008341857, 008341857, 633572020
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 SEP 1967 | 00-834-1857 | 03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE ) |

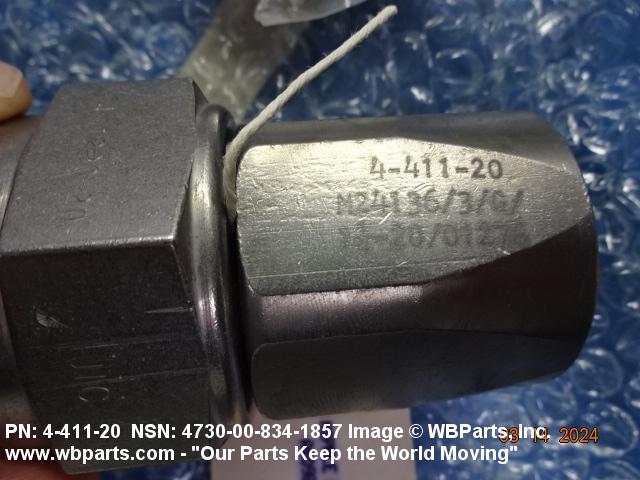

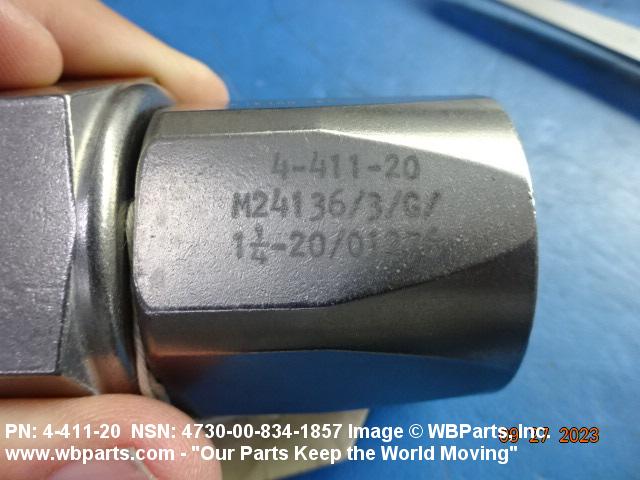

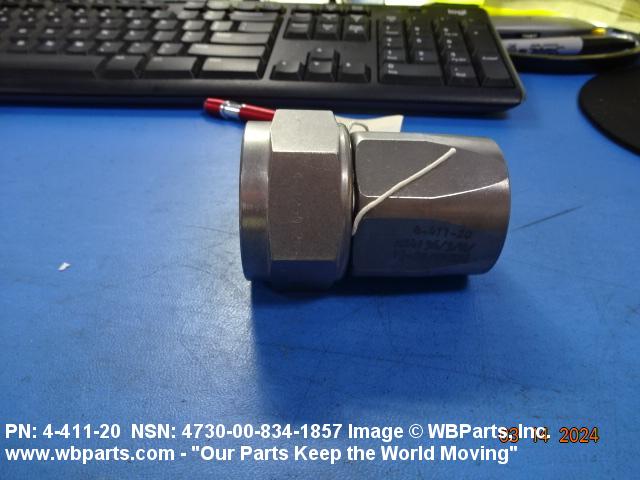

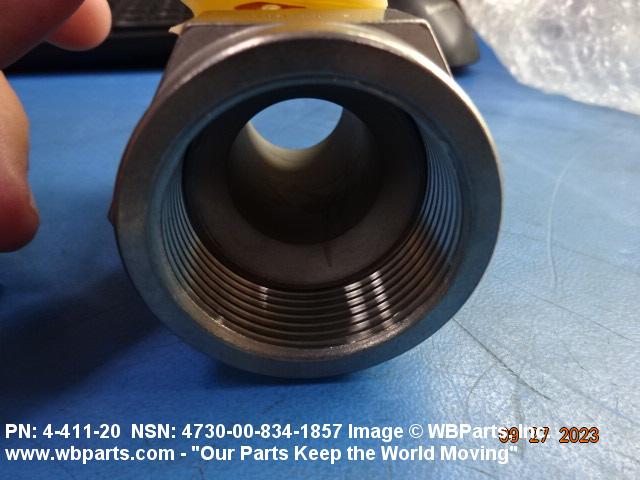

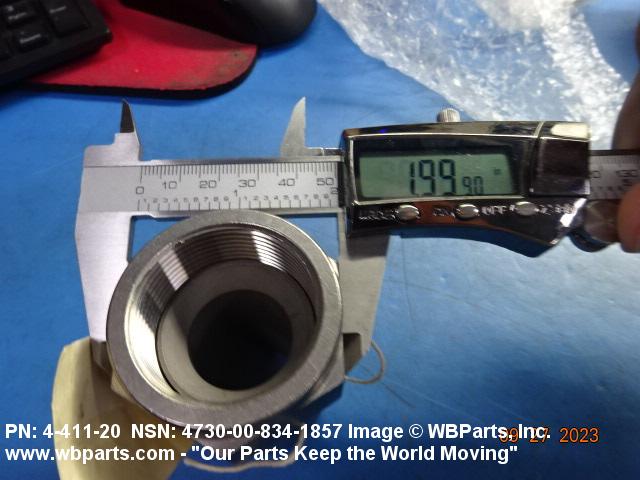

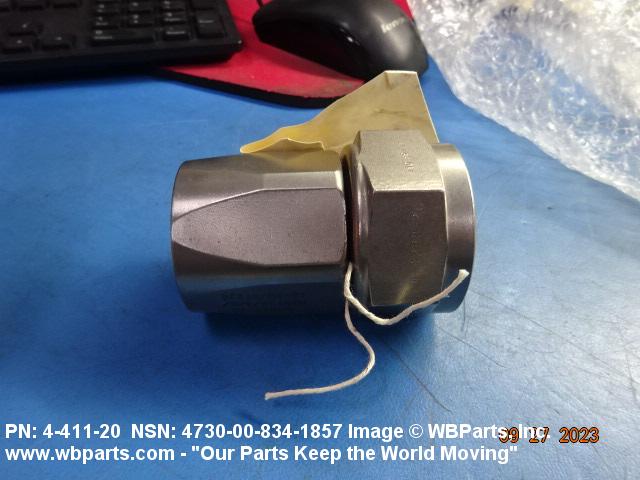

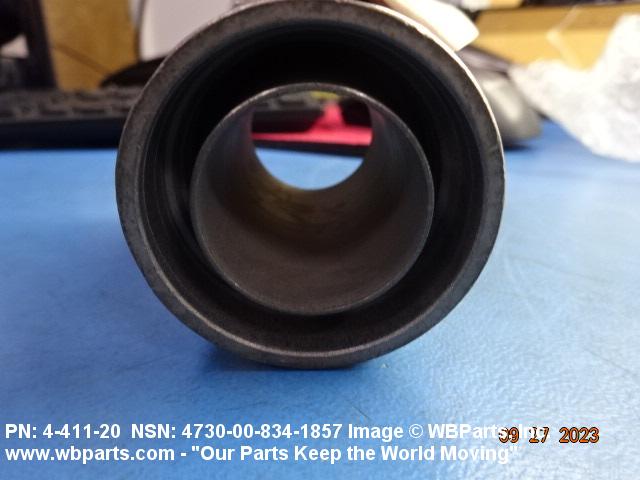

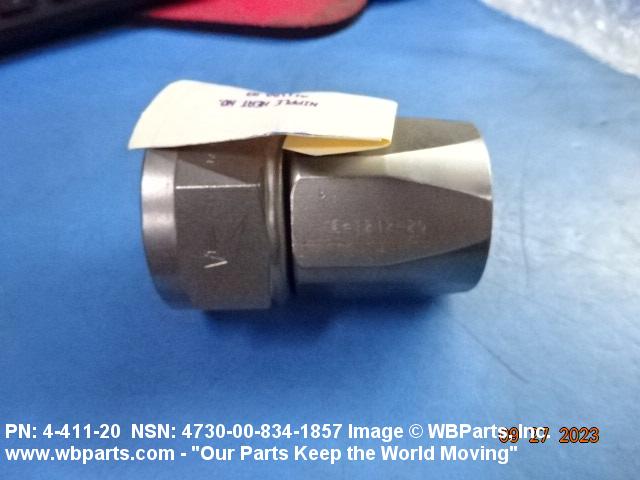

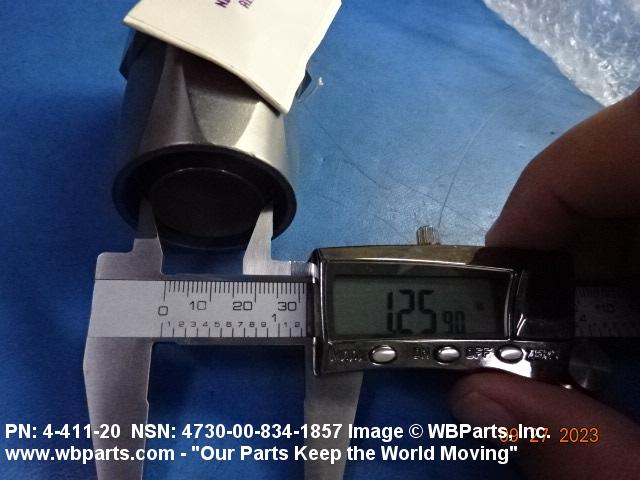

Drawings & Photos | NSN 4730-00-834-1857
Demand History | NSN 4730-00-834-1857
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-834-1857 | 2024-10-303 | 4 | United States |
| 4730-00-834-1857 | 2024-04-102 | 4 | United States |
| 4730-00-834-1857 | 2024-02-60 | 2 | United States |
| 4730-00-834-1857 | 2023-09-263 | 2 | United States |
| 4730-00-834-1857 | 2023-09-262 | 2 | United States |
| 4730-00-834-1857 | 2023-09-248 | 2 | United States |
Cross Reference | NSN 4730-00-834-1857
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-411-20 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 4-411-20L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 63357-20-20 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 63357-20-20L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MIL-F-24787/2 TYPE AGROUPVIIIL1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-834-1857
Related Products | NSN 4730-00-834-1857
Technical Data | NSN 4730-00-834-1857
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY A OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281,CL A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B61 GRIPPING NIPPLE 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 1.125 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 1.500 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.625 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 2B 1ST END |

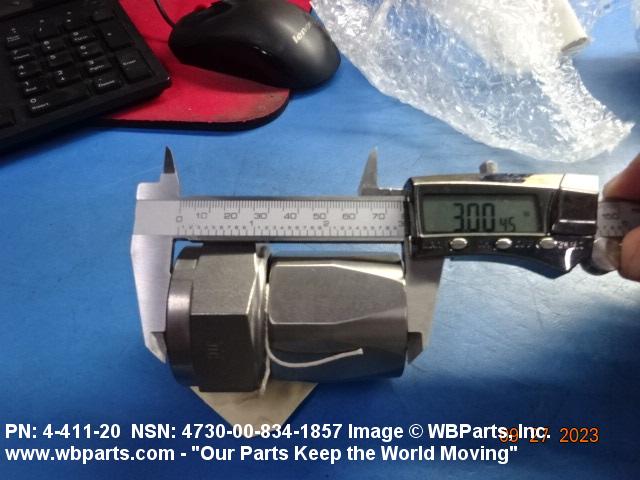

| NOMINAL OVERALL LENGTH | 3.000 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 SOCKET |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | QUALITY CONTROL IAW NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTION FOR LEVEL 1 ITEMS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 01276 |
| DESIGN CONTROL REFERENCE | 4-411-20 |
Restrictions/Controls & Freight Information | NSN 4730-00-834-1857
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051450 | PIPE FITTINGS CUPRO NICKEL/COPPER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-834-1857
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | L1 | An items that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective exidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
