NSN 4730-00-827-9694 MS2192316, MS21923-16, 00-827-9694
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-00-827-9694 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: MS2192316, MS21923-16, 4730-00-827-9694, 00-827-9694, 4730008279694, 008279694
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-827-9694 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

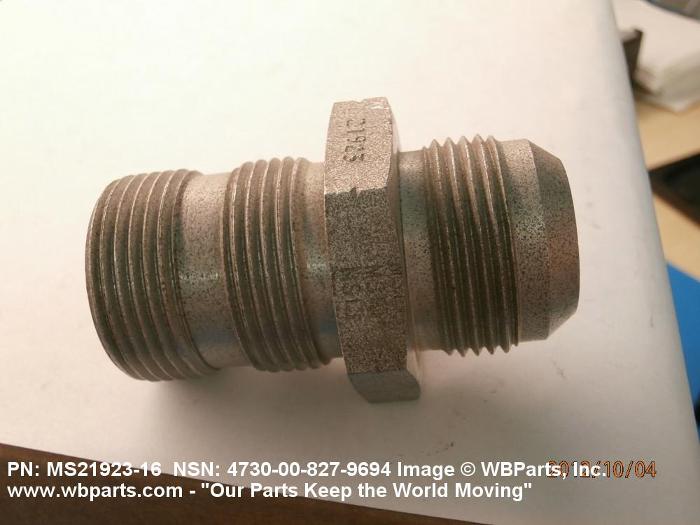

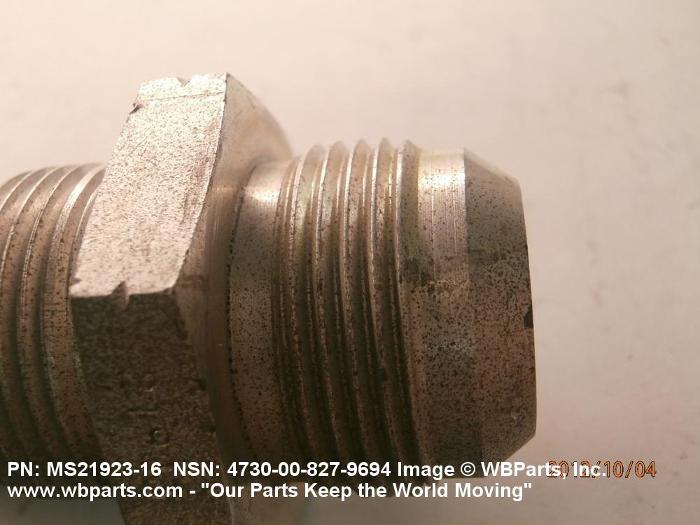

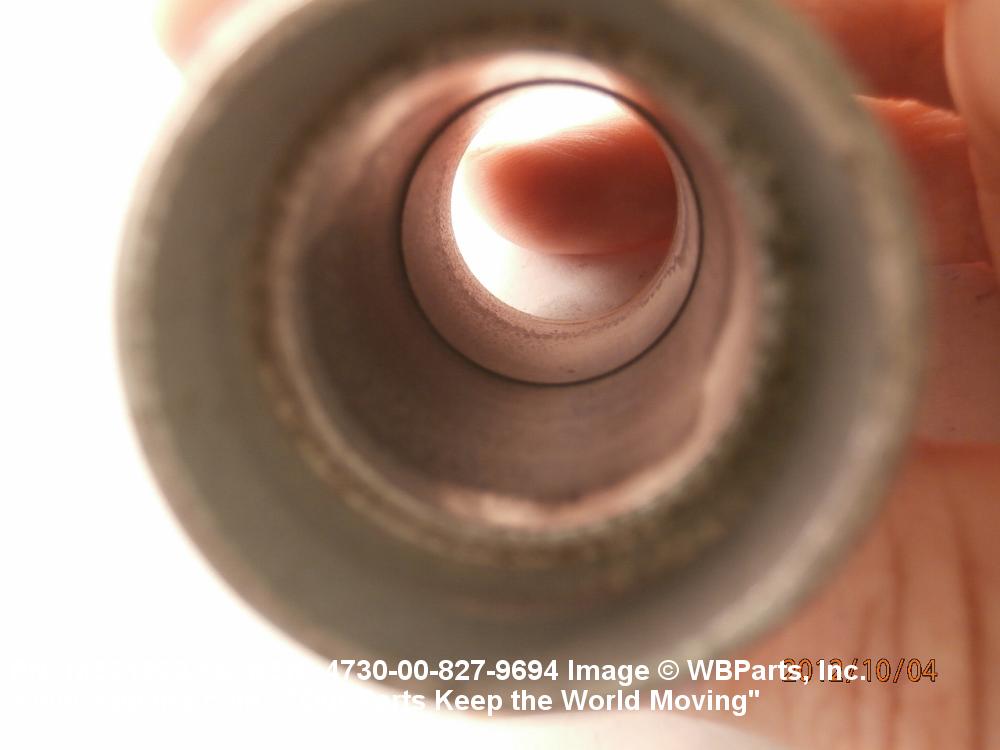

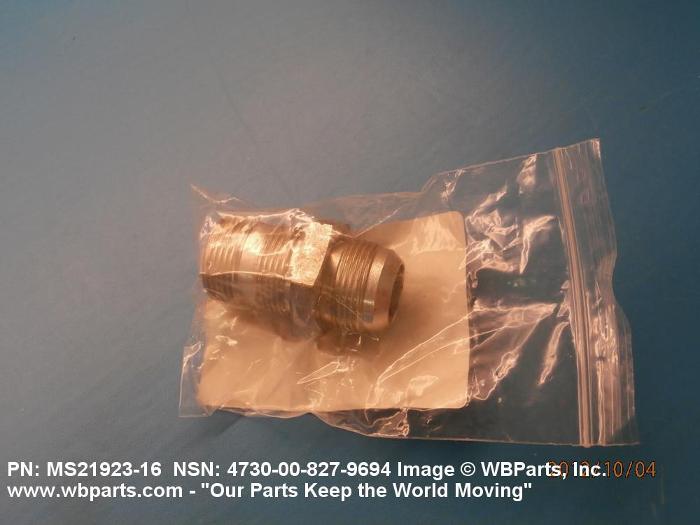

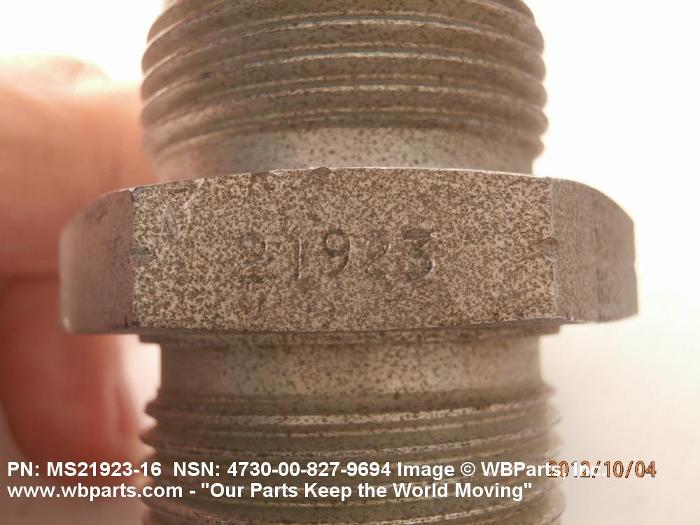

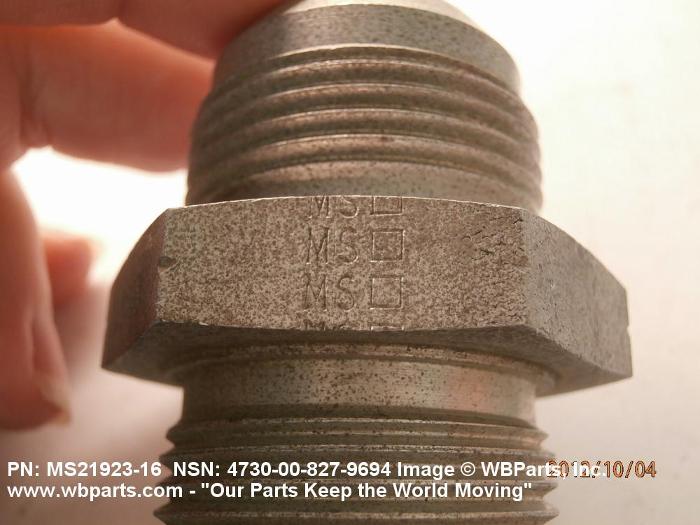

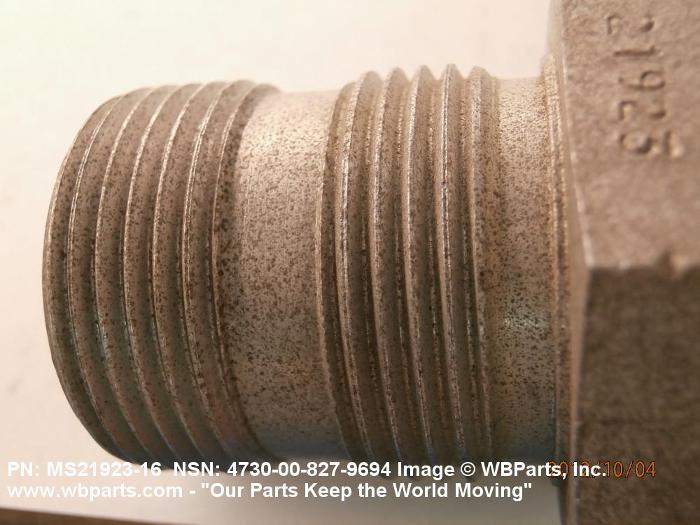

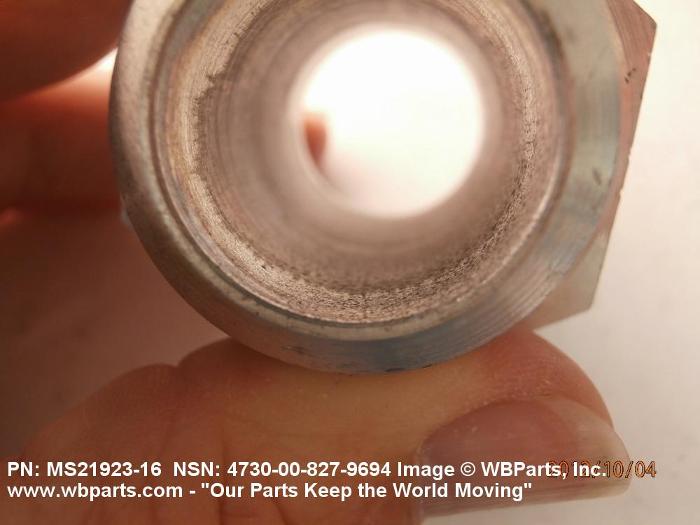

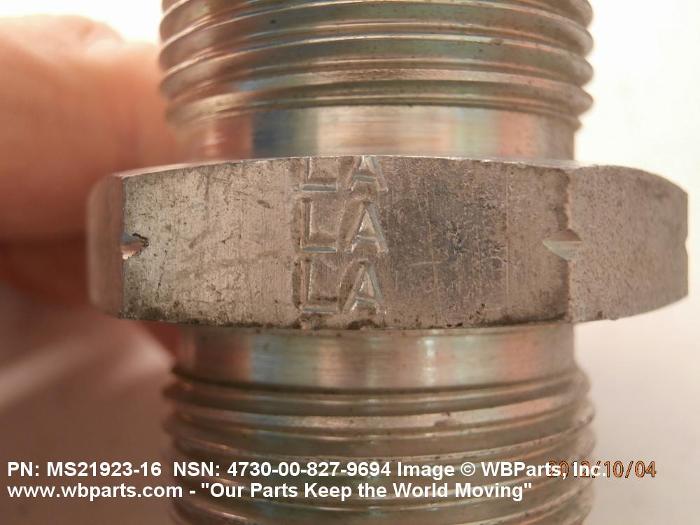

Drawings & Photos | NSN 4730-00-827-9694
Demand History | NSN 4730-00-827-9694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-827-9694 | 2020-04-113 | 2 | us |
| MS2192316 | 2012-10-276 | 1 | United States |
Cross Reference | NSN 4730-00-827-9694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21923-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-827-9694
Related Products | NSN 4730-00-827-9694
Technical Data | NSN 4730-00-827-9694
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OR STEEL COMP 1141 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC 1ST MATERIAL RESPONSE OR ASTM A108 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT 1ST RESPONSE -65.0 DEG FAHRENHEIT 2ND RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B81 FLARED W/GASKET SEAL 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS UNJ CENTER BULKHEAD |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS 1.312 INCHES CENTER BULKHEAD |
| THREAD QUANTITY PER INCH | 12 ALL ENDS 12 CENTER BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A CENTER BULKHEAD |
| NOMINAL OVERALL LENGTH | 2.688 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS21923 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21923-16 |
Restrictions/Controls & Freight Information | NSN 4730-00-827-9694
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
