NSN 4730-00-771-5320 NY6054, NY605-4, ZY6054
Product Details | TUBE FITTING INSERT
4730-00-771-5320 A flanged cylindrical metallic or nonmetallic item designed to be inserted into soft plastic tubing to accommodate the sleeve of compression type tube fittings.
Part Alternates: NY6054, NY605-4, ZY6054, ZY605-4, 6T23UIZY, 6T23UI-ZY, 6TIZNY, 6TIZ-NY, 4730-00-771-5320, 00-771-5320, 4730007715320, 007715320
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-771-5320 | 32691 ( INSERT, TUBE FITTING ) |

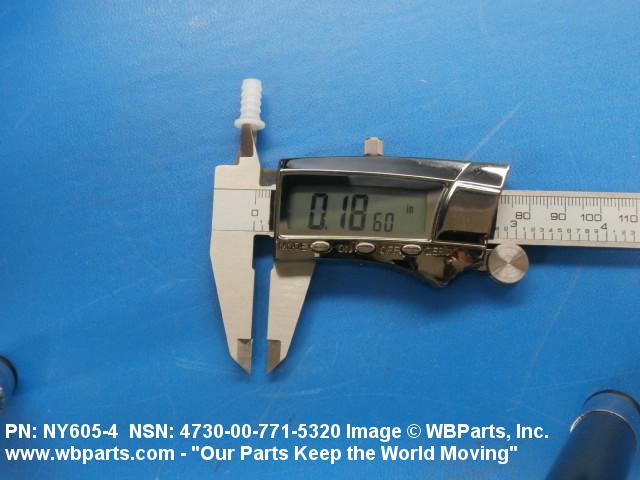

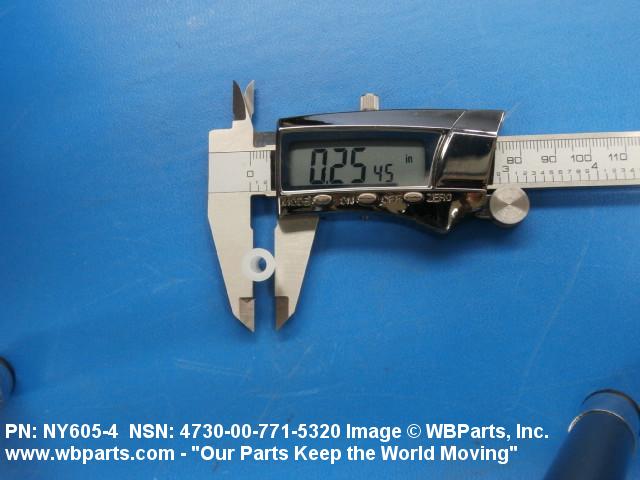

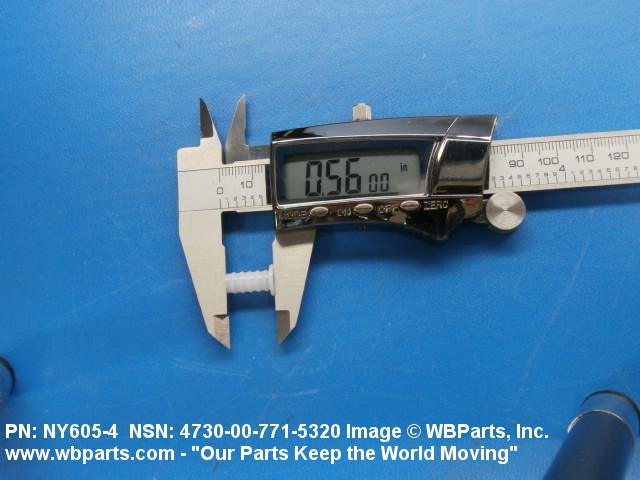

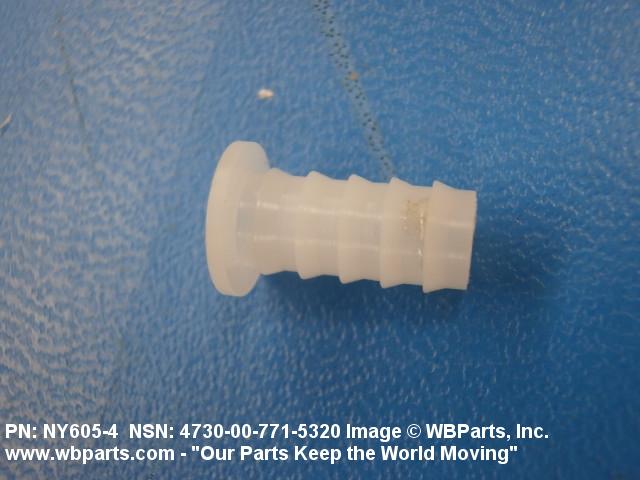

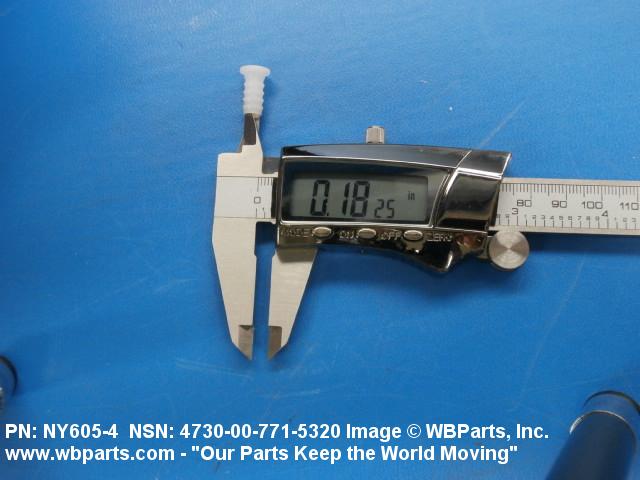

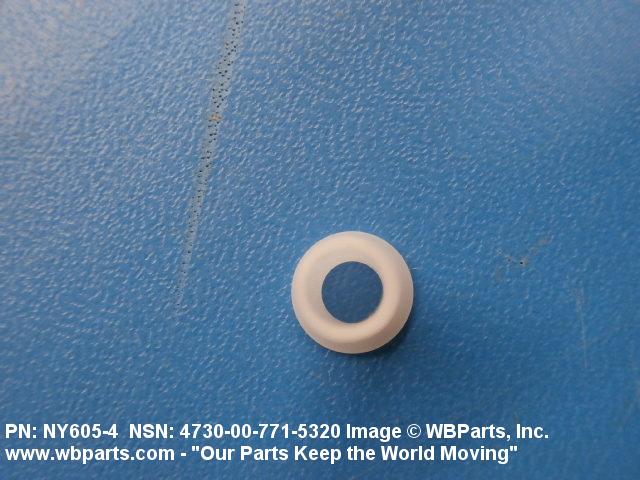

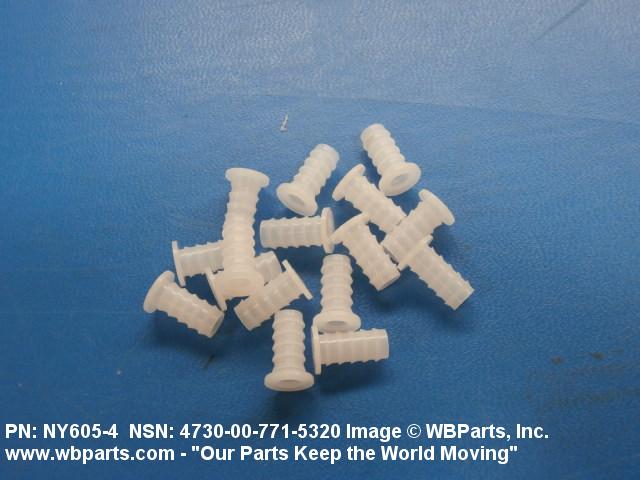

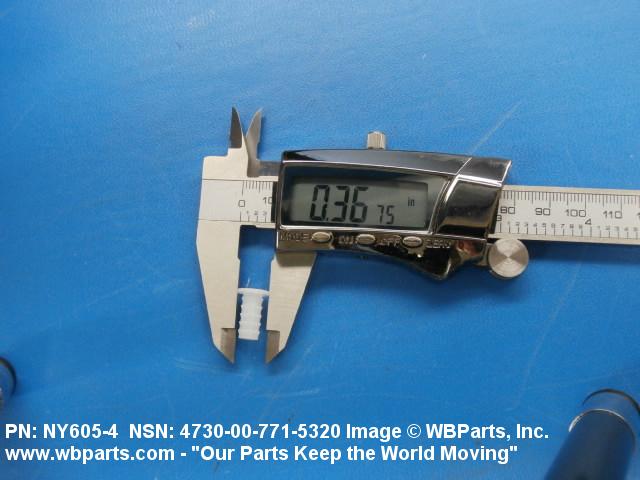

Drawings & Photos | NSN 4730-00-771-5320
Demand History | NSN 4730-00-771-5320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-771-5320 | 2024-02-39 | 200 | US |
| 4730-00-771-5320 | 2021-11-320 | 1 | US |
| 4730-00-771-5320 | 2018-12-356 | 2 | US |
| NY6054 | 2015-03-76 | 16 | United States |
| 4730-00-771-5320 | 2013-01-11 | 1 | MX |
| ZY6054 | 2013-01-11 | 1 | MX |
Cross Reference | NSN 4730-00-771-5320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6T23UI-ZY | 54938 | PARKER-HANNIFIN CORPORATION DBA INSTRUMENTATION PRODUCTS DIV |
| 6TIZ-NY | 54938 | PARKER-HANNIFIN CORPORATION DBA INSTRUMENTATION PRODUCTS DIV |
| NY605-4 | 02570 | SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR |
| ZY605-4 | 02570 | SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-771-5320
Technical Data | NSN 4730-00-771-5320
| Characteristic | Specifications |
|---|---|
| MATERIAL | POLYAMIDE NYLON |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| TUBE INSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | V1 SERRATED |
| FLANGE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-771-5320
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
