Product Details | TUBE ELBOW

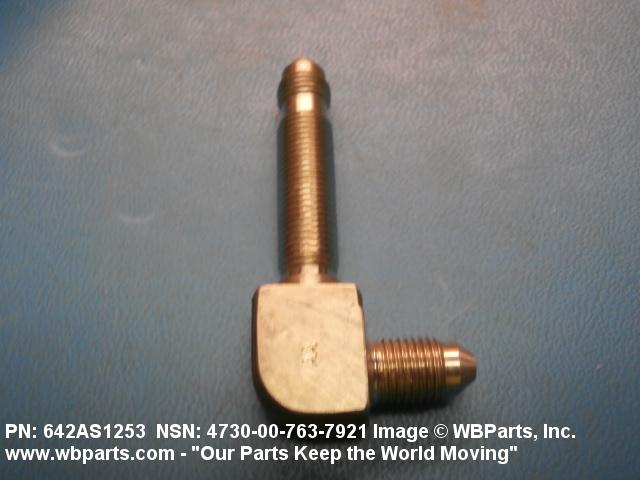

4730-00-763-7921 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 642AS1253, 7M443J, 7M44-3J, 4730-00-763-7921, 00-763-7921, 4730007637921, 007637921
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1960 | 00-763-7921 | 03771 ( ELBOW, TUBE ) |
Drawings & Photos | NSN 4730-00-763-7921

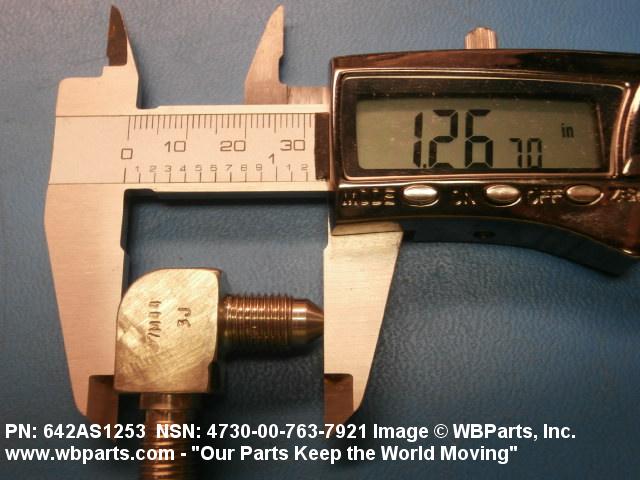

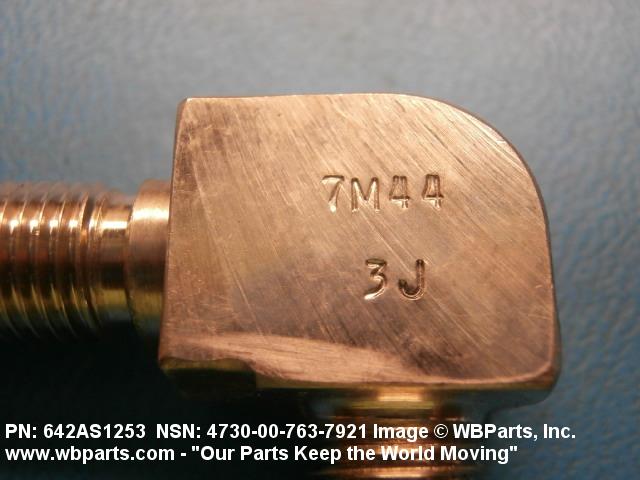

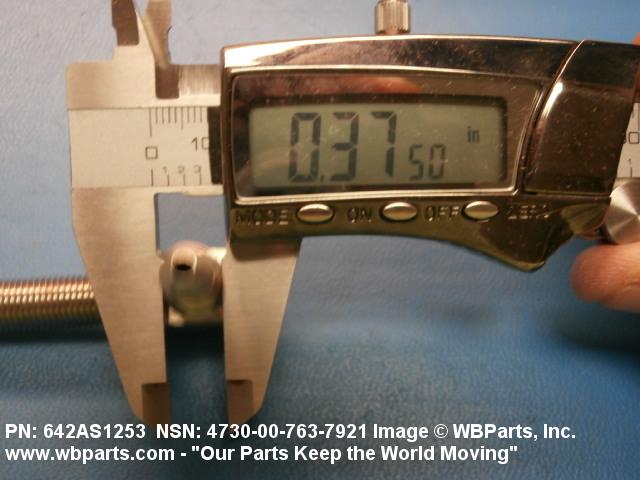

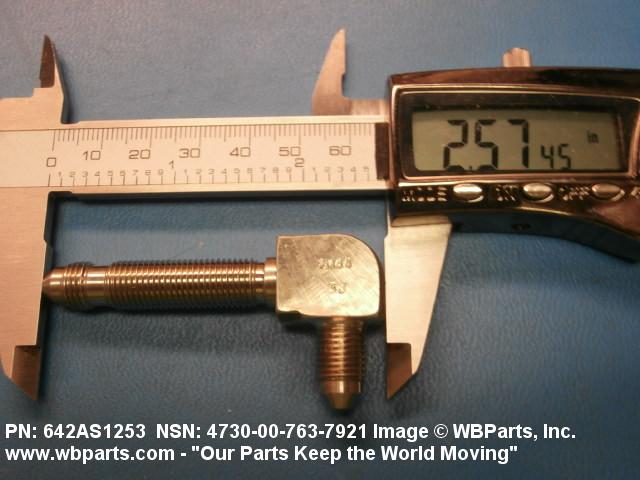

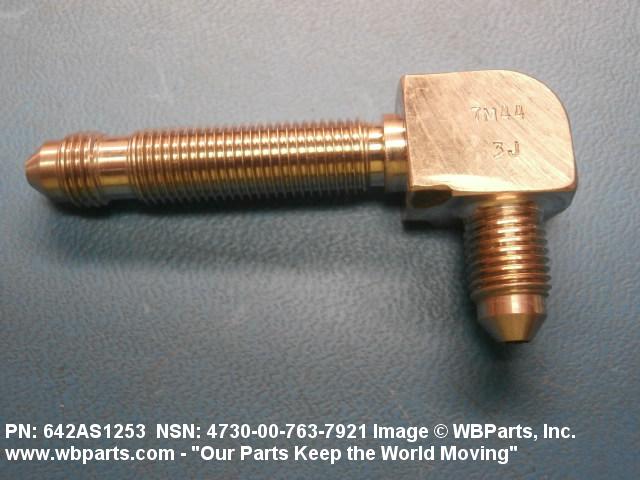

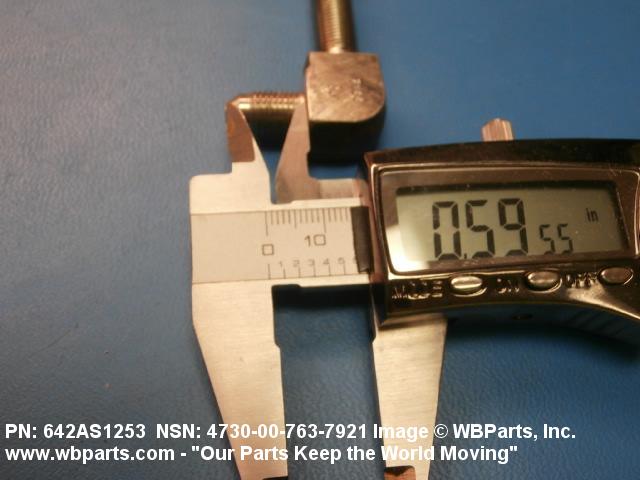

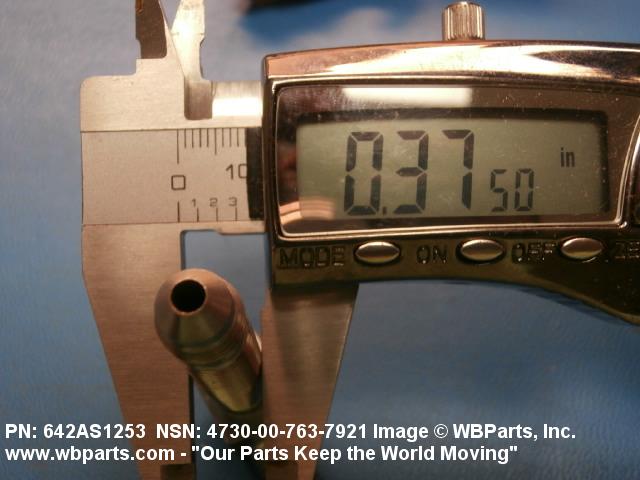

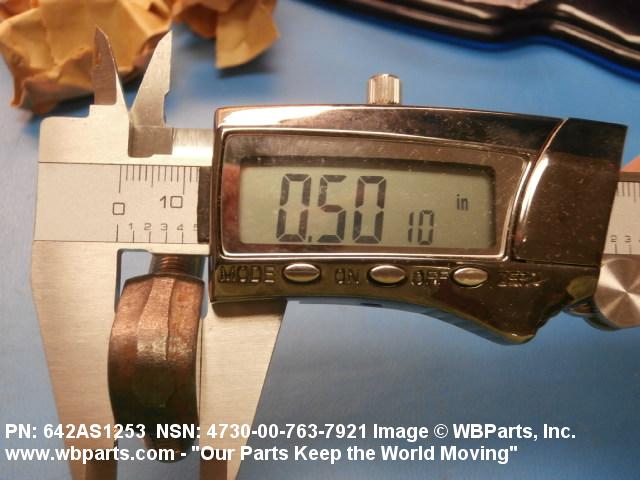

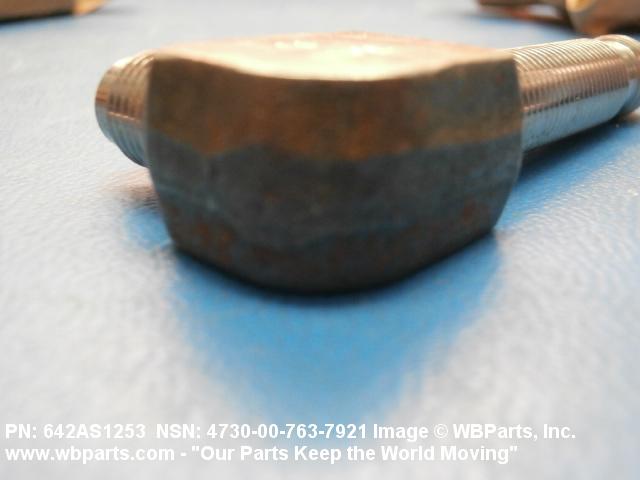

Demand History | NSN 4730-00-763-7921
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 642AS1253 | 2020-02-25 | 35 | United Kingdom |
| 7M44-3J | 2018-10-11 | 4 | United Kingdom |
| 7M44-3J | 2018-09-24 | 400 | United Kingdom |
| 642AS1253 | 2016-02-29 | 1 | United Kingdom |
| 642AS1253 | 2015-10-13 | 12 | United Kingdom |
| 642AS1253 | 2015-04-16 | 16 | United Kingdom |
| 642AS1253 | 2013-01-29 | 80 | United Kingdom |
| 7M44-3J | 2013-01-29 | 60 | United Kingdom |
