NSN 4730-00-737-5440 F3474, F3474P, FC3474
Product Details | FLUID PASSAGE BOLT
4730-00-737-5440 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: F3474, F3474P, FC3474, FC3474P, GP2077, 012487, 114697H1, 185163, 231453, 24SK11, 302495, 3801146971, 380-114697-1, 00637605, 47359476, 4735947-6, 52595H, 59MAH1, 637605, 7375440, 74735947, 4730-00-737-5440, 00-737-5440, 4730007375440, 007375440
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-737-5440 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-00-737-5440
Demand History | NSN 4730-00-737-5440
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-737-5440 | 2018-07-185 | 1 | US |
Cross Reference | NSN 4730-00-737-5440
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00637605 | 22852 | SPALLA INC |
| 012487 | 78640 | MITSUBISHI CATERPILLAR FORKLIFT AMERICA INC |
| 114697H1 | 29510 | KOMATSU AMERICAN INTL CO |
| 114697H1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 185163 | 58275 | SASCO INC CANADIAN DIV |
| 231453 | 23862 | MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP |
| 231453 | 24617 | GENERAL MOTORS CORP |
| 231453 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 24SK11 | 76040 | MACK TRUCKS INC PARTS OPN |
| 24SK11 | 89619 | MACK TRUCKS, INC. DBA MACUNGIE OPERATIONS |
| 302495 | 58275 | SASCO INC CANADIAN DIV |
| 380-114697-1 | 0SAT8 | KOMATSU AMERICA CORP. |
| 380-114697-1 | 29510 | KOMATSU AMERICAN INTL CO |
| 4735947-6 | 0AHU0 | KALMAR AC INC |
| 52595H | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 59MAH1 | 05415 | LINDE LIFT TRUCK CORP. |
| 59MAH1 | 556A6 | LINDE MATERIAL HANDLING NORTH AMERICA CORP |
| 637605 | 24617 | GENERAL MOTORS CORP |
| 637605 | 34623 | AM GENERAL, LLC |
| 7375440 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 74735947 | 0AHU0 | KALMAR AC INC |
| F3474 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| F3474P | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC3474 | 56442 | DIAMOND REO TRUCK CO |
| FC3474 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC3474P | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| GP2077 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| GP2077 | 57526 | FORD MOTOR CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-737-5440
Related Products | NSN 4730-00-737-5440
Technical Data | NSN 4730-00-737-5440
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

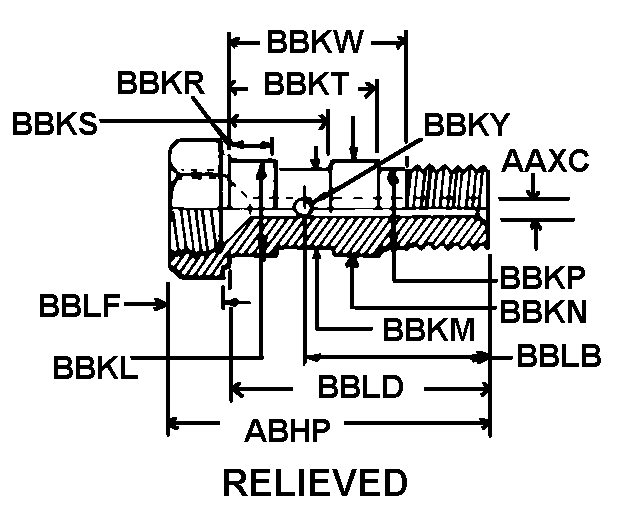

| BODY STYLE | 7 RELIEVED |
| CONCENTRIC HOLE DIAMETER | 0.218 INCHES NOMINAL |
| OVERALL LENGTH | 1.406 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.469 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.280 INCHES NOMINAL |
| THIRD DIAMETER FROM WRENCHING FEATURE | 0.469 INCHES NOMINAL |
| FOURTH DIAMETER FROM WRENCHING FEATURE | 0.482 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.297 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.516 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF THIRD DIAMETER | 0.594 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FOURTH DIAMETER | 0.542 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.844 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.156 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.250 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.500 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 20 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.562 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | C10 PLAIN |
| SECOND END THREAD SERIES DESIGNATOR | NPTF |
| SECOND END NOMINAL THREAD SIZE | 0.312 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.475 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-737-5440
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-737-5440
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
