NSN 4730-00-737-2343 F5778, FC5778, GP2074
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-737-2343 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: F5778, FC5778, GP2074, KZ271, 504165, 637432, 7372343, 4730-00-737-2343, 00-737-2343, 4730007372343, 007372343
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-737-2343 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

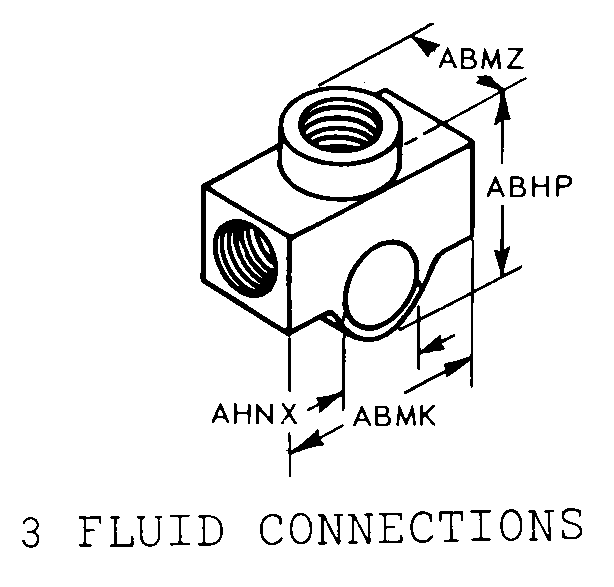

Drawings & Photos | NSN 4730-00-737-2343
Demand History | NSN 4730-00-737-2343
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-737-2343 | 2008-12-358 | 10 | Australia |
Cross Reference | NSN 4730-00-737-2343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 504165 | 23705 | FRUEHAUF CORP |
| 637432 | 22852 | SPALLA INC |
| 637432 | 34623 | AM GENERAL, LLC |
| 7372343 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| F5778 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC5778 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| GP2074 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| GP2074 | 57526 | FORD MOTOR CO |
| KZ271 | 10695 | TAYLOR-DUNN CORPORATION DBA METRO CROWN INTERNATIONAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-737-2343
Related Products | NSN 4730-00-737-2343
Technical Data | NSN 4730-00-737-2343
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| STYLE DESIGNATOR | D13 3 FLUID CONNECTIONS |
| OVERALL LENGTH | 1.313 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| THICKNESS | 0.563 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.282 INCHES NOMINAL |
| DEG BETWEEN OUTLETS | 90.0 |
| FLUID CONNECTION QUANTITY | 2 1 |
| CONNECTION STYLE | E2 INVERTED FLARE E5 PLAIN |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/16 IN. OD TUBE; 3/8 IN. NOM HOSE |
| THREAD SIZE | 3/8 IN.-24 3/8 IN.-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF UNF |
| THREAD CLASS | 2B 2B |
| THREAD DIRECTION | RIGHT-HAND RIGHT-HAND |
| SEAT ANGLE IN DEG | 42.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
Restrictions/Controls & Freight Information | NSN 4730-00-737-2343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-737-2343
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
