NSN 4730-00-735-0406 2264536, 7350406, 00-735-0406
Product Details | FLUID PASSAGE BOLT
4730-00-735-0406 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 2264536, 7350406, 4730-00-735-0406, 00-735-0406, 4730007350406, 007350406
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-735-0406 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-00-735-0406
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-735-0406
Technical Data | NSN 4730-00-735-0406
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633,FS1020 FED SPEC SINGLE MATERIAL RESPONSE |

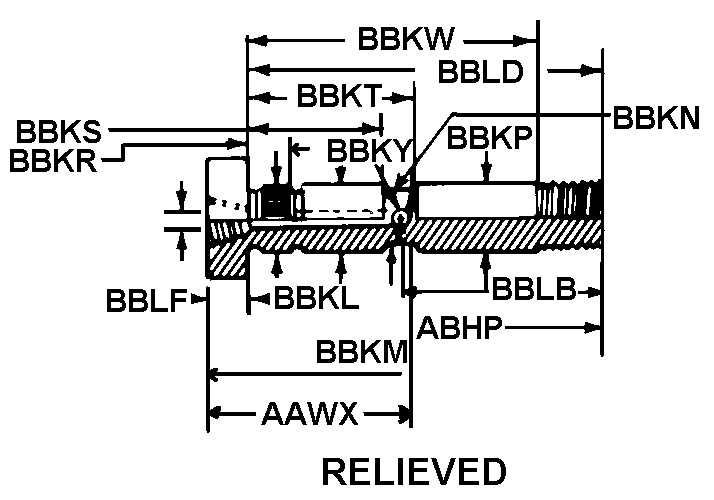

| BODY STYLE | 16 RELIEVED |
| CONCENTRIC HOLE DEPTH | 2.719 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.156 INCHES NOMINAL |
| OVERALL LENGTH | 5.500 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.748 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.748 INCHES NOMINAL |
| THIRD DIAMETER FROM WRENCHING FEATURE | 0.7170 INCHES MINIMUM AND 0.727 INCHES MAXIMUM |
| FOURTH DIAMETER FROM WRENCHING FEATURE | 0.748 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.438 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 1.906 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF THIRD DIAMETER | 2.219 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FOURTH DIAMETER | 3.688 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.156 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 2.500 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 5.000 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.500 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 16 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 1.312 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | C10 PLAIN |
| SECOND END THREAD SERIES DESIGNATOR | NPT |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| WRENCHING FEATURE STYLE | 3 ROUND |
| HEAD DIAMETER | 1.062 INCHES NOMINAL |
| HARDNESS RATING | 59.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM |
Restrictions/Controls & Freight Information | NSN 4730-00-735-0406
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-735-0406
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
