NSN 4730-00-734-0106 7340106, B577, 00-734-0106
Product Details | GREASE CUP
4730-00-734-0106 An item to be mounted on machinery, designed to hold grease and supply it to parts of machinery.
Part Alternates: 7340106, B577, 4730-00-734-0106, 00-734-0106, 4730007340106, 007340106
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-734-0106 | 03176 ( CUP, GREASE ) |
Drawings & Photos | NSN 4730-00-734-0106
Demand History | NSN 4730-00-734-0106
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B577 | 2011-12-364 | 3 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-734-0106
Technical Data | NSN 4730-00-734-0106
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

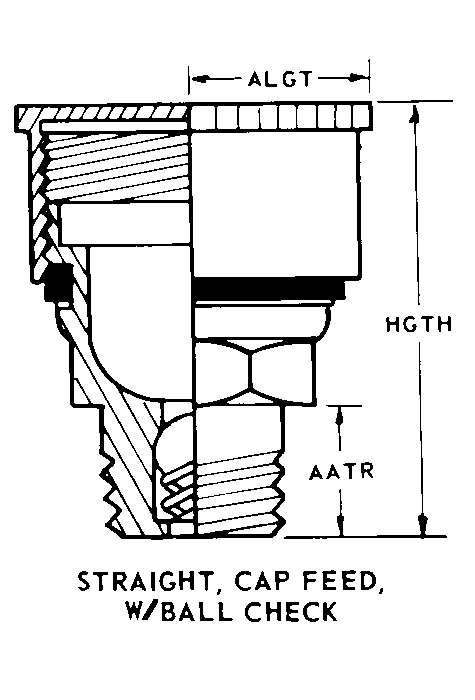

| STYLE DESIGNATOR | G3 STRAIGHT, CAP FEED, W/BALL CHECK |
| SHANK LENGTH | ANY ACCEPTABLE |
| ASSEMBLY CLEARANCE RADIUS | 0.625 INCHES MAXIMUM |
| HEIGHT | 2.250 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| GREASE CAPACITY | 0.500 OUNCES |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-00-734-0106
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 124540 | LUBRICATORS GREASE CUPS O/T A |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
