NSN 4730-00-720-0288 MS20762D16 , MS21905J4, MS243944

Product Details | TUBE ELBOW

4730-00-720-0288 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: MS20762D16 , MS21905J4, MS243944, MS24394-4, AN762D16 , AN8334, AN833-4, AS10380404, AS1038-0404, 11A1/135594/3, 11A11355943, 370143, 4730-00-720-0288, 00-720-0288, 4730007200288, 007200288

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-720-0288	03771 ( ELBOW, TUBE )

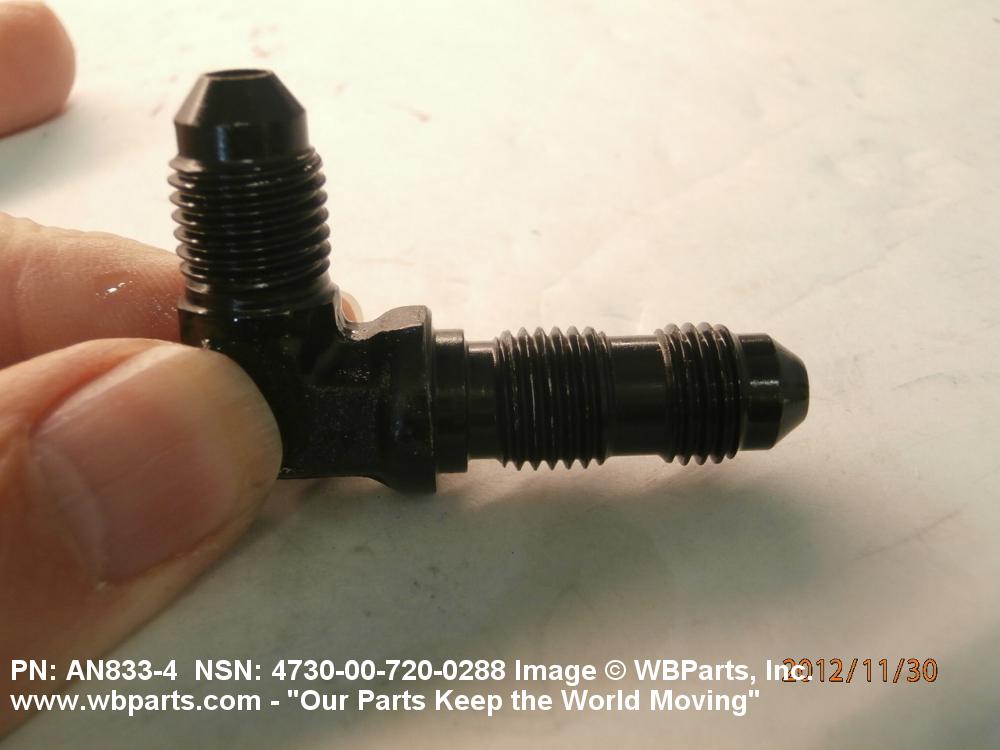

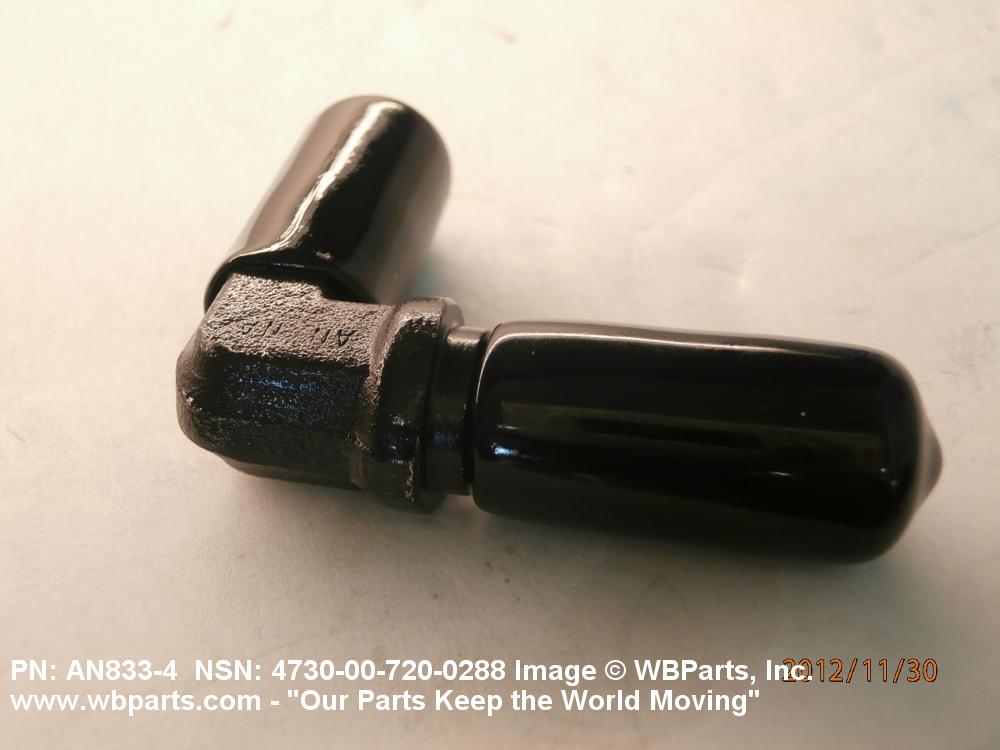

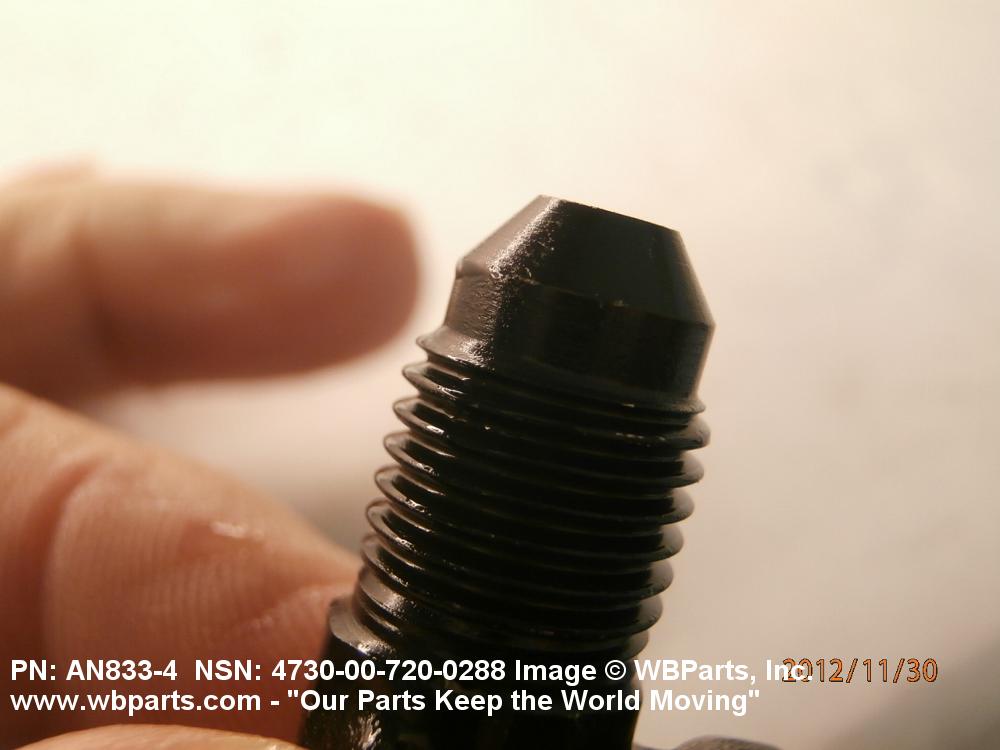

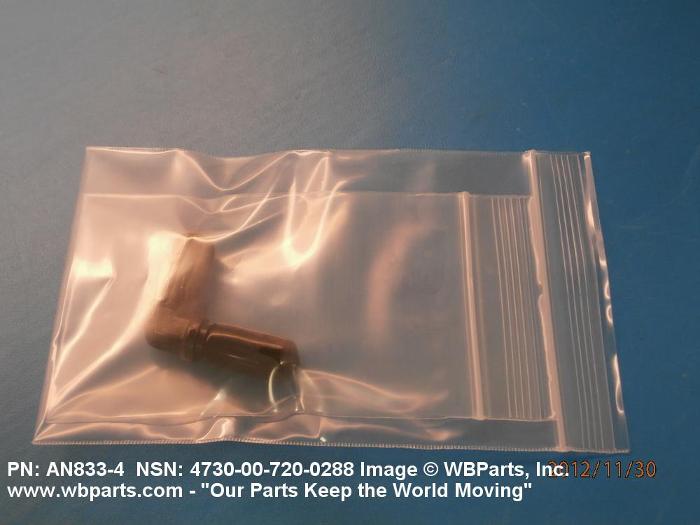

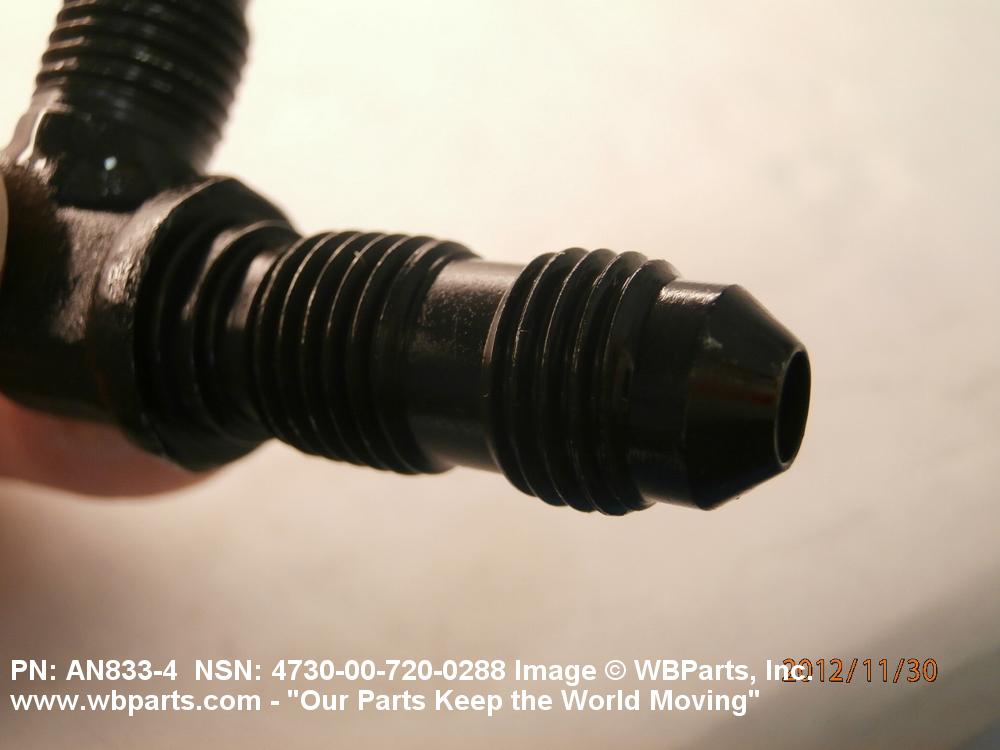

Drawings & Photos | NSN 4730-00-720-0288

Part Number	Request Date	QTY	Origin
MS20762D16	2024-12-339	2	United States
4730-00-720-0288	2024-02-60	191	DIBBS
4730-00-720-0288	2023-07-187	1053	DIBBS
4730-00-720-0288	2023-06-176	1053	DIBBS
MS20762D16	2021-05-124	2	United States
MS21905J4	2021-03-81	4	United States
4730-00-720-0288	2021-03-78	4	United States
4730-00-720-0288	2019-12-336	5	SA
MS20762D16	2019-03-67	4	United States
MS21905J4	2018-08-213	44	IN
4730-00-720-0288	2018-07-182	1500	DIBBS
4730-00-720-0288	2017-10-290	2977	DIBBS
4730-00-720-0288	2016-07-188	1709	DIBBS
MS21905J4	2016-06-176	4	Malaysia
4730-00-720-0288	2015-10-301	1149	DIBBS
MS21905J4	2015-09-268	48	us
AN8334	2015-09-255	1	Malaysia
MS21905J4	2015-02-33	10	US
MS21905J4	2014-06-171	2	United States
4730-00-720-0288	2013-11-319	55	UK
MS21905J4	2013-10-282	15	United States
MS21905J4	2013-10-277	1	US
4730-00-720-0288	2013-04-98	793	DIBBS
AN8334	2012-11-332	1	United States
MS20762D16	2012-08-234	2	United States
4730-00-720-0288	2012-07-198	1326	DIBBS
MS21905J4	2012-04-93	18	US
4730-00-720-0288	2012-03-74	755	DIBBS
4730-00-720-0288	2012-01-11	933	DIBBS
4730-00-720-0288	2011-12-349	933	DIBBS
4730-00-720-0288	2011-10-279	794	DIBBS
4730-00-720-0288	2011-09-258	794	DIBBS
4730-00-720-0288	2010-12-343	703	DIBBS
4730-00-720-0288	2010-11-314	5	us
4730-00-720-0288	2010-11-308	480	DIBBS
4730-00-720-0288	2010-08-230	734	DIBBS
4730-00-720-0288	2008-12-340	1582	DIBBS

Cross Reference | NSN 4730-00-720-0288

Part Number	Cage Code	Manufacturer
11A1/135594/3	U4338	THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS
370143	72599	ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
370143	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4730007200288	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
AN833-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS1038	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS1038-0404	59680	B. & E. MANUFACTURING CO., INC.
AS1038-0404	59860	C & P ENGINEERING AND MANUFACTURING INC
AS1038-0404	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24394-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-720-0288

Compare

Related Products | NSN 4730-00-720-0288

4730-00-720-0311, 4730-00-720-0317, 4730-00-720-0338, 4730-00-720-0339, 4730-00-720-0340

Technical Data | NSN 4730-00-720-0288

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	B64 FLARED ALL ENDS
SEAT ANGLE	37.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS UNJF 1ST END BULKHEAD
NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD
THREAD CLASS	3A ALL ENDS 3A 1ST END BULKHEAD
LEG LENGTH	1.578 INCHES NOMINAL 1ST END 0.953 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
SPECIFICATION/STANDARD DATA	96906-MS24394 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	GRUMMAN A-10 AIRCRAFT
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN833-4

Restrictions/Controls & Freight Information | NSN 4730-00-720-0288

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-720-0288

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
