NSN 4730-00-714-5955 2738423, 2-73842-3, 00-714-5955
Product Details | FLUID PASSAGE BOLT
4730-00-714-5955 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 2738423, 2-73842-3, 4730-00-714-5955, 00-714-5955, 4730007145955, 007145955
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-714-5955 | 18683 ( BOLT, FLUID PASSAGE ) |

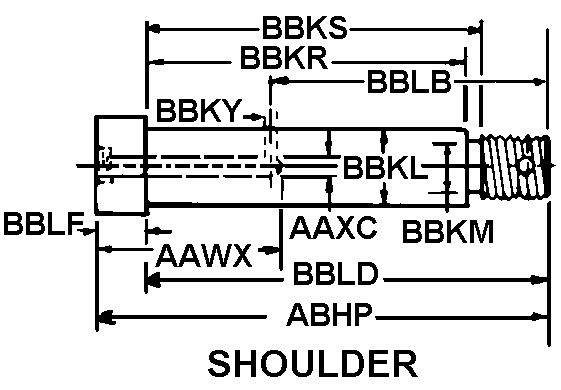

Drawings & Photos | NSN 4730-00-714-5955
Demand History | NSN 4730-00-714-5955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-714-5955 | 2010-06-180 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-714-5955
Technical Data | NSN 4730-00-714-5955
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE |
| BODY STYLE | 8 SHOULDER |
| CONCENTRIC HOLE DEPTH | 1.820 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.116 INCHES NOMINAL |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.374 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.190 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 1.780 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 1.880 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.052 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.100 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 2.150 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.100 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.250 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 28 |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.270 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| PRESSURE RATING | 160000.000 POUNDS PER SQUARE INCH MINIMUM AND 180000.000 POUNDS PER SQUARE INCH MAXIMUM |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 2-73842-3 |
Restrictions/Controls & Freight Information | NSN 4730-00-714-5955
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 129920 | SHAFTS/SHAFTING,FLEX NOI STL |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-714-5955
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | XE | SU:T-38 TALON |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
