NSN 4730-00-702-5377 MS21902J4, AS21902, AS21902J4

Product Details | BOSS NIPPLE

4730-00-702-5377 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.

Part Alternates: MS21902J4, AS21902, AS21902J4, AS4841, 8317X4, 10086154 , 4730-00-702-5377, 00-702-5377, 4730007025377, 007025377

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-702-5377	26952 ( NIPPLE, BOSS )

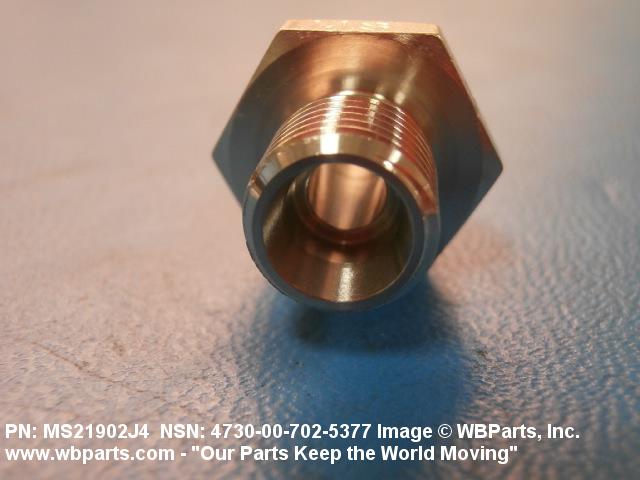

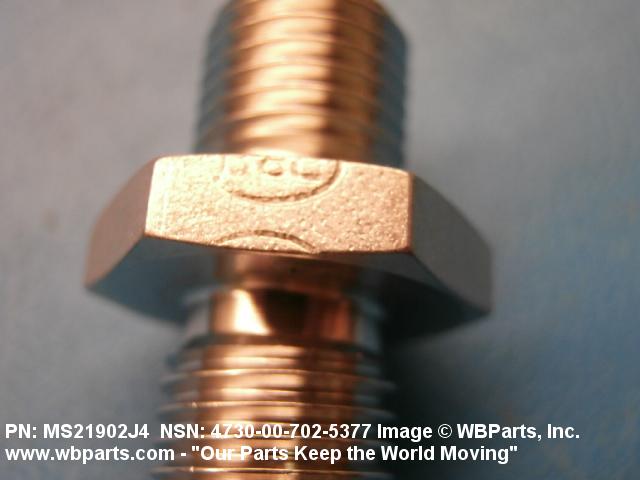

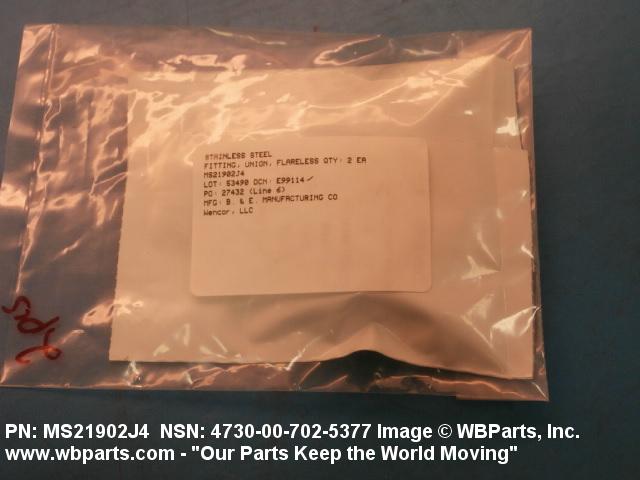

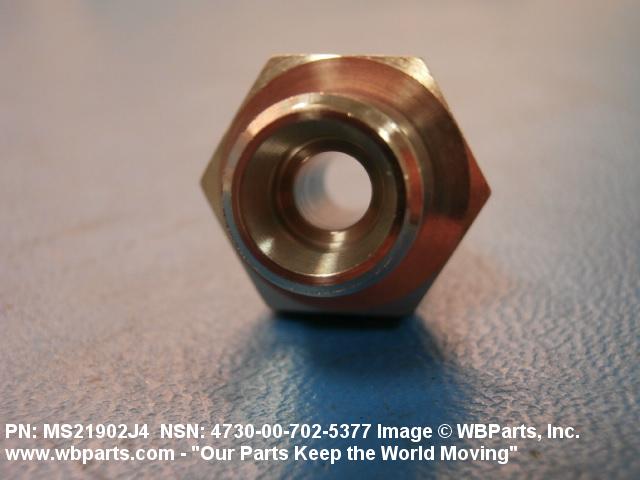

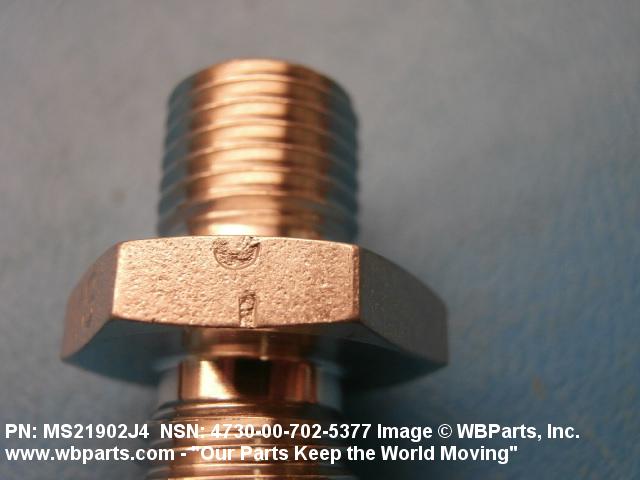

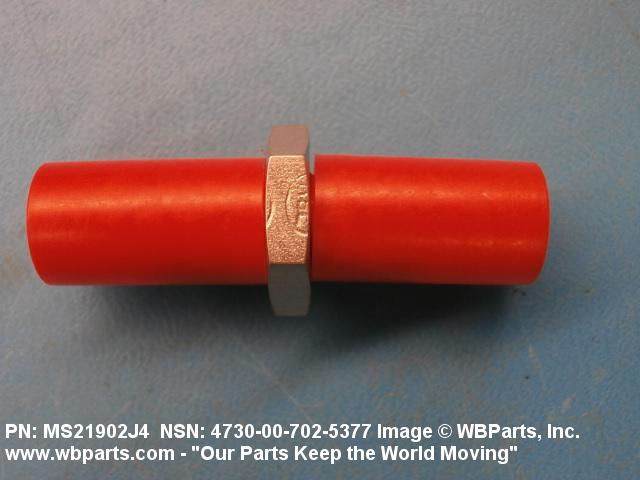

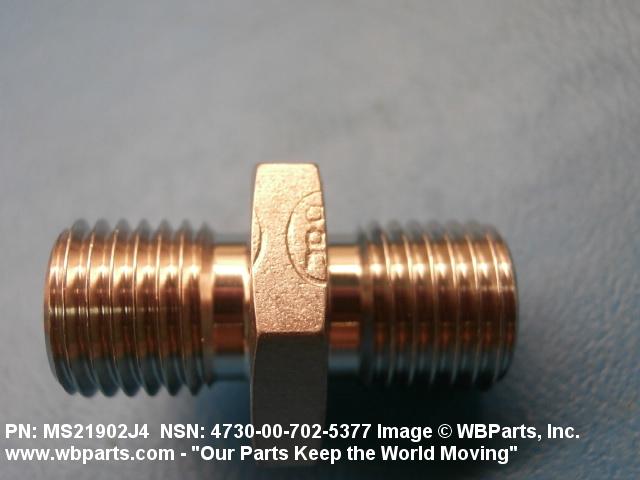

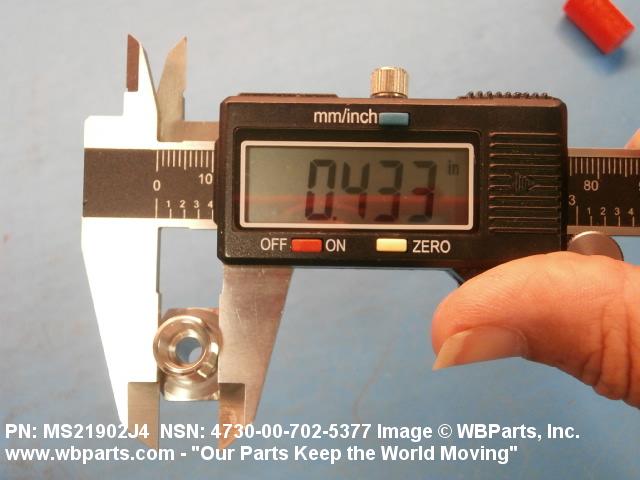

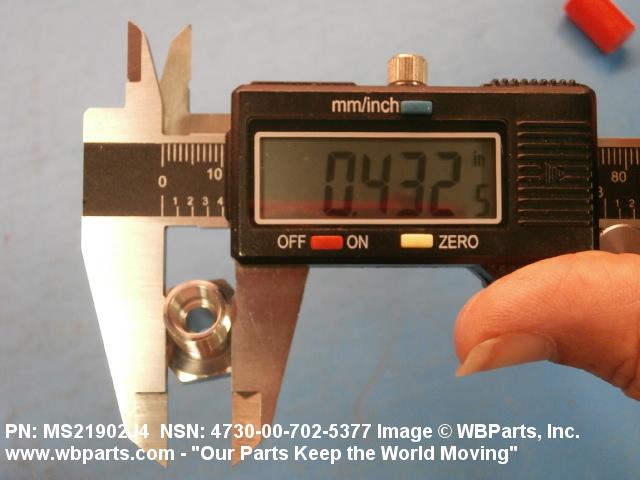

Drawings & Photos | NSN 4730-00-702-5377

Part Number	Request Date	QTY	Origin
MS21902J4	2024-09-247	1	Canada
4730-00-702-5377	2024-08-229	2	Germany
MS21902J4	2024-07-190	50	us
MS21902J4	2024-02-53	4	US
4730-00-702-5377	2023-11-311	1	United States
MS21902J4	2023-09-249	5	us
AS21902J4	2023-03-80	3	IN
MS21902J4	2023-02-53	75	US
MS21902J4	2021-05-144	2	YE
MS21902J4	2020-06-164	10	US
4730-00-702-5377	2019-06-179	70	US
MS21902J4	2019-06-154	10	VI
MS21902J4	2019-02-35	10	US
MS21902J4	2018-08-213	165	IN
4730-00-702-5377	2018-06-156	1991	DIBBS
4730-00-702-5377	2018-04-93	1460	DIBBS
4730-00-702-5377	2018-03-67	785	DIBBS
4730-00-702-5377	2017-09-250	3294	DIBBS
4730-00-702-5377	2017-03-61	696	DIBBS
MS21902J4	2016-12-356	7	United States
4730-00-702-5377	2016-08-222	1424	DIBBS
4730-00-702-5377	2016-04-108	929	DIBBS
MS21902J4	2015-09-268	48	us
4730-00-702-5377	2015-08-216	895	DIBBS
4730-00-702-5377	2014-12-344	1100	US
MS21902J4	2014-11-324	12	US
MS21902J4	2014-11-314	13	IN
MS21902J4	2014-07-191	10	India
MS21902J4	2014-06-171	2	United States
MS21902J4	2014-03-63	100	US
MS21902J4	2013-10-301	1	United States
MS21902J4	2013-09-261	1	United States
MS21902J4	2013-09-261	1	United States
4730-00-702-5377	2013-08-213	20	PH
MS21902J4	2013-02-57	10	IL
MS21902J4	2013-02-51	50	Singapore
AS21902	2012-10-285	1	US
4730-00-702-5377	2012-06-167	1000	FR
4730-00-702-5377	2012-05-137	5	US
MS21902J4	2012-04-93	14	US
4730-00-702-5377	2012-03-89	456	DIBBS
MS21902J4	2012-02-47	1	Canada
MS21902J4	2012-02-47	1	Canada
4730-00-702-5377	2012-01-17	783	DIBBS
MS21902J4	2011-03-88	10	LT
AS4841	2011-03-69	8
4730-00-702-5377	2011-02-33	863	DIBBS
4730-00-702-5377	2010-12-355	679	DIBBS
4730-00-702-5377	2010-07-189	682	DIBBS
4730-00-702-5377	2010-05-121	981	DIBBS
MS21902J4	2009-11-329	2	United States
MS21902J4	2009-11-329	2	United States
4730-00-702-5377	2009-11-316	782	DIBBS
4730-00-702-5377	2009-07-183	849	DIBBS
MS21902J4	2009-05-145	1	Brazil
4730-00-702-5377	2009-02-40	1084	DIBBS
MS21902J4	2008-07-191	3600	Czech Republic

Cross Reference | NSN 4730-00-702-5377

Part Number	Cage Code	Manufacturer
8317X4	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
8317X4	79470	DANA CORP WEATHERHEAD DIV
AS21902	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21902J4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21902J4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21902J4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-702-5377

Compare

Related Products | NSN 4730-00-702-5377

4730-00-702-5396, 4730-00-702-5694, 4730-00-702-5846, 4730-00-702-6134, 4730-00-702-6256

Technical Data | NSN 4730-00-702-5377

Characteristic	Specifications
MATERIAL	STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763,CLASS 304,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	A66 FLARELESS W/CENTER WRENCHING FACILITY
CONNECTION TYPE	THREADED EXTERNAL BOSS ALL ENDS
CONNECTION STYLE	B71A EXTERNAL SEAT FOR GASKET SEAL ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS
NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS
THREAD CLASS	3A ALL ENDS

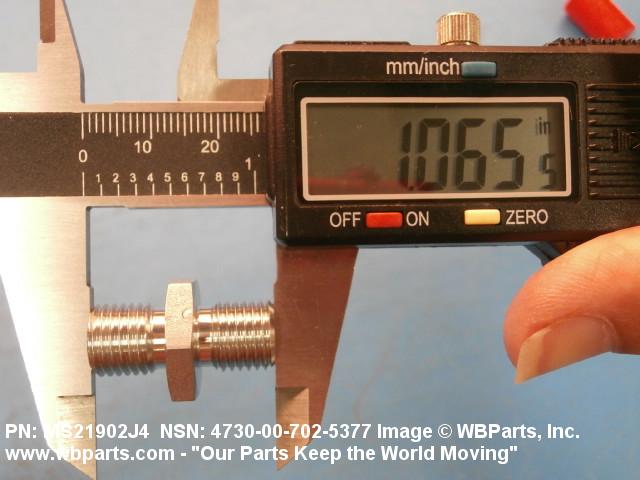

NOMINAL OVERALL LENGTH	1.062 INCHES
SPECIFICATION/STANDARD DATA	96906-MS21902 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 4730-00-702-5377

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-702-5377

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
