Product Details | FLUID PASSAGE BOLT
4730-00-690-1818 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 32570607, 32-57060-7, 4730-00-690-1818, 00-690-1818, 4730006901818, 006901818
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-690-1818 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-00-690-1818
Cross Reference | NSN 4730-00-690-1818
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-57060-7 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-690-1818
Technical Data | NSN 4730-00-690-1818
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |

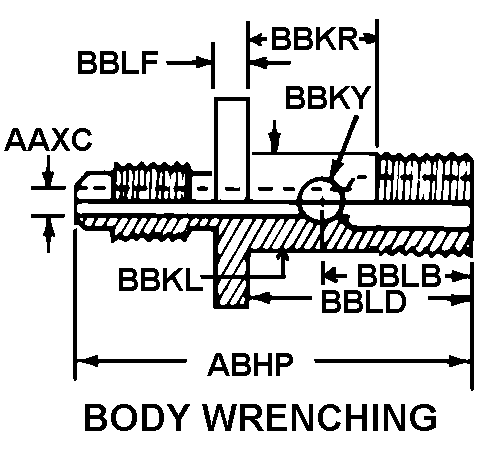

| BODY STYLE | 27 BODY WRENCHING |
| CONCENTRIC HOLE DIAMETER | 0.484 INCHES NOMINAL |
| OVERALL LENGTH | 2.828 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 1.057 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 1.300 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.609 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.280 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.815 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.255 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UN |
| FIRST END NOMINAL THREAD SIZE | 1.063 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 12 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.563 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C3 FLARED |
| SECOND END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| SECOND END THREAD SERIES DESIGNATOR | UNF |
| SECOND END NOMINAL THREAD SIZE | 0.875 INCHES |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.625 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 1.375 INCHES NOMINAL |
| SPECIAL FEATURES | TWO ADDITIONAL HOLES IN BODY 0.250 IN. DIA,180DEG APART,1.188 IN. C TO END |
