NSN 4730-00-684-7292 MS24398D84, MS24398D8-4, AN89484D

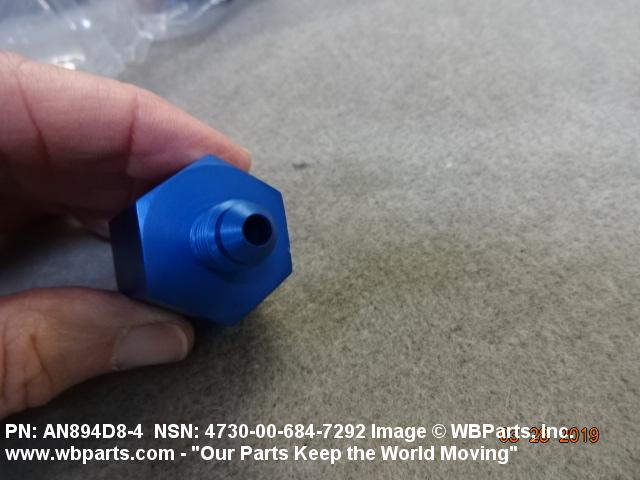

Product Details | TUBE TO BOSS STRAIGHT ADAPTER

4730-00-684-7292 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.

Part Alternates: MS24398D84, MS24398D8-4, AN89484D, AN894-8-4D, AN894D84, AN894D8-4, AS4875/1, AS48751, AS5173, AS5173D0804, MILF5509, MIL-F-5509, 8489789 , 4730-00-684-7292, 00-684-7292, 4730006847292, 006847292

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-684-7292	22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS )

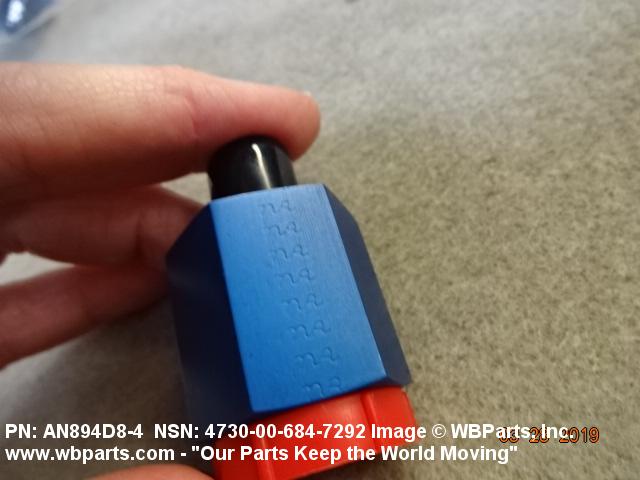

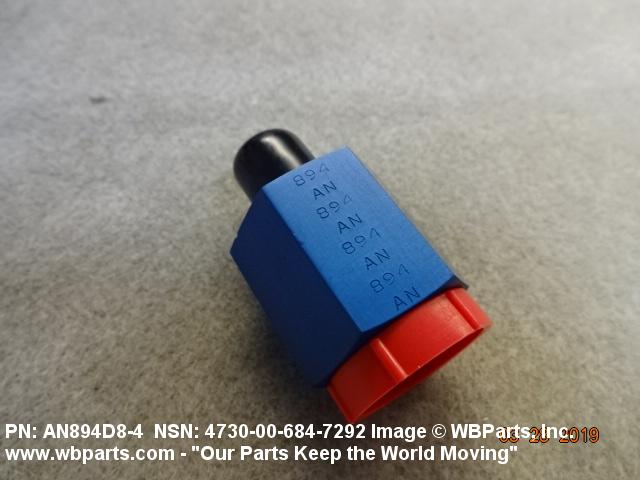

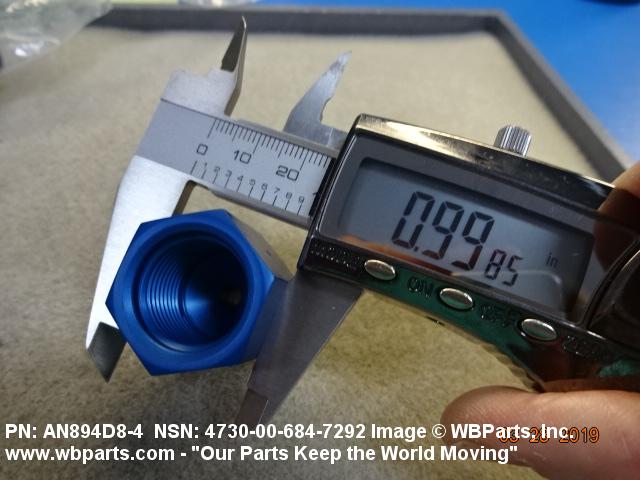

Drawings & Photos | NSN 4730-00-684-7292

Part Number	Request Date	QTY	Origin
4730-00-684-7292	2024-01-18	185	DIBBS
AN894D84	2021-02-49	100	United States
4730-00-684-7292	2019-02-45	2	US
4730-00-684-7292	2018-12-354	151	DIBBS
4730-00-684-7292	2018-12-343	151	DIBBS
MILF5509	2018-07-201	6	United States
4730-00-684-7292	2018-03-63	84	DIBBS
4730-00-684-7292	2017-03-89	67	DIBBS
AN894D84	2014-09-245	10	Ukraine
4730-00-684-7292	2013-09-262	88	DIBBS
4730-00-684-7292	2011-11-307	80	DIBBS
4730-00-684-7292	2011-07-210	63	DIBBS
4730-00-684-7292	2010-10-274	37	DIBBS
MILF5509	2009-10-301	1	PK
4730-00-684-7292	2009-05-126	56	DIBBS
4730-00-684-7292	2009-04-120	56	DIBBS
MILF5509	2009-02-55	100	US

Cross Reference | NSN 4730-00-684-7292

Part Number	Cage Code	Manufacturer
8489789	18876	U S ARMY AVIATION AND MISSILE COMMAND
AN894-8-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN894D8-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4875/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5173	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5173D0804	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24398D8-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-684-7292

Compare

Related Products | NSN 4730-00-684-7292

4730-00-684-7293, 4730-00-684-7297, 4730-00-684-7301, 4730-00-684-7302, 4730-00-684-7303

Technical Data | NSN 4730-00-684-7292

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6,T6 OR T851 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TYPE2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	250.0 DEG FAHRENHEIT SINGLE RESPONSE

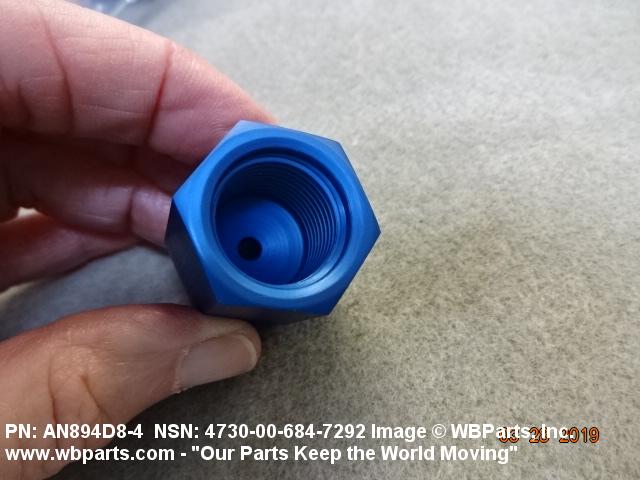

CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B9 GASKET SEAL 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END

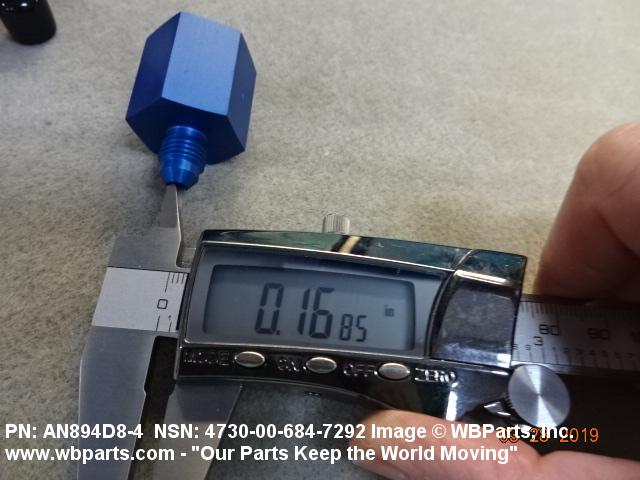

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNF 1ST END UNJF 2ND END

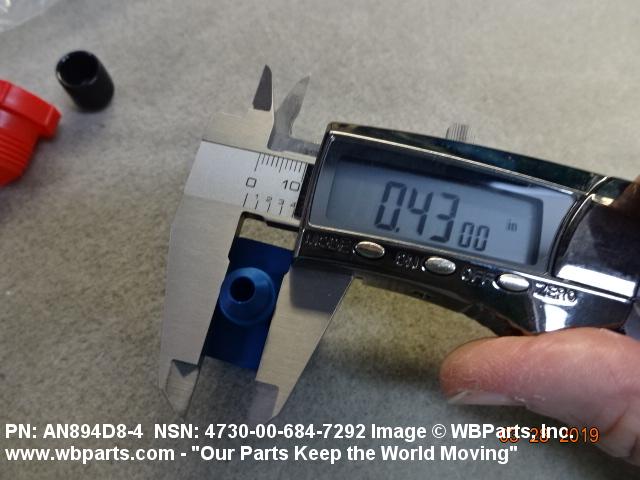

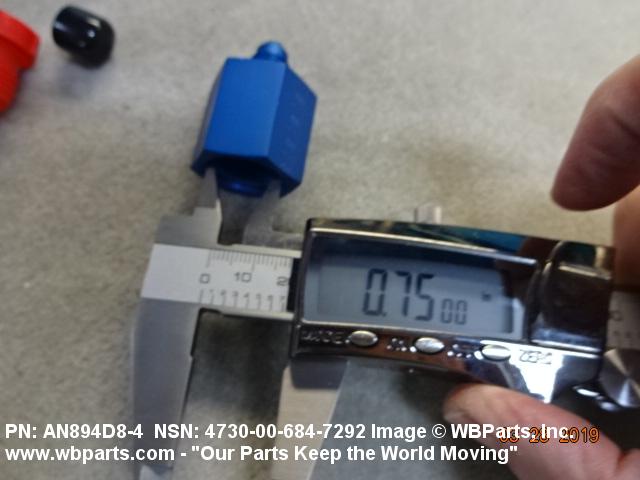

NOMINAL THREAD SIZE	0.438 INCHES 1ST END 0.750 INCHES 2ND END
THREAD CLASS	3A 1ST END 3B 2ND END

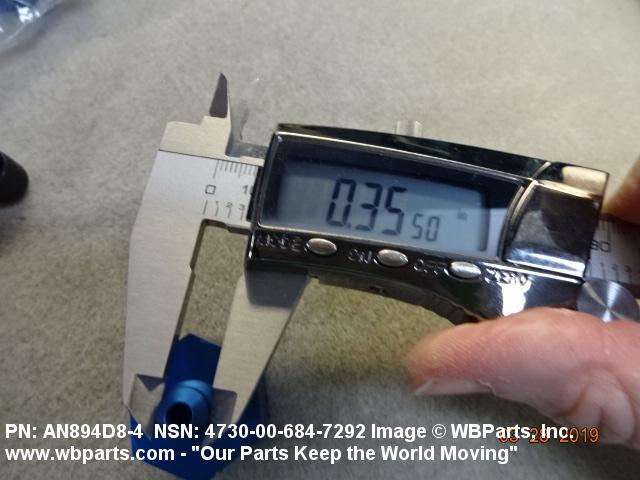

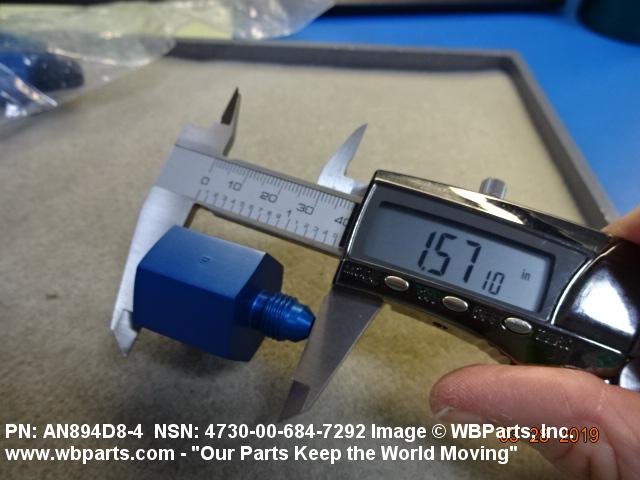

NOMINAL OVERALL LENGTH	1.578 INCHES
