NSN 4730-00-684-6417 MS219516L, MS21951-6L, 00-684-6417
Product Details | FLUID PASSAGE BOLT
4730-00-684-6417 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: MS219516L, MS21951-6L, 4730-00-684-6417, 00-684-6417, 4730006846417, 006846417
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-684-6417 | 18683 ( BOLT, FLUID PASSAGE ) |

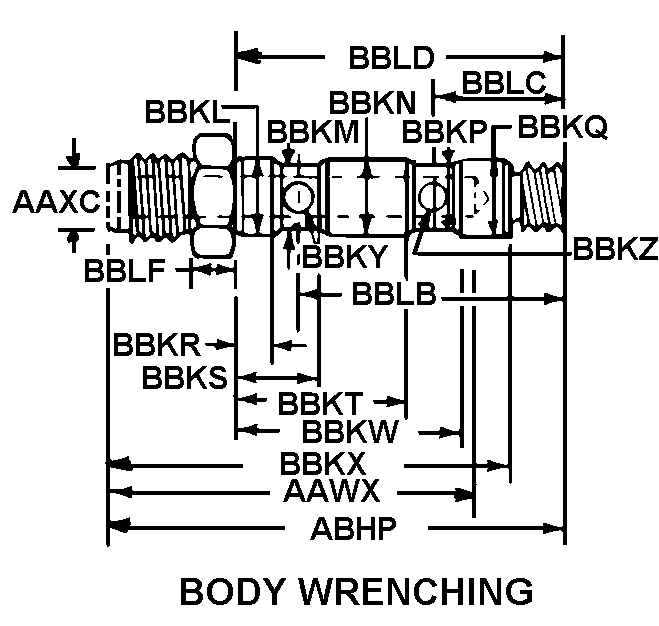

Drawings & Photos | NSN 4730-00-684-6417
Cross Reference | NSN 4730-00-684-6417
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21951-6L | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-684-6417
Technical Data | NSN 4730-00-684-6417
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-268 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| BODY STYLE | 12 BODY WRENCHING |
| CONCENTRIC HOLE DEPTH | 2.812 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.203 INCHES NOMINAL |
| OVERALL LENGTH | 3.524 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.499 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.433 INCHES NOMINAL |
| THIRD DIAMETER FROM WRENCHING FEATURE | 0.499 INCHES NOMINAL |
| FOURTH DIAMETER FROM WRENCHING FEATURE | 0.433 INCHES NOMINAL |
| FIFTH DIAMETER FROM WRENCHING FEATURE | 0.499 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.354 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.666 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF THIRD DIAMETER | 1.354 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FOURTH DIAMETER | 1.726 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIFTH DIAMETER | 2.094 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.189 INCHES NOMINAL |
| SECOND RADIAL FLUID HOLE DIAMETER | 0.189 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.991 INCHES NOMINAL |
| DISTANCE FROM SECOND RADIAL HOLE CENTER TO END OF BOLT | 0.991 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 2.531 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.437 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.437 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 20 |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.437 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C3 FLARED |
| SECOND END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| SECOND END THREAD SERIES DESIGNATOR | UNF |
| SECOND END NOMINAL THREAD SIZE | 0.562 INCHES |
| SECOND END THREAD QUANTITY PER INCH | 18 |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.473 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
Restrictions/Controls & Freight Information | NSN 4730-00-684-6417
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013280 | ALUM BOLTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-684-6417
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
