Product Details | FLUID PASSAGE BOLT
4730-00-679-5682 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 587198, 8761091, 4730-00-679-5682, 00-679-5682, 4730006795682 , 006795682
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-679-5682 | 18683 ( BOLT, FLUID PASSAGE ) |

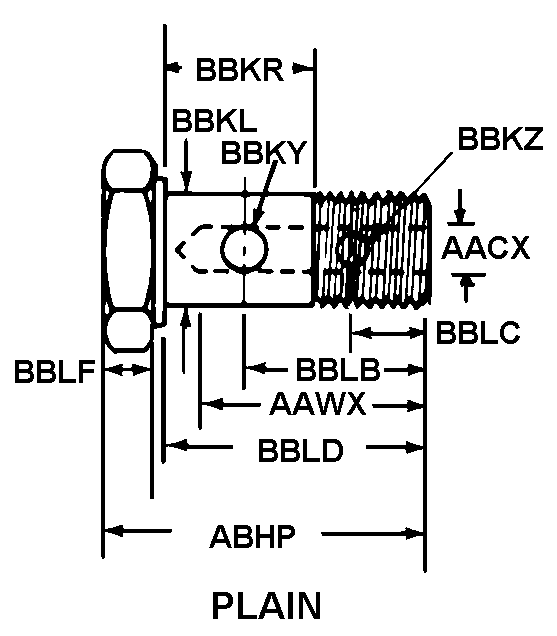

Drawings & Photos | NSN 4730-00-679-5682
Demand History | NSN 4730-00-679-5682
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-679-5682 | 2024-07-22 | 2000 | US |
| 8761091 | 2024-07-22 | 2000 | US |
| 4730-00-679-5682 | 2023-09-25 | 2228 | DIBBS |
| 4730-00-679-5682 | 2023-09-13 | 2228 | DIBBS |
| 4730-00-679-5682 | 2020-10-20 | 2191 | DIBBS |
| 4730-00-679-5682 | 2019-05-23 | 4114 | DIBBS |
| 4730-00-679-5682 | 2018-11-05 | 2500 | DIBBS |
| 4730-00-679-5682 | 2017-11-19 | 1653 | DIBBS |
| 4730-00-679-5682 | 2017-10-15 | 171 | DIBBS |
| 4730-00-679-5682 | 2017-09-17 | 186 | DIBBS |
| 4730-00-679-5682 | 2016-11-28 | 498 | DIBBS |
| 4730-00-679-5682 | 2016-11-15 | 498 | DIBBS |
| 4730-00-679-5682 | 2016-09-02 | 120 | DIBBS |
| 4730-00-679-5682 | 2016-08-22 | 120 | DIBBS |
| 4730-00-679-5682 | 2016-08-01 | 121 | DIBBS |
| 4730-00-679-5682 | 2016-07-19 | 121 | DIBBS |
| 4730-00-679-5682 | 2010-05-24 | 1799 | DIBBS |
Cross Reference | NSN 4730-00-679-5682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730006795682 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 587198 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| 8761091 | 14351 | TELEDYNE CONTINENTAL MOTORS INDUSTRIAL PRODUCTS DIV |
| 8761091 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-679-5682
Related Products | NSN 4730-00-679-5682
Technical Data | NSN 4730-00-679-5682
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633,C1137 THRU C1141 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| BODY STYLE | 21 PLAIN |
| CONCENTRIC HOLE DEPTH | 2.240 INCHES MINIMUM AND 2.300 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.280 INCHES NOMINAL |
| OVERALL LENGTH | 2.940 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.491 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 1.560 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.250 INCHES NOMINAL |
| SECOND RADIAL FLUID HOLE DIAMETER | 0.250 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 2.060 INCHES NOMINAL |
| DISTANCE FROM SECOND RADIAL HOLE CENTER TO END OF BOLT | 1.620 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 2.680 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.260 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.500 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 20 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 1.120 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.850 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| COTTER PIN HOLE DIAMETER | 0.070 INCHES NOMINAL |
| DISTANCE FROM BOLT END TO HOLE CENTER | 2.840 INCHES NOMINAL |
| HARDNESS RATING | 26.0 ROCKWELL C NOMINAL |
