NSN 4730-00-653-7321 F4603, FC4603, 11208187
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-653-7321 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: F4603, FC4603, 11208187, 2018842 , 3.3522-2100.1, 3352221001, 8393295, 88262H, 4730-00-653-7321, 00-653-7321, 4730006537321, 006537321
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-653-7321 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-653-7321
Cross Reference | NSN 4730-00-653-7321
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11208187 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 11208187 | 79470 | DANA CORP WEATHERHEAD DIV |
| 2018842 | 23862 | MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP |
| 2018842 | 24617 | GENERAL MOTORS CORP |
| 2018842 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 3.3522-2100.1 | D1304 | CONTINENTAL TEVES AG & CO. OHG |
| 8393295 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 88262H | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| F4603 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC4603 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-653-7321
Technical Data | NSN 4730-00-653-7321
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |

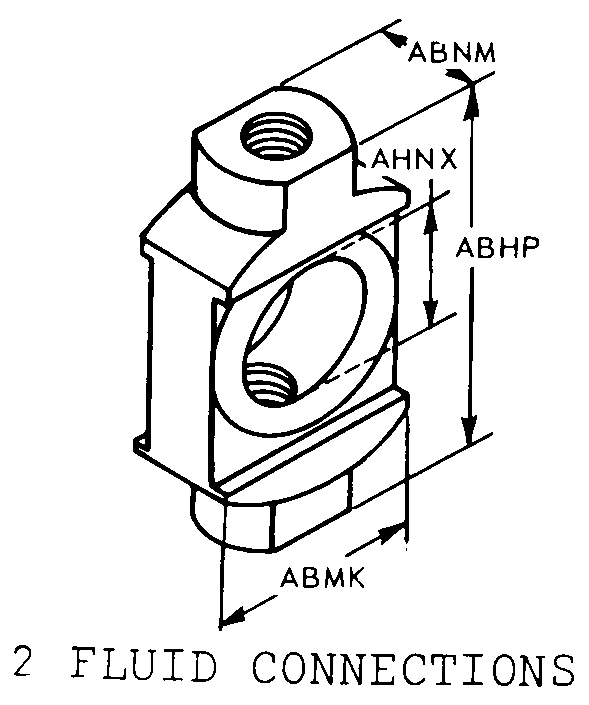

| STYLE DESIGNATOR | D7 2 FLUID CONNECTIONS |
| OVERALL LENGTH | 1.688 INCHES NOMINAL |
| OVERALL WIDTH | 0.656 INCHES NOMINAL |
| THICKNESS | 0.625 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.435 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| FLUID CONNECTION QUANTITY | 2 |
| CONNECTION STYLE | E2 INVERTED FLARE |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/4 IN. OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 7/16 IN.-24 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 42.0 |
| BOLT HOLE FLATS SERRATIONS | PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
Restrictions/Controls & Freight Information | NSN 4730-00-653-7321
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
