NSN 4730-00-625-4239 LE1452512D, LE145-25-12D, LE1552512D
Product Details | UNION NUT
4730-00-625-4239 An internally threaded nut which has an internal seat or shoulder designed to engage the nut retaining flange of a union tailpiece. The threaded portion is used to engage the thread piece of a union, union elbor or the like. Excludes NUT (1), TUBE COUPLING.202109000004730000000
Part Alternates: LE1452512D, LE145-25-12D, LE1552512D, LE155-25-12D, 4730-00-625-4239, 00-625-4239, 4730006254239, 006254239
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-625-4239 | 19964 ( NUT, UNION ) |

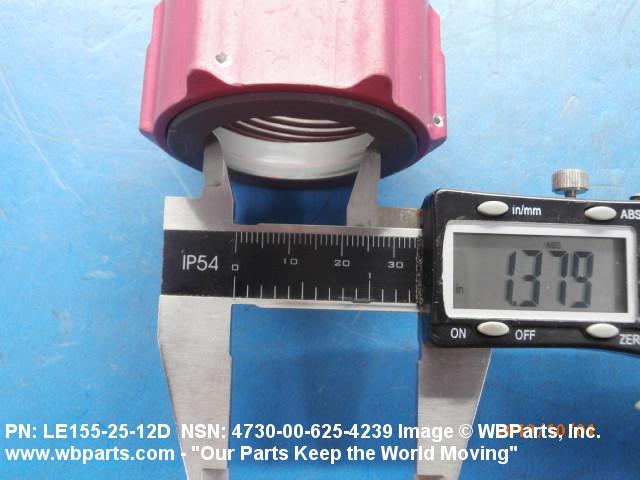

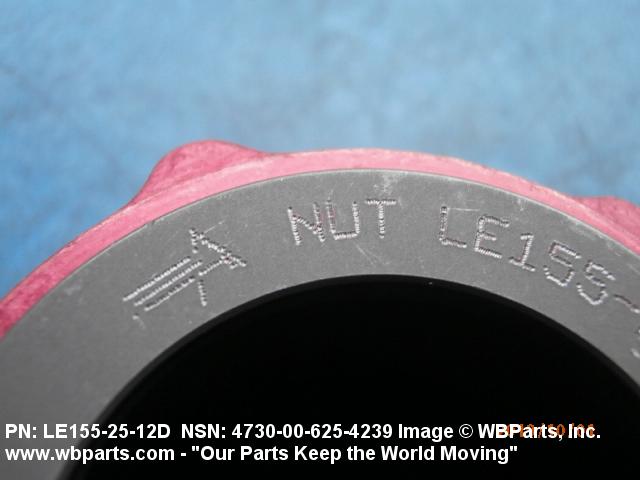

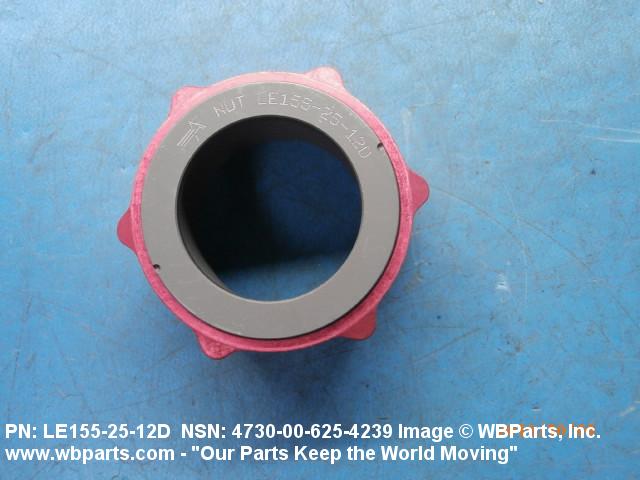

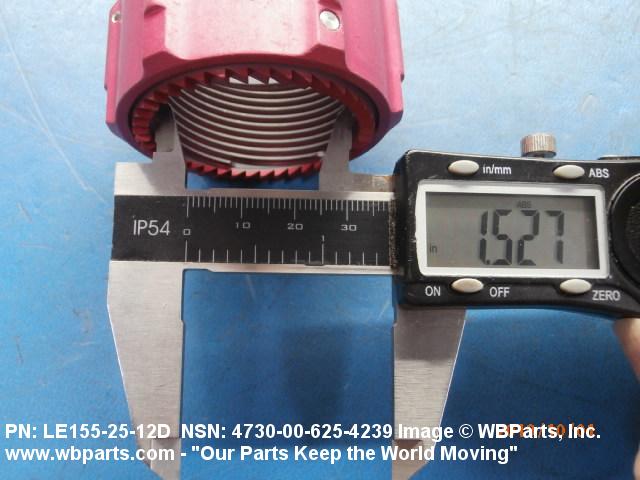

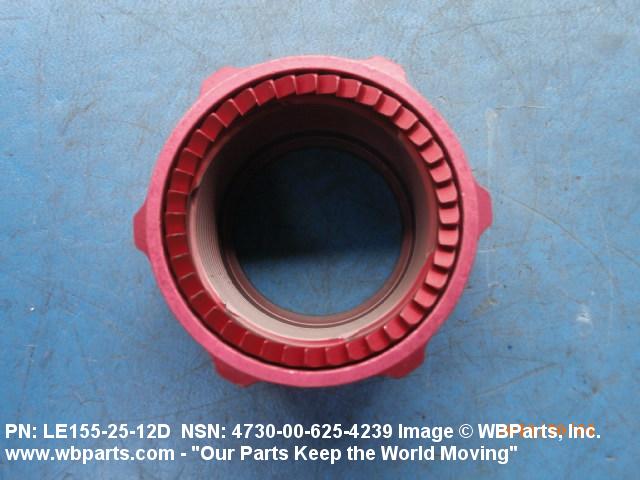

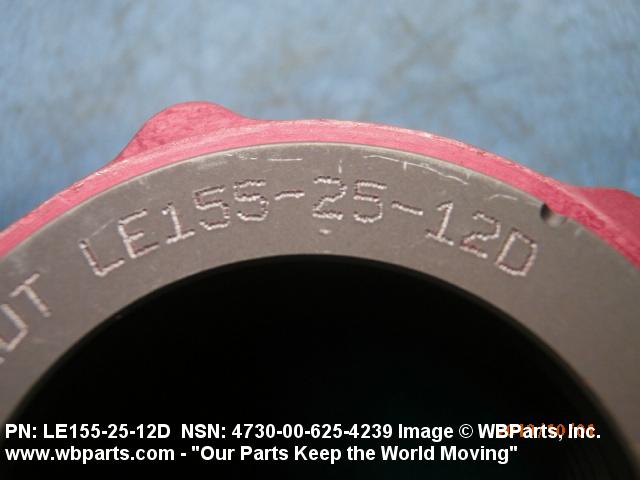

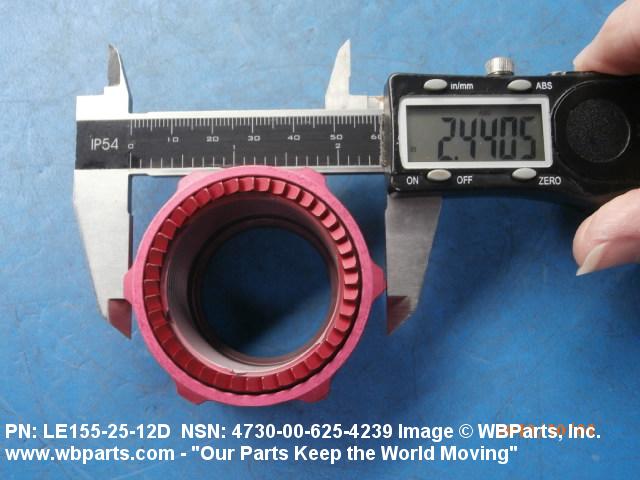

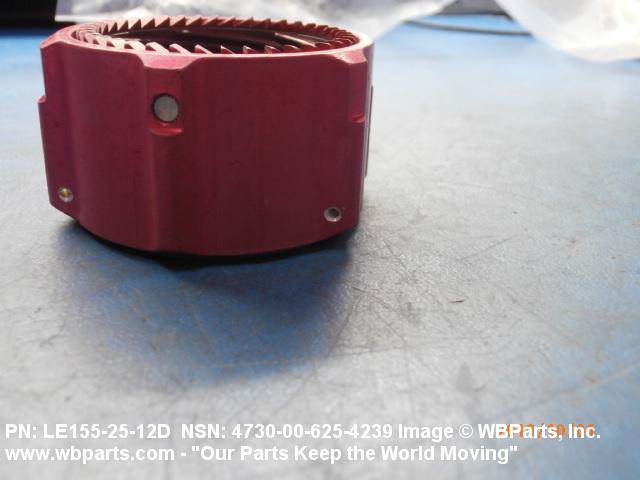

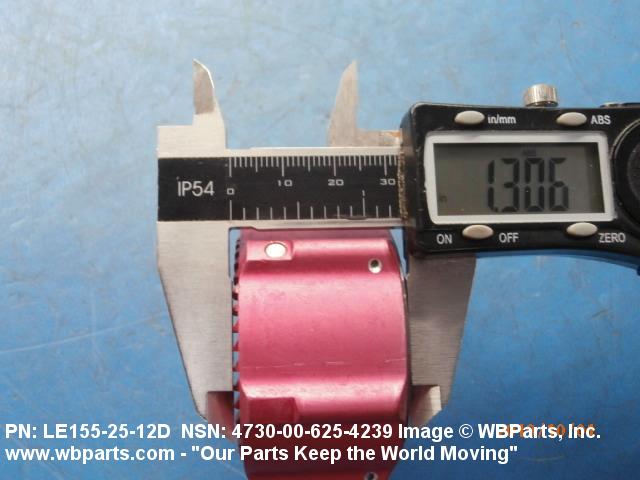

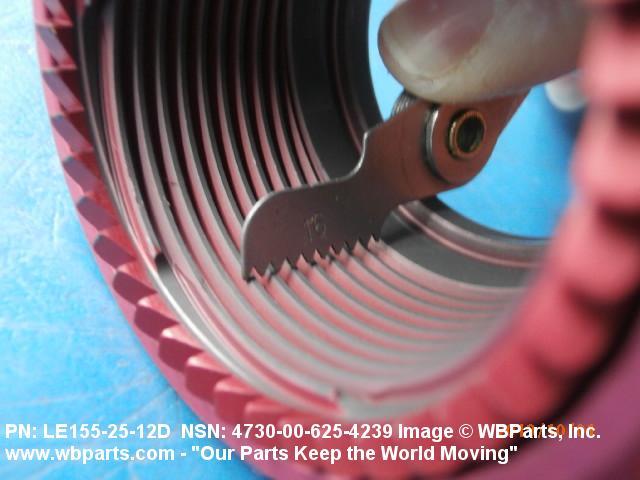

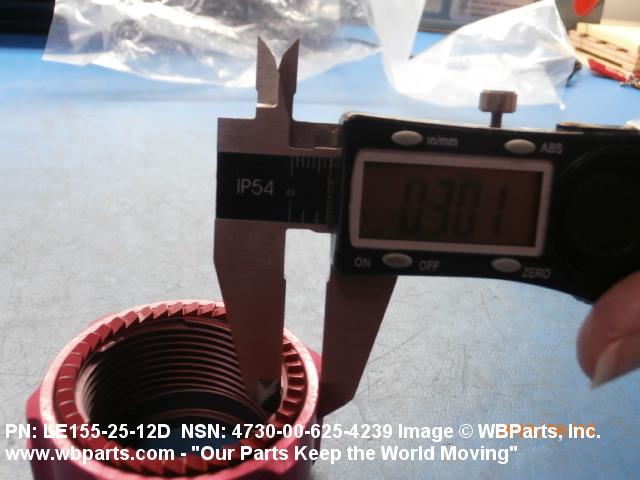

Drawings & Photos | NSN 4730-00-625-4239
Demand History | NSN 4730-00-625-4239
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-625-4239 | 2019-09-266 | 2 | us |
| LE155-25-12D | 2019-01-31 | 26 | DIBBS |
| 4730-00-625-4239 | 2018-05-138 | 1 | DIBBS-RFPs |
| 4730-00-625-4239 | 2018-03-63 | 20 | DIBBS |
| 4730-00-625-4239 | 2012-05-125 | 38 | DIBBS |
| 4730-00-625-4239 | 2012-04-114 | 10 | DIBBS |
| 4730-00-625-4239 | 2009-02-58 | 5 | DIBBS |
| 4730-00-625-4239 | 2008-12-364 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-625-4239
Related Products | NSN 4730-00-625-4239
Technical Data | NSN 4730-00-625-4239
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 1.625 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A370 ROUND |
| SHOULDER WIDTH | 0.344 INCHES NOMINAL |
| NUT DIAMETER | 2.422 INCHES NOMINAL |
| NUT HEIGHT | 1.297 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| SHOULDER STEP WIDTH | 0.172 INCHES NOMINAL |
| SHOULDER SEAT DIAMETER | 1.625 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| MAXIMUM WORKING PRESSURE RATING AND SERVICE FOR WHICH DESIGNED | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4730-00-625-4239
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-625-4239
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
