NSN 4730-00-618-8862 M83798/3-004 , M83798/3-4 , M837983004

Product Details | TUBE TO HOSE ELBOW

4730-00-618-8862 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube, The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; CONNECTOR, MULTIPLE, FLUID PRESSURE LINE; and ELBOW, SWIVEL FLANGE TO HOSE.

Part Alternates: M83798/3-004 , M83798/3-4 , M837983004, M8379834, M83798-3-4, MILDTL83798DF, MIL-DTL-83798DF , MIL-F-83798/3, MILF837983, 3322282130, 332-2282-130, 6804, 680-4, 88914, 8891-4, 4730-00-618-8862, 00-618-8862, 4730006188862, 006188862

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-618-8862	03772 ( ELBOW, TUBE TO HOSE )

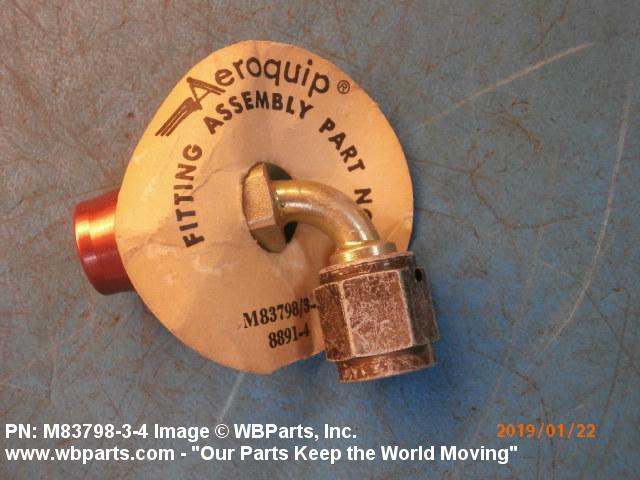

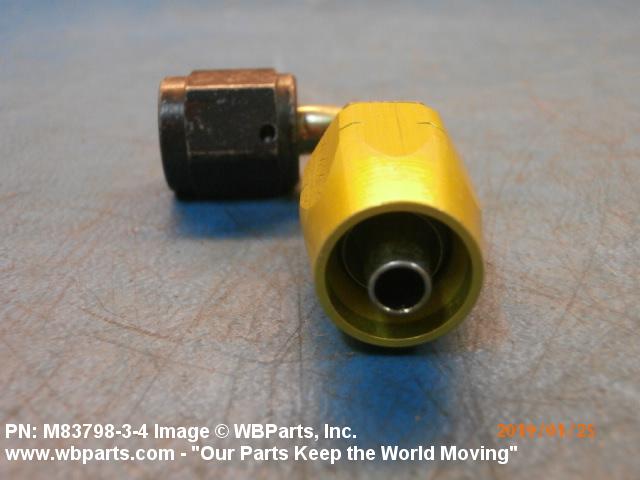

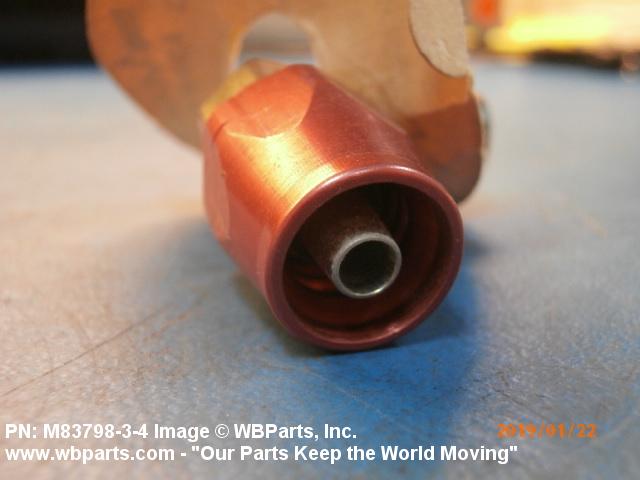

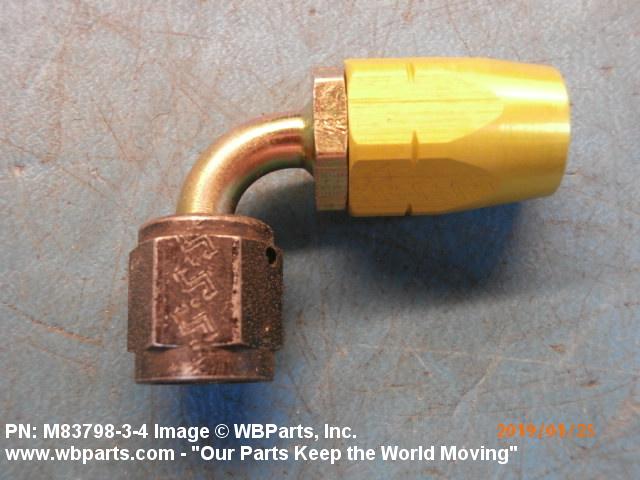

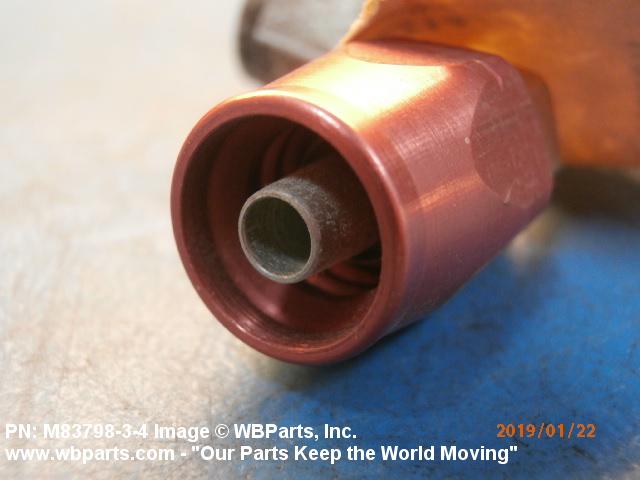

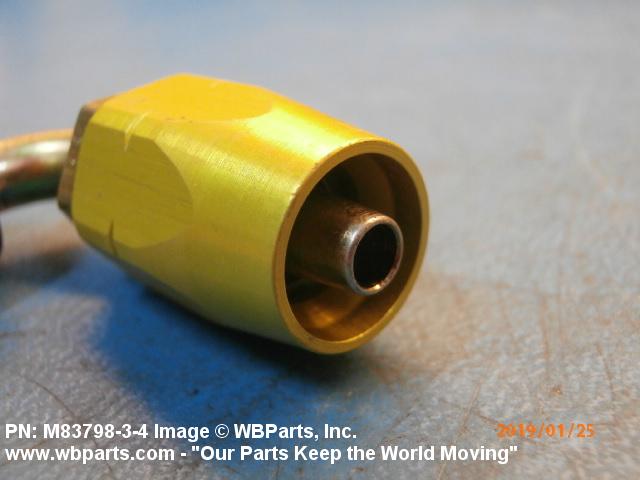

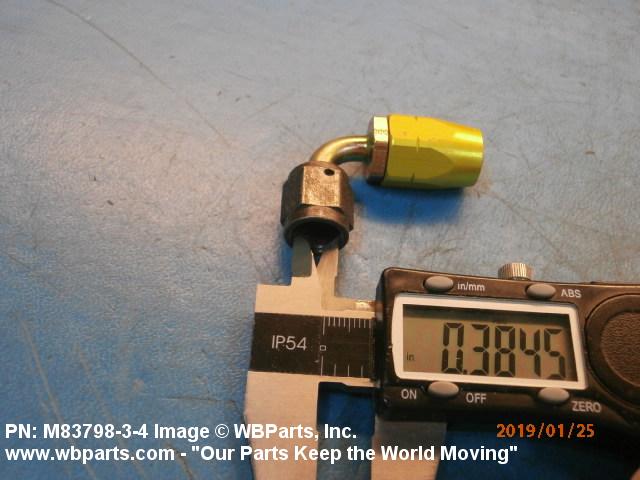

Drawings & Photos | NSN 4730-00-618-8862

Part Number	Request Date	QTY	Origin
4730-00-618-8862	2024-07-187	4	United States
4730-00-618-8862	2019-10-297	376	DIBBS
4730-00-618-8862	2019-10-274	437	DIBBS
4730-00-618-8862	2019-09-262	437	DIBBS
4730-00-618-8862	2019-08-231	947	DIBBS
4730-00-618-8862	2019-08-219	947	DIBBS
4730-00-618-8862	2019-07-206	425	GU
4730-00-618-8862	2019-07-196	2022	DIBBS
4730-00-618-8862	2019-07-185	2022	DIBBS
4730-00-618-8862	2019-05-133	427	DIBBS
4730-00-618-8862	2019-05-122	427	DIBBS
M8379834	2019-01-15	4	United States
4730-00-618-8862	2018-12-346	12	United States
4730-00-618-8862	2018-06-179	1021	DIBBS
4730-00-618-8862	2018-05-126	576	DIBBS
4730-00-618-8862	2018-03-88	908	DIBBS
4730-00-618-8862	2018-03-63	527	DIBBS
4730-00-618-8862	2018-02-32	487	DIBBS
4730-00-618-8862	2016-10-278	263	DIBBS
4730-00-618-8862	2016-02-35	421	DIBBS
4730-00-618-8862	2014-04-106	564	DIBBS
M8379834	2013-09-253	12	United States
M8379834	2013-03-79	60	United States
4730-00-618-8862	2013-03-69	475	DIBBS
4730-00-618-8862	2012-12-338	0	DIBBS
4730-00-618-8862	2012-08-240	242	DIBBS
4730-00-618-8862	2012-08-240	256	DIBBS
4730-00-618-8862	2012-08-240	784	DIBBS
4730-00-618-8862	2012-08-226	242	DIBBS
4730-00-618-8862	2012-08-220	256	DIBBS
4730-00-618-8862	2012-08-220	784	DIBBS
4730-00-618-8862	2012-06-158	600	DIBBS
4730-00-618-8862	2012-05-126	184	DIBBS
4730-00-618-8862	2012-03-80	200	DIBBS
4730-00-618-8862	2011-11-308	403	DIBBS
4730-00-618-8862	2011-11-306	140	DIBBS
4730-00-618-8862	2010-04-106	42	DIBBS
4730-00-618-8862	2009-12-364	408	DIBBS
4730-00-618-8862	2009-10-303	51	DIBBS

Cross Reference | NSN 4730-00-618-8862

Part Number	Cage Code	Manufacturer
332-2282-130	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
680-4	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
8891-4	00624	EATON CORPORATION DBA AEROSPACE DIV
M83798/3-004	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83798/3-4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-83798DF	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-83798/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-618-8862

Compare

Related Products | NSN 4730-00-618-8862

4730-00-618-8864, 4730-00-618-8971, 4730-00-618-8972, 4730-00-618-8976, 4730-00-618-9013

Technical Data | NSN 4730-00-618-8862

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL

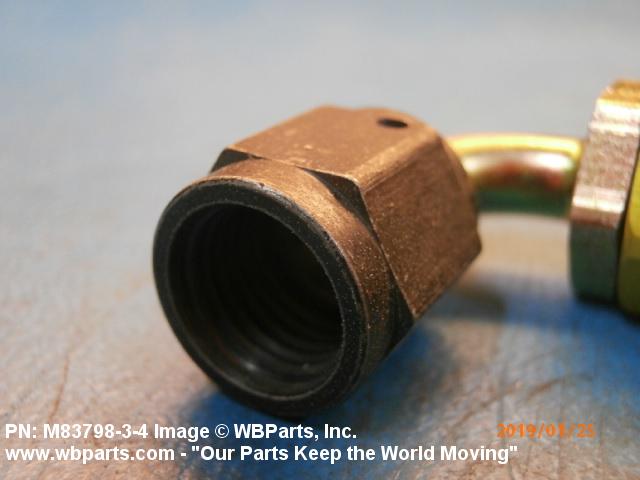

CONNECTION TYPE	THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END
CONNECTION STYLE	B3 SWIVEL NUT, FLARE 1ST END B61 GRIPPING NIPPLE 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END

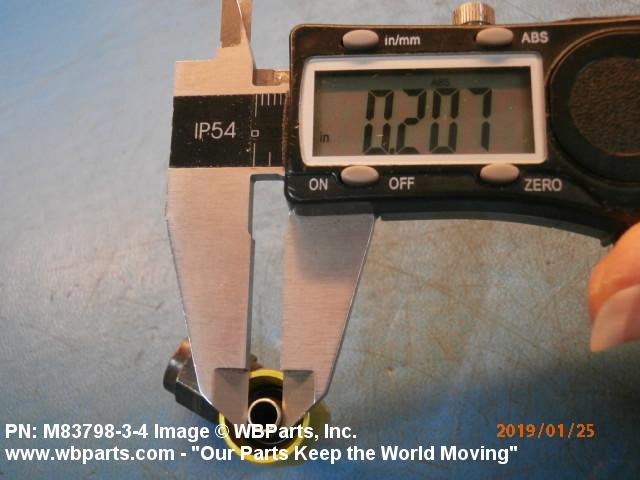

NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED	0.218 INCHES 2ND END
NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED	0.438 INCHES 2ND END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNJF 1ST END

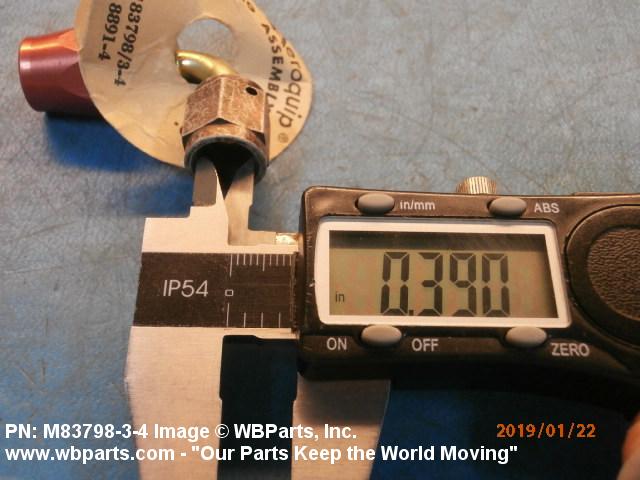

NOMINAL THREAD SIZE	0.438 INCHES 1ST END
THREAD CLASS	3B 1ST END

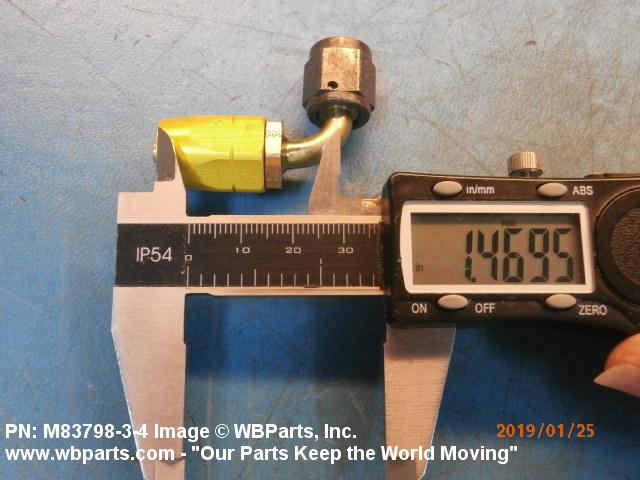

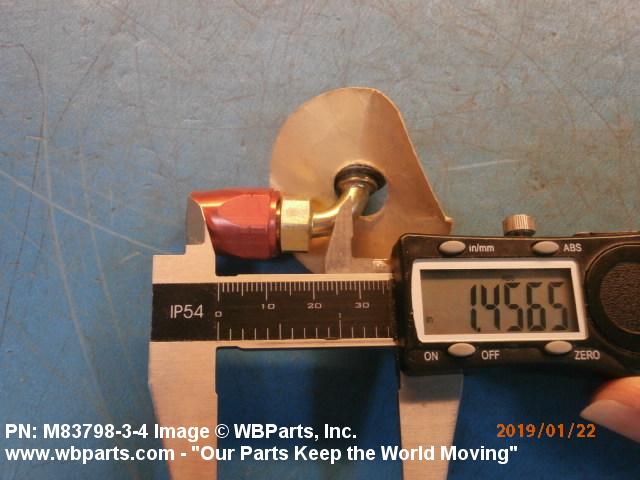

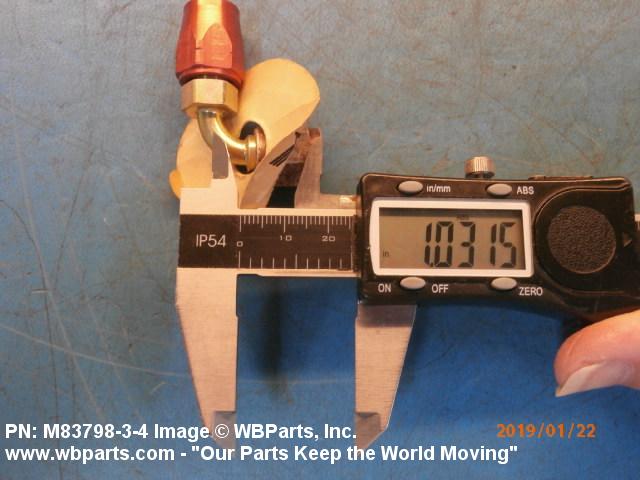

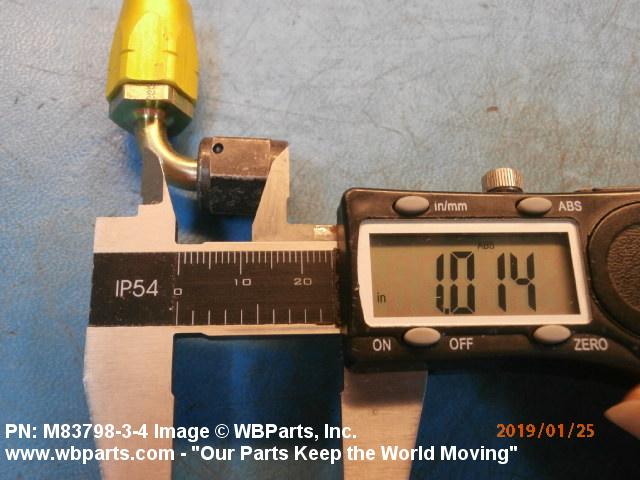

LEG LENGTH	1.016 INCHES NOMINAL 1ST END 1.468 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
FURNISHED ITEMS AND QUANTITY	1 LONG COUPLING NUT AND 1 COUPLING SLEEVE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-83798/3
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83798-3-4
