NSN 4730-00-618-4227 MS2191410, MS21914-10, AFP24110
Product Details | TUBE CAP
4730-00-618-4227 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS2191410, MS21914-10, AFP24110, AFP241-10, AS18280, AS2191410, AS21914-10, BACC14AD10, DB0C14AD10, FER2266110, FER22661-10, 4690009-10, 20281310, 2-02813-10, 4730-00-618-4227, 00-618-4227, 4730006184227, 006184227, 469000910
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-618-4227 | 06074 ( CAP, TUBE ) |

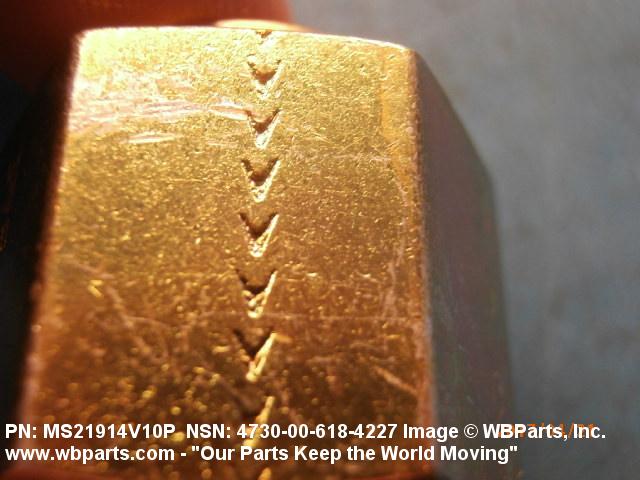

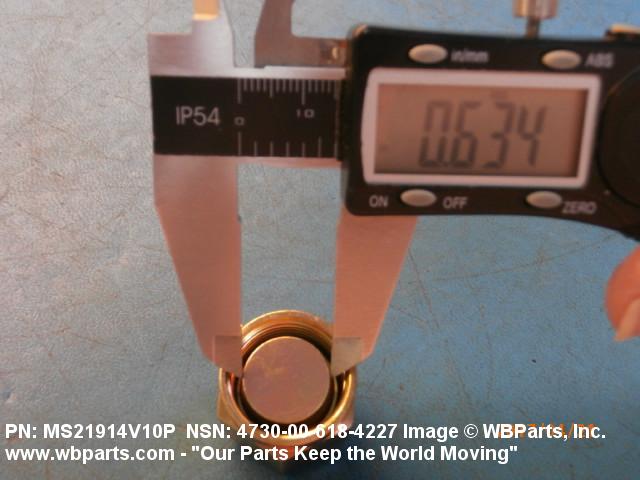

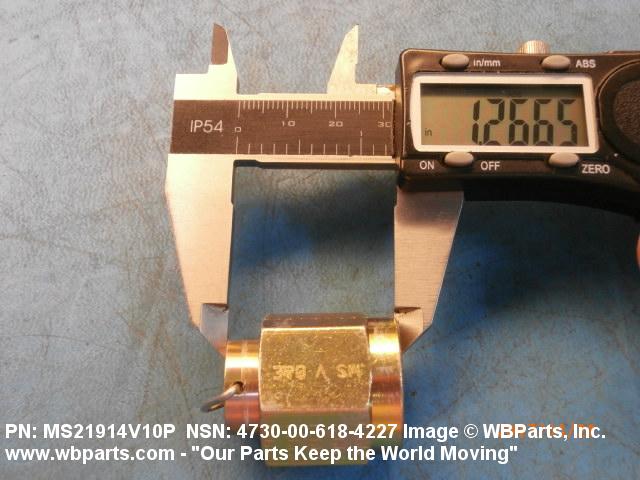

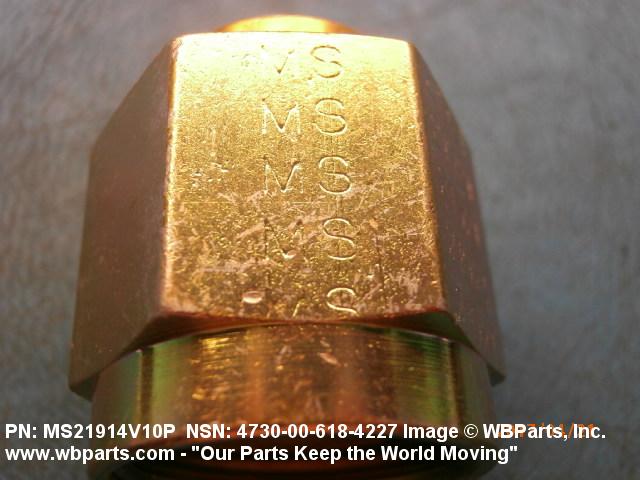

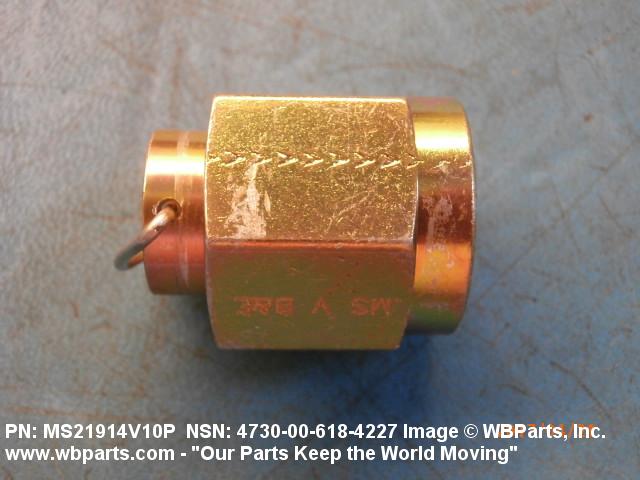

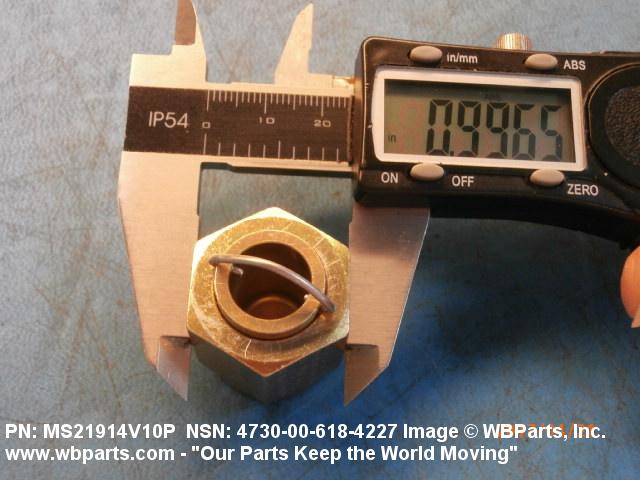

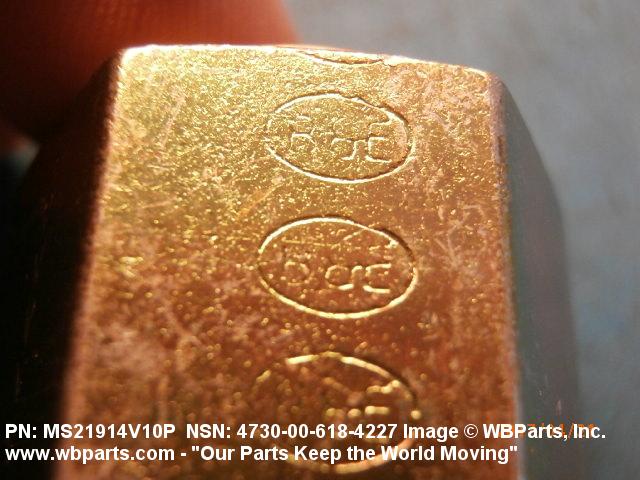

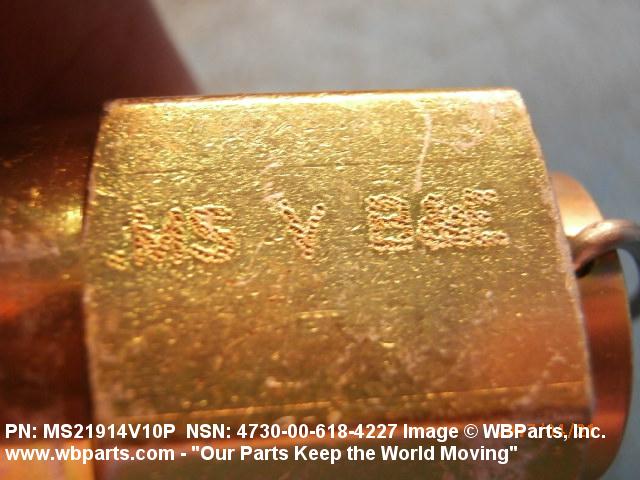

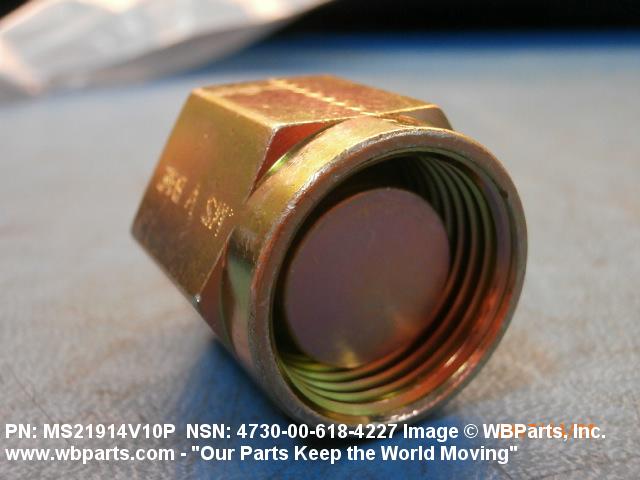

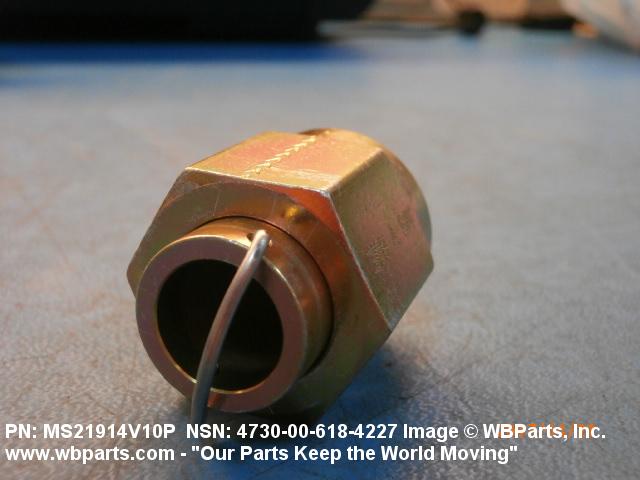

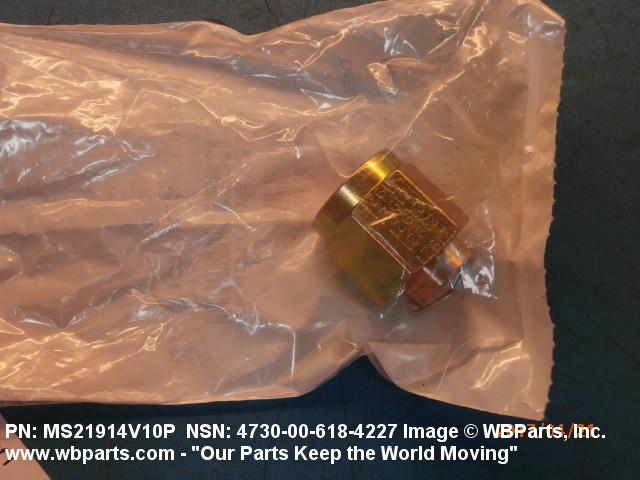

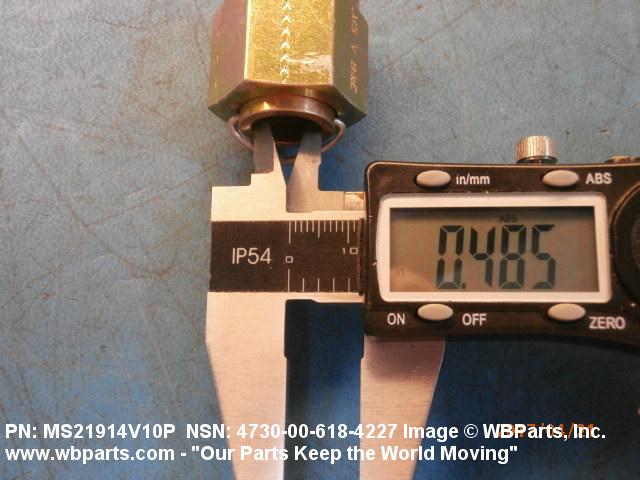

Drawings & Photos | NSN 4730-00-618-4227
Demand History | NSN 4730-00-618-4227
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-618-4227 | 2024-12-345 | 10 | United States |
| 4730-00-618-4227 | 2024-06-164 | 1 | Germany |
| MS2191410 | 2020-05-139 | 25 | United States |
| MS2191410 | 2020-03-66 | 2 | US |
| 4730-00-618-4227 | 2018-10-276 | 1 | US |
| 4730-00-618-4227 | 2018-10-276 | 10 | US |
| 4730-00-618-4227 | 2017-04-108 | 12 | United States |
| MS2191410 | 2017-04-108 | 12 | United States |
| MS2191410 | 2015-08-217 | 4 | US |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-618-4227 | 2013-09-259 | 4 | ES |
| AS2191410 | 2013-03-74 | 3 | Canada |
| MS2191410 | 2012-04-114 | 16 | United States |
| AS2191410 | 2008-01-29 | 2 | US |
| MS2191410 | 2006-07-201 | 20 | United States |
Cross Reference | NSN 4730-00-618-4227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-02813-10 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 2-02813-10 | R1120 | SATAIR A/S |
| 4690009-10 | 50948 | PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN |
| AFP241-10 | 30974 | AEROFIT, LLC |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21914-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACC14AD10 | 81205 | THE BOEING COMPANY DBA BOEING |
| DB0C14AD10 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| FER22661-10 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| MS21914-10 | 1X015 | NESTOR SALES LLC DBA AIM SUPPLY CO |
| MS21914-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-618-4227
Related Products | NSN 4730-00-618-4227
Technical Data | NSN 4730-00-618-4227
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OR STEEL COMP 1141 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | A14 CAP, TUBE, FLARELESS |
| CONNECTION STYLE | G6 PRESSURE SEAL FLARELESS |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT NOMINAL RADIUS | 0.0225 INCHES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.625 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21914 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | USED ON AIRCRAFT FLUID SYSTEM |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 225.0 DEG FAHRENHEIT ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-00-618-4227
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-618-4227
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
